Wakarara Details

Property	Value
Rupture Count	2,215
Ruptures Above Sect Min Mag	2,215
Ruptures w/ Nonzero Rates	3
Magnitude Range	[7.07, 8.44]
Length Range	[26, 731] km
Total Rate	3.7859478E-5 /yr
Multi-Fault Rate	3.7859478E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	80

Table Of Contents

Magnitude-Frequency Distribution

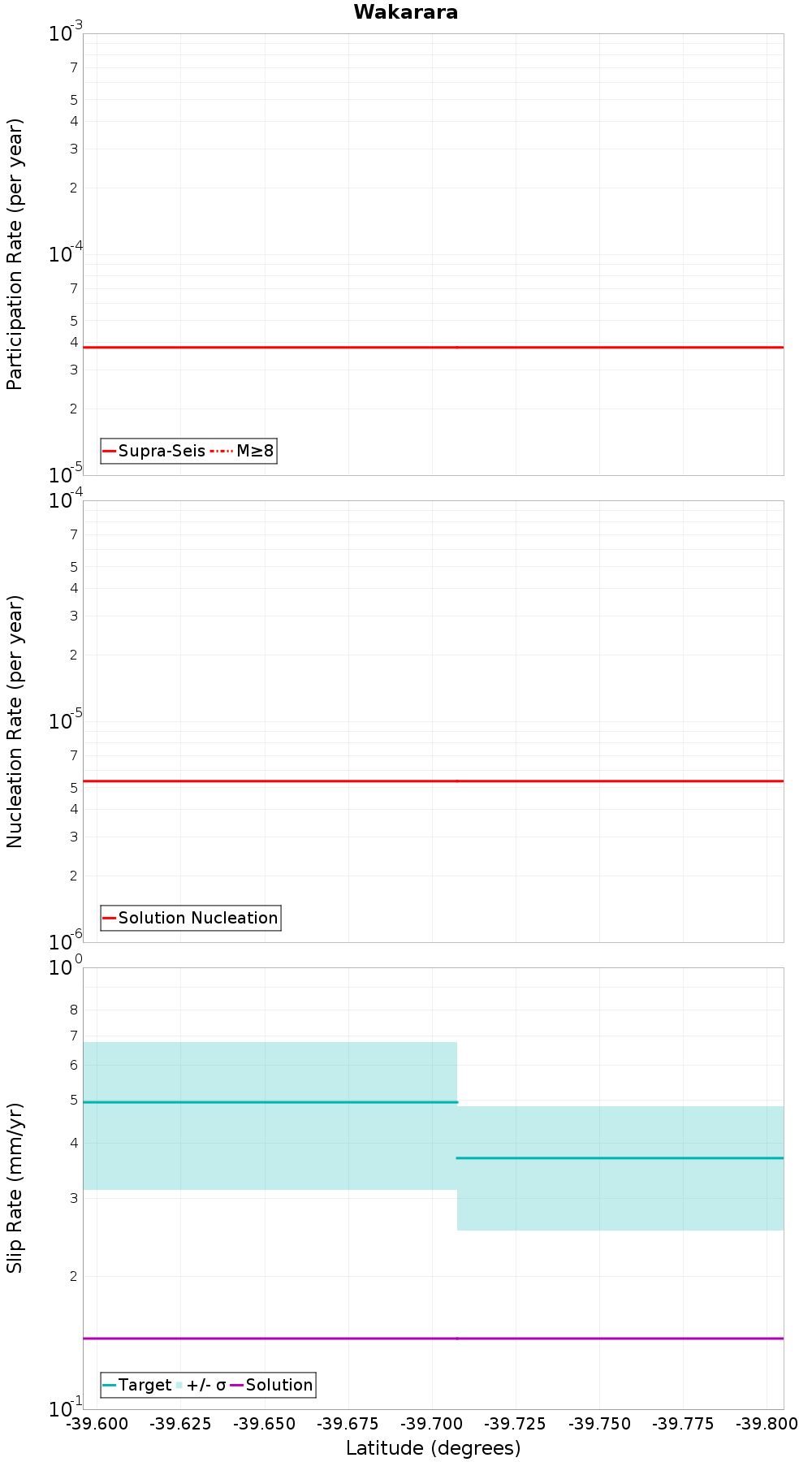

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

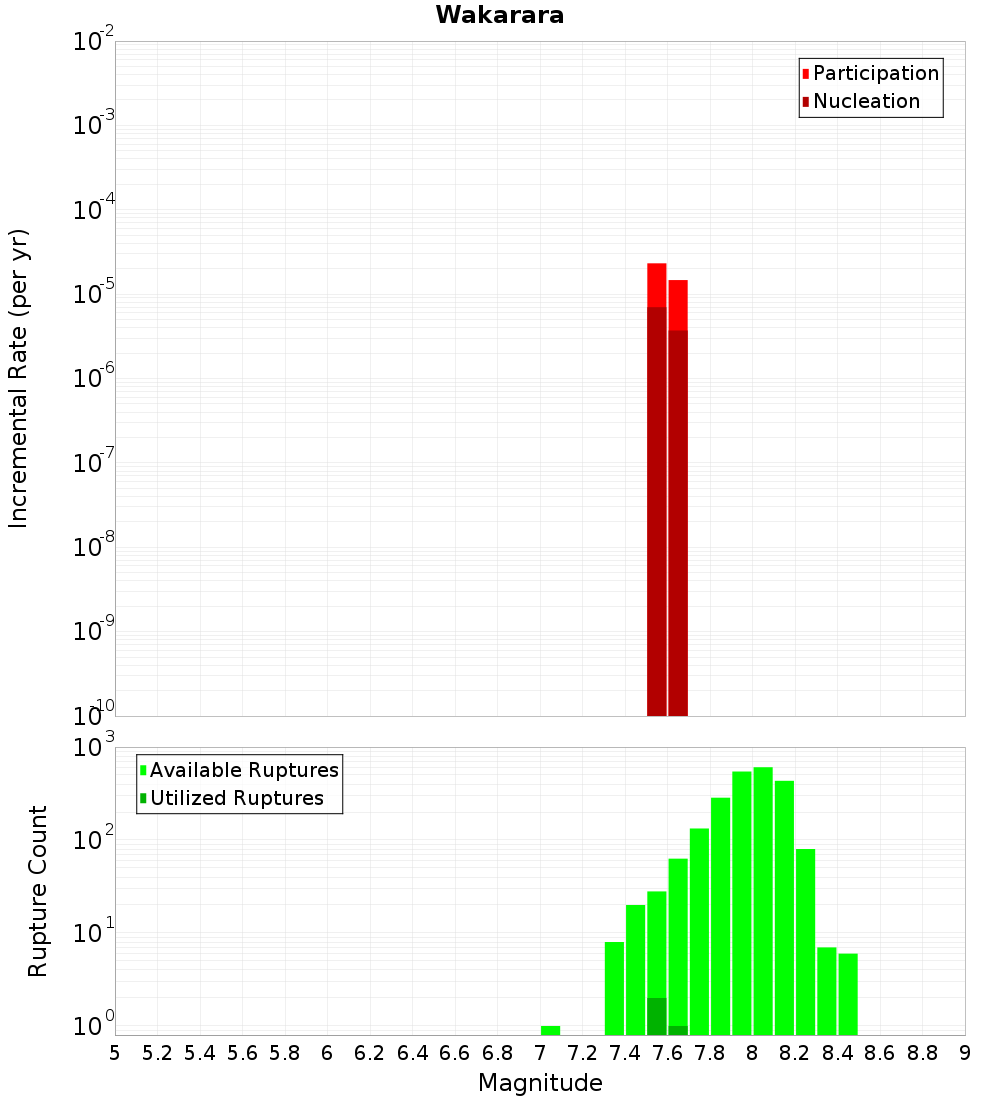

Magnitude-Frequency Distribution

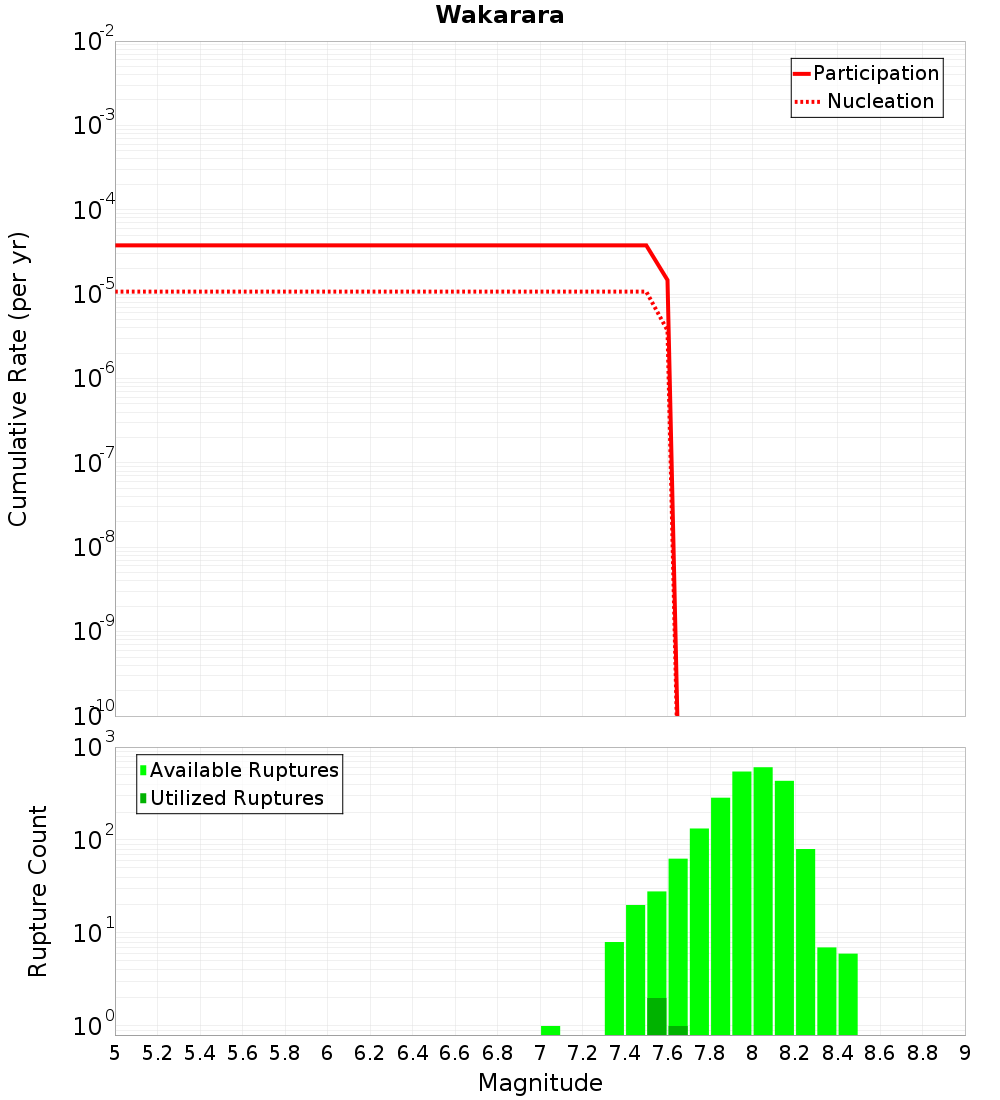

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

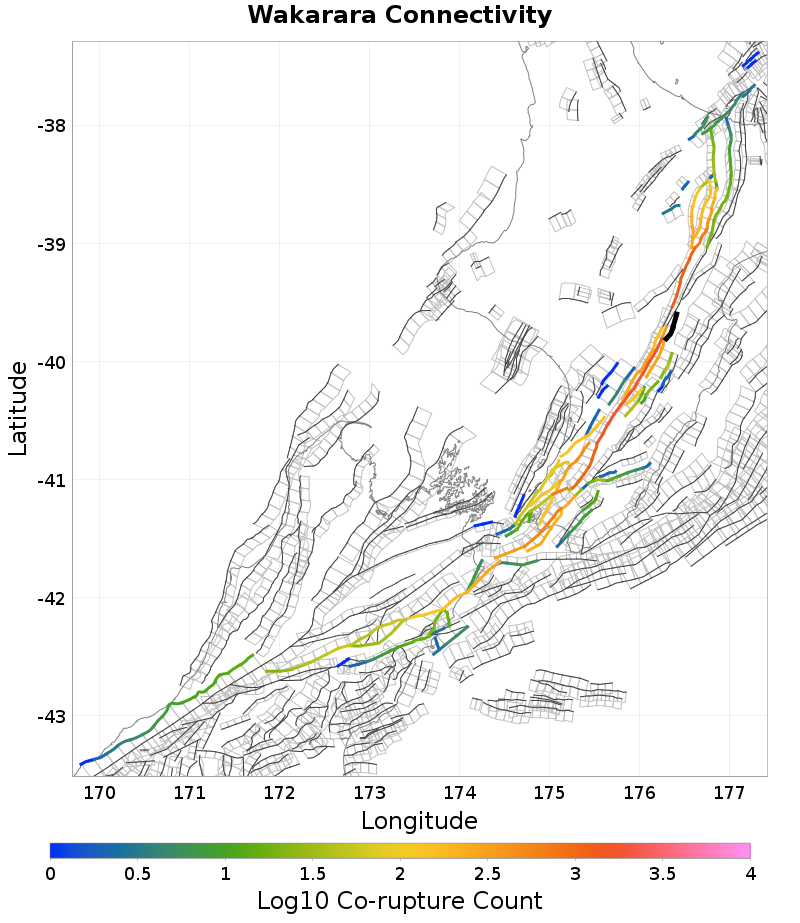

Connectivity

Nearby Sections

Fault Section
Rangefront, 0 km away
Mohaka: South, 0.06 km away
Ruahine: Central, 0.11 km away
Ruahine: North, 3.77 km away
Mohaka: North, 9.58 km away
Ruataniwha, 13.46 km away
Ruahine: South, 14.38 km away
Te Heka, 14.91 km away
Patoka - Rangiora, 14.99 km away

Rangefront, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	267
Co-rupture Rate	2.4172812E-5

Mohaka: South, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	1,925
Co-rupture Rate	1.3686667E-5

Ruahine: Central, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	145
Co-rupture Rate	0.0

Ruahine: North, 3.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	true
Co-rupture Count	1,310
Co-rupture Rate	0.0

Mohaka: North, 9.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	false
Co-rupture Count	38
Co-rupture Rate	3.7859478E-5

Ruahine: South, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	true
Directly Connected?	false
Co-rupture Count	302
Co-rupture Rate	0.0

Te Heka, 14.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Patoka - Rangiora, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMDNhY2Rn
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
