Acton Details
| Property | Value |
|---|---|
| Rupture Count | 481 |
| Ruptures Above Sect Min Mag | 480 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [7.09, 8.53] |
| Length Range | [23, 835] km |
| Total Rate | 8.805418E-6 /yr |
| Multi-Fault Rate | 8.805418E-6 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 56 |
Table Of Contents

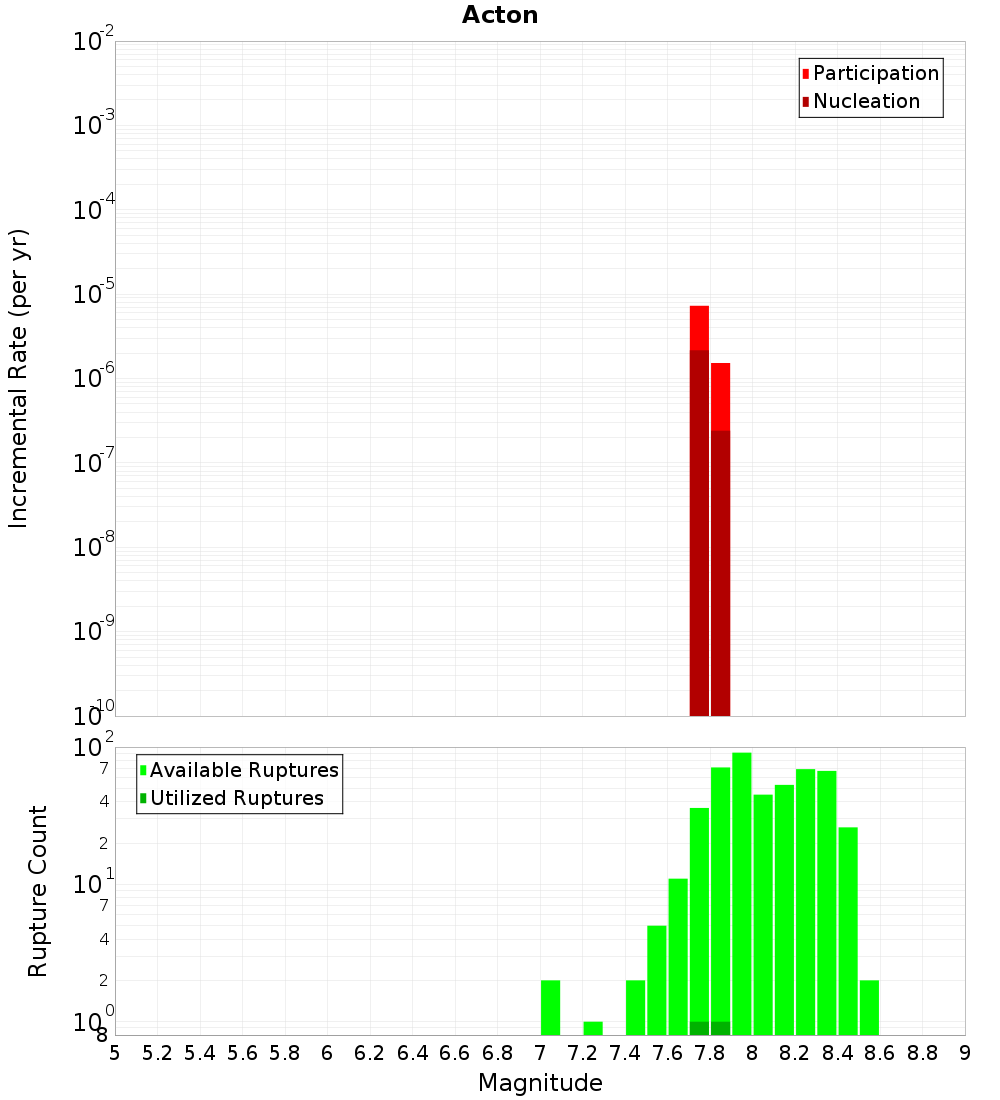

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

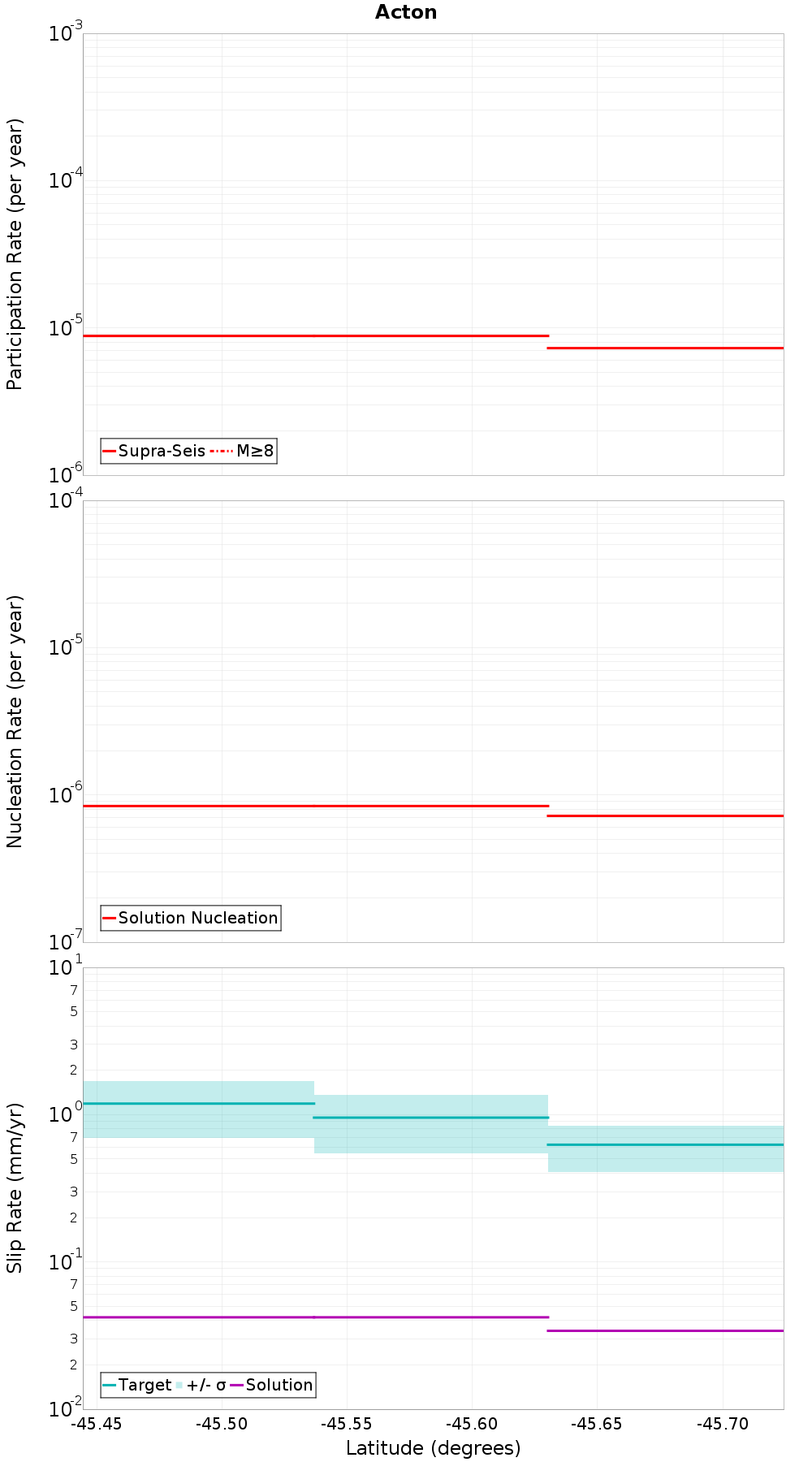

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Moonlight South, 0.18 km away |
| Mossburn, 1.57 km away |
| Hokonui, 1.83 km away |
| White Hill, 3.1 km away |
| Mid Dome, 5.6 km away |
| Nevis, 14.41 km away |
Moonlight South, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 500 |
| Co-rupture Rate | 1.0332169E-5 |
Mossburn, 1.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 30 |
| Co-rupture Rate | 0.0 |
Hokonui, 1.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 83 |
| Co-rupture Rate | 0.0 |
White Hill, 3.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 94 |
| Co-rupture Rate | 0.0 |
Mid Dome, 5.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Nevis, 14.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 0.0 |
