Aorangi Trough Details

PropertyValue
Rupture Count53,707
Ruptures Above Sect Min Mag53,701
Ruptures w/ Nonzero Rates15
Magnitude Range[7.08, 8.56]
Length Range[27, 855] km
Total Rate3.3095093E-5 /yr
Multi-Fault Rate3.3095093E-5 /yr (100.00%)
Directly-Connected Faults12
All Co-Rupturing Faults128

Table Of Contents

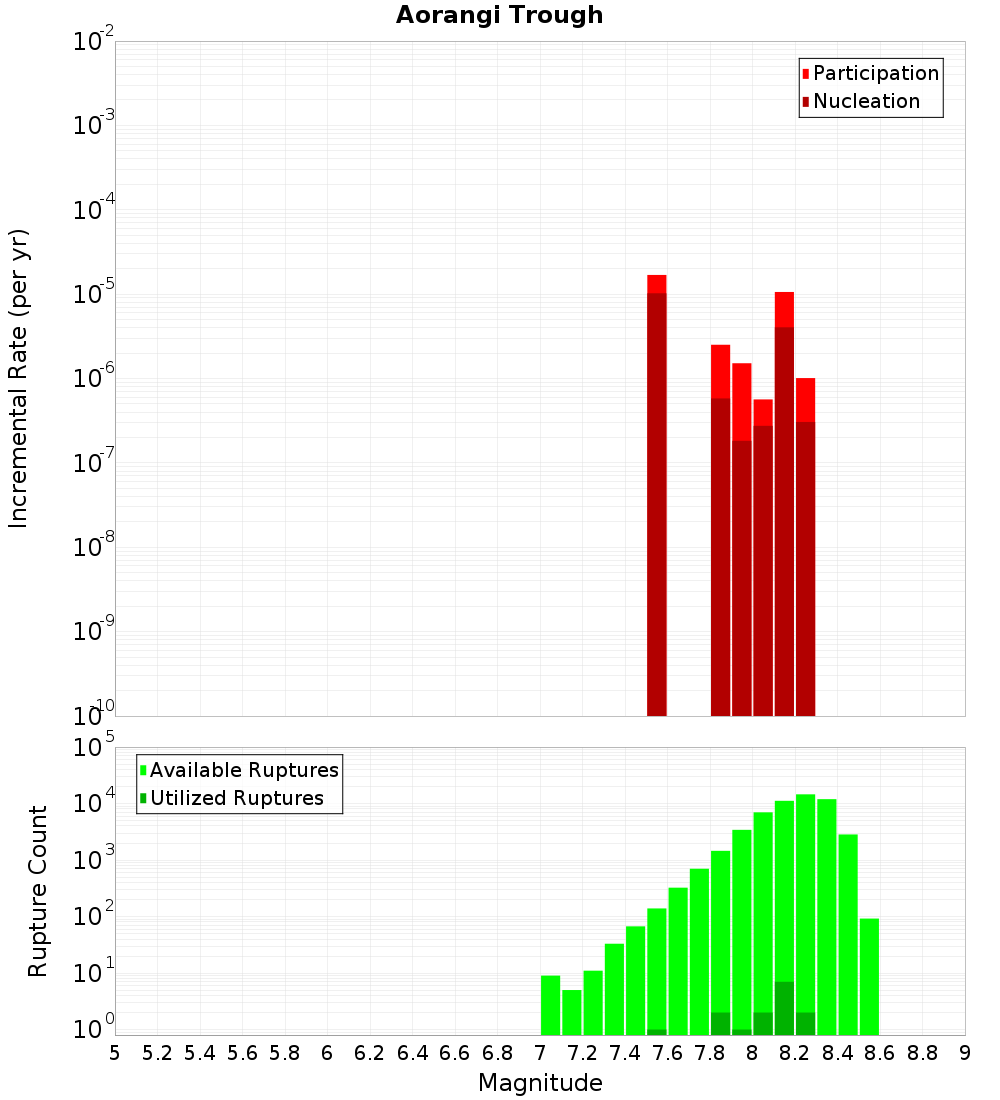

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

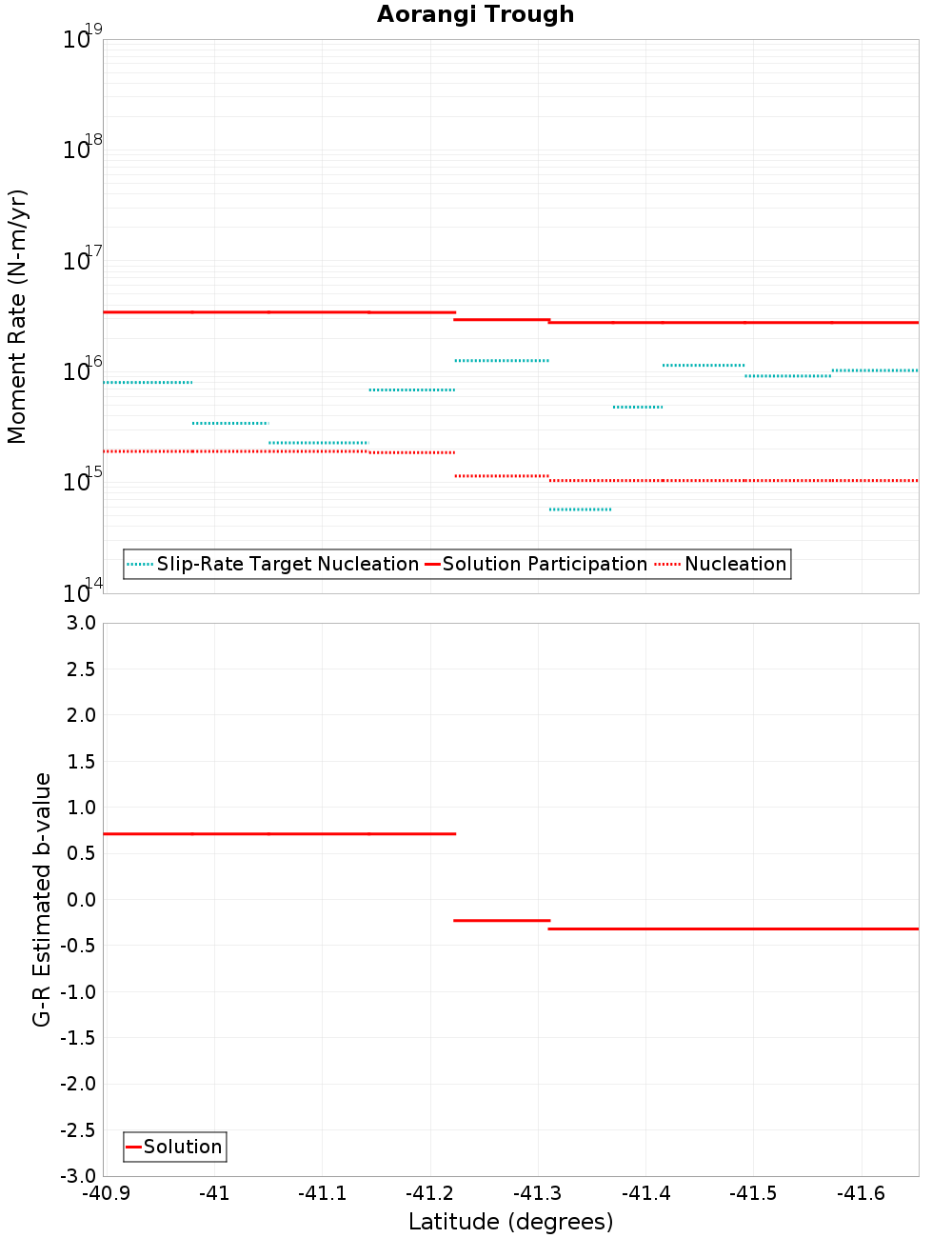

Moment-Rates and b-Values

(top)

Along-strike plot

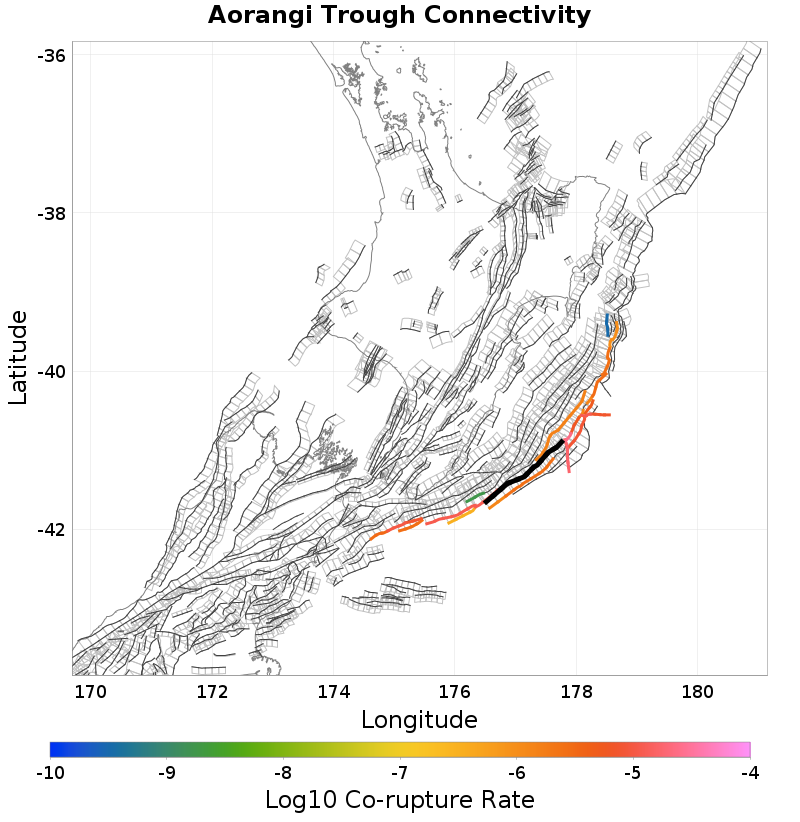

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Uruti Basin, 0.28 km awayF16 - Central, 5.98 km away
Pukeroro Ridge, 0.97 km awayPahaua, 6.21 km away
Akitio Ridge, 1.5 km awayUruti Ridge 2, 7 km away
Akitio Trough West, 2.57 km awayPorangahau Basin, 7.01 km away
Aorangi Ridge, 3.73 km awayF16 - South, 7.43 km away
Uruti East - PorWest 1, 3.76 km awayGlendhu Ridge, 8.97 km away
Pukeroro 2, 4.1 km awayOpouawe - Uruti, 9.52 km away
Porangahau Ridge, 4.63 km awayF17 - Central, 9.87 km away
Uruti Basin 2, 5.26 km awayPorangahau Northeast, 11.55 km away
BKSmt-West, 5.26 km awayHoneycomb Ridge, 13.16 km away
F17 - South, 5.98 km away

Uruti Basin, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count284
Co-rupture Rate0.0

Pukeroro Ridge, 0.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count11,064
Co-rupture Rate1.2182454E-5

Akitio Ridge, 1.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count36,744
Co-rupture Rate2.6287487E-5

Akitio Trough West, 2.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count2,073
Co-rupture Rate1.516481E-6

Aorangi Ridge, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count1,102
Co-rupture Rate2.5119211E-6

Uruti East - PorWest 1, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count704
Co-rupture Rate0.0

Pukeroro 2, 4.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count24,858
Co-rupture Rate1.7397096E-9

Porangahau Ridge, 4.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count7,369
Co-rupture Rate0.0

Uruti Basin 2, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count248
Co-rupture Rate0.0

BKSmt-West, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?false
Co-rupture Count1,247
Co-rupture Rate1.6882497E-5

F17 - South, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count913
Co-rupture Rate0.0

F16 - Central, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count7,360
Co-rupture Rate8.136632E-6

Pahaua, 6.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?false
Co-rupture Count18,165
Co-rupture Rate0.0

Uruti Ridge 2, 7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?false
Co-rupture Count67
Co-rupture Rate0.0

Porangahau Basin, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?false
Co-rupture Count971
Co-rupture Rate0.0

F16 - South, 7.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Glendhu Ridge, 8.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?false
Co-rupture Count7,837
Co-rupture Rate1.2184194E-5

Opouawe - Uruti, 9.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?true
Co-rupture Count15,622
Co-rupture Rate0.0

F17 - Central, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Porangahau Northeast, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?false
Co-rupture Count3,386
Co-rupture Rate0.0

Honeycomb Ridge, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?true
Directly Connected?false
Co-rupture Count4,656
Co-rupture Rate3.1723837E-7
