Caswell High 4 Details

Property	Value
Rupture Count	264
Ruptures Above Sect Min Mag	246
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.56, 8.00]
Length Range	[14, 192] km
Total Rate	9.317241E-5 /yr
Multi-Fault Rate	9.317241E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	11

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

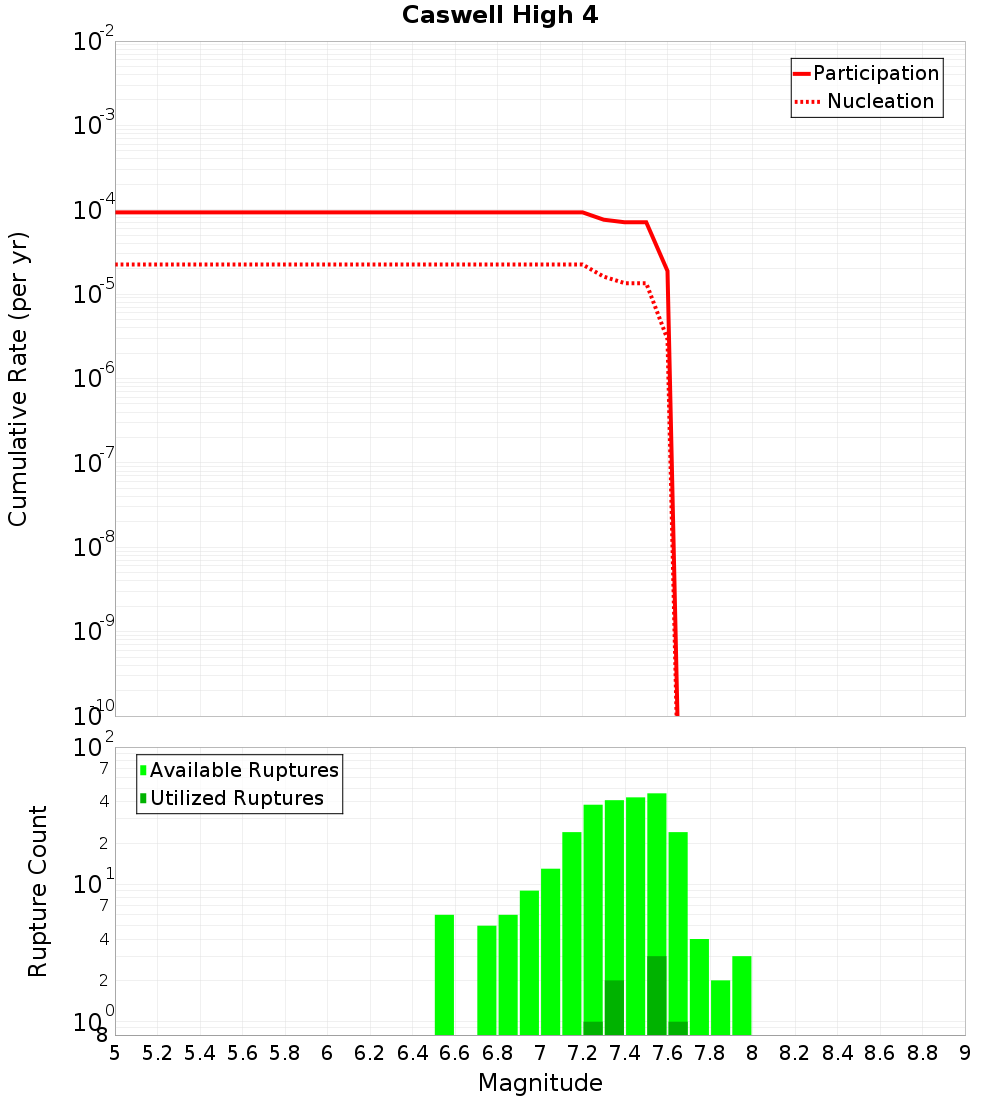

Magnitude-Frequency Distribution

Incremental	Cumulative

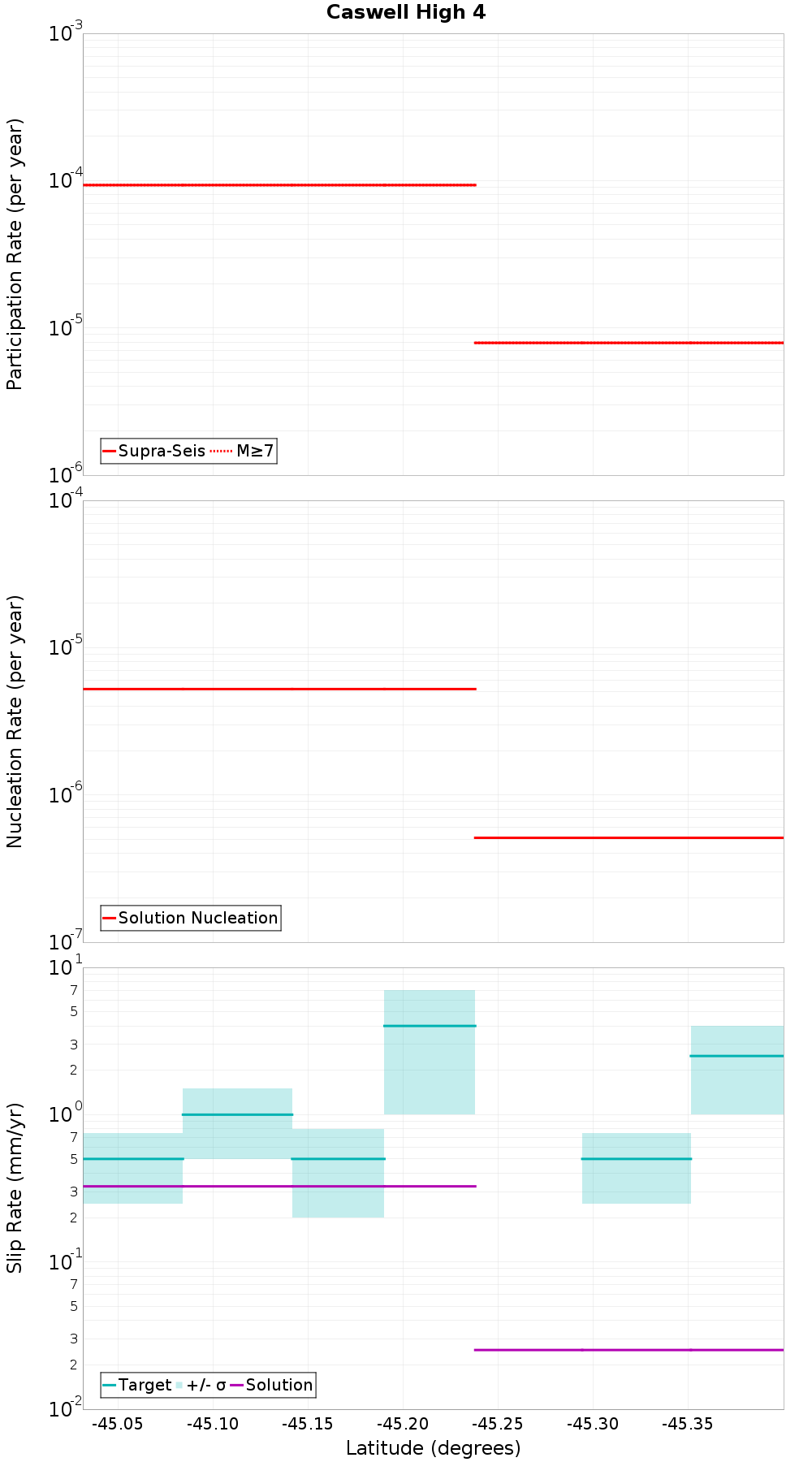

Along-Strike Values

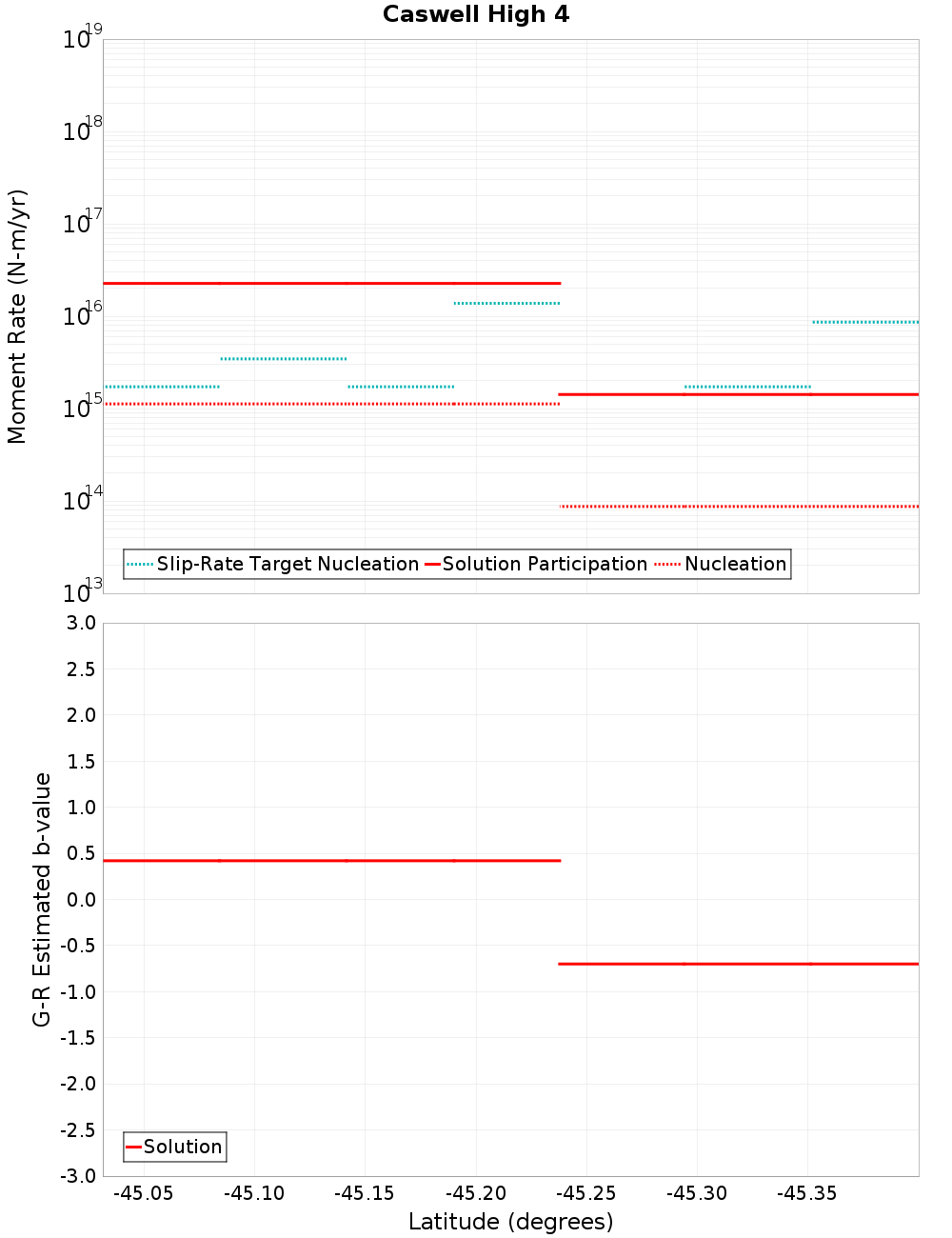

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Caswell High 5, 0.68 km away
Caswell High 3, 0.89 km away
Caswell High 1, 2.01 km away
Caswell 211, 6.17 km away
South Wedge 5, 7.68 km away
Caswell High 67, 8.14 km away
Central Wedge 4 - South Wedge 411, 14.11 km away

Caswell High 5, 0.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 3, 0.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	true
Co-rupture Count	103
Co-rupture Rate	8.5258514E-5

Caswell High 1, 2.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	true
Co-rupture Count	158
Co-rupture Rate	6.1028764E-5

Caswell 211, 6.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	2.9631967E-5

South Wedge 5, 7.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 67, 8.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	true
Co-rupture Count	138
Co-rupture Rate	7.618045E-5

Central Wedge 4 - South Wedge 411, 14.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
