F16 - North Details
| Property | Value |
|---|---|
| Rupture Count | 2,465 |
| Ruptures Above Sect Min Mag | 2,463 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.63, 8.39] |
| Length Range | [12, 643] km |
| Total Rate | 2.1264148E-5 /yr |
| Multi-Fault Rate | 2.1264148E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 53 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

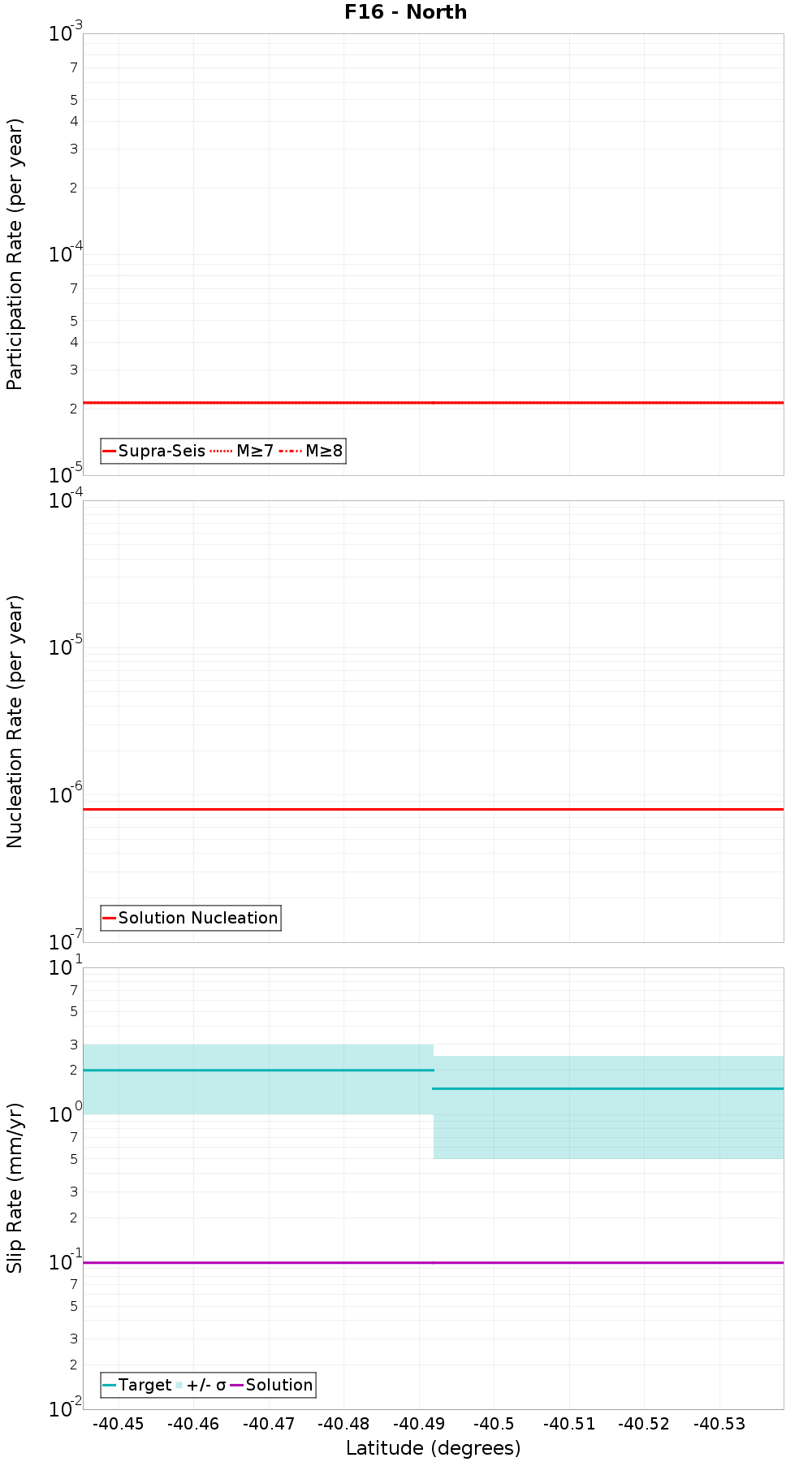

Along-Strike Values

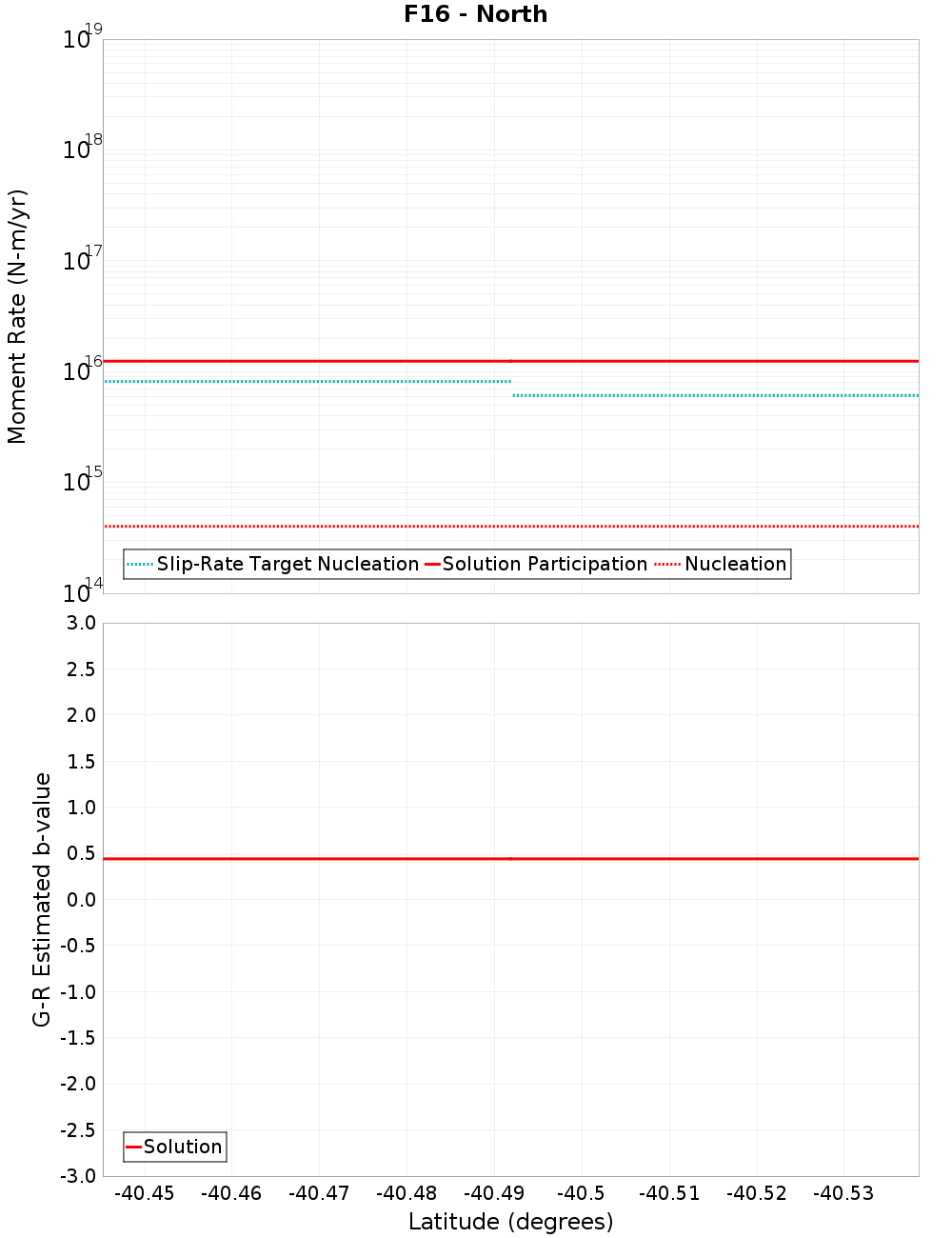

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| BKSmt-North, 0.66 km away |
| F14 - North, 4.99 km away |
| Akitio Ridge, 8.72 km away |
| F16 - Central, 10.71 km away |
| Akitio Trough West, 14.03 km away |
BKSmt-North, 0.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,152 |
| Co-rupture Rate | 2.1264148E-5 |
F14 - North, 4.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 26 |
| Co-rupture Rate | 0.0 |
Akitio Ridge, 8.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,546 |
| Co-rupture Rate | 3.6434303E-5 |
F16 - Central, 10.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,434 |
| Co-rupture Rate | 6.093993E-6 |
Akitio Trough West, 14.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
