Garvie Details

Property	Value
Rupture Count	3,323
Ruptures Above Sect Min Mag	3,322
Ruptures w/ Nonzero Rates	7
Magnitude Range	[7.37, 8.30]
Length Range	[37, 461] km
Total Rate	3.3790748E-5 /yr
Multi-Fault Rate	3.3790748E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	49

Table Of Contents

Magnitude-Frequency Distribution

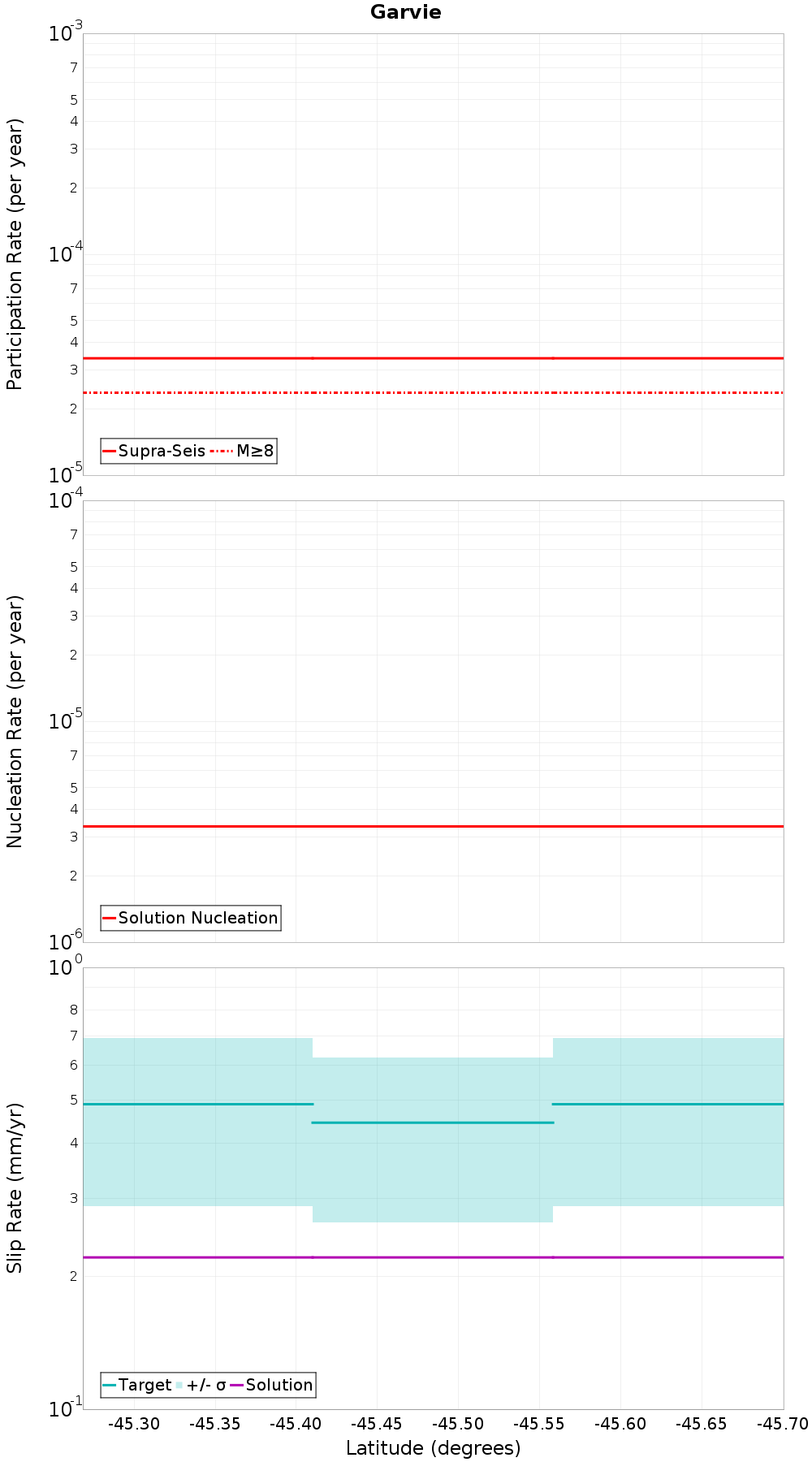

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

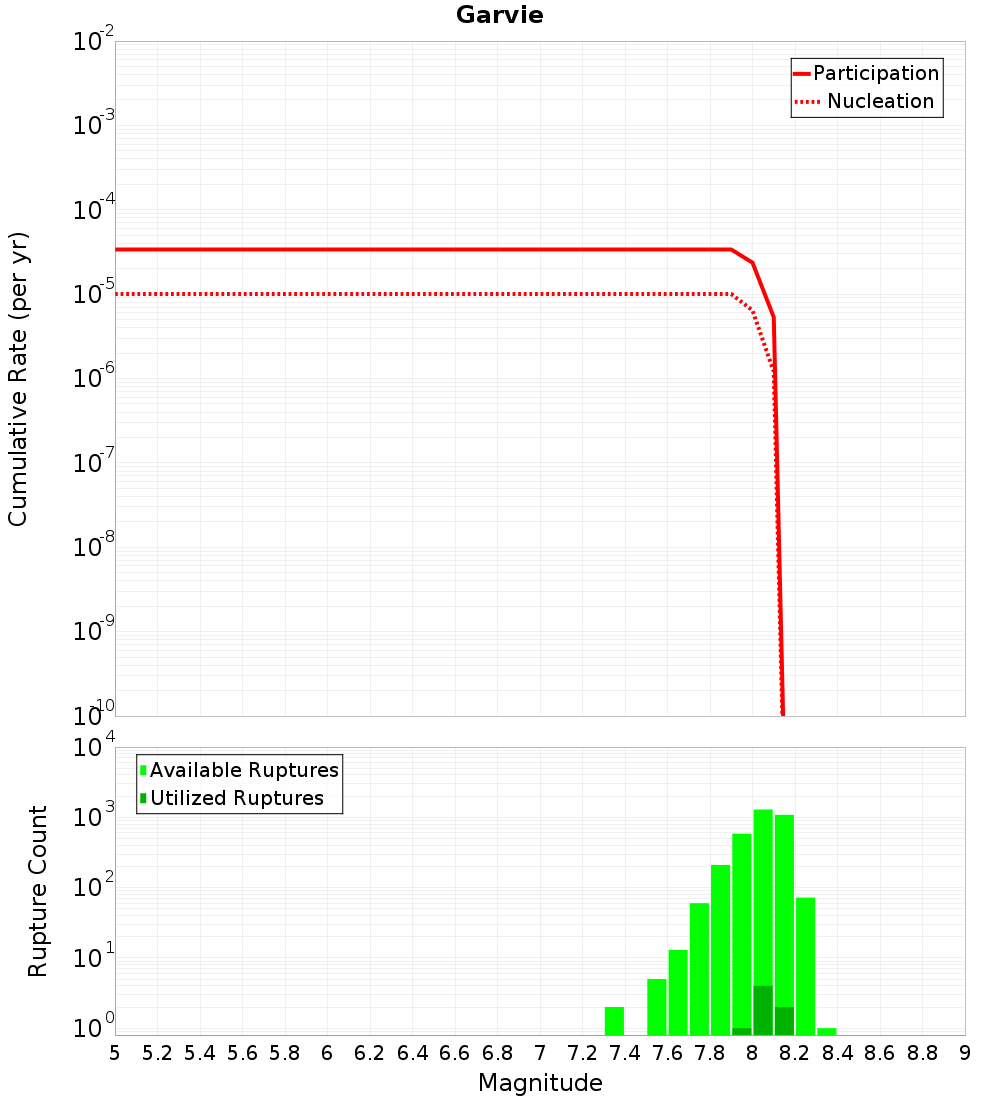

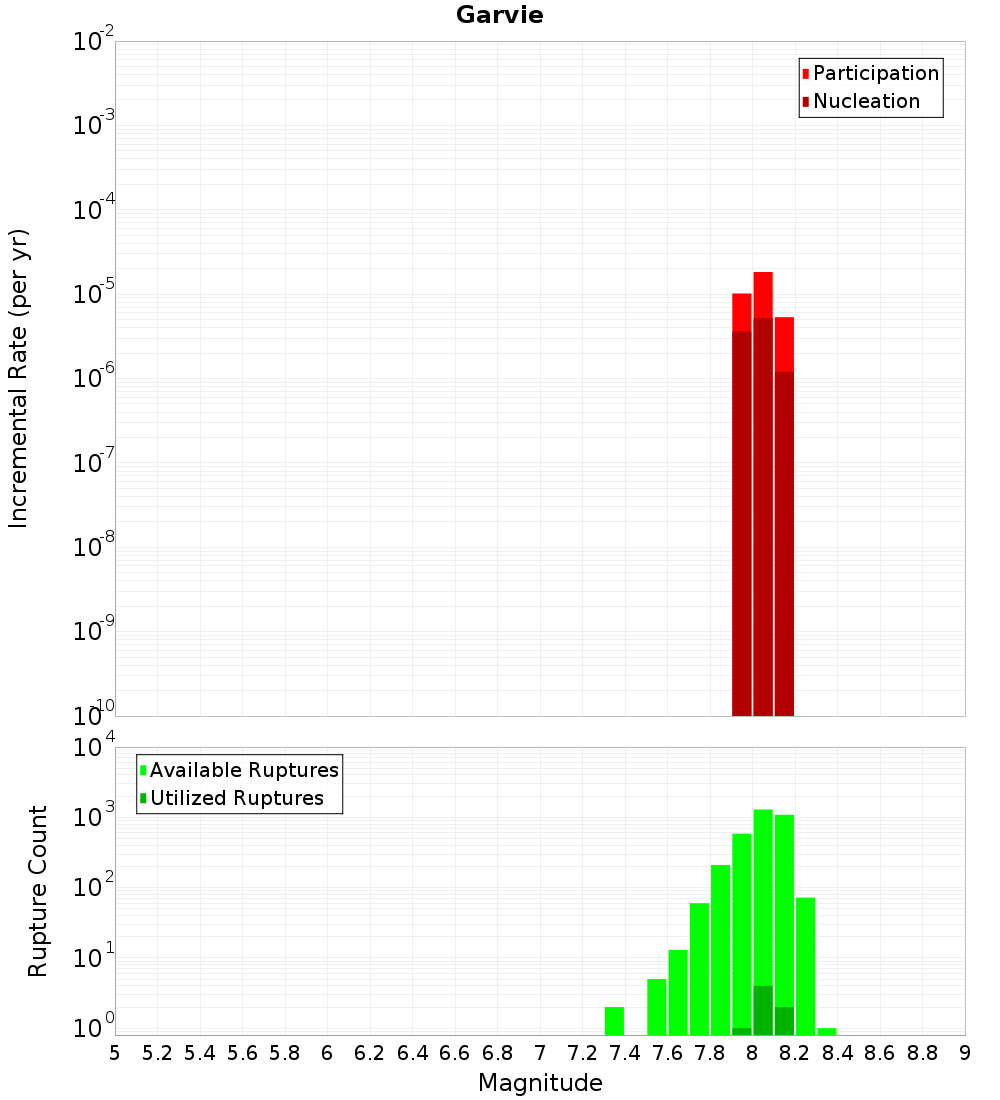

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

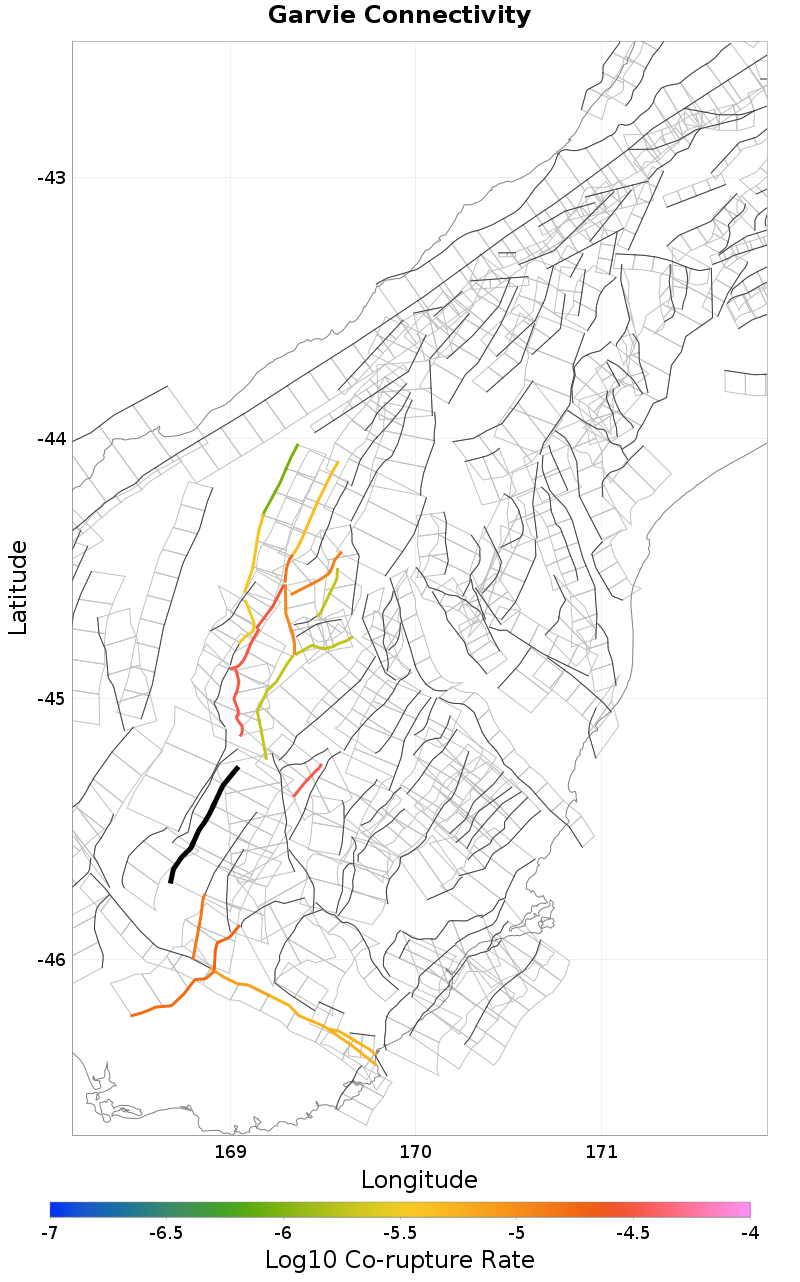

Connectivity

Nearby Sections

Fault Section
Old Man, 0.26 km away
Teviot, 0.32 km away
Waikaia, 1.79 km away
Waikaka, 2.18 km away
Roaring Lion, 2.75 km away
Galloway Shanty, 3.61 km away
Nevis, 6.28 km away
Wendon Valley, 6.3 km away
Lake Onslow, 8.15 km away
Pisa, 9.29 km away
Galloway, 9.45 km away
Mid Dome, 11.17 km away
Dunstan, 13 km away
Roaring Meg, 14.32 km away

Old Man, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	true
Co-rupture Count	405
Co-rupture Rate	0.0

Teviot, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	true
Co-rupture Count	140
Co-rupture Rate	0.0

Waikaia, 1.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,431
Co-rupture Rate	1.429439E-5

Waikaka, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,325
Co-rupture Rate	1.9496358E-5

Roaring Lion, 2.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,399
Co-rupture Rate	0.0

Galloway Shanty, 3.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,434
Co-rupture Rate	3.3790748E-5

Nevis, 6.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wendon Valley, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	false
Co-rupture Count	83
Co-rupture Rate	0.0

Lake Onslow, 8.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pisa, 9.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	false
Co-rupture Count	1,529
Co-rupture Rate	1.8946072E-6

Galloway, 9.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	false
Co-rupture Count	345
Co-rupture Rate	0.0

Mid Dome, 11.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dunstan, 13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	false
Co-rupture Count	136
Co-rupture Rate	0.0

Roaring Meg, 14.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzIuMEI2Slg4
Connected?	true
Directly Connected?	false
Co-rupture Count	1,499
Co-rupture Rate	3.3790748E-5
