Upper Slope Details

PropertyValue
Rupture Count11,322
Ruptures Above Sect Min Mag11,316
Ruptures w/ Nonzero Rates96
Magnitude Range[6.87, 8.54]
Length Range[20, 928] km
Total Rate4.0981096E-5 /yr
Multi-Fault Rate4.0979674E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults186

Table Of Contents

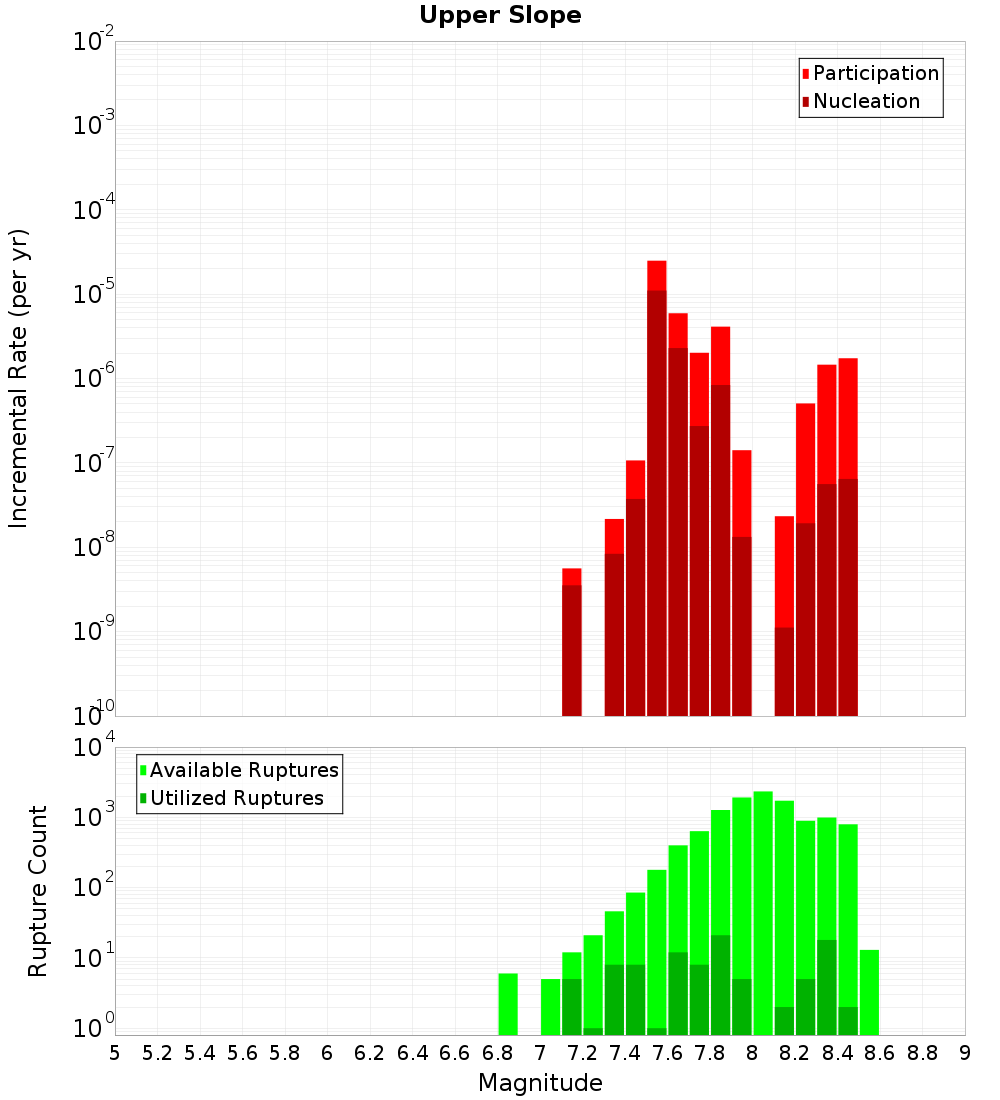

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Te Rapa, 0.1 km awayKaikoura - Mangamaunu, 6.47 km away
Te Rapa 1, 0.13 km awayBooBoo, 9.5 km away
Te Rapa 2, 0.18 km awayOffshore Splay Thrust, 9.95 km away
Campbell Bank, 0.28 km awayHope: Seaward, 10.39 km away
London Hill, 0.69 km awayMarlborough Slope 4, 12.3 km away
Wharanui, 1.45 km awayOpouawe - Uruti, 13.4 km away
Chancet, 1.61 km awayNeedles East 2, 13.52 km away
Kekerengu Bank, 5.98 km awayNeedles, 14.3 km away

Hope: Te Rapa, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?true
Co-rupture Count7,422
Co-rupture Rate3.2323576E-6

Te Rapa 1, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate3.4955544E-8

Te Rapa 2, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?true
Co-rupture Count1,028
Co-rupture Rate3.4955544E-8

Campbell Bank, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?false
Co-rupture Count430
Co-rupture Rate5.7729467E-6

London Hill, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?true
Co-rupture Count58
Co-rupture Rate4.1929593E-9

Wharanui, 1.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chancet, 1.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?true
Co-rupture Count425
Co-rupture Rate5.8118376E-6

Kekerengu Bank, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?true
Co-rupture Count313
Co-rupture Rate0.0

Kaikoura - Mangamaunu, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

BooBoo, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?true
Co-rupture Count7,628
Co-rupture Rate3.9388204E-5

Offshore Splay Thrust, 9.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?false
Co-rupture Count1,435
Co-rupture Rate1.4559859E-6

Hope: Seaward, 10.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?false
Co-rupture Count5,489
Co-rupture Rate1.7404425E-6

Marlborough Slope 4, 12.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?true
Co-rupture Count129
Co-rupture Rate5.4157237E-8

Opouawe - Uruti, 13.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?false
Co-rupture Count5,143
Co-rupture Rate2.2780227E-6

Needles East 2, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate5.4823736E-11

Needles, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5MzcuMEF6ZVFX
Connected?true
Directly Connected?false
Co-rupture Count605
Co-rupture Rate3.0580203E-9
