Palliser - Kaiwhata Details

Property	Value
Rupture Count	21,209
Ruptures Above Sect Min Mag	21,194
Ruptures w/ Nonzero Rates	99
Magnitude Range	[6.74, 8.45]
Length Range	[21, 1,041] km
Total Rate	1.078172E-4 /yr
Multi-Fault Rate	1.078172E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	146

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

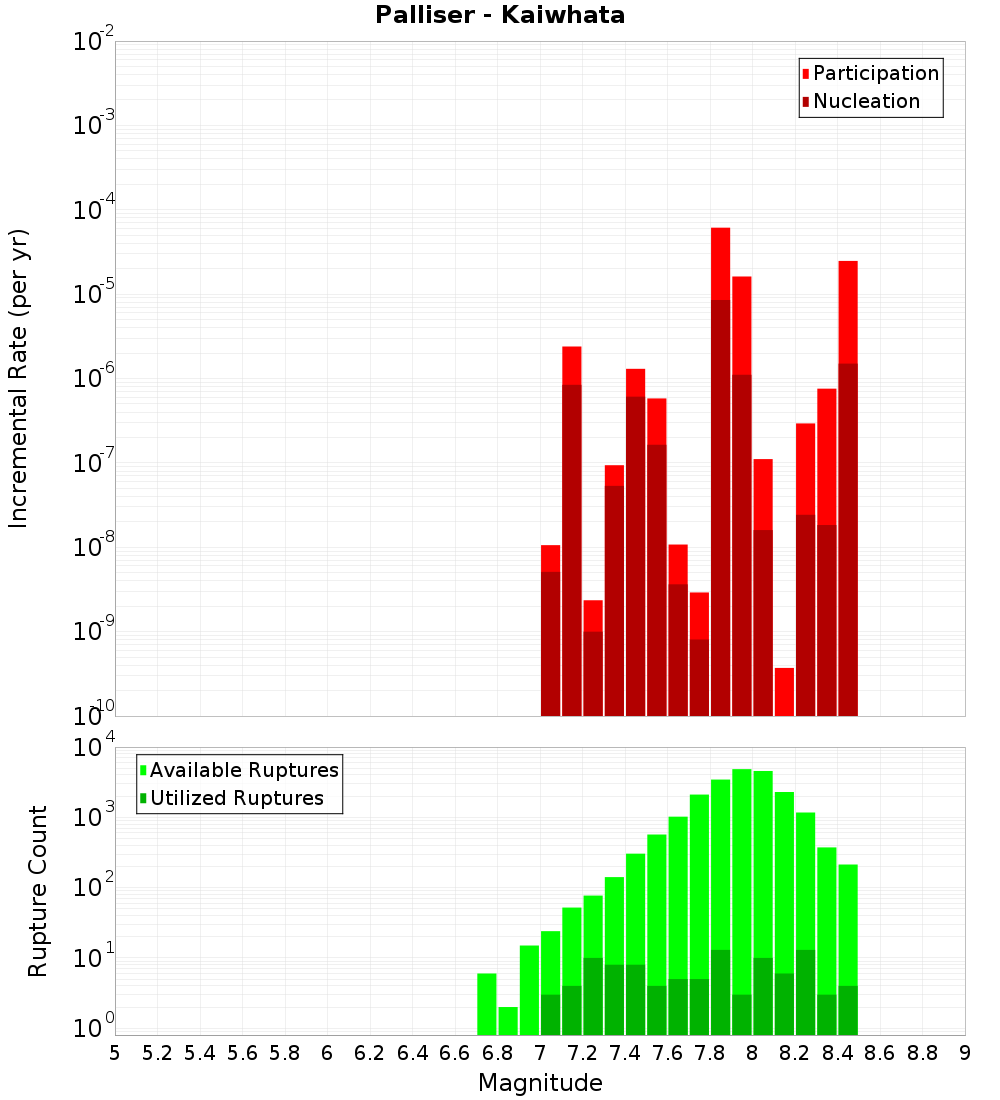

Magnitude-Frequency Distribution

Incremental	Cumulative

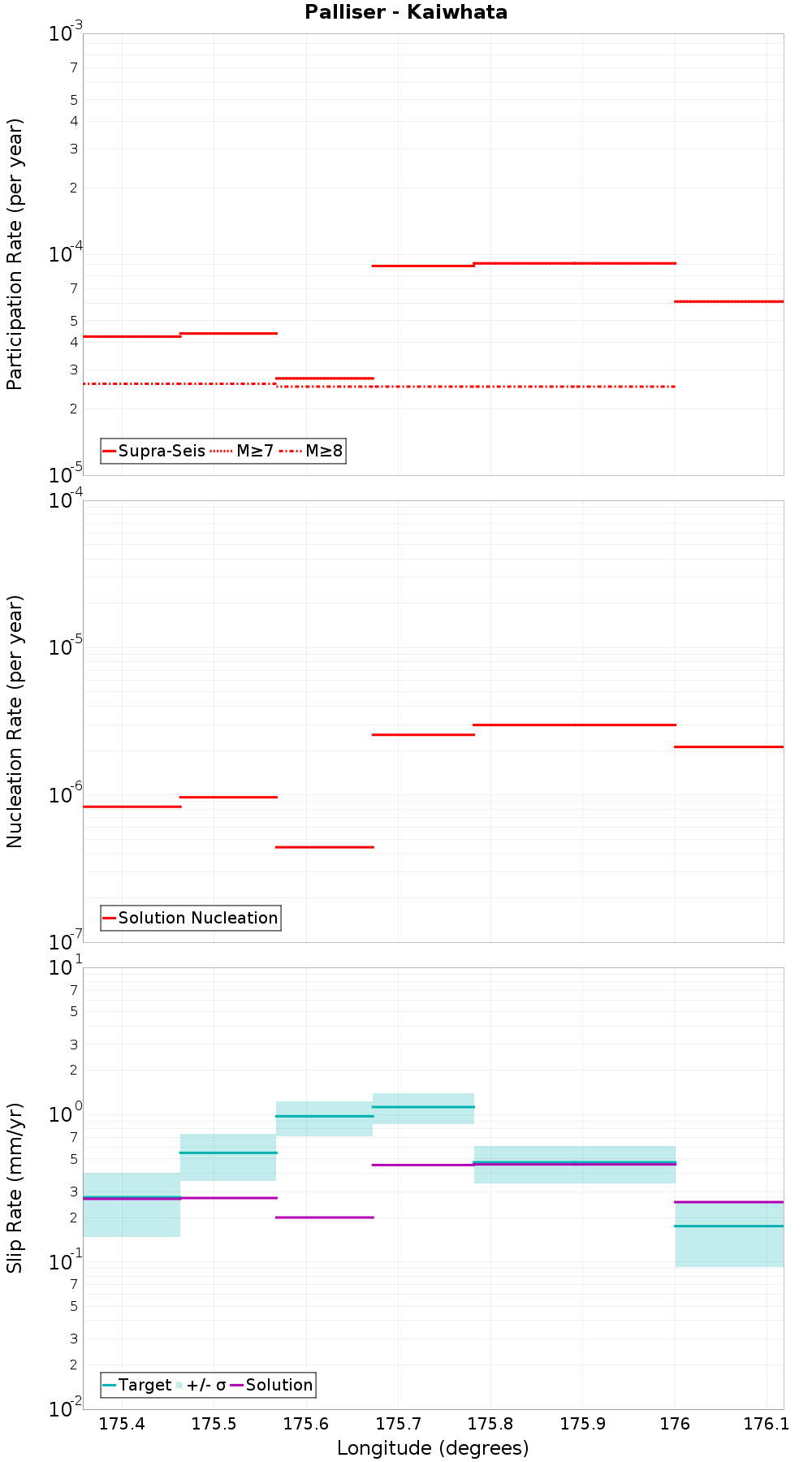

Along-Strike Values

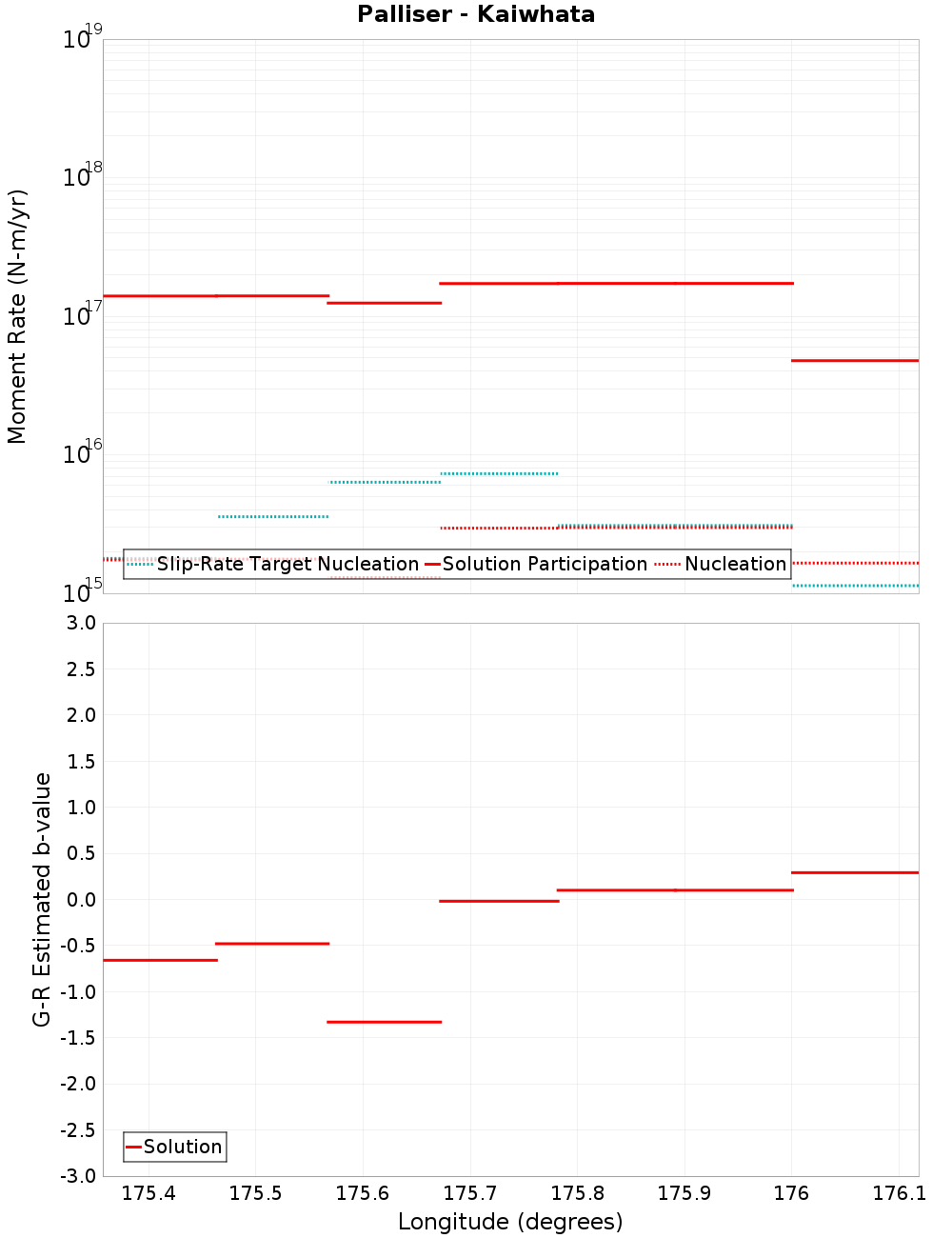

Moment-Rates and b-Values

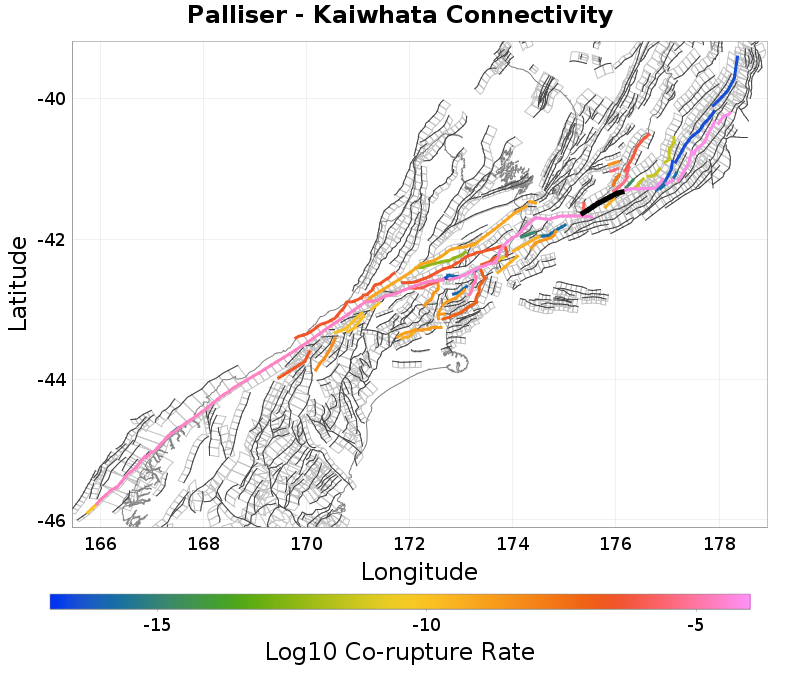

Connectivity

Nearby Sections

Fault Section
Ngapotiki, 0.63 km away
Honeycomb, 1.22 km away
Uruti Basin, 1.36 km away
Otaraia, 1.71 km away
Riversdale, 3.25 km away
Uruti Point, 3.65 km away
BooBoo, 4.24 km away
Whareama Bank, 6.44 km away
Opouawe - Uruti, 8.58 km away
Dry River - Huangarua: 1, 11.83 km away
Pahaua SE1, 13.31 km away
Pahaua, 13.63 km away
Riversdale North, 14.73 km away

Ngapotiki, 0.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	49
Co-rupture Rate	1.3015122E-6

Honeycomb, 1.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	336
Co-rupture Rate	3.900756E-10

Uruti Basin, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	14,437
Co-rupture Rate	6.105349E-5

Otaraia, 1.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	104
Co-rupture Rate	0.0

Riversdale, 3.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,576
Co-rupture Rate	5.070341E-6

Uruti Point, 3.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	671
Co-rupture Rate	2.0997113E-8

BooBoo, 4.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	18,170
Co-rupture Rate	4.237904E-5

Whareama Bank, 6.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	50
Co-rupture Rate	2.145137E-15

Opouawe - Uruti, 8.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	443
Co-rupture Rate	0.0

Dry River - Huangarua: 1, 11.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahaua SE1, 13.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahaua, 13.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	245
Co-rupture Rate	0.0

Riversdale North, 14.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	307
Co-rupture Rate	1.8409662E-6
