Pisa Details

Property	Value
Rupture Count	32,941
Ruptures Above Sect Min Mag	32,940
Ruptures w/ Nonzero Rates	477
Magnitude Range	[7.14, 8.46]
Length Range	[32, 856] km
Total Rate	4.7883026E-5 /yr
Multi-Fault Rate	4.7883026E-5 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	108

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

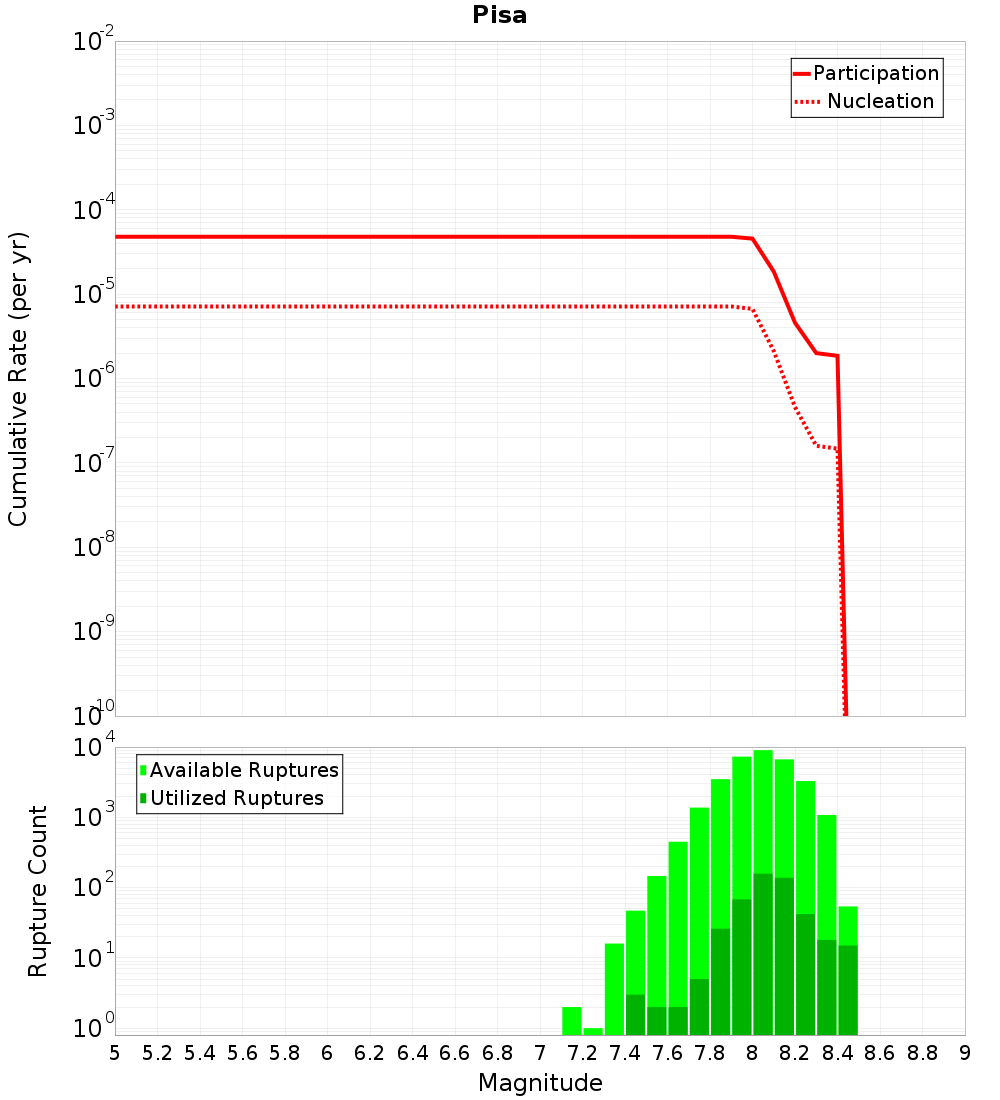

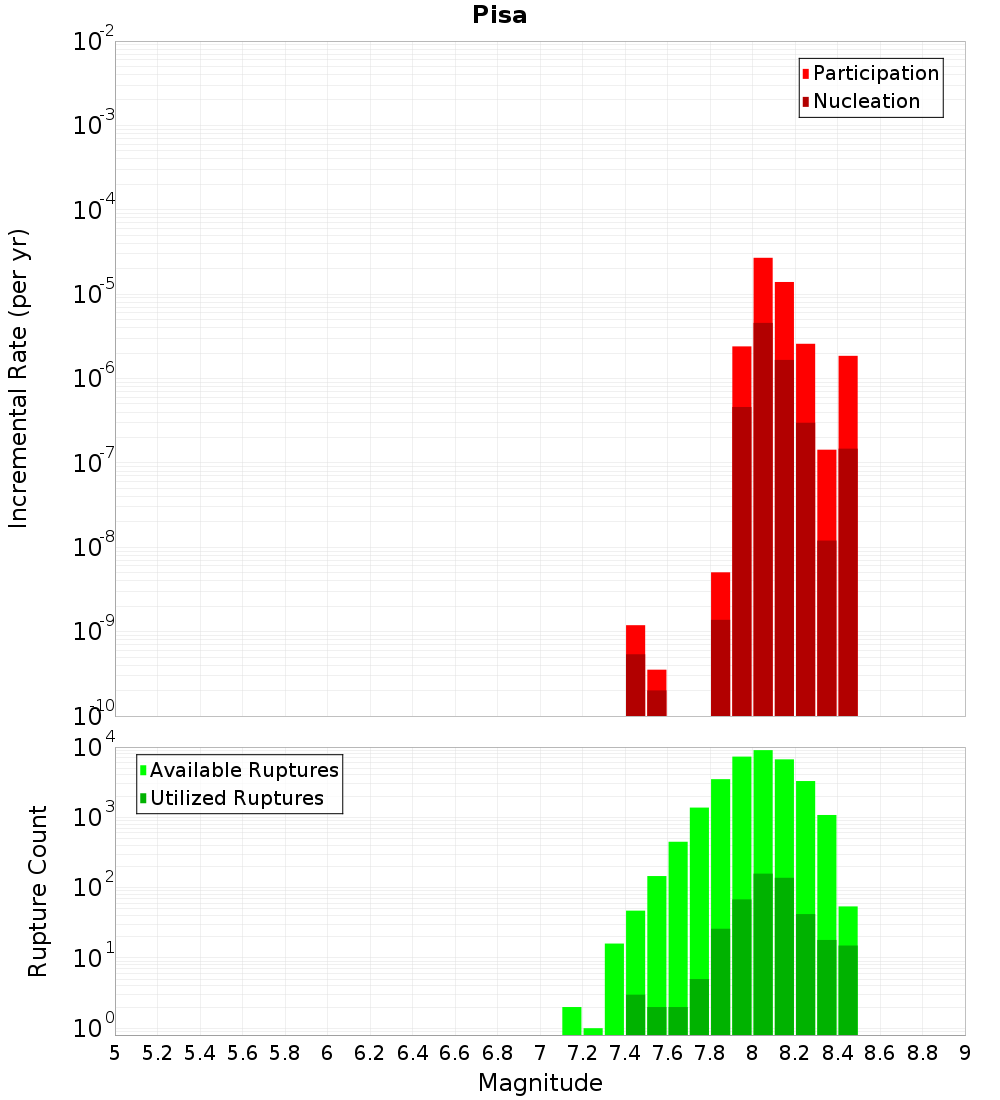

Magnitude-Frequency Distribution

Incremental	Cumulative

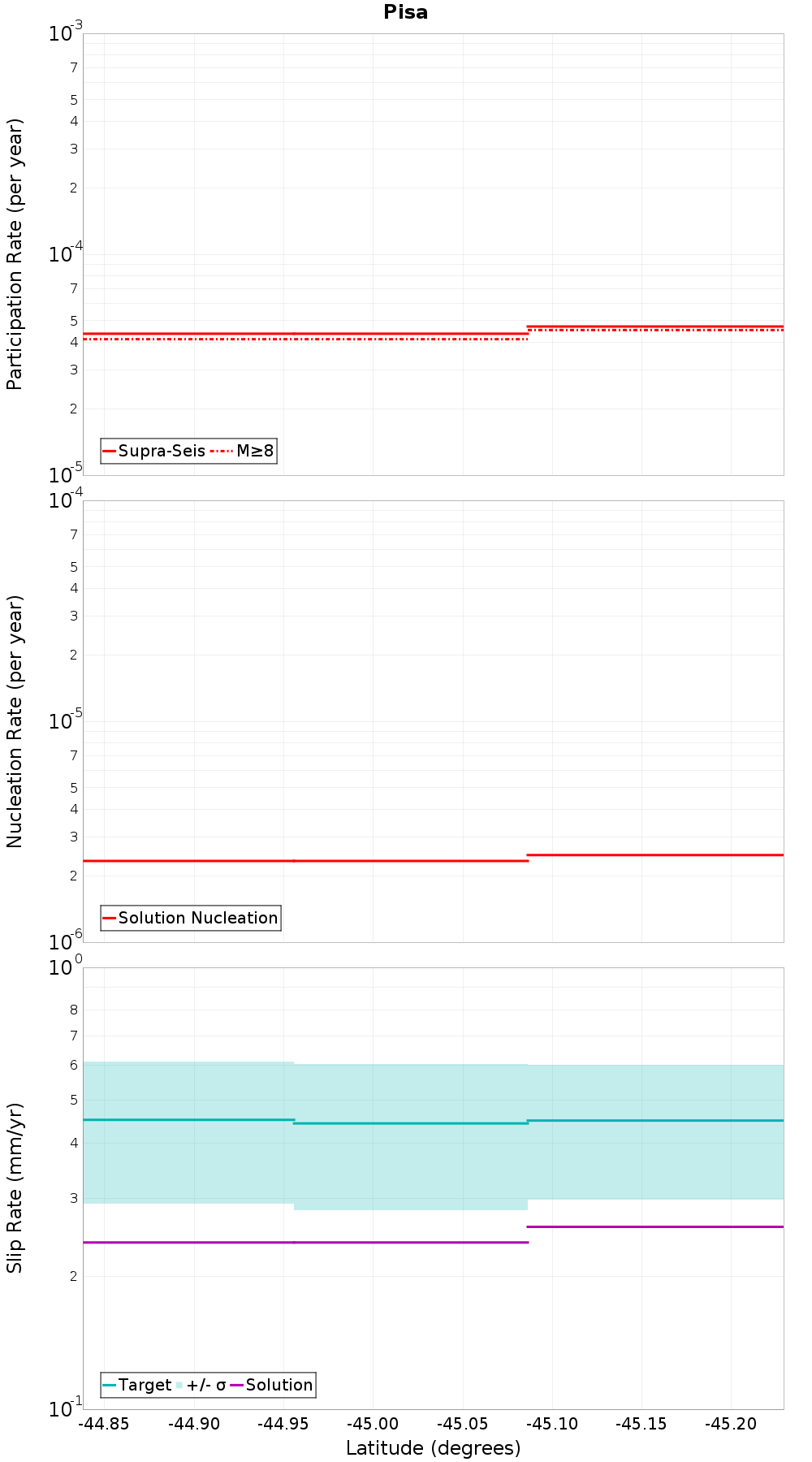

Along-Strike Values

Moment-Rates and b-Values

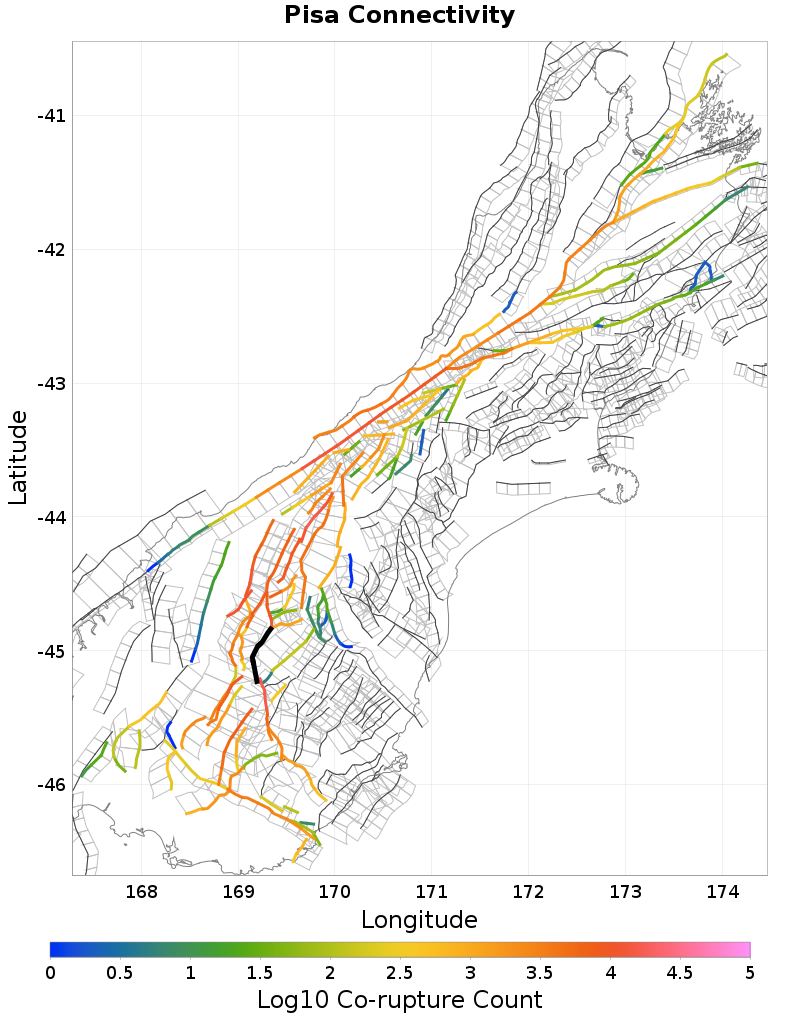

Connectivity

Nearby Sections

Fault Section	Fault Section
Roaring Meg, 0.11 km away	Goodger, 7.45 km away
Motatapu, 0.11 km away	Galloway, 7.93 km away
Paddys Ridge, 0.16 km away	NW Cardrona North, 8.52 km away
Grandview, 1.55 km away	Garvie, 9.29 km away
Old Man, 1.67 km away	Cardrona - Hawea, 9.89 km away
Roaring Lion, 1.94 km away	Nevis, 11.08 km away
Cluden, 1.98 km away	Lindis River, 12.27 km away
NW Cardrona South, 2.33 km away	Galloway Shanty, 13.28 km away
Dunstan, 4.44 km away

Roaring Meg, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,922
Co-rupture Rate	1.5184945E-6

Motatapu, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	11,318
Co-rupture Rate	1.4967046E-5

Paddys Ridge, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	5,859
Co-rupture Rate	3.3294755E-6

Grandview, 1.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	11,423
Co-rupture Rate	2.347726E-5

Old Man, 1.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	16,245
Co-rupture Rate	1.3507991E-5

Roaring Lion, 1.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	9,543
Co-rupture Rate	3.584861E-5

Cluden, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,268
Co-rupture Rate	6.1006185E-6

NW Cardrona South, 2.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	4,442
Co-rupture Rate	4.2269153E-6

Dunstan, 4.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	2.1788193E-11

Goodger, 7.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	6.8762954E-11

Galloway, 7.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

NW Cardrona North, 8.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	2,391
Co-rupture Rate	8.448141E-9

Garvie, 9.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	1,529
Co-rupture Rate	6.510431E-6

Cardrona - Hawea, 9.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	7,589
Co-rupture Rate	3.3294932E-6

Nevis, 11.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	2,921
Co-rupture Rate	8.50638E-6

Lindis River, 12.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	434
Co-rupture Rate	5.8537516E-6

Galloway Shanty, 13.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDIuMHJpWnNz
Connected?	true
Directly Connected?	false
Co-rupture Count	382
Co-rupture Rate	1.5100708E-6
