Ariel Bank 2 Details

PropertyValue
Rupture Count213
Ruptures Above Sect Min Mag211
Ruptures w/ Nonzero Rates27
Magnitude Range[6.78, 7.83]
Length Range[17, 189] km
Total Rate4.412397E-5 /yr
Multi-Fault Rate4.412397E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults13

Table Of Contents

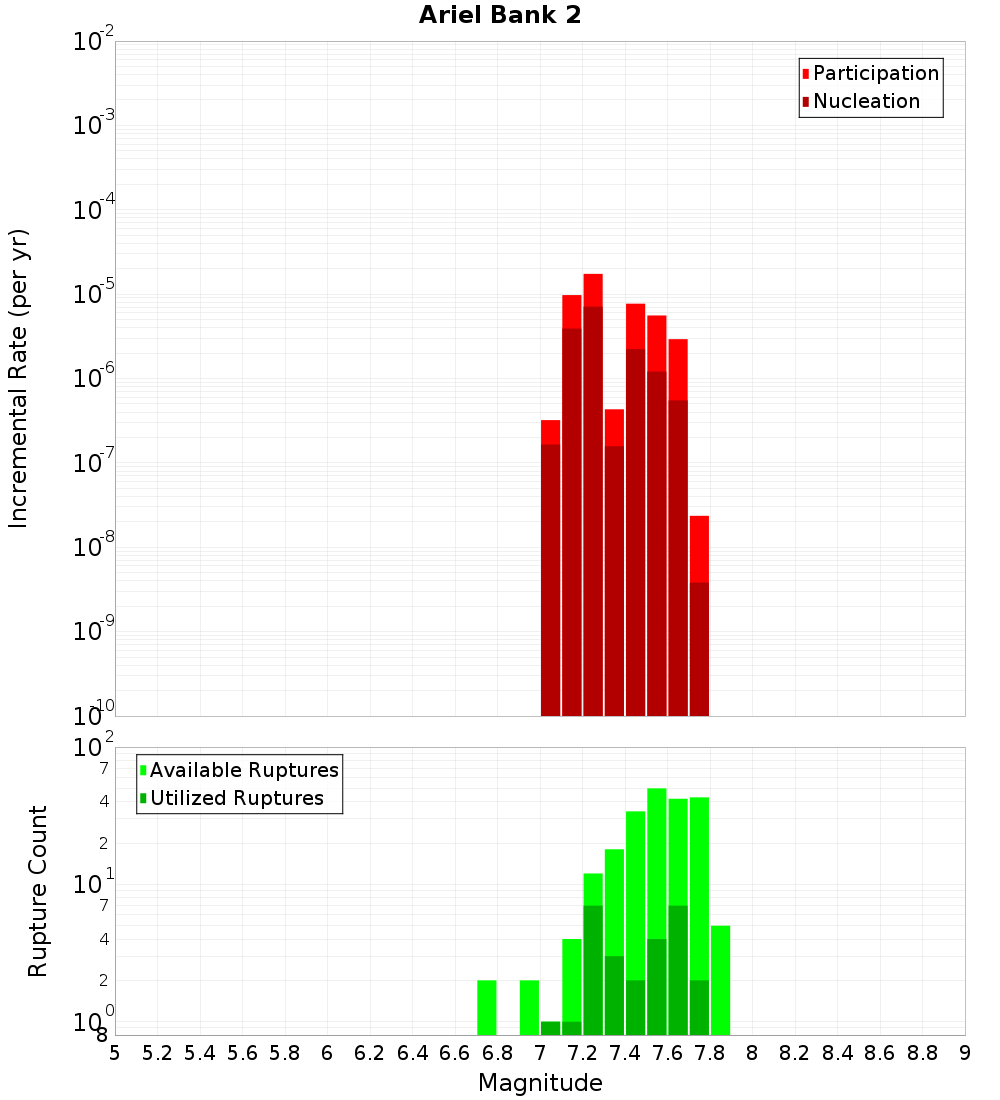

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

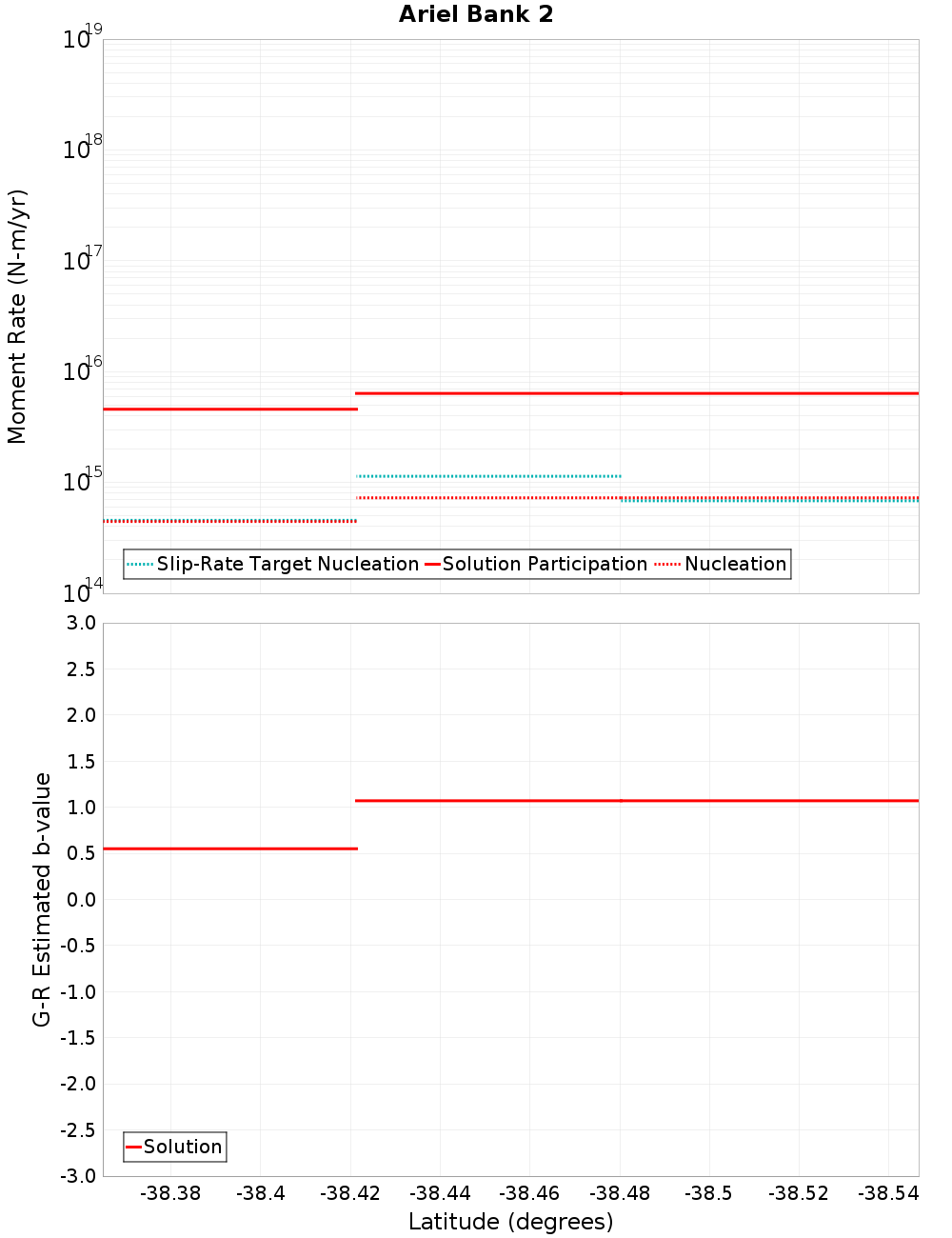

Moment-Rates and b-Values

(top)

Along-strike plot

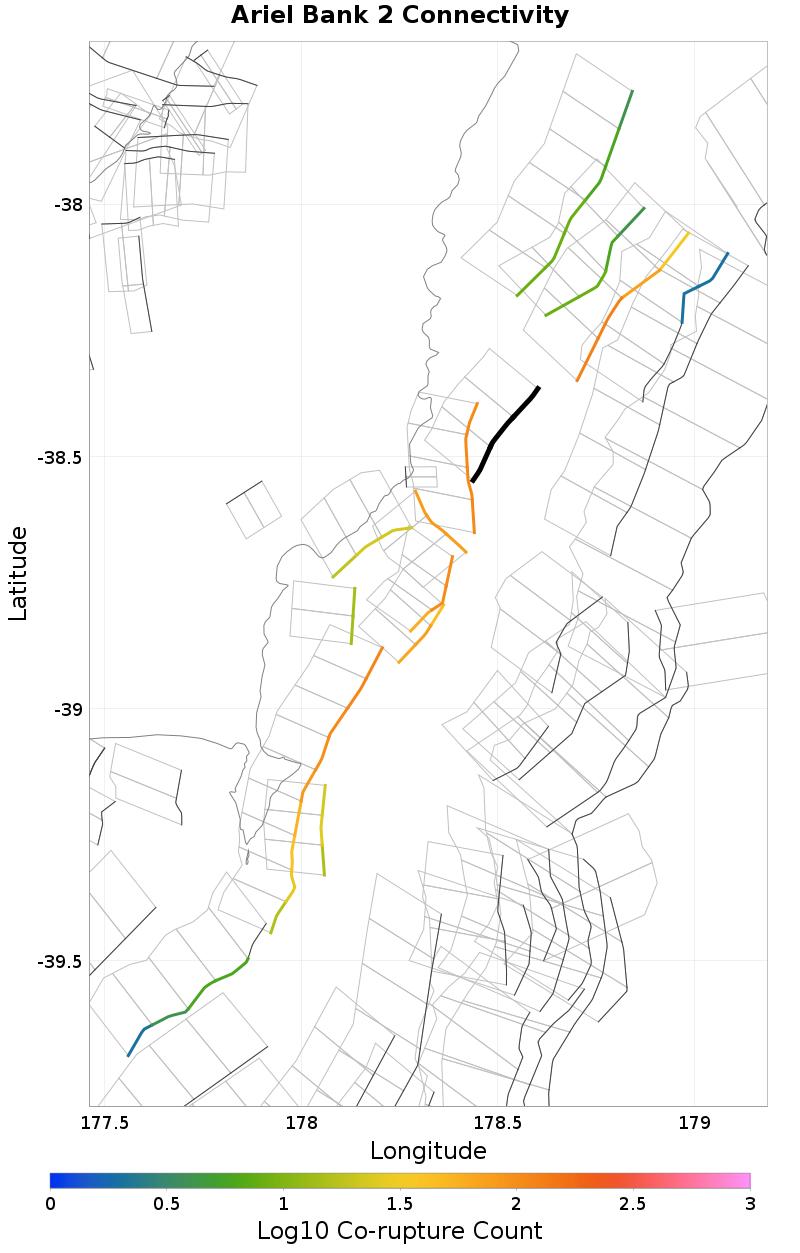

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Gable End North, 0.91 km away
Pakarae, 4 km away
Ruatoria South 3, 7.96 km away
Te Ikaarongamai, 11.29 km away
Gable End South, 11.97 km away
Ruatoria South 4, 14.79 km away

Gable End North, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count109
Co-rupture Rate1.3401193E-5

Pakarae, 4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruatoria South 3, 7.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count123
Co-rupture Rate4.886586E-9

Te Ikaarongamai, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count83
Co-rupture Rate3.321501E-5

Gable End South, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate9.944826E-6

Ruatoria South 4, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0
