Awatere: Northeast 2 Details

Property	Value
Rupture Count	13,878
Ruptures Above Sect Min Mag	13,878
Ruptures w/ Nonzero Rates	553
Magnitude Range	[6.99, 8.68]
Length Range	[22, 1,082] km
Total Rate	3.8104516E-4 /yr
Multi-Fault Rate	3.8104516E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	165

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

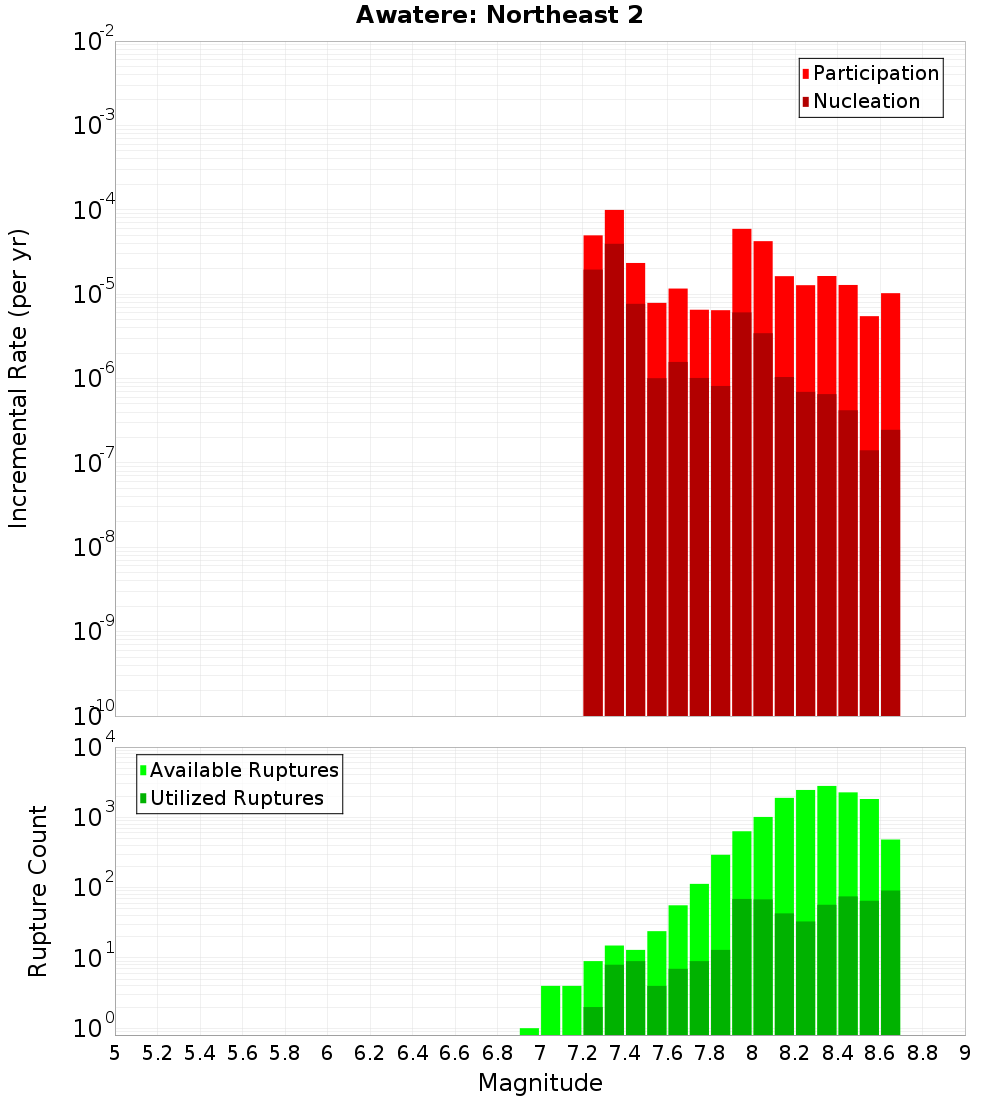

Magnitude-Frequency Distribution

Incremental	Cumulative

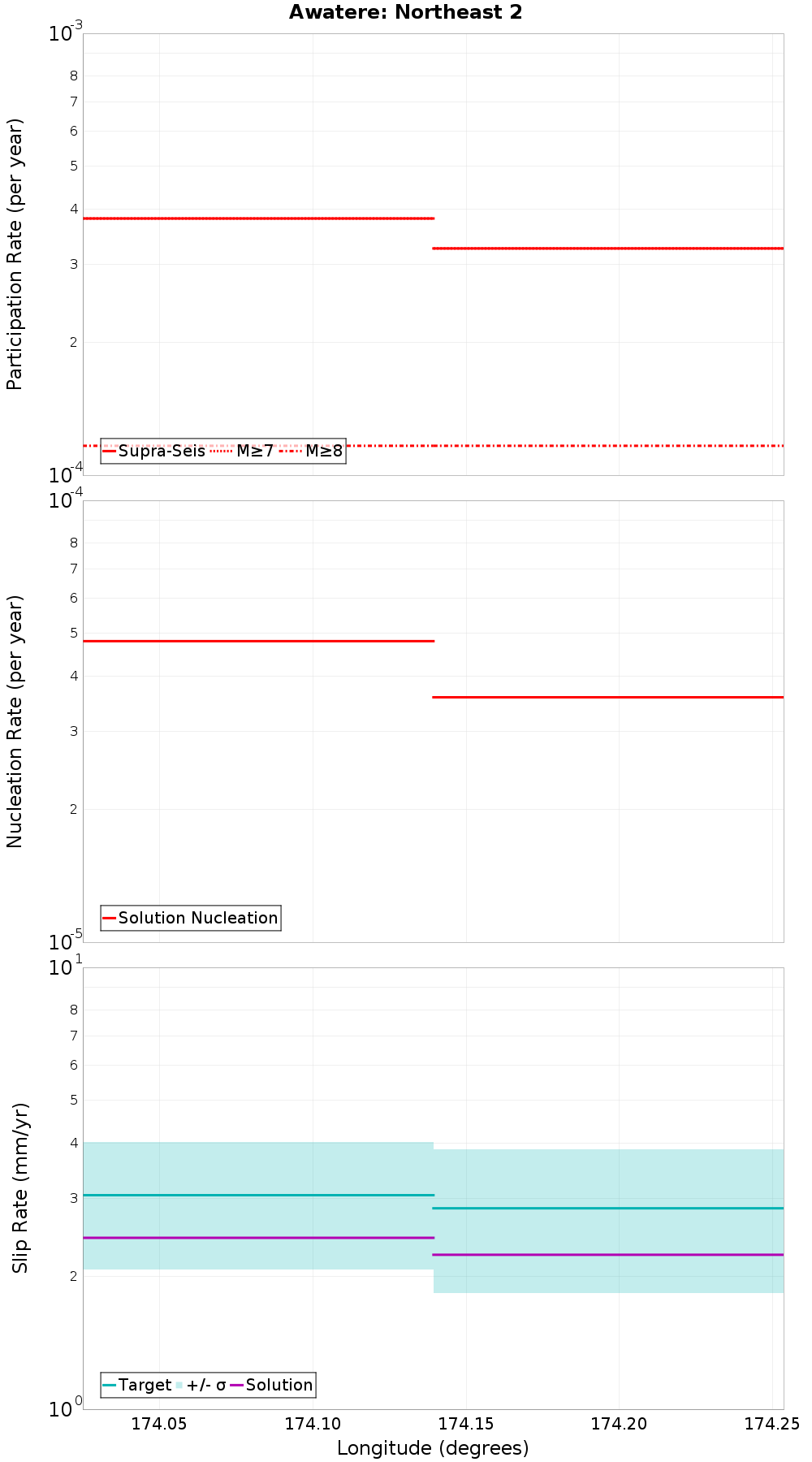

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awatere: Northeast 1, 0 km away
Vernon 1, 0 km away
Vernon 4, 0 km away
Vernon 3, 0 km away
Cloudy 1, 0.04 km away
Vernon 2, 0.12 km away
Cloudy 2, 4.02 km away
Cloudy 3, 5.28 km away
Wairau 2, 7.45 km away
Wairau 3, 10.16 km away
Wairau, 12.04 km away
London Hill, 14.08 km away
Wairarapa: Needles, 14.79 km away

Awatere: Northeast 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	13,301
Co-rupture Rate	3.8104458E-4

Vernon 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	184
Co-rupture Rate	1.24937205E-5

Vernon 4, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	false
Co-rupture Count	126
Co-rupture Rate	3.1146664E-7

Vernon 3, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	473
Co-rupture Rate	6.8034606E-5

Cloudy 1, 0.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	2,384
Co-rupture Rate	2.4873027E-5

Vernon 2, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	482
Co-rupture Rate	1.0833798E-5

Cloudy 2, 4.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	3,350
Co-rupture Rate	1.8786562E-4

Cloudy 3, 5.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	5,741
Co-rupture Rate	3.9071376E-5

Wairau 2, 7.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairau 3, 10.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairau, 12.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	false
Co-rupture Count	326
Co-rupture Rate	1.6592329E-6

London Hill, 14.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: Needles, 14.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	false
Co-rupture Count	2,949
Co-rupture Rate	1.5995876E-4
