Beaumont River Details

Property	Value
Rupture Count	5,302
Ruptures Above Sect Min Mag	5,301
Ruptures w/ Nonzero Rates	99
Magnitude Range	[7.15, 8.47]
Length Range	[24, 534] km
Total Rate	4.394364E-5 /yr
Multi-Fault Rate	4.394364E-5 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	61

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

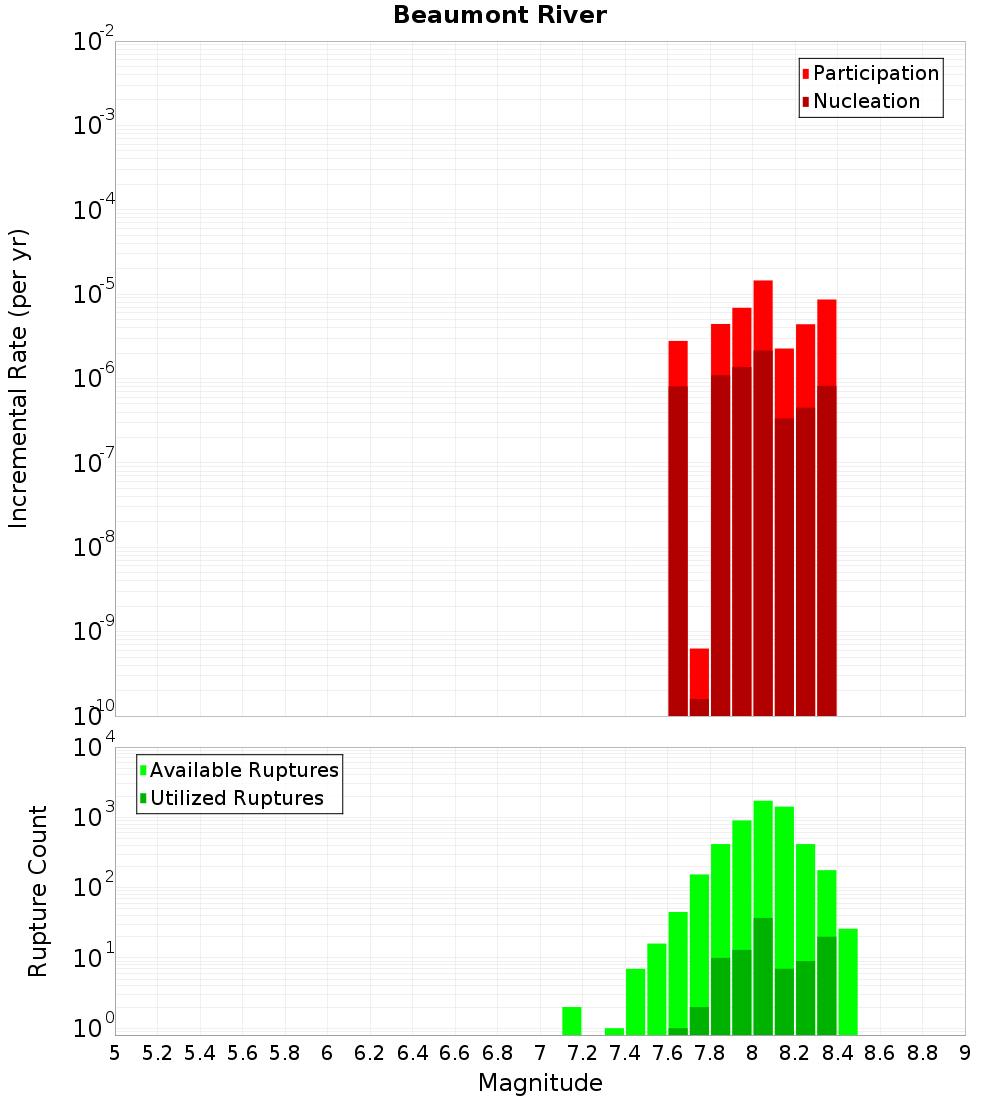

Magnitude-Frequency Distribution

Incremental	Cumulative

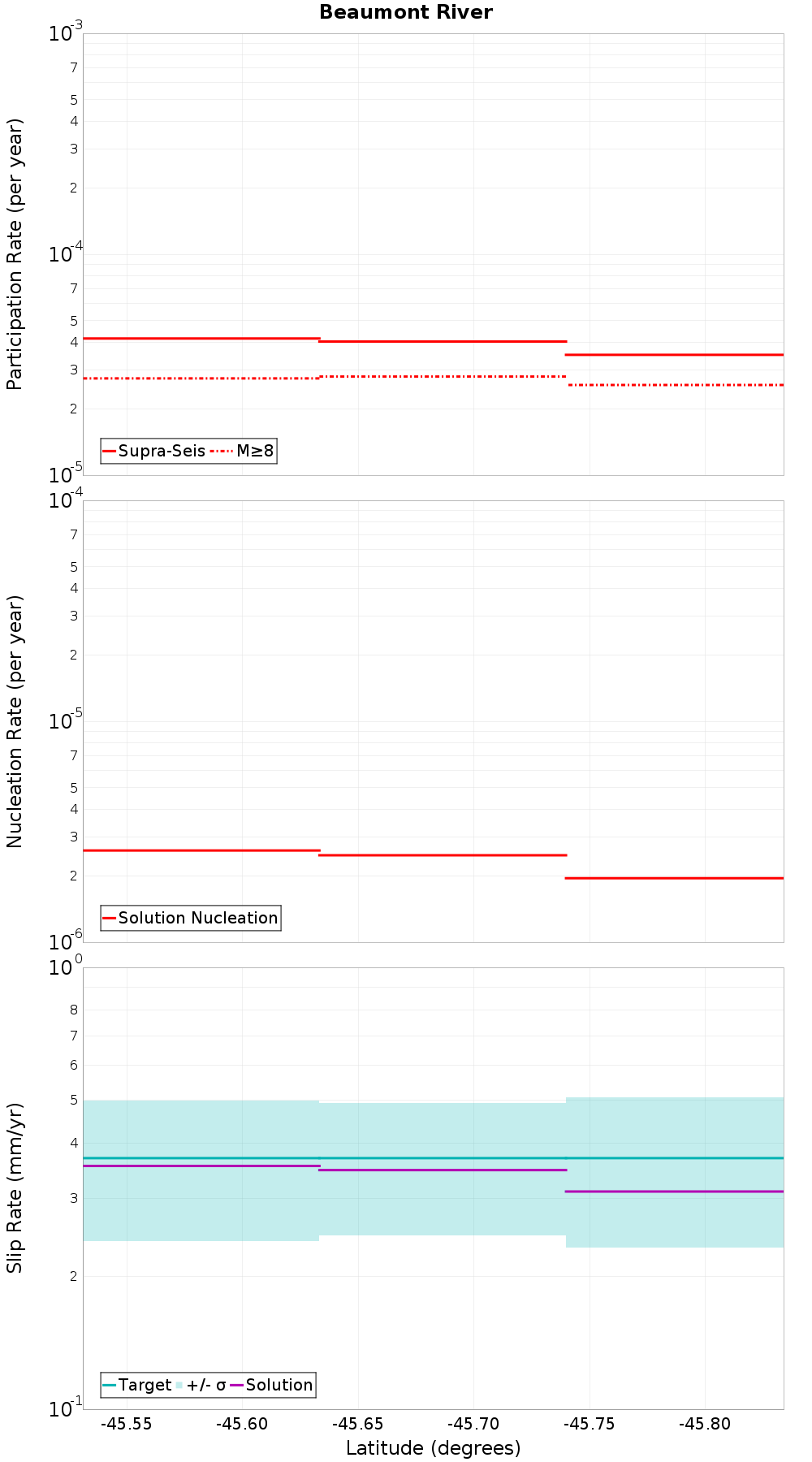

Along-Strike Values

Moment-Rates and b-Values

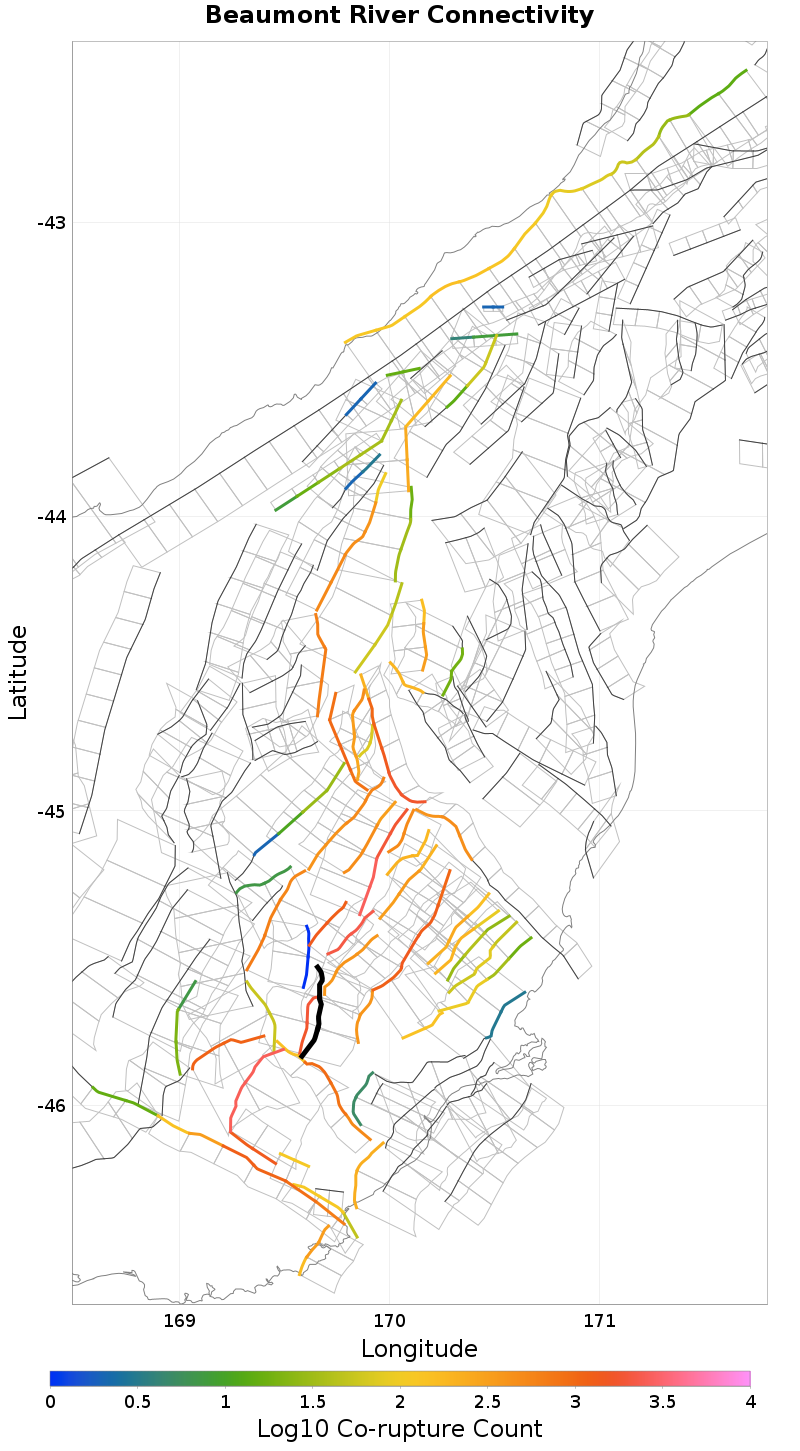

Connectivity

Nearby Sections

Fault Section
Logan Burn, 0.16 km away
Hyde South - The Twins, 0.29 km away
Pylap, 0.39 km away
Backbone, 0.6 km away
Tuapeka, 0.91 km away
Hyde North, 1.07 km away
Blue Mountain, 3.51 km away
Lake Onslow, 3.85 km away
Nichols Rock, 4.81 km away
Long Valley, 5.68 km away
Teviot, 10.54 km away
Little Valley, 10.65 km away
Spylaw, 12.97 km away

Logan Burn, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	399
Co-rupture Rate	1.8048033E-6

Hyde South - The Twins, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	398
Co-rupture Rate	6.139582E-6

Pylap, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	2,314
Co-rupture Rate	2.005788E-5

Backbone, 0.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	1,909
Co-rupture Rate	1.4406764E-5

Tuapeka, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	960
Co-rupture Rate	2.023658E-5

Hyde North, 1.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	1,415
Co-rupture Rate	1.1523123E-5

Blue Mountain, 3.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	2,589
Co-rupture Rate	1.4008816E-5

Lake Onslow, 3.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Nichols Rock, 4.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	140
Co-rupture Rate	1.25652E-5

Long Valley, 5.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	1,365
Co-rupture Rate	1.0550085E-5

Teviot, 10.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	false
Co-rupture Count	54
Co-rupture Rate	1.492687E-7

Little Valley, 10.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	false
Co-rupture Count	706
Co-rupture Rate	1.20407985E-5

Spylaw, 12.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	false
Co-rupture Count	1,149
Co-rupture Rate	1.3787481E-5
