Cape Egmont: South Details
| Property | Value |
|---|---|
| Rupture Count | 40 |
| Ruptures Above Sect Min Mag | 38 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [7.02, 7.60] |
| Length Range | [21, 80] km |
| Total Rate | 8.6690525E-5 /yr |
| Multi-Fault Rate | 8.668329E-5 /yr (99.99%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 6 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

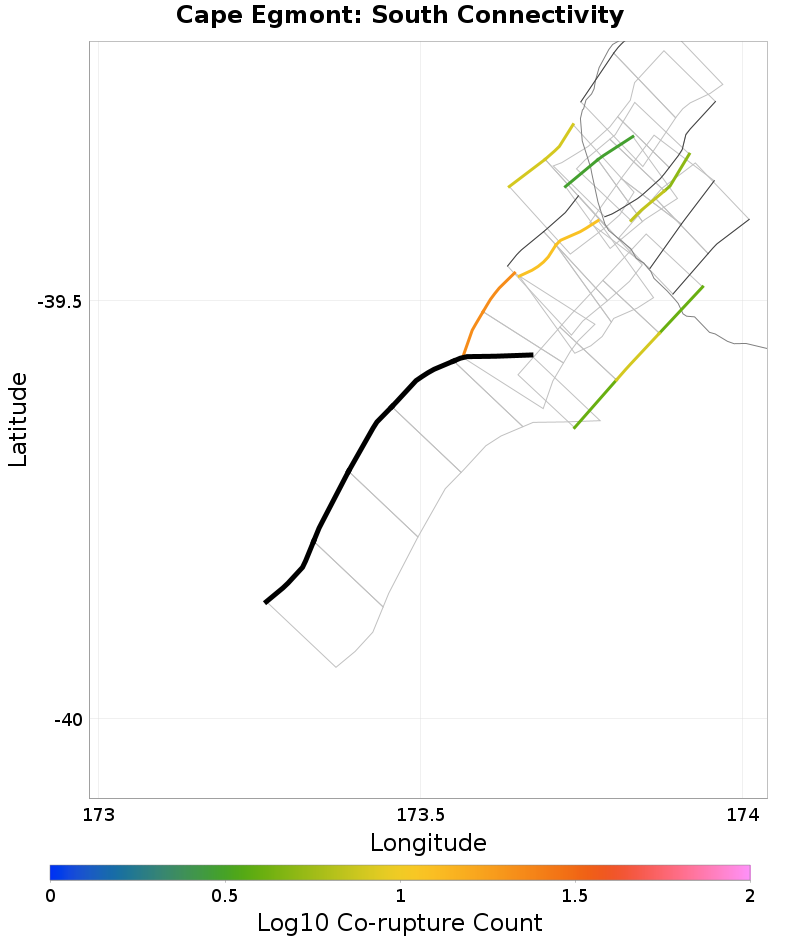

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Cape Egmont: Central, 0.35 km away |
| Pihama, 0.4 km away |
| Manahi 1, 8.37 km away |
| Cape Egmont: North, 10.53 km away |
Cape Egmont: Central, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 22 |
| Co-rupture Rate | 2.4786614E-5 |
Pihama, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 6.189667E-5 |
Manahi 1, 8.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.117293E-5 |
Cape Egmont: North, 10.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
