Double Hill Details

PropertyValue
Rupture Count1,123
Ruptures Above Sect Min Mag1,119
Ruptures w/ Nonzero Rates66
Magnitude Range[6.79, 8.11]
Length Range[17, 286] km
Total Rate1.1910517E-4 /yr
Multi-Fault Rate7.465074E-5 /yr (62.68%)
Directly-Connected Faults5
All Co-Rupturing Faults49

Table Of Contents

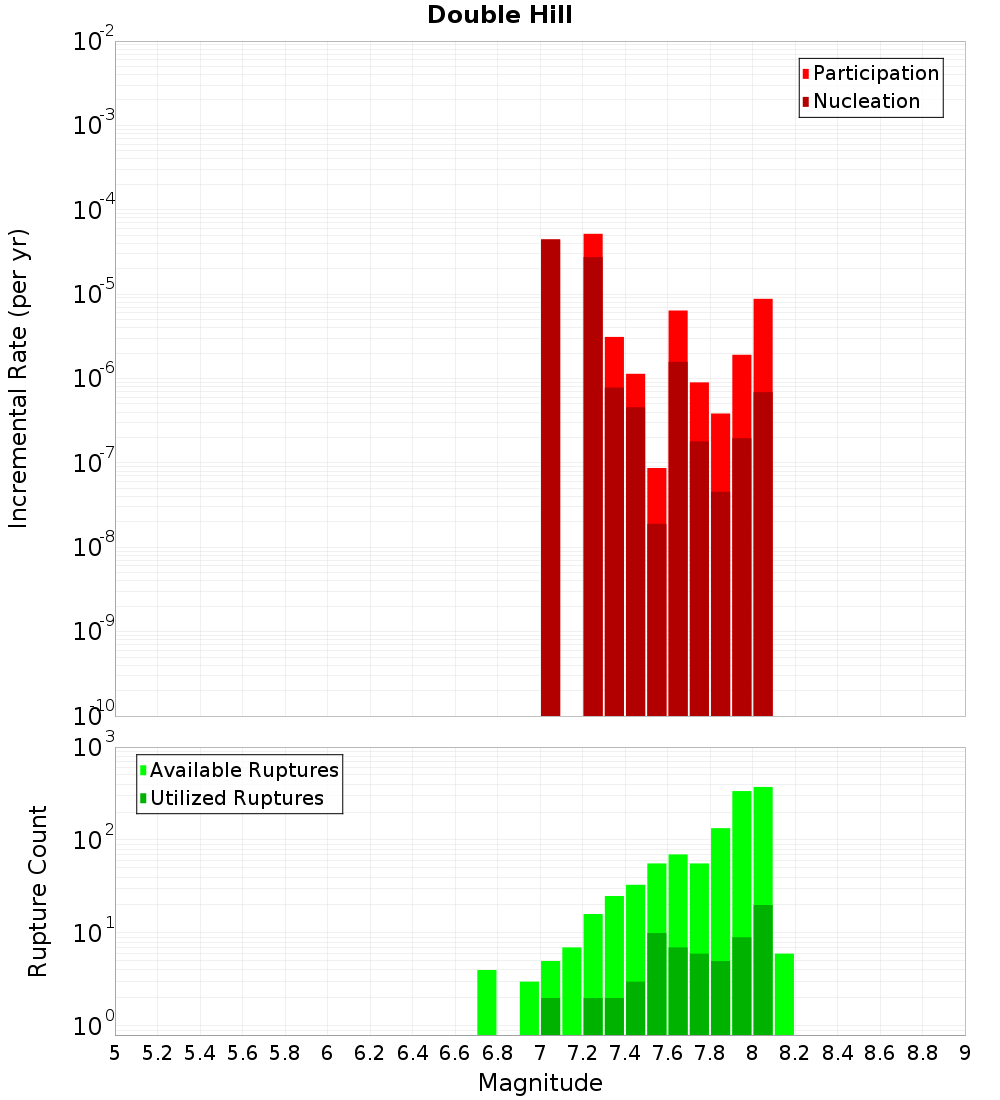

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Redcliffe, 0.11 km awayPotts River, 5.66 km away
Hutt Peel, 0.26 km awayTorlesse, 6.89 km away
North Branch, 1.04 km awayCheeseman, 7.96 km away
Jagged, 1.2 km awayObservation, 8.15 km away
Mistake - Rolleston, 1.94 km awayMathias, 12.11 km away
Porters Pass, 2.22 km awayHororata, 12.7 km away
Big Ben, 2.59 km awayKowai - View Hill, 13.14 km away
Lake Heron, 4.17 km awayJollie Range, 14.32 km away
Harper, 5.39 km awayPotts Range, 14.65 km away

Redcliffe, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count178
Co-rupture Rate1.1893613E-5

North Branch, 1.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Jagged, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count798
Co-rupture Rate9.547482E-6

Mistake - Rolleston, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 2.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count139
Co-rupture Rate1.1893613E-5

Big Ben, 2.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate3.2641287E-6

Lake Heron, 4.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Harper, 5.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count472
Co-rupture Rate5.974286E-6

Potts River, 5.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count896
Co-rupture Rate6.165873E-5

Torlesse, 6.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate3.764307E-6

Cheeseman, 7.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate1.3051341E-5

Observation, 8.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mathias, 12.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Jollie Range, 14.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Potts Range, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0
