Fisherman 1 Details

PropertyValue
Rupture Count121
Ruptures Above Sect Min Mag120
Ruptures w/ Nonzero Rates34
Magnitude Range[6.89, 8.03]
Length Range[16, 184] km
Total Rate1.2239588E-5 /yr
Multi-Fault Rate1.2239588E-5 /yr (100.00%)
Directly-Connected Faults1
All Co-Rupturing Faults16

Table Of Contents

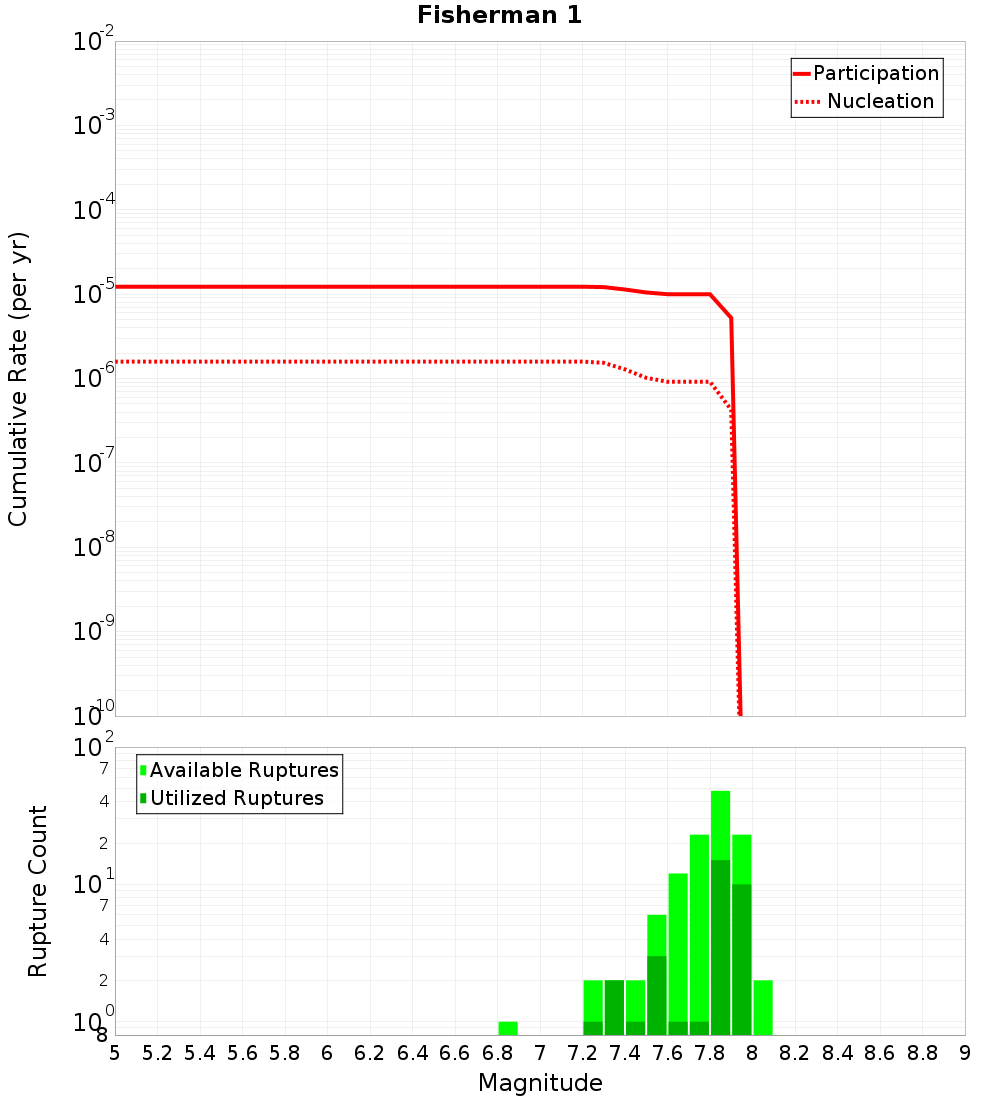

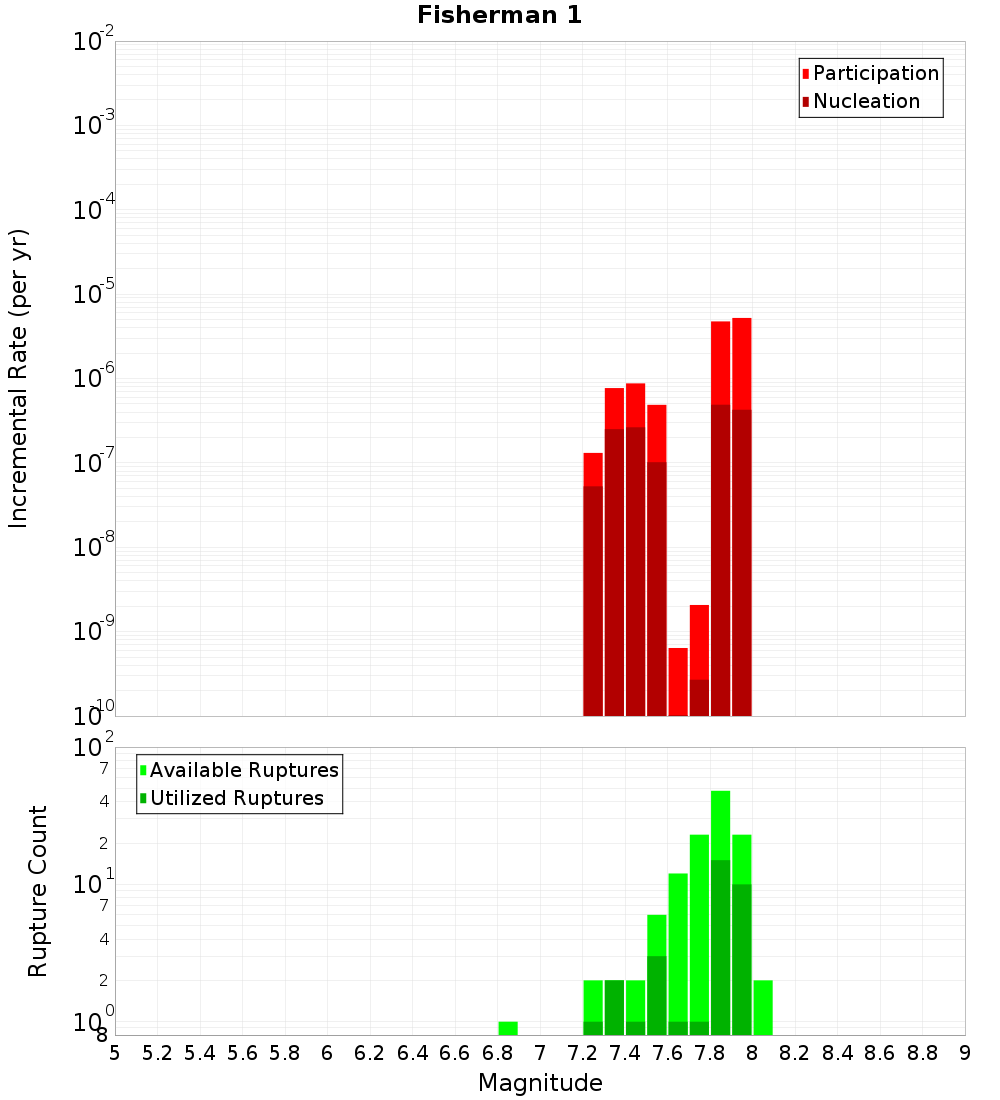

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

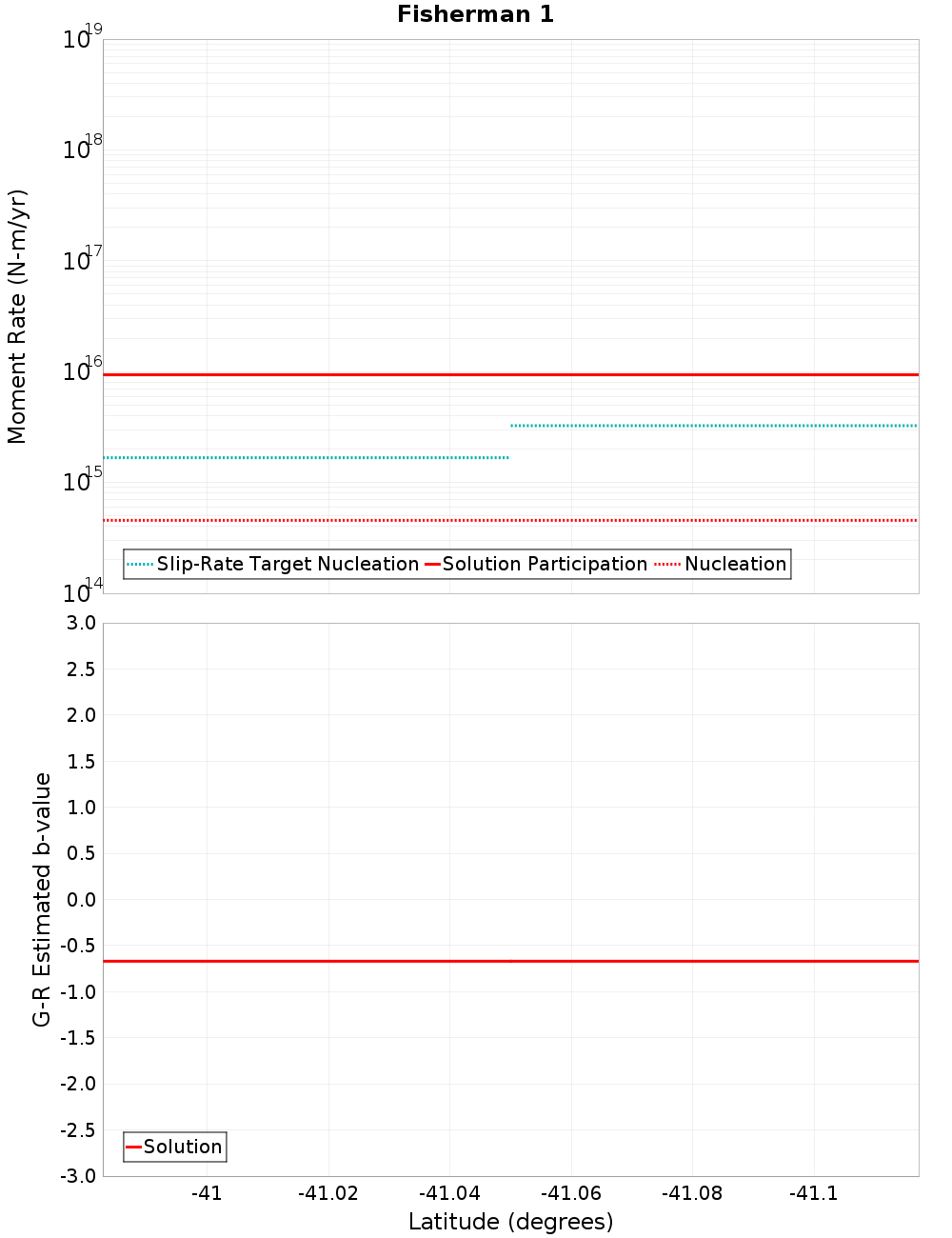

Moment-Rates and b-Values

(top)

Along-strike plot

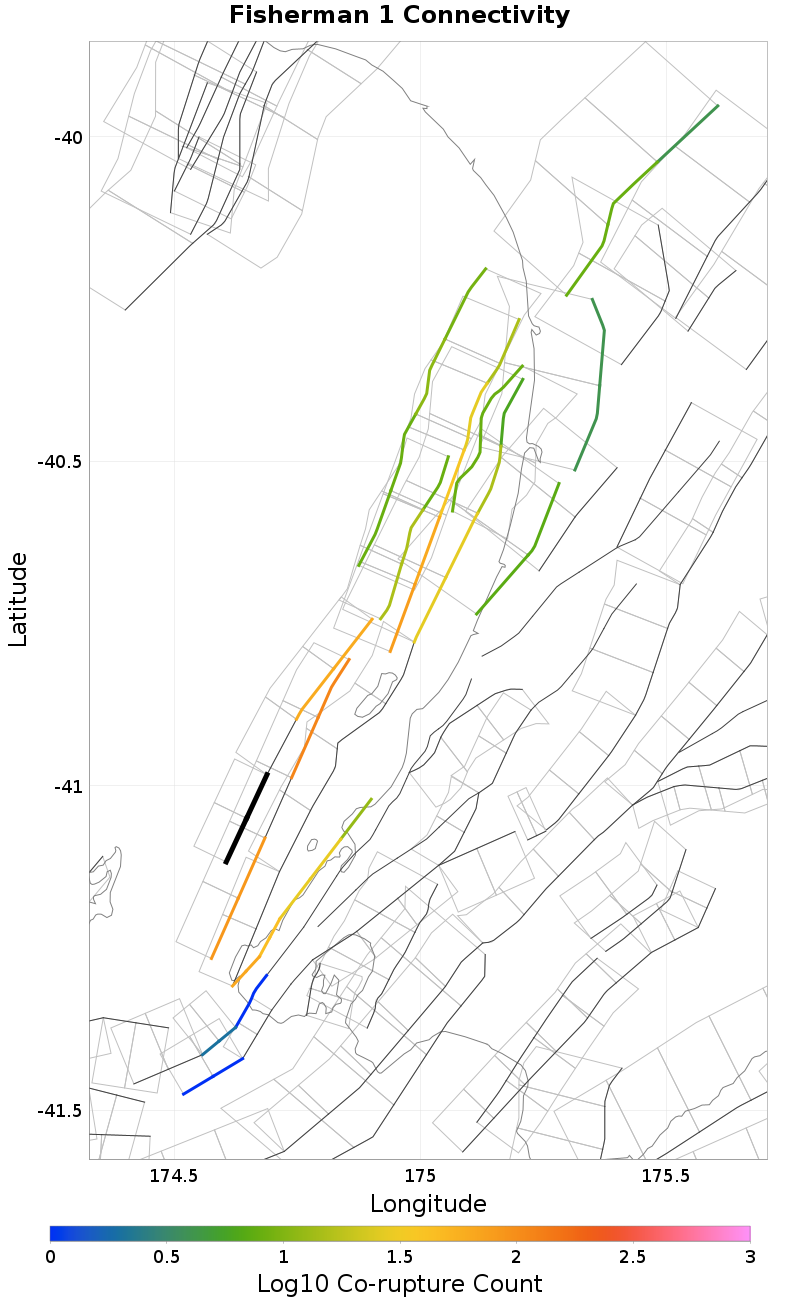

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Fisherman 2, 0 km away
Okupe 1, 3.93 km away
Shepherds Gully - Mana, 8.62 km away
Otaheke South, 8.64 km away
Pukerua - Shepherds Gully: 3, 13.16 km away
Pukerua - Shepherds Gully: 2, 13.34 km away

Fisherman 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate9.884952E-7

Okupe 1, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count201
Co-rupture Rate1.7800037E-5

Shepherds Gully - Mana, 8.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 3, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate2.961418E-6

Pukerua - Shepherds Gully: 2, 13.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count44
Co-rupture Rate6.449847E-6
