Galloway Shanty Details

PropertyValue
Rupture Count2,069
Ruptures Above Sect Min Mag2,069
Ruptures w/ Nonzero Rates70
Magnitude Range[7.01, 8.37]
Length Range[17, 425] km
Total Rate2.229889E-5 /yr
Multi-Fault Rate2.229889E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults61

Table Of Contents

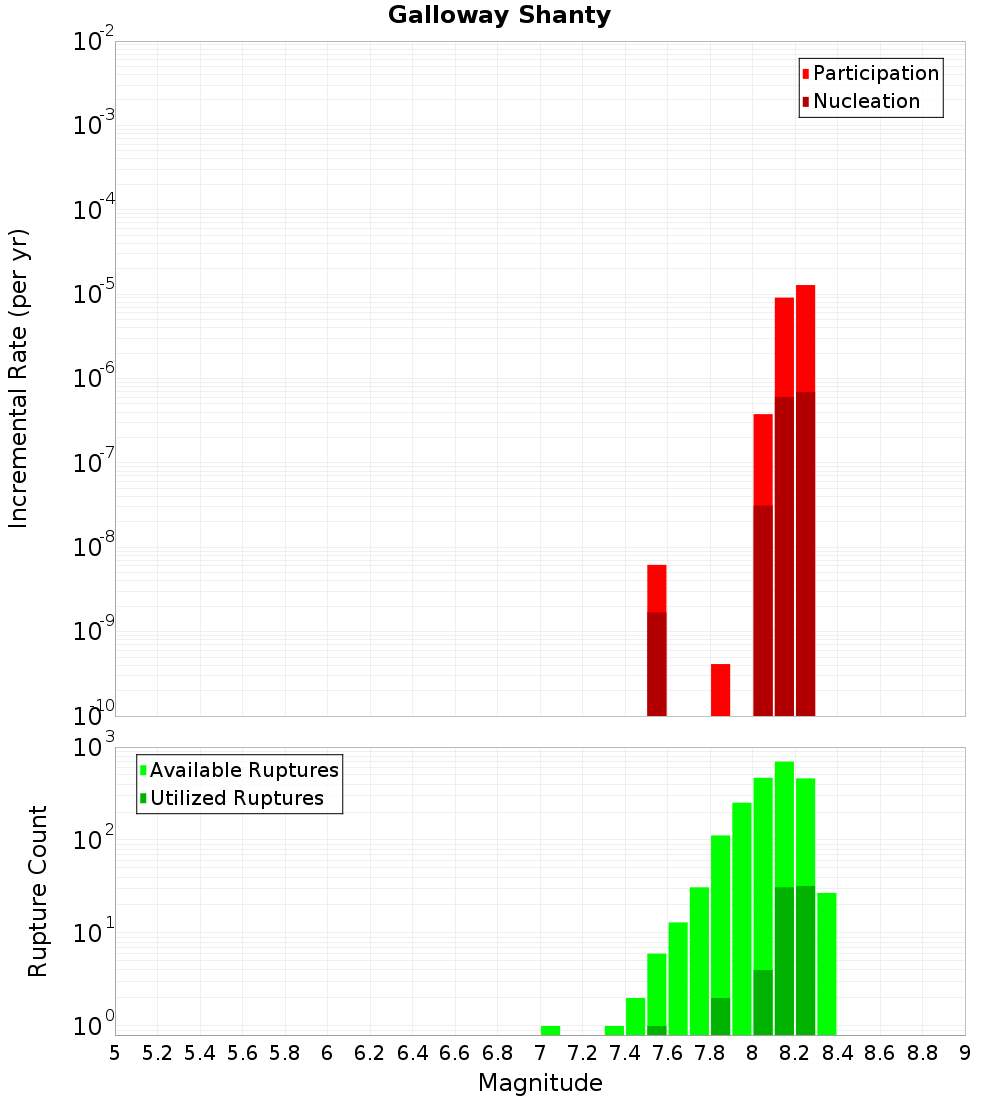

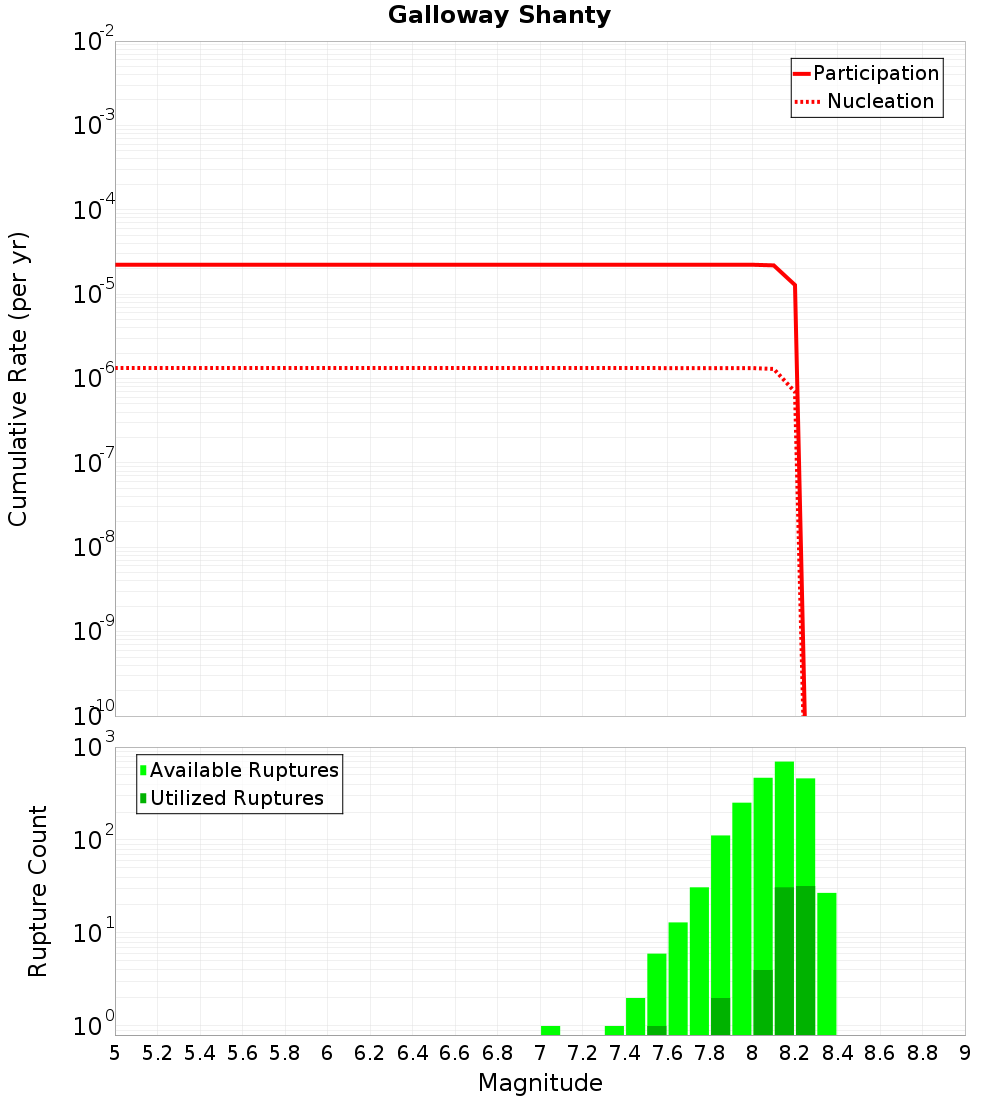

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

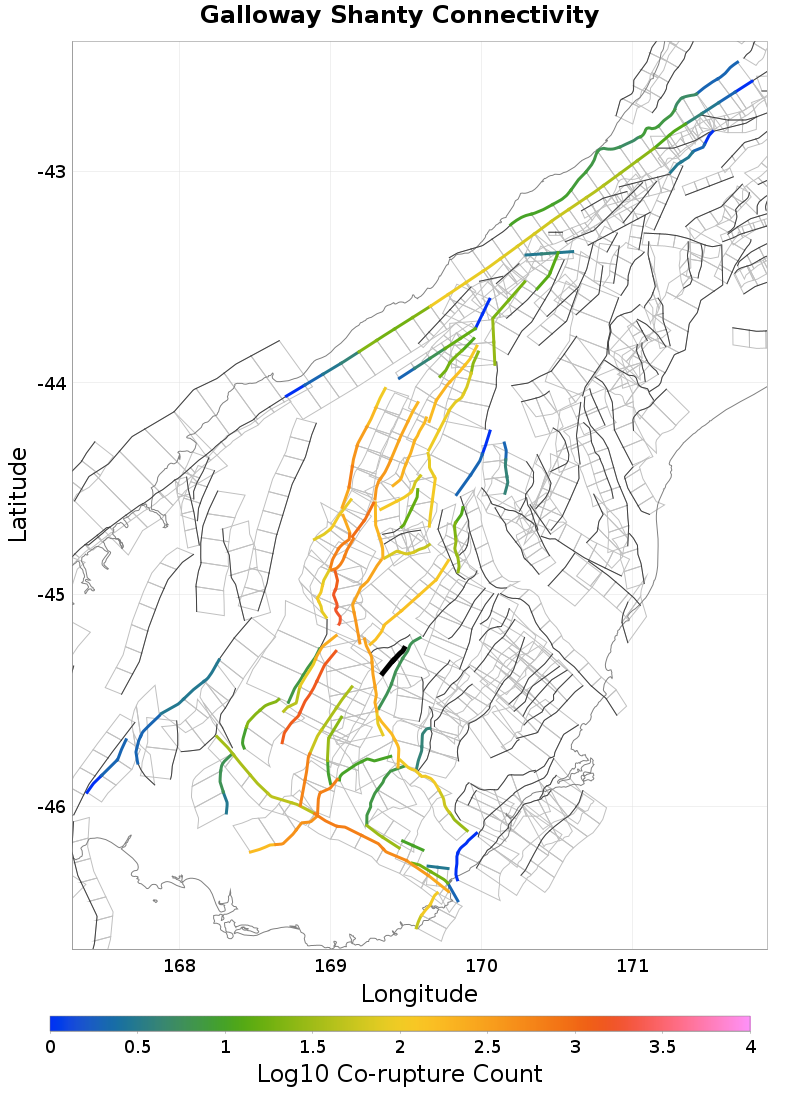

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Galloway, 0.07 km away
Roaring Lion, 0.37 km away
Little Valley, 2.19 km away
Garvie, 3.61 km away
Old Man, 4.11 km away
Roaring Meg, 5.23 km away
Dunstan, 10.05 km away
Raggedy - Blackstone, 11.19 km away
Pisa, 13.28 km away
Waikaia, 14.6 km away

Galloway, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Roaring Lion, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count239
Co-rupture Rate1.6975726E-12

Little Valley, 2.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate0.0

Garvie, 3.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count1,434
Co-rupture Rate2.2292288E-5

Old Man, 4.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count311
Co-rupture Rate0.0

Roaring Meg, 5.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count1,679
Co-rupture Rate2.2298887E-5

Dunstan, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count145
Co-rupture Rate9.3004013E-7

Raggedy - Blackstone, 11.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pisa, 13.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count382
Co-rupture Rate4.231999E-6

Waikaia, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count604
Co-rupture Rate5.5786995E-6
