Great Groove Details

PropertyValue
Rupture Count30,173
Ruptures Above Sect Min Mag30,173
Ruptures w/ Nonzero Rates71
Magnitude Range[7.18, 8.57]
Length Range[23, 783] km
Total Rate5.143627E-5 /yr
Multi-Fault Rate5.143627E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults234

Table Of Contents

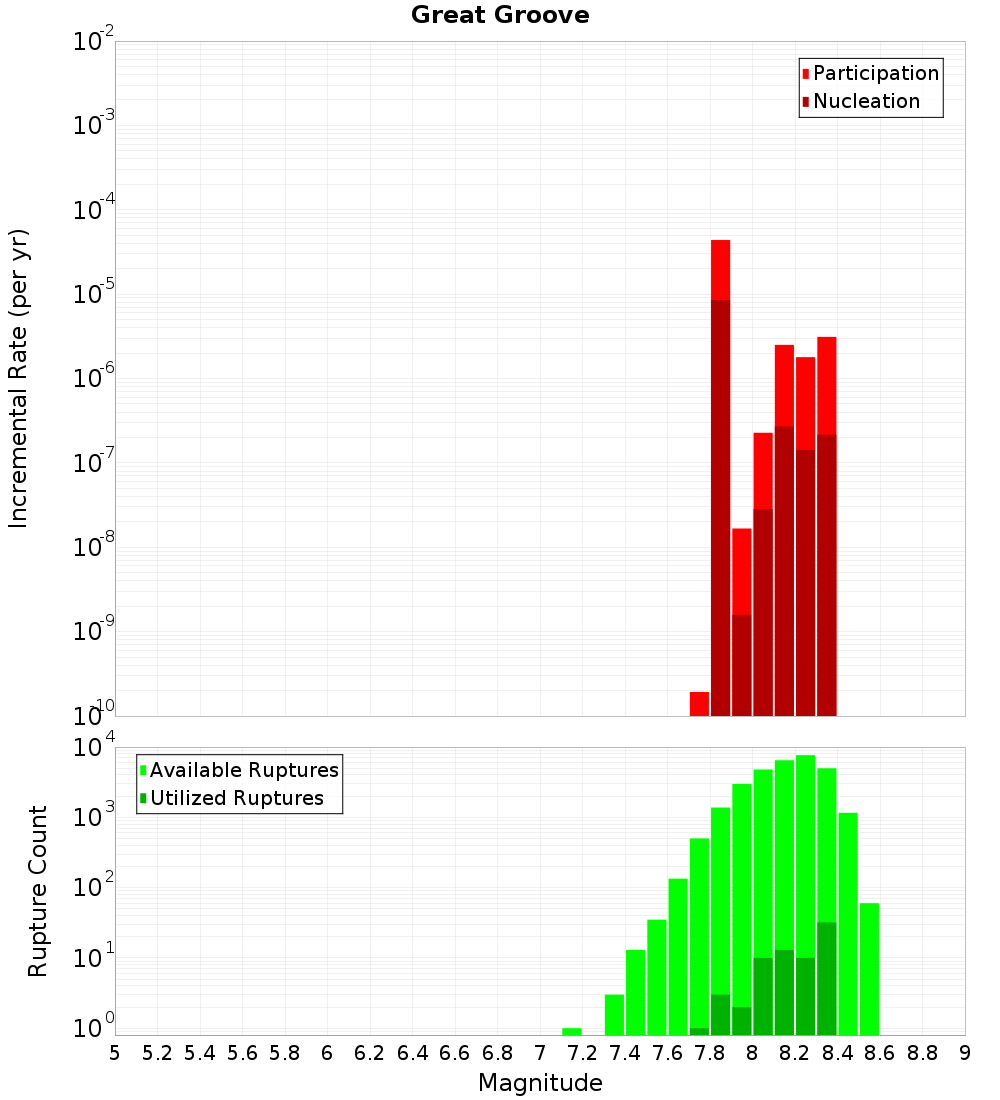

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

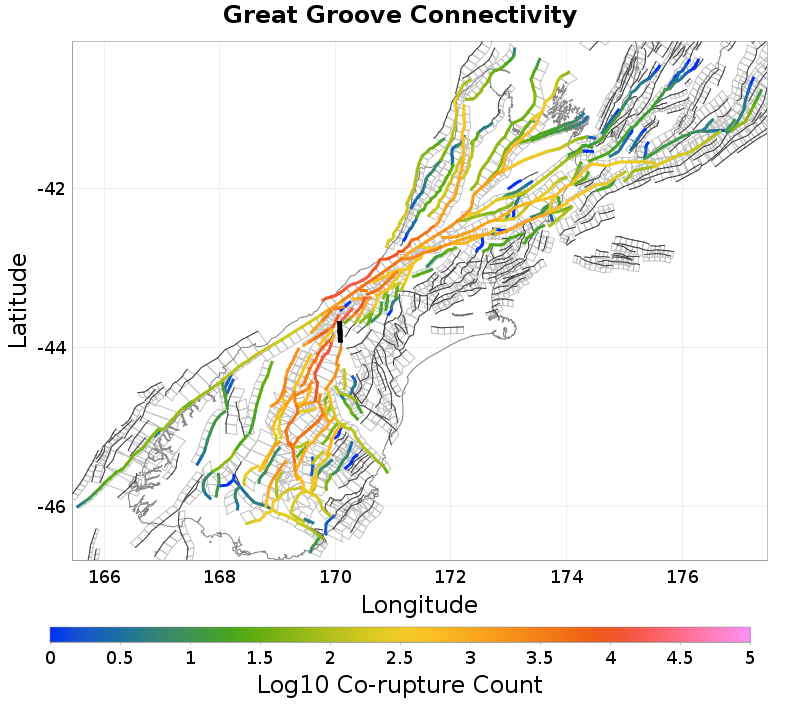

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Huxley, 0.17 km away
Hopkins, 0.18 km away
Barrier Range, 0.21 km away
Landsborough 2, 0.23 km away
Alpine: Jacksons to Kaniere, 0.58 km away
Ostler North, 0.81 km away
Black Blob - Haast Ridge, 0.9 km away
Karangarua, 3.57 km away
McKerrow - Douglas Duplex, 4.77 km away
Liebig North, 6.25 km away
Murchison 1 - Ice Lake, 6.66 km away
Straight Creek, 10.34 km away
Irishman Creek, 14.31 km away

Huxley, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count446
Co-rupture Rate0.0

Hopkins, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count6,102
Co-rupture Rate7.3626063E-7

Barrier Range, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count12,963
Co-rupture Rate6.9018674E-6

Landsborough 2, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count7,142
Co-rupture Rate2.7625365E-6

Alpine: Jacksons to Kaniere, 0.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count4,606
Co-rupture Rate1.9246817E-10

Ostler North, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count2,348
Co-rupture Rate1.3938643E-7

Black Blob - Haast Ridge, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count16,098
Co-rupture Rate4.7134152E-5

Karangarua, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count3,608
Co-rupture Rate9.15545E-9

McKerrow - Douglas Duplex, 4.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count8,531
Co-rupture Rate1.8358783E-6

Liebig North, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count878
Co-rupture Rate4.3644806E-5

Murchison 1 - Ice Lake, 6.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count12,254
Co-rupture Rate3.9194474E-6

Straight Creek, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count3,021
Co-rupture Rate1.8373103E-6

Irishman Creek, 14.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
