Hanmer Details

PropertyValue
Rupture Count5,851
Ruptures Above Sect Min Mag5,851
Ruptures w/ Nonzero Rates3
Magnitude Range[6.99, 8.52]
Length Range[19, 739] km
Total Rate1.2741556E-9 /yr
Multi-Fault Rate1.2741556E-9 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults158

Table Of Contents

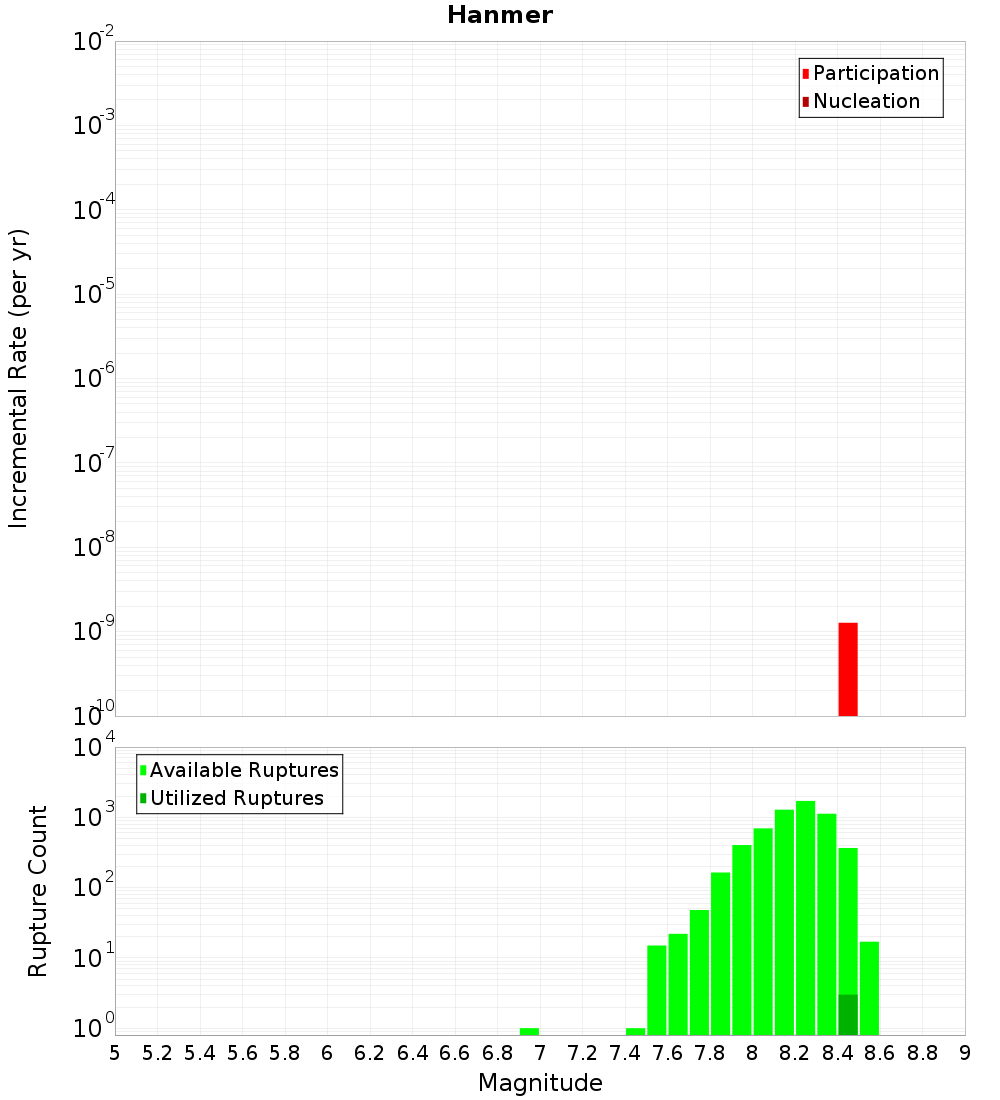

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

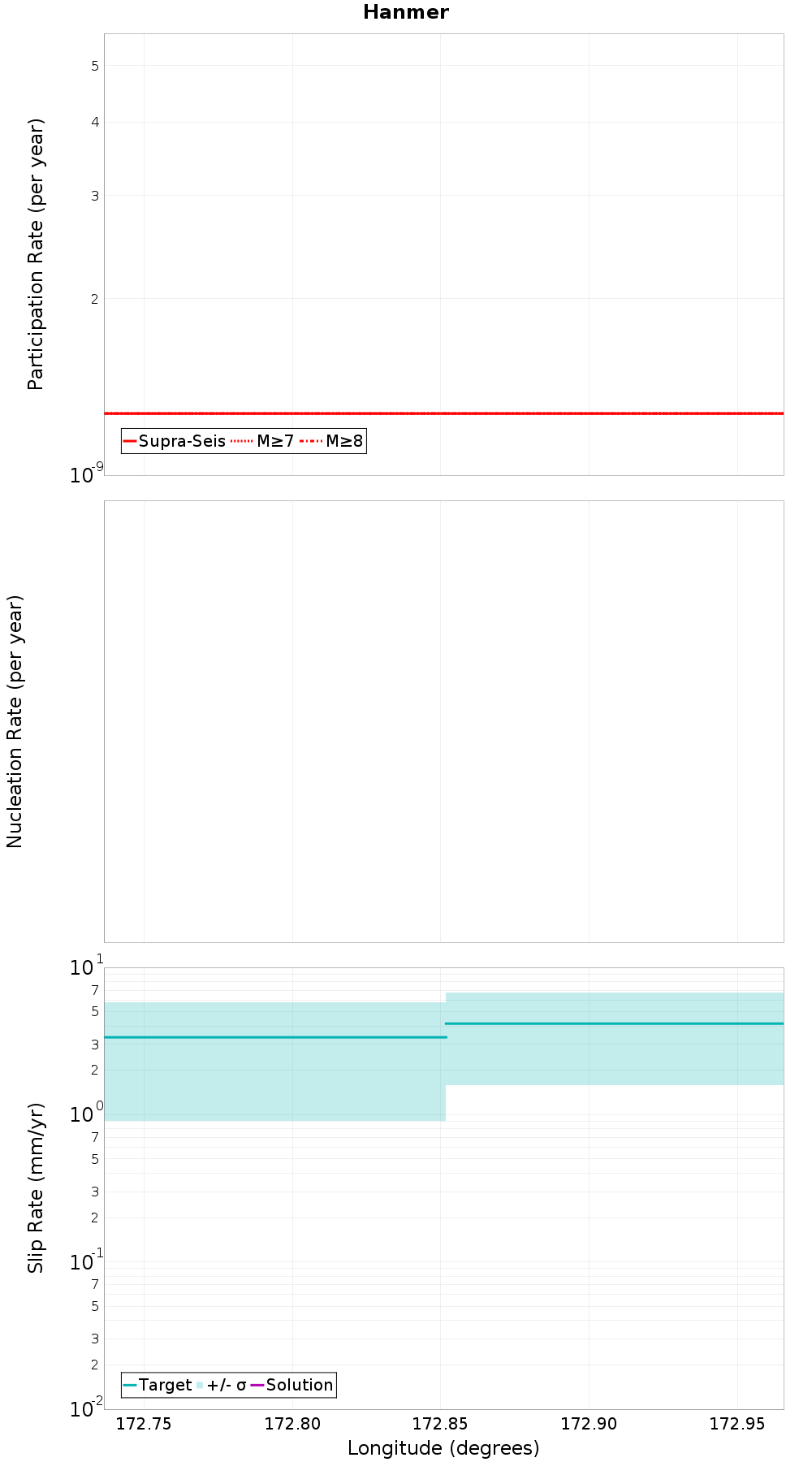

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

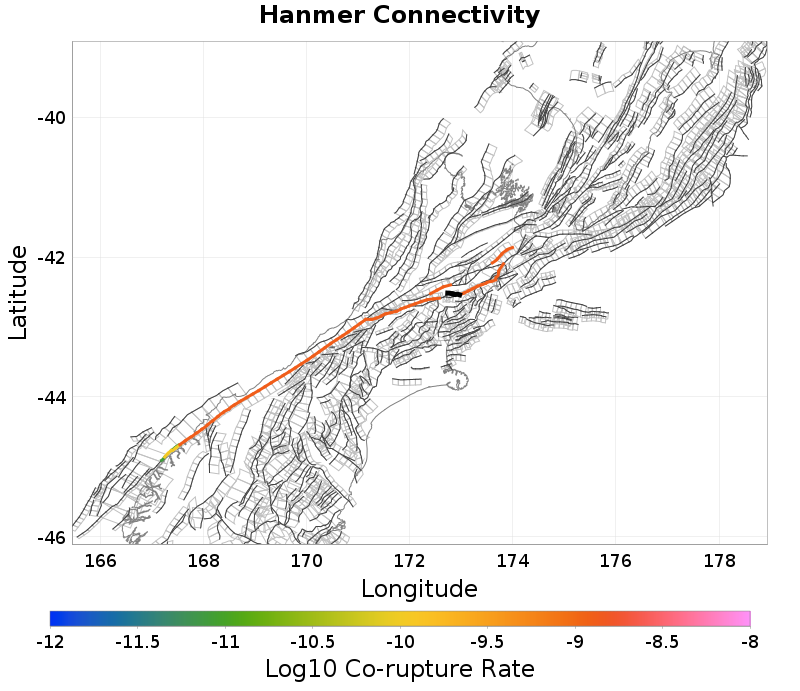

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Hamner SE, 0 km awayMt Culverden, 11.2 km away
Hope: Conway, 0 km awayClarence: Southwest, 11.45 km away
Hope: Hanmer NW, 0.2 km awayElliott, 12.46 km away
Hope: Hamner SW, 1.7 km awayKakapo, 12.92 km away
Kaiwara North, 5.45 km awayClarence: Central, 13.19 km away
Hope: Kakapo-2-Hamner, 7.2 km awayHope: Hope River, 13.39 km away
The Humps, 9.06 km awayHurunui Peak, 14.35 km away
Leader: South, 11.1 km awayAcheron, 14.82 km away

Hope: Hamner SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count238
Co-rupture Rate0.0

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count5,650
Co-rupture Rate1.2741556E-9

Hope: Hanmer NW, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SW, 1.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara North, 5.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Kakapo-2-Hamner, 7.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count238
Co-rupture Rate0.0

The Humps, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 11.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 11.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 11.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count4,418
Co-rupture Rate1.2741556E-9

Elliott, 12.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count242
Co-rupture Rate0.0

Kakapo, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count78
Co-rupture Rate0.0

Clarence: Central, 13.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count756
Co-rupture Rate0.0

Hope: Hope River, 13.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count929
Co-rupture Rate1.2741556E-9

Hurunui Peak, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Acheron, 14.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate0.0
