Kairakau South Details
| Property | Value |
|---|---|
| Rupture Count | 104 |
| Ruptures Above Sect Min Mag | 101 |
| Ruptures w/ Nonzero Rates | 49 |
| Magnitude Range | [6.81, 7.76] |
| Length Range | [17, 142] km |
| Total Rate | 7.129406E-5 /yr |
| Multi-Fault Rate | 7.129406E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

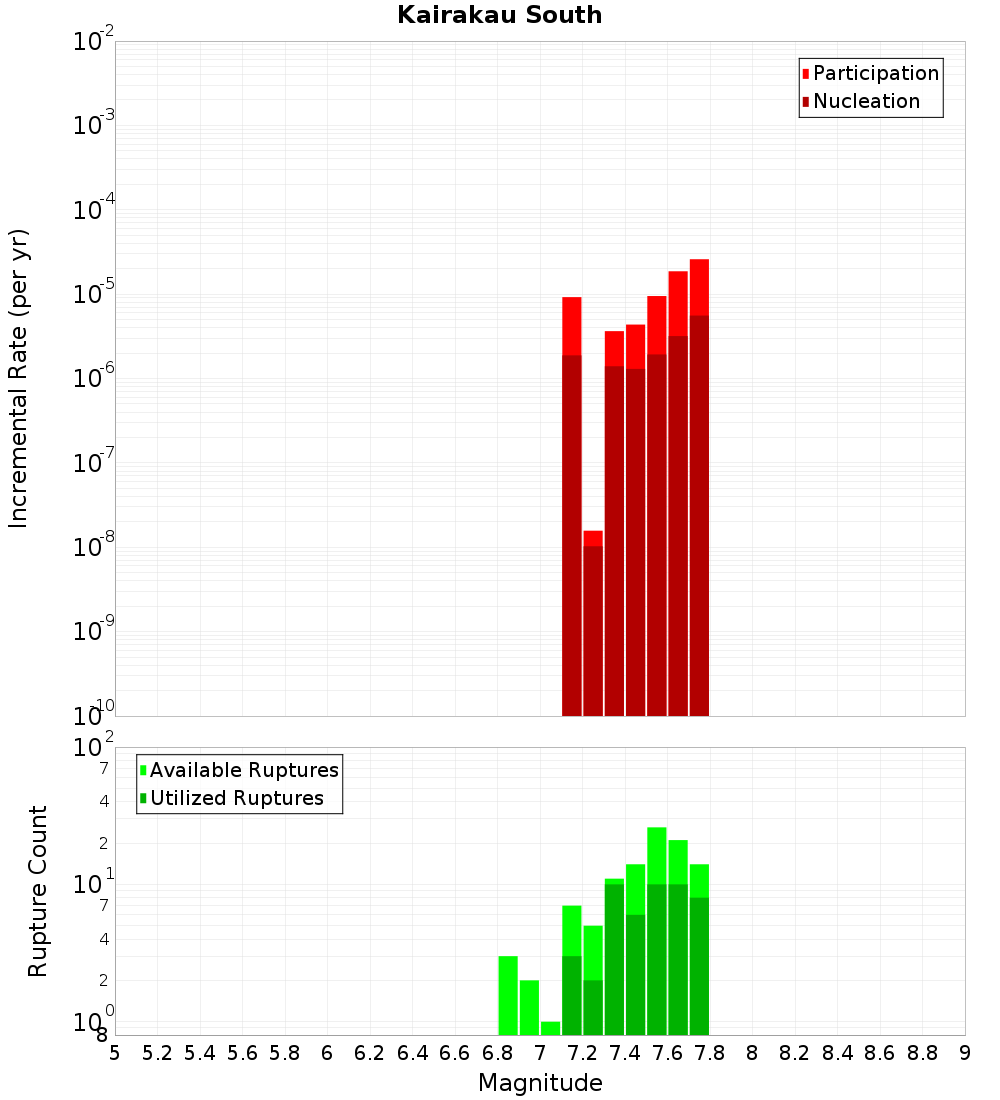

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

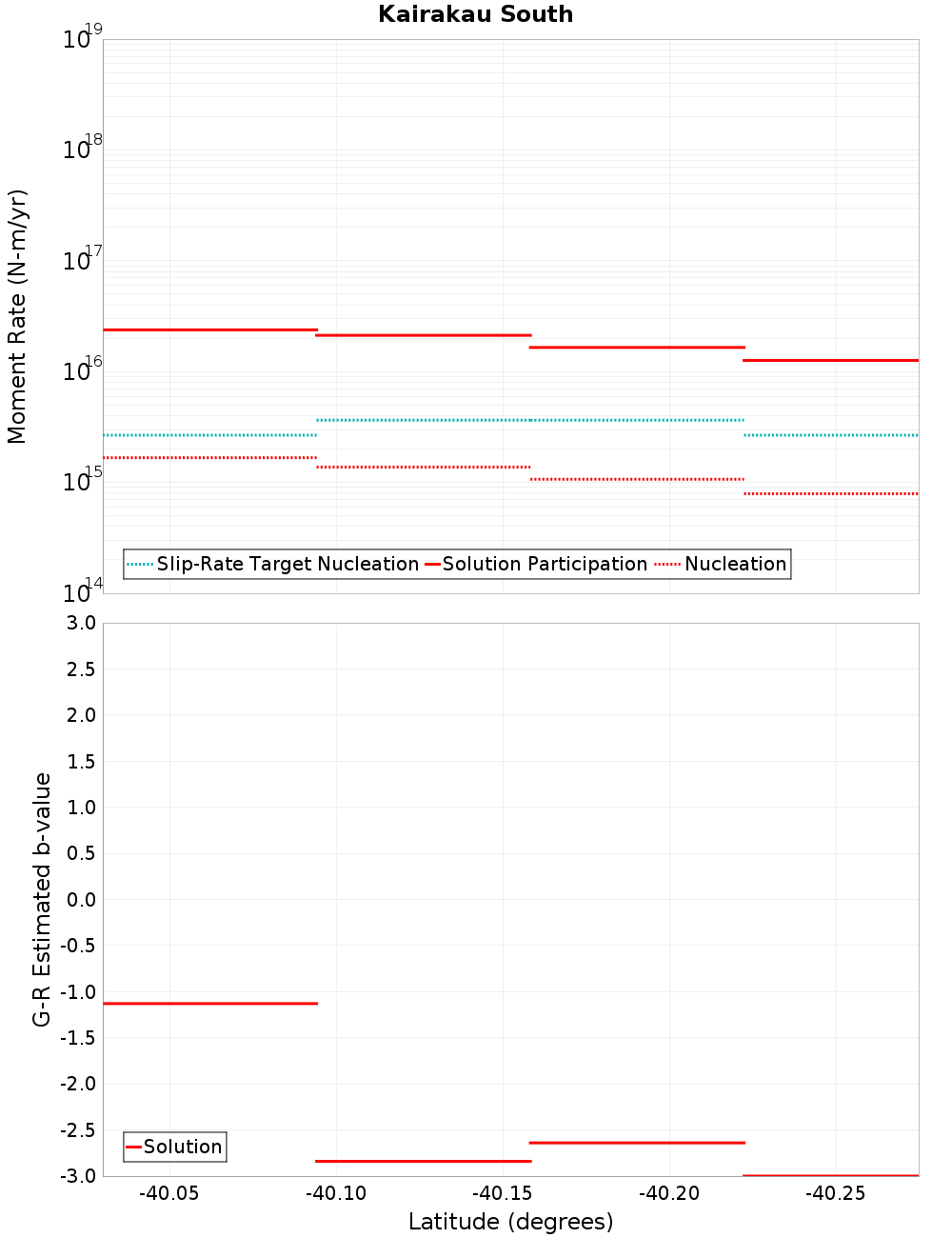

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kairakau 2, 0 km away |
| Kairakau North, 1.29 km away |
| Waimarama 1 & 2, 8.9 km away |
Kairakau 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 53 |
| Co-rupture Rate | 4.972979E-5 |
Kairakau North, 1.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 39 |
| Co-rupture Rate | 2.7955977E-5 |
Waimarama 1 & 2, 8.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 29 |
| Co-rupture Rate | 1.6143576E-5 |
