NW Cardrona South Details
| Property | Value |
|---|---|
| Rupture Count | 9,422 |
| Ruptures Above Sect Min Mag | 9,421 |
| Ruptures w/ Nonzero Rates | 146 |
| Magnitude Range | [7.02, 8.60] |
| Length Range | [19, 771] km |
| Total Rate | 2.7308777E-5 /yr |
| Multi-Fault Rate | 2.7308777E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 103 |
Table Of Contents

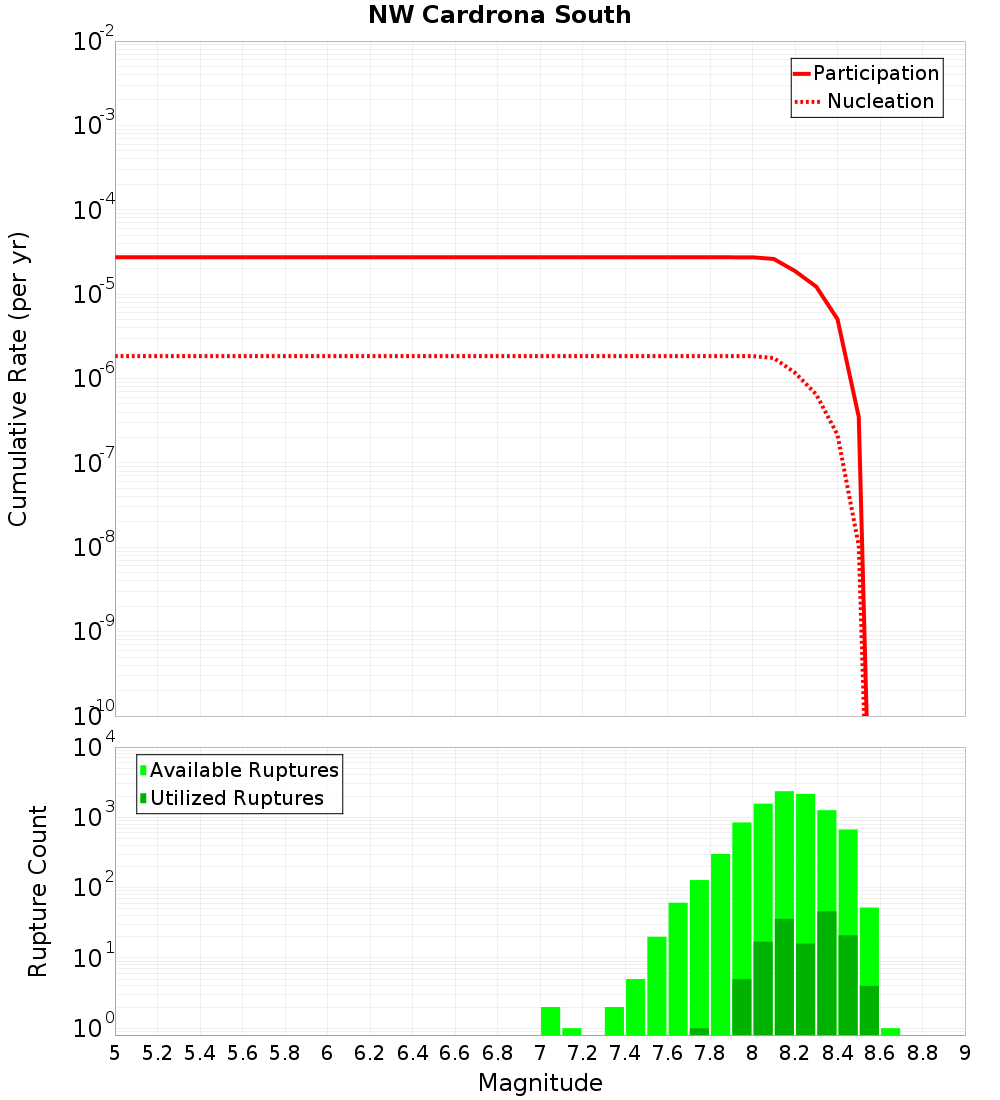

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

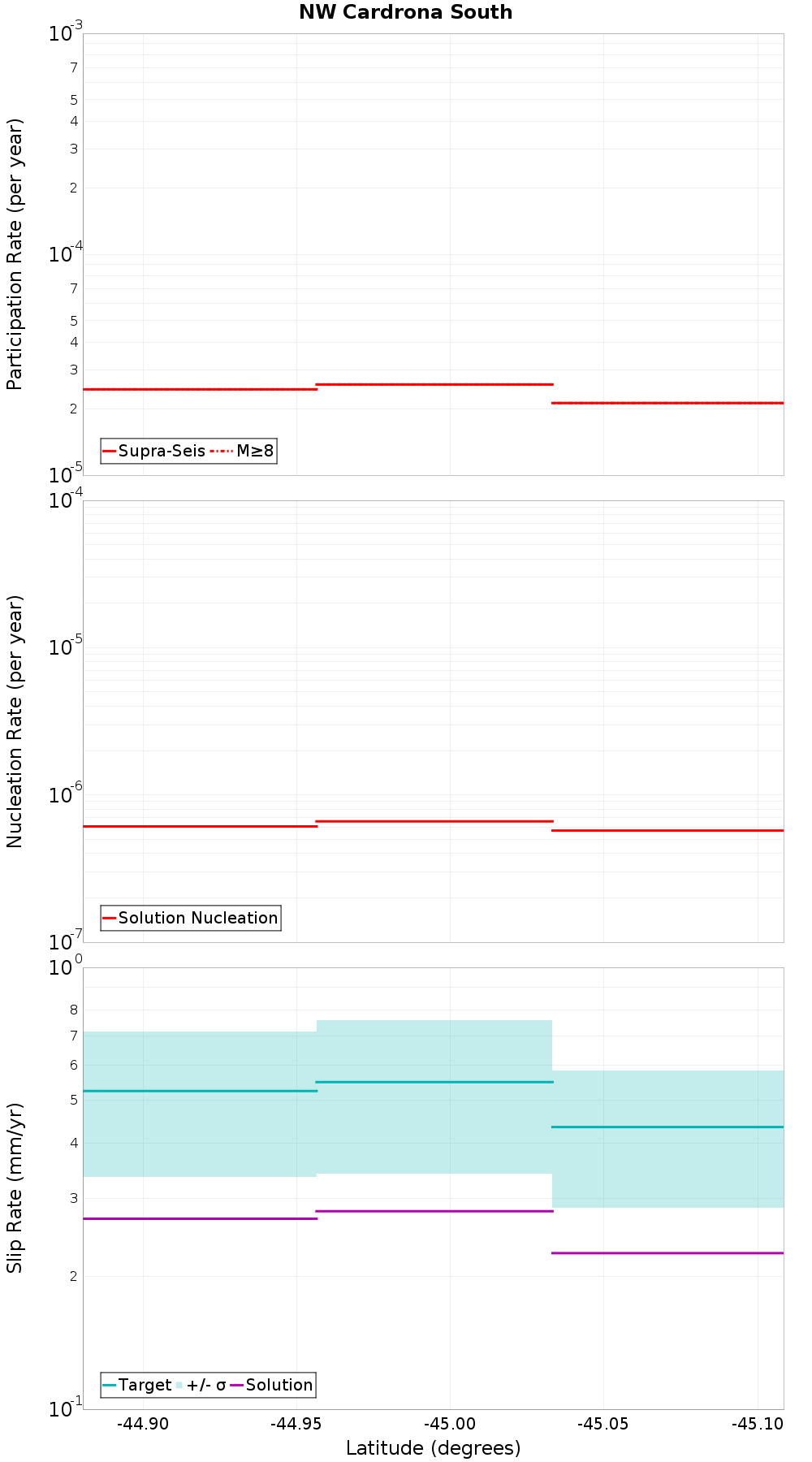

Along-Strike Values
Moment-Rates and b-Values

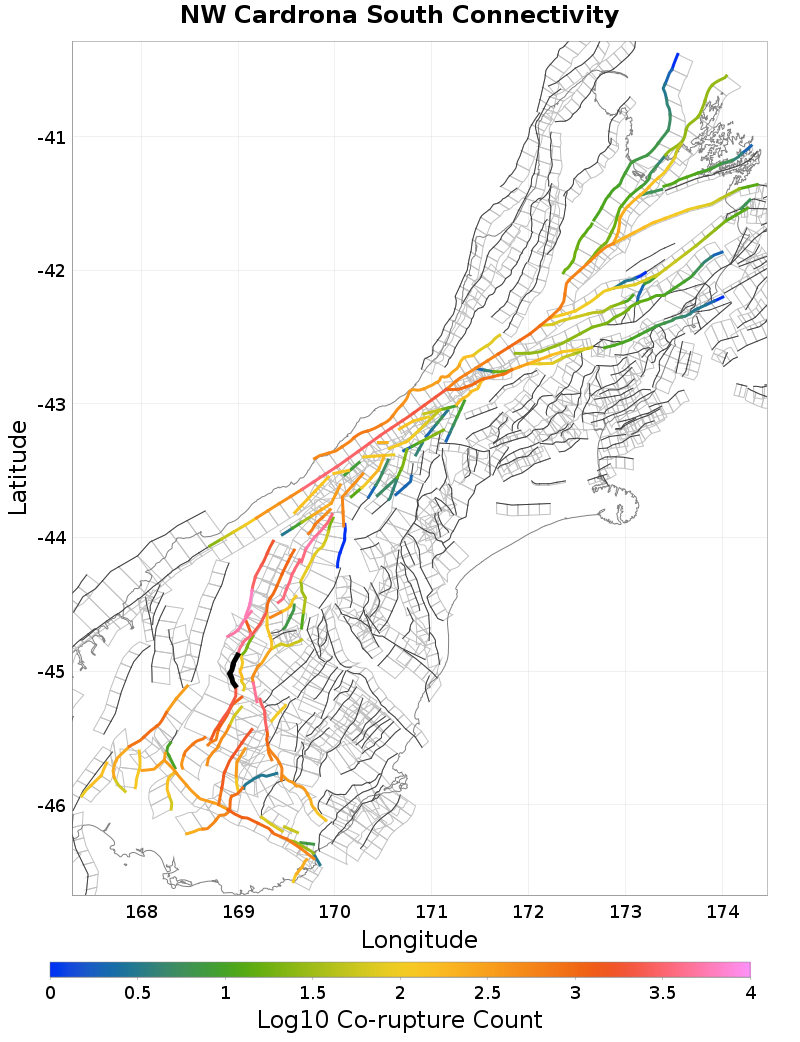

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| NW Cardrona North, 0.36 km away |
| Paddys Ridge, 1.01 km away |
| Nevis, 1.08 km away |
| Pisa, 2.33 km away |
| Roaring Meg, 3.03 km away |
| Motatapu, 6.08 km away |
| Roaring Lion, 10.86 km away |
NW Cardrona North, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,955 |
| Co-rupture Rate | 7.119391E-6 |
Paddys Ridge, 1.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 19 |
| Co-rupture Rate | 8.0378215E-10 |
Nevis, 1.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,159 |
| Co-rupture Rate | 1.7549086E-5 |
Pisa, 2.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,442 |
| Co-rupture Rate | 4.0883015E-6 |
Roaring Meg, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 162 |
| Co-rupture Rate | 0.0 |
Motatapu, 6.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,493 |
| Co-rupture Rate | 1.861458E-5 |
Roaring Lion, 10.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,200 |
| Co-rupture Rate | 2.6407815E-6 |
