North Branch Details
| Property | Value |
|---|---|
| Rupture Count | 320 |
| Ruptures Above Sect Min Mag | 318 |
| Ruptures w/ Nonzero Rates | 51 |
| Magnitude Range | [6.85, 8.11] |
| Length Range | [18, 271] km |
| Total Rate | 4.5888497E-5 /yr |
| Multi-Fault Rate | 4.5888497E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 36 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

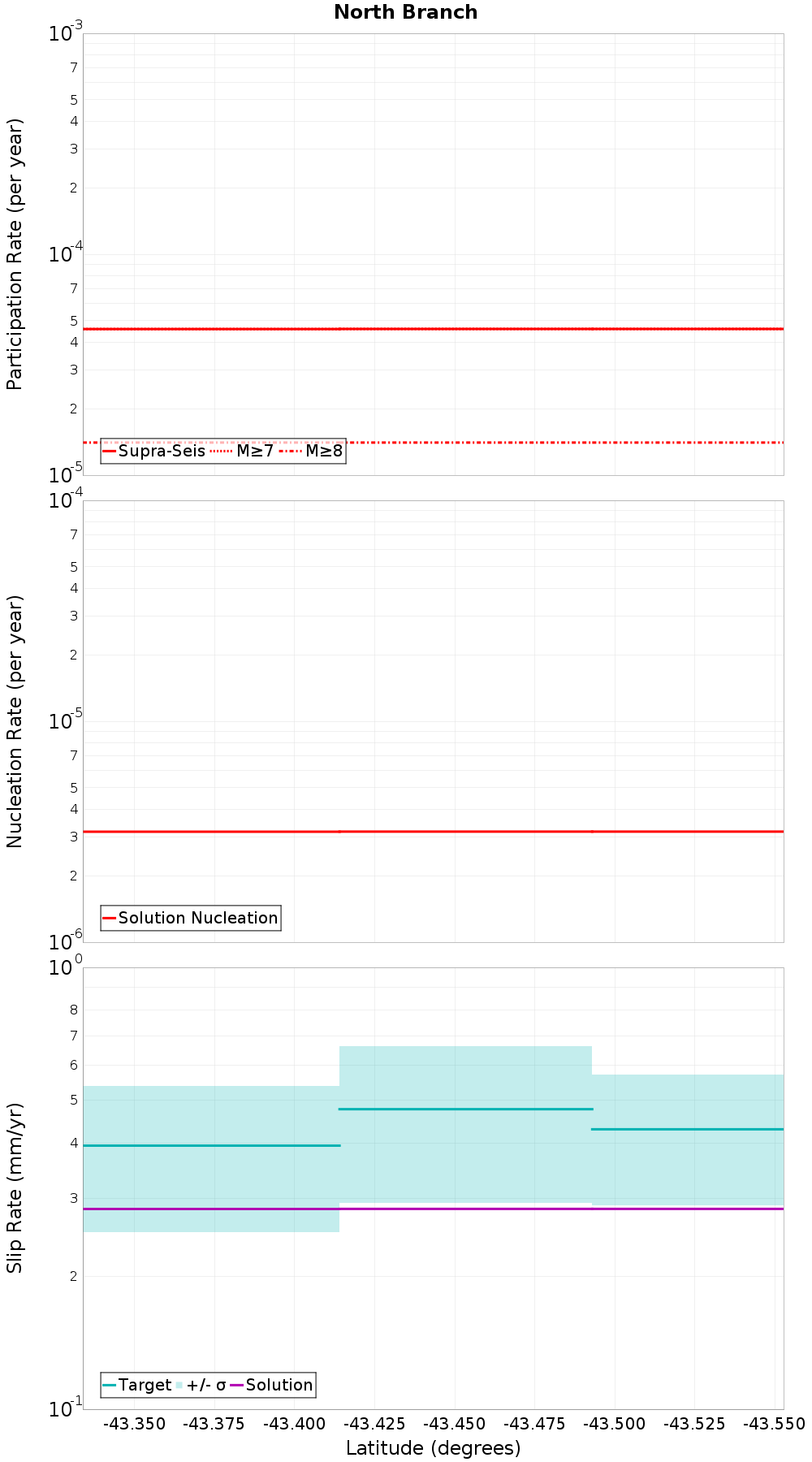

Along-Strike Values
Moment-Rates and b-Values

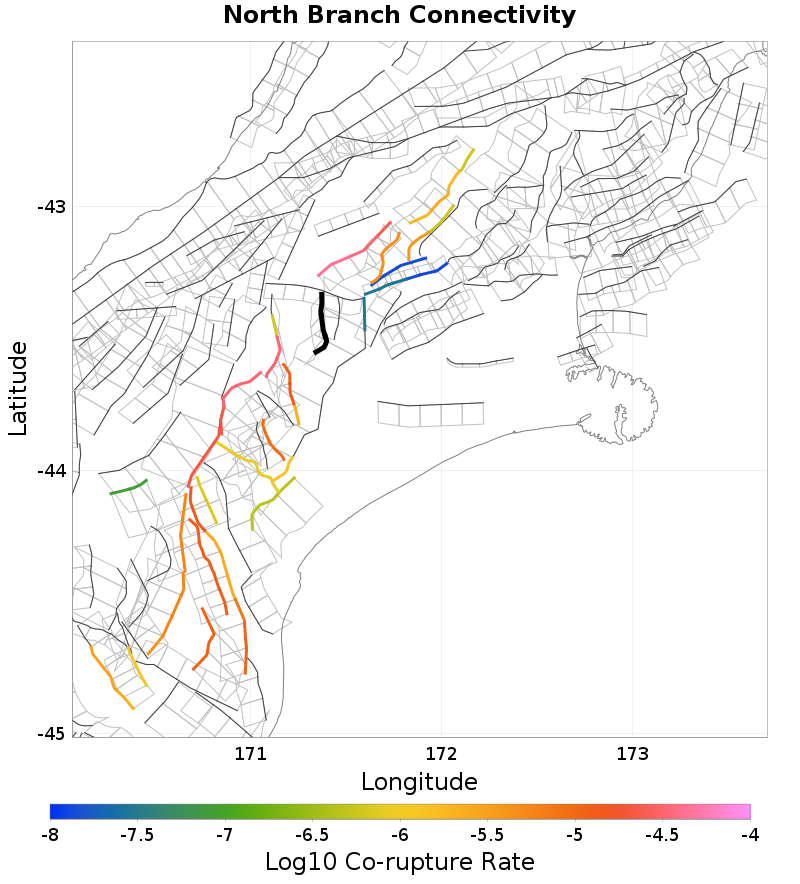

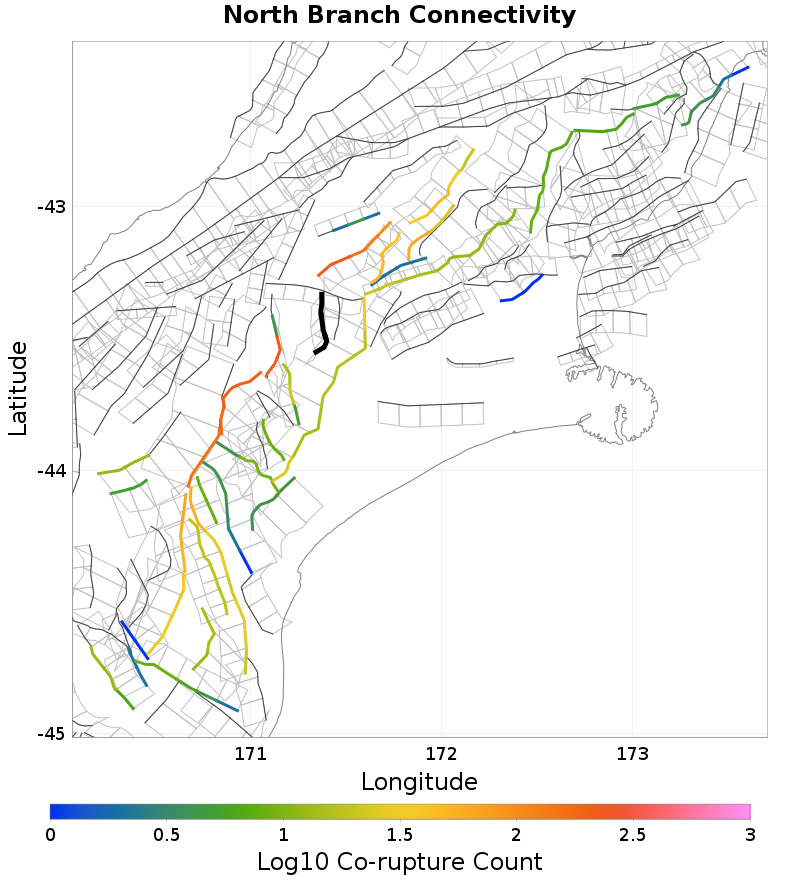

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hutt Peel, 0.23 km away |
| Double Hill, 1.04 km away |
| Redcliffe, 2.63 km away |
| Harper, 6.8 km away |
| Lake Heron, 7.84 km away |
| Klondyke Moor, 12.31 km away |
Hutt Peel, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 53 |
| Co-rupture Rate | 1.3826941E-6 |
Double Hill, 1.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Redcliffe, 2.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Harper, 6.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 232 |
| Co-rupture Rate | 4.221296E-5 |
Lake Heron, 7.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 223 |
| Co-rupture Rate | 3.21559E-5 |
Klondyke Moor, 12.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 1.37023335E-5 |
