Otaheke South Details
| Property | Value |
|---|---|
| Rupture Count | 601 |
| Ruptures Above Sect Min Mag | 600 |
| Ruptures w/ Nonzero Rates | 26 |
| Magnitude Range | [7.06, 8.14] |
| Length Range | [23, 285] km |
| Total Rate | 1.9464969E-4 /yr |
| Multi-Fault Rate | 1.9463437E-4 /yr (99.99%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 32 |
Table Of Contents

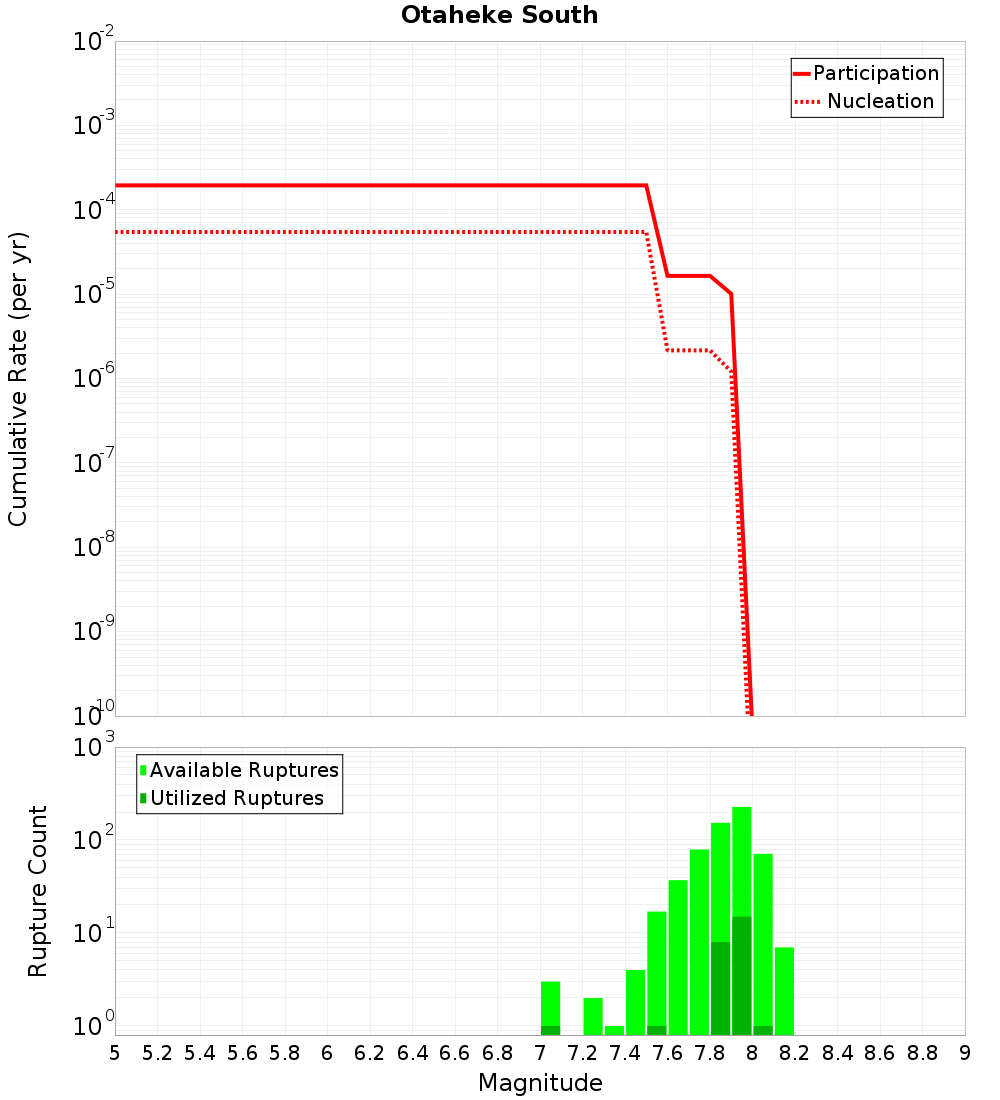

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

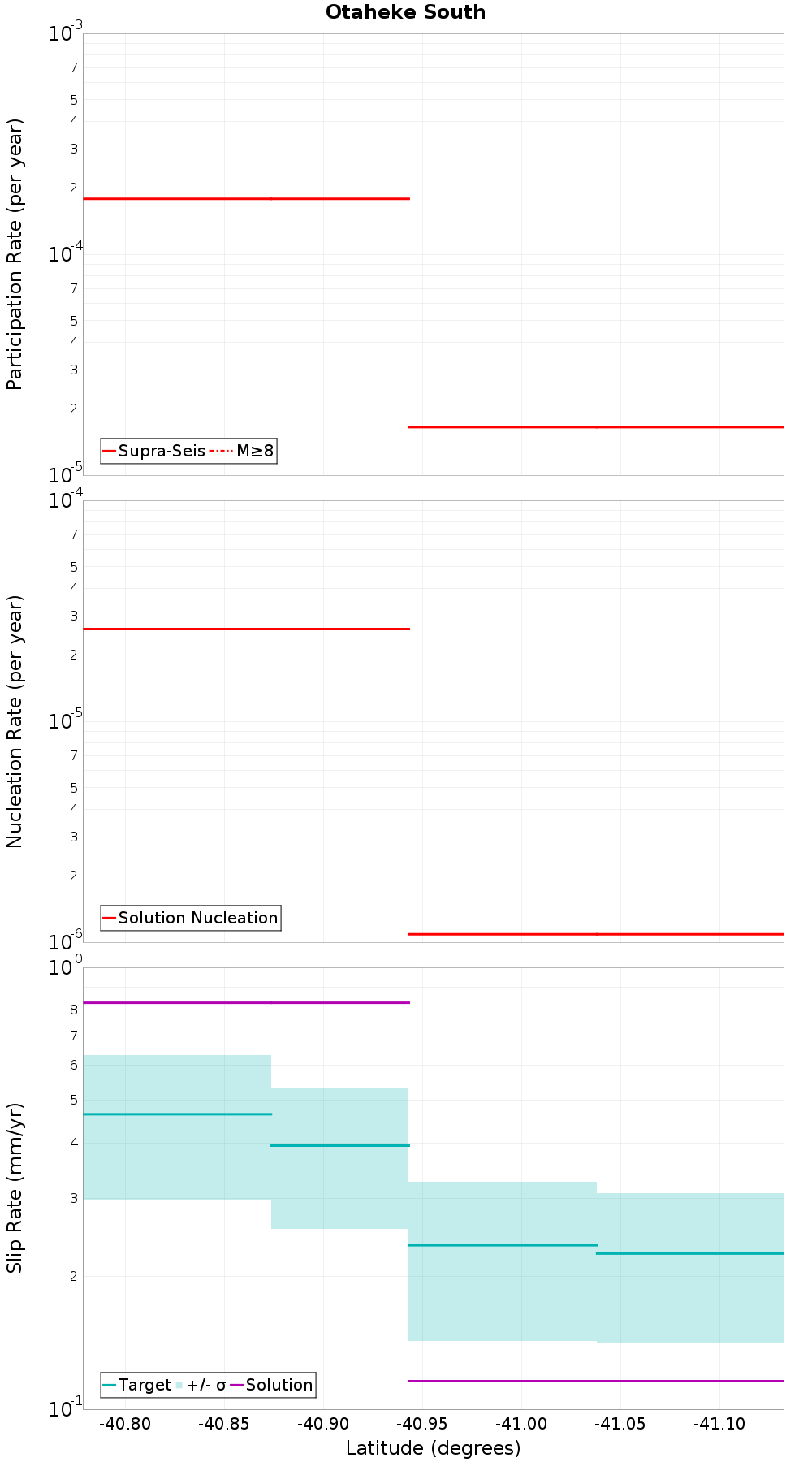

Along-Strike Values
Moment-Rates and b-Values

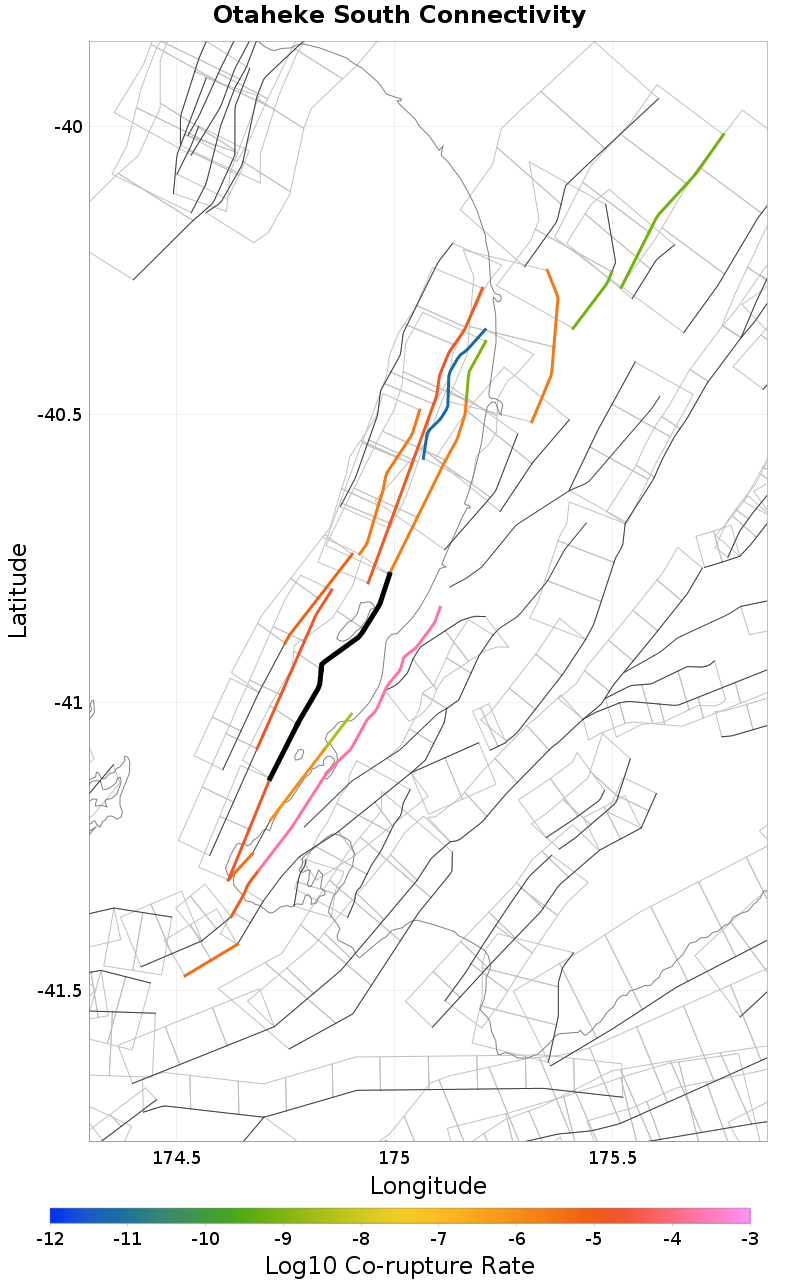

Connectivity
 |  |
|---|
Nearby Sections
Shepherds Gully - Mana, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 346 |
| Co-rupture Rate | 1.6473072E-5 |
Otaheke North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 298 |
| Co-rupture Rate | 2.287212E-6 |
Onepoto, 3.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 339 |
| Co-rupture Rate | 1.6475227E-5 |
Okupe 1, 4.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 197 |
| Co-rupture Rate | 1.647623E-5 |
Pukerua - Shepherds Gully: 3, 4.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 60 |
| Co-rupture Rate | 1.0110441E-6 |
Fisherman 3, 6.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 2.7234378E-6 |
Mascarin, 7.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 48 |
| Co-rupture Rate | 0.0 |
Fisherman 2, 7.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 77 |
| Co-rupture Rate | 7.364935E-6 |
Pukerua - Shepherds Gully: 2, 8.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 22 |
| Co-rupture Rate | 0.0 |
Ohariu, 8.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 323 |
| Co-rupture Rate | 1.8864029E-4 |
Fisherman 1, 8.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Poroutawhao, 10.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 28 |
| Co-rupture Rate | 0.0 |
Gibbs, 10.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonshine, 11.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 53 |
| Co-rupture Rate | 0.0 |
Northern Ohariu, 11.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Pukerua - Shepherds Gully: 1, 14.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 60 |
| Co-rupture Rate | 4.1979606E-6 |
