Raggedy - Blackstone Details

PropertyValue
Rupture Count5,791
Ruptures Above Sect Min Mag5,790
Ruptures w/ Nonzero Rates119
Magnitude Range[7.11, 8.49]
Length Range[22, 539] km
Total Rate4.0275478E-5 /yr
Multi-Fault Rate4.0275478E-5 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults65

Table Of Contents

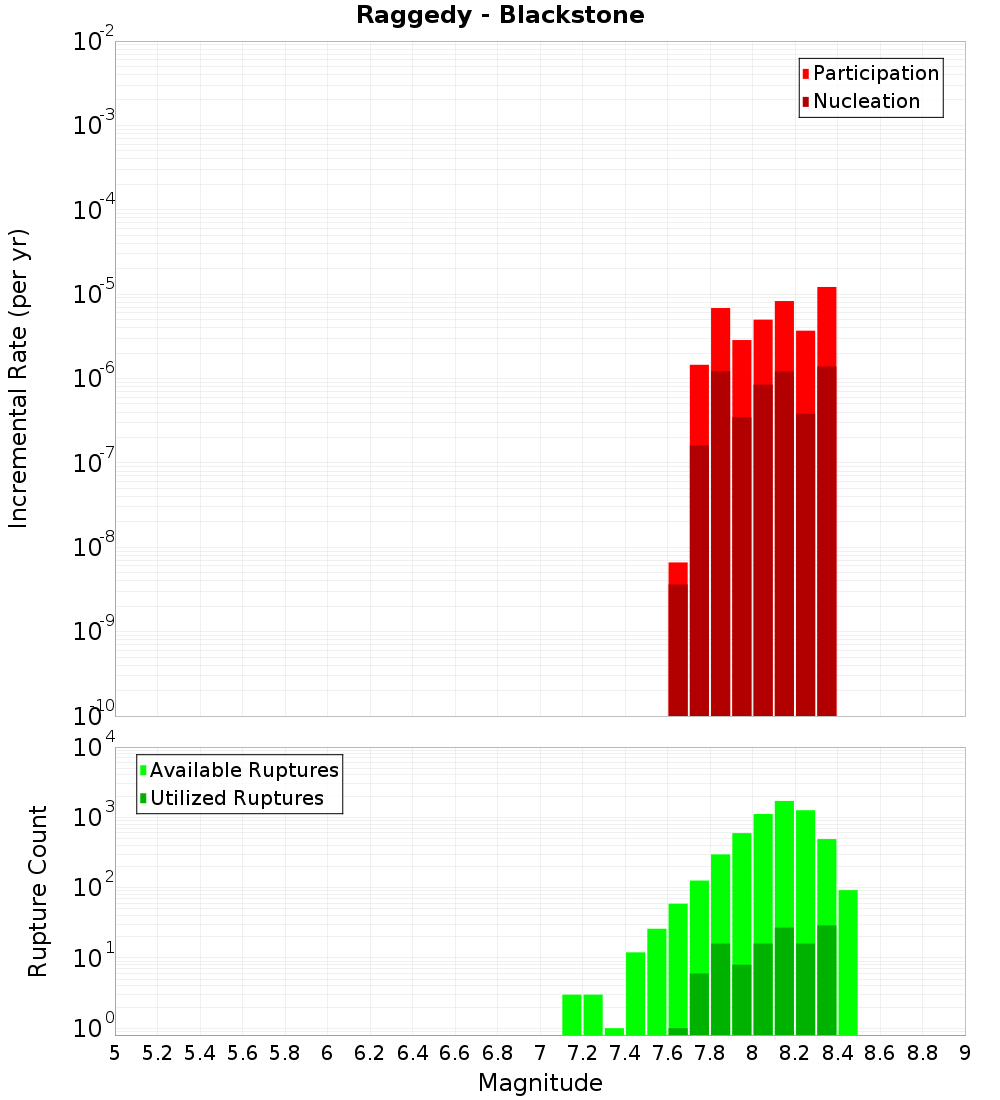

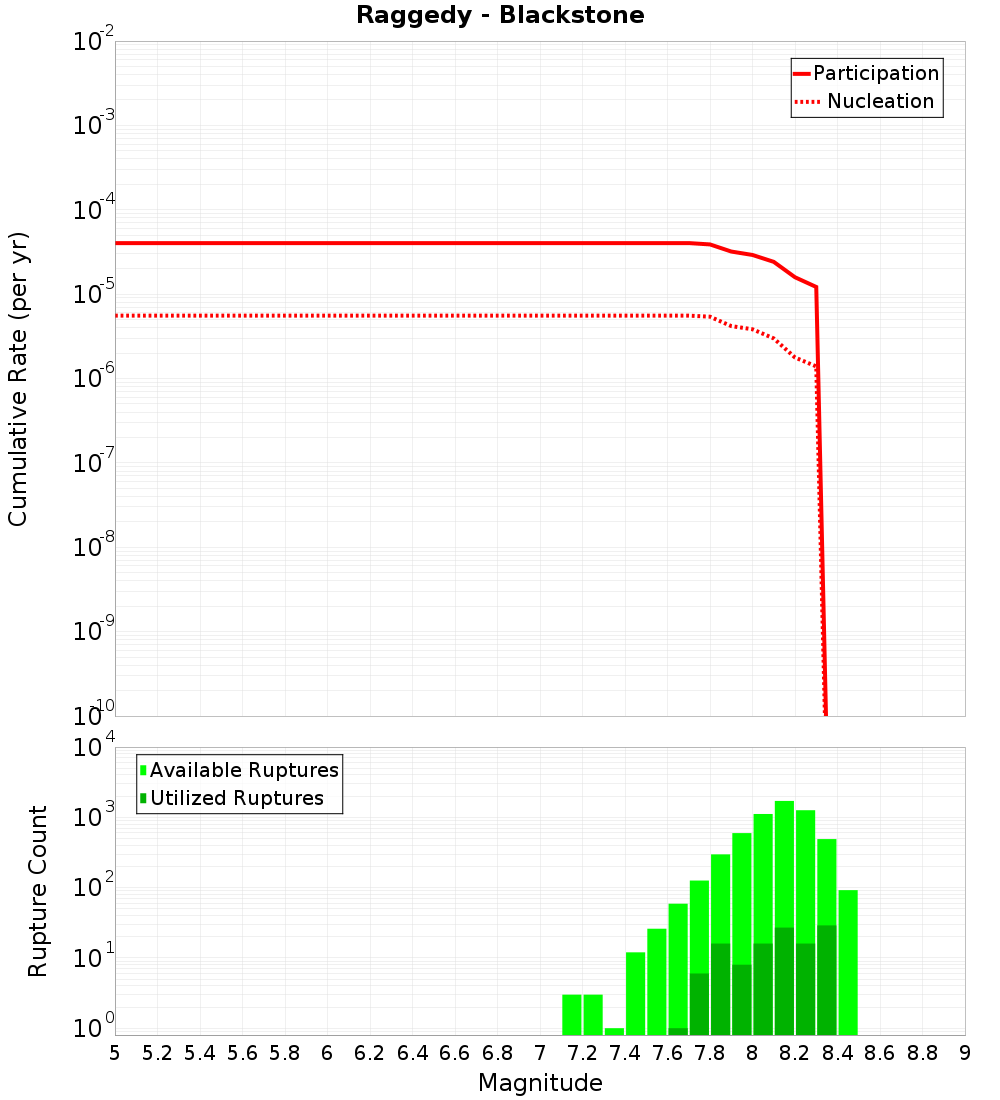

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

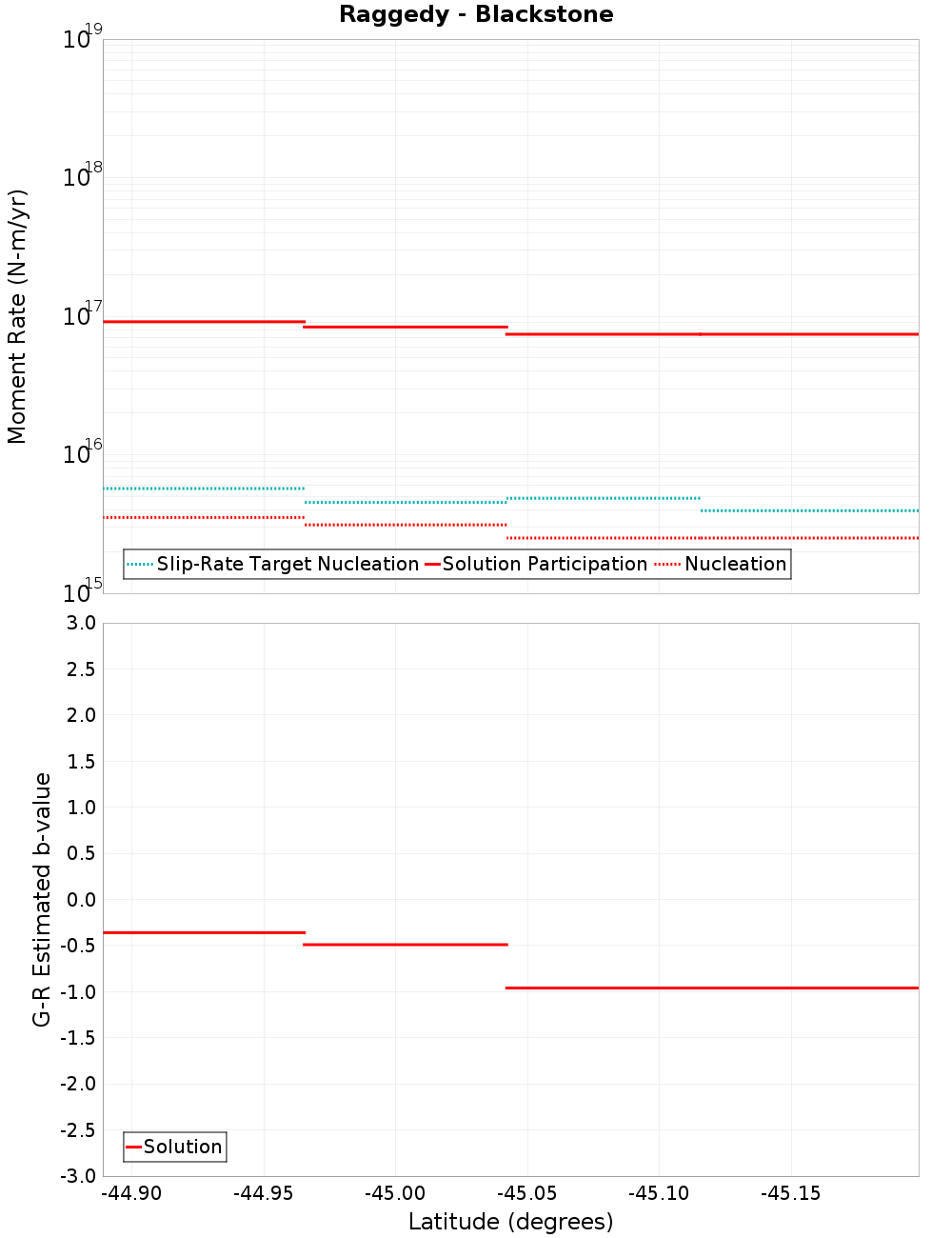

Moment-Rates and b-Values

(top)

Along-strike plot

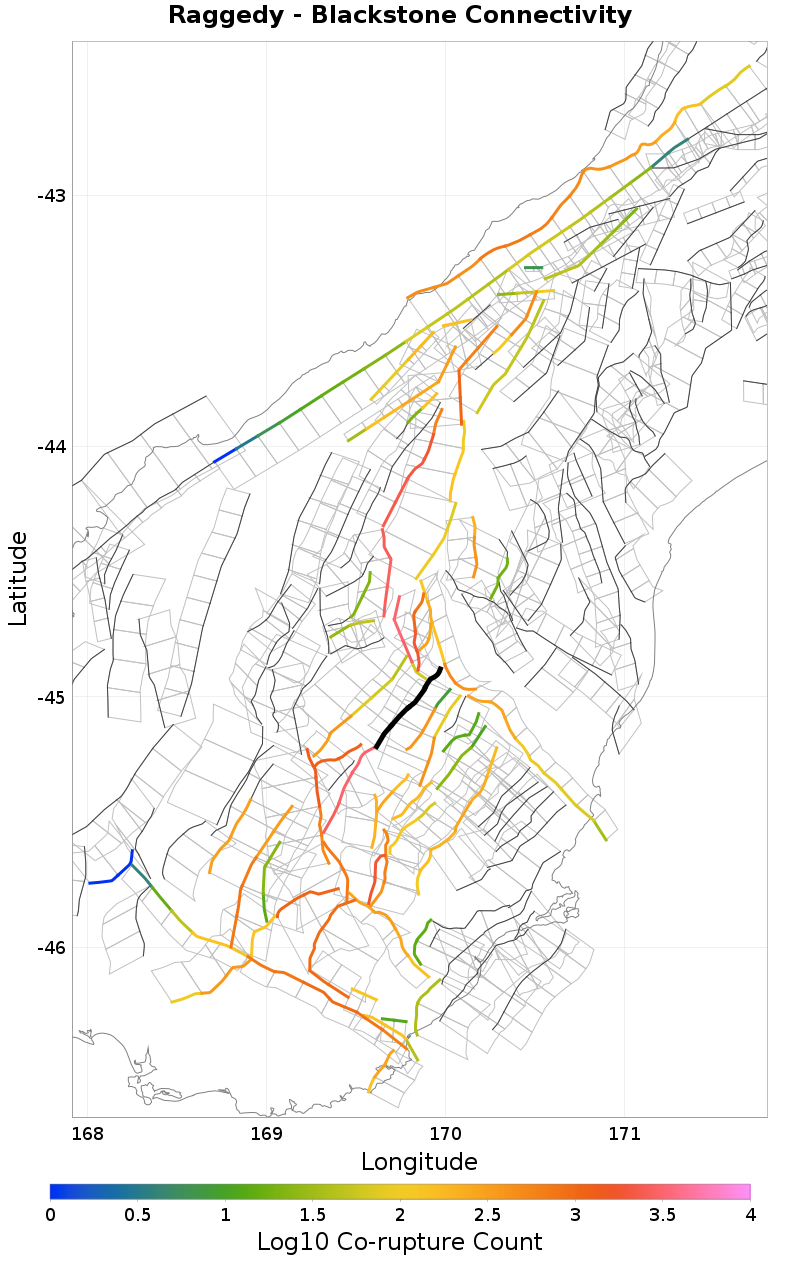

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Blue Lake, 0.14 km away
Omarama Saddle, 0.27 km away
Little Valley, 1.46 km away
Hawkdun, 2.51 km away
Rocks Creek, 2.95 km away
Goodger, 4.78 km away
Galloway, 4.81 km away
Garibaldi, 6.01 km away
Dunstan, 9.93 km away
Gimmerburn, 10.17 km away
Galloway Shanty, 11.19 km away
Lindis River, 11.79 km away
Roaring Meg, 14.37 km away

Blue Lake, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count3,290
Co-rupture Rate1.1587234E-5

Omarama Saddle, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count1,818
Co-rupture Rate2.5902034E-5

Little Valley, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count3,048
Co-rupture Rate2.4502846E-5

Hawkdun, 2.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count661
Co-rupture Rate6.3788966E-6

Rocks Creek, 2.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count306
Co-rupture Rate3.5817238E-6

Goodger, 4.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate1.4184034E-9

Galloway, 4.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count1,184
Co-rupture Rate3.879868E-6

Garibaldi, 6.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count393
Co-rupture Rate8.792992E-6

Dunstan, 9.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count383
Co-rupture Rate6.6104144E-9

Gimmerburn, 10.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count441
Co-rupture Rate8.792992E-6

Galloway Shanty, 11.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lindis River, 11.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate1.4184034E-9

Roaring Meg, 14.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
