Rangipo South Details

Property	Value
Rupture Count	31
Ruptures Above Sect Min Mag	30
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.76, 8.08]
Length Range	[12, 239] km
Total Rate	2.7299355E-5 /yr
Multi-Fault Rate	2.7299355E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

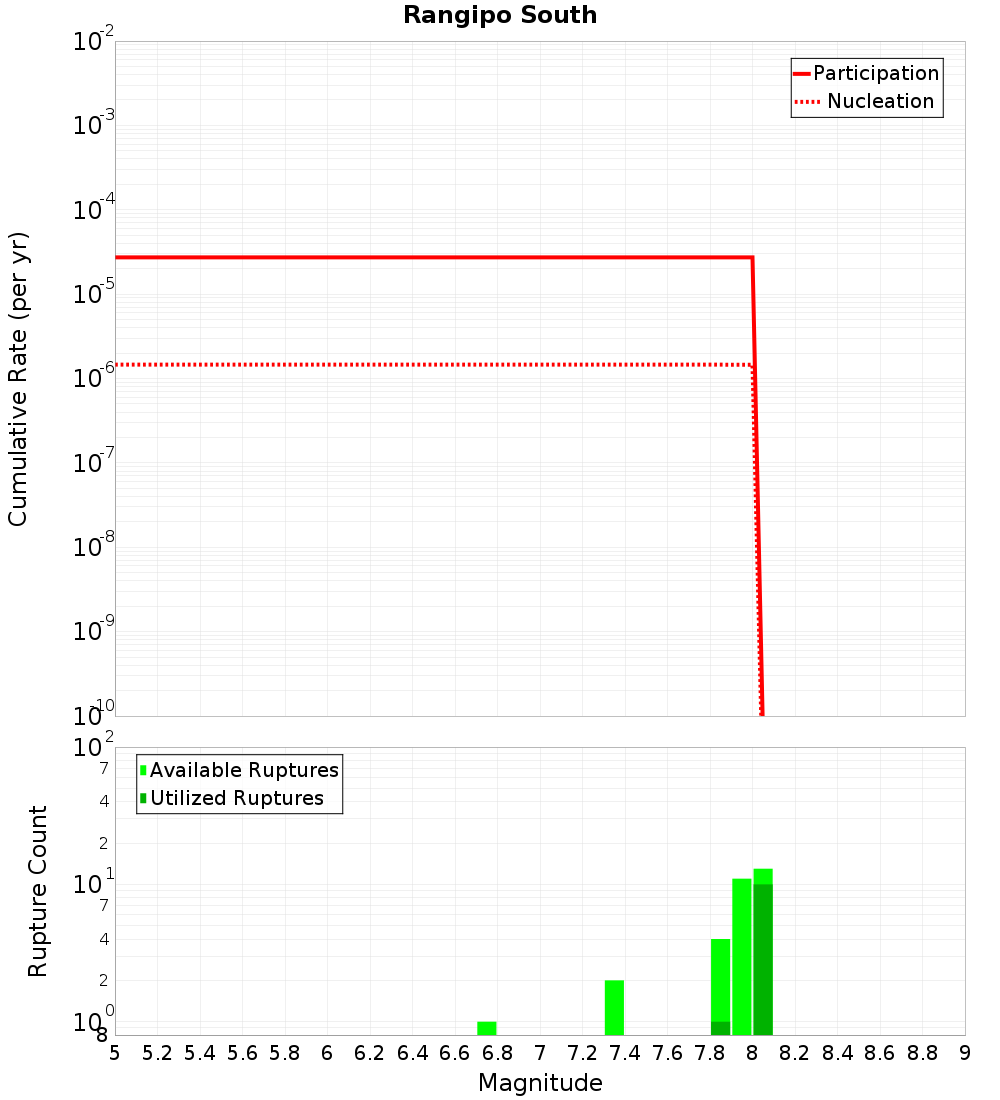

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

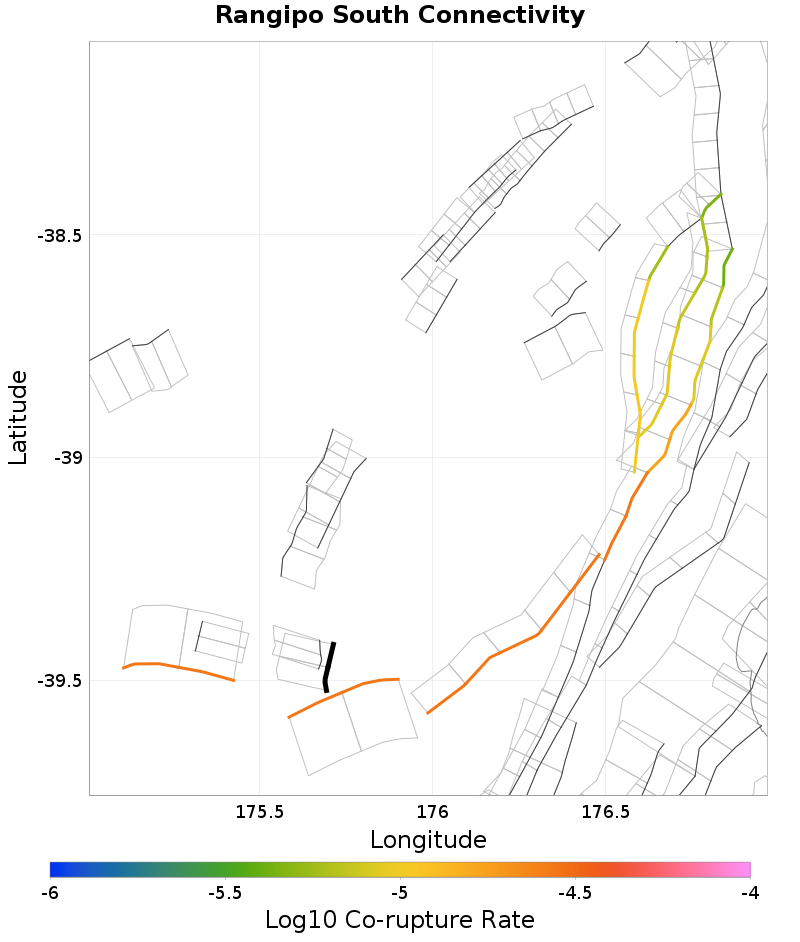

Connectivity

Nearby Sections

Fault Section
Rangipo Central, 1.69 km away
Snowgrass, 2.02 km away
Harris Road, 8.76 km away
Waipuna, 10.71 km away
Waihi South, 12.47 km away

Rangipo Central, 1.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Snowgrass, 2.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	29
Co-rupture Rate	2.7299355E-5

Harris Road, 8.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipuna, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	2.7221817E-5

Waihi South, 12.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
