Waimana: South Details

PropertyValue
Rupture Count22,825
Ruptures Above Sect Min Mag22,823
Ruptures w/ Nonzero Rates68
Magnitude Range[7.12, 8.71]
Length Range[25, 1,132] km
Total Rate7.295524E-5 /yr
Multi-Fault Rate7.295524E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults119

Table Of Contents

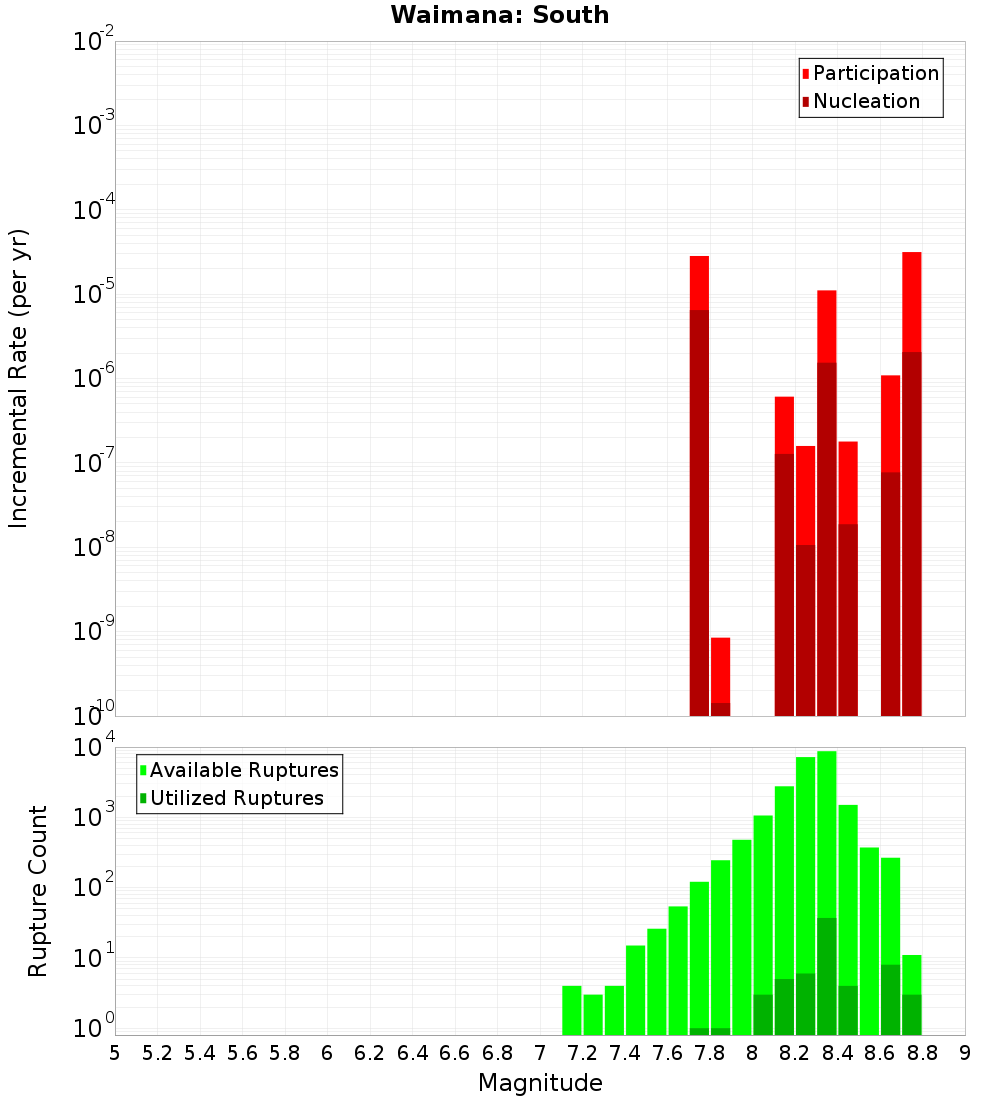

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

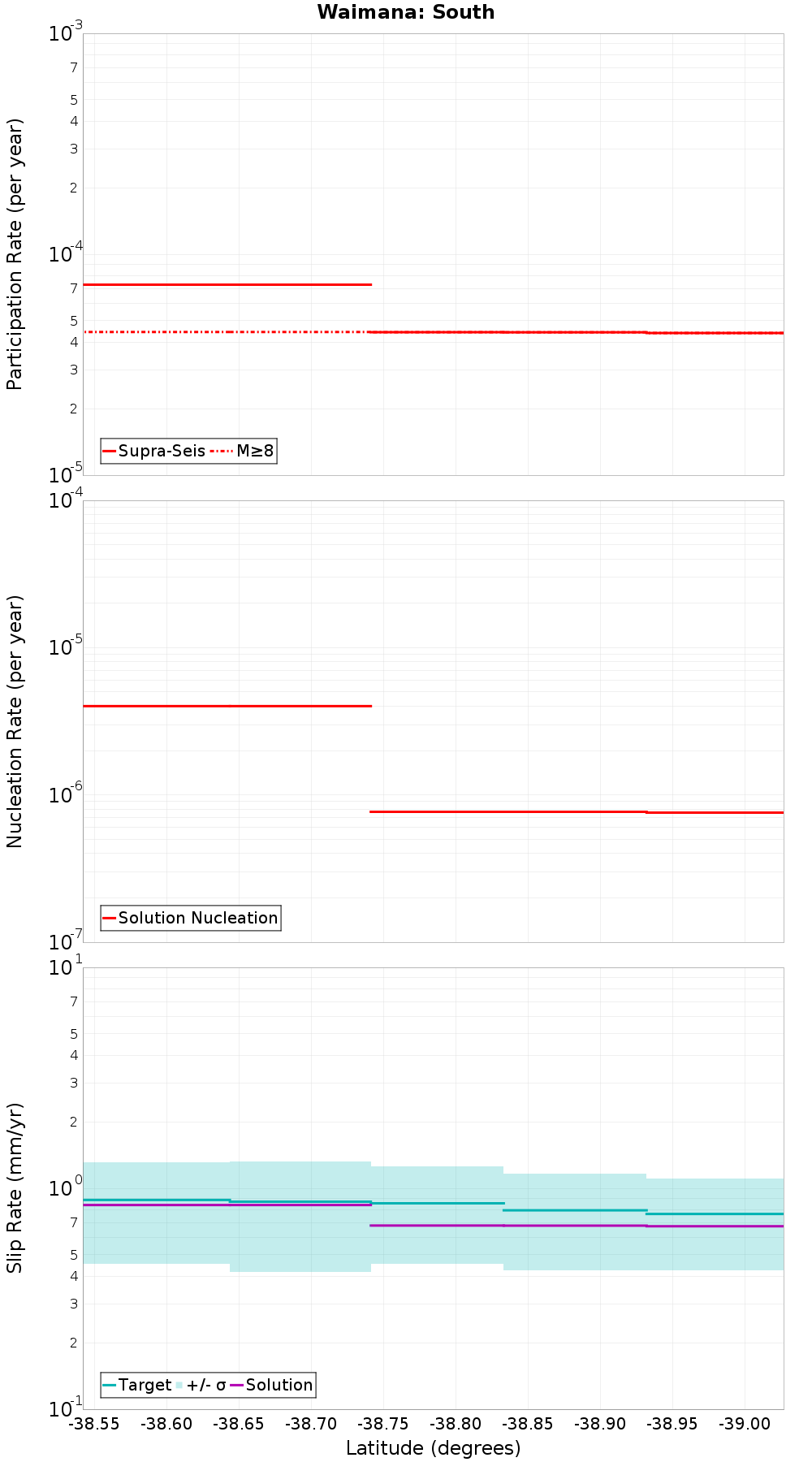

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimana: North, 0 km away
Whakatane: South, 0 km away
Mohaka: North, 0 km away
Waiotahi: South, 2.14 km away
Waiotahi: North, 2.37 km away
Whakatane: North, 6.86 km away
Waiohau: South, 8.02 km away
Patoka - Rangiora, 10.75 km away
Ruahine: North, 11.54 km away
Wheao: South, 14.54 km away
Te Whaiti South, 14.59 km away

Waimana: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count17,373
Co-rupture Rate7.2796545E-5

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count574
Co-rupture Rate0.0

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count22,342
Co-rupture Rate4.399176E-5

Waiotahi: South, 2.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count1,633
Co-rupture Rate1.5967039E-7

Waiotahi: North, 2.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?true
Co-rupture Count1,562
Co-rupture Rate1.5869838E-7

Whakatane: North, 6.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count527
Co-rupture Rate0.0

Waiohau: South, 8.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Patoka - Rangiora, 10.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count946
Co-rupture Rate1.0472351E-10

Ruahine: North, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count296
Co-rupture Rate6.408719E-7

Wheao: South, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count1,156
Co-rupture Rate6.411431E-7

Te Whaiti South, 14.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDMuMFMyYW95
Connected?true
Directly Connected?false
Co-rupture Count74
Co-rupture Rate0.0
