Garibaldi Details

Property	Value
Rupture Count	1,629
Ruptures Above Sect Min Mag	1,628
Ruptures w/ Nonzero Rates	6
Magnitude Range	[7.10, 8.32]
Length Range	[22, 393] km
Total Rate	2.8943608E-5 /yr
Multi-Fault Rate	2.8943608E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	50

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

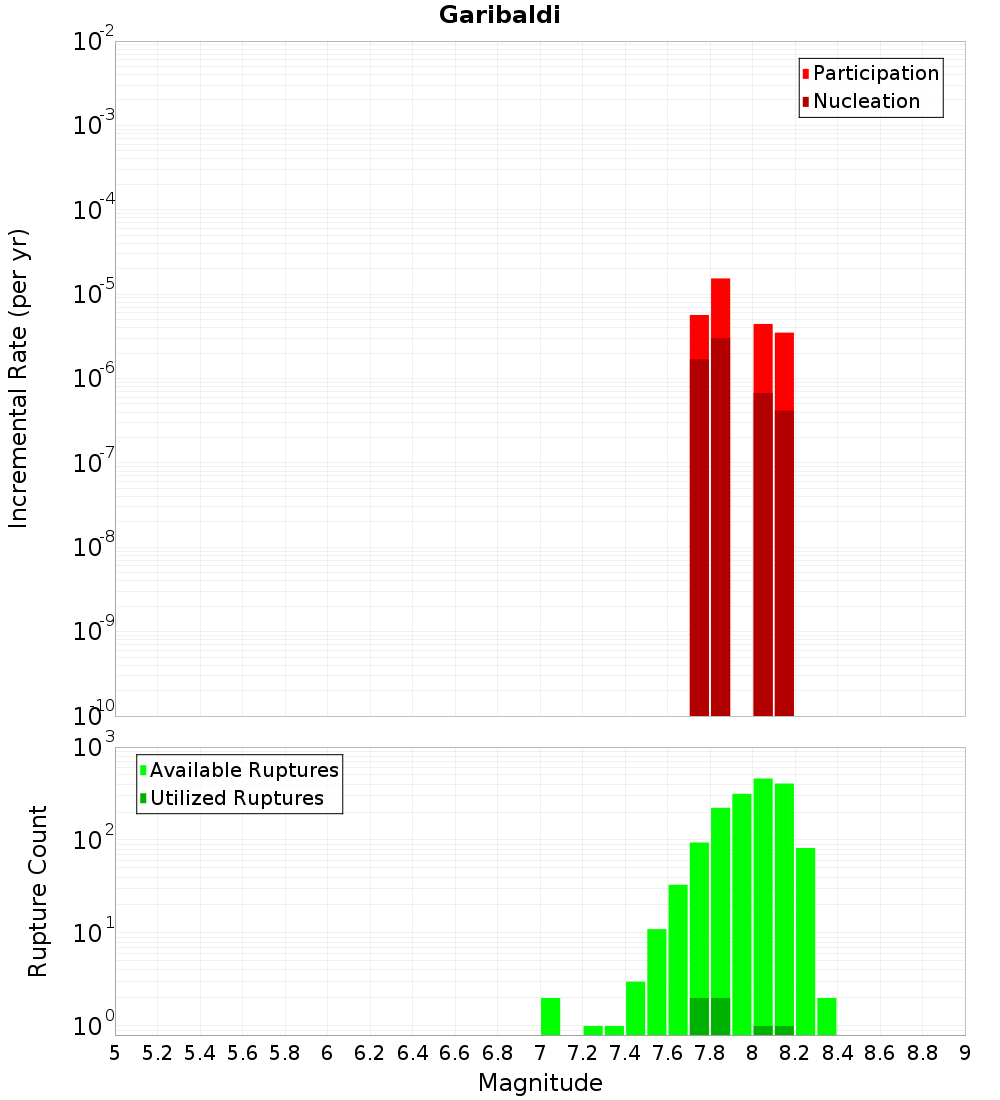

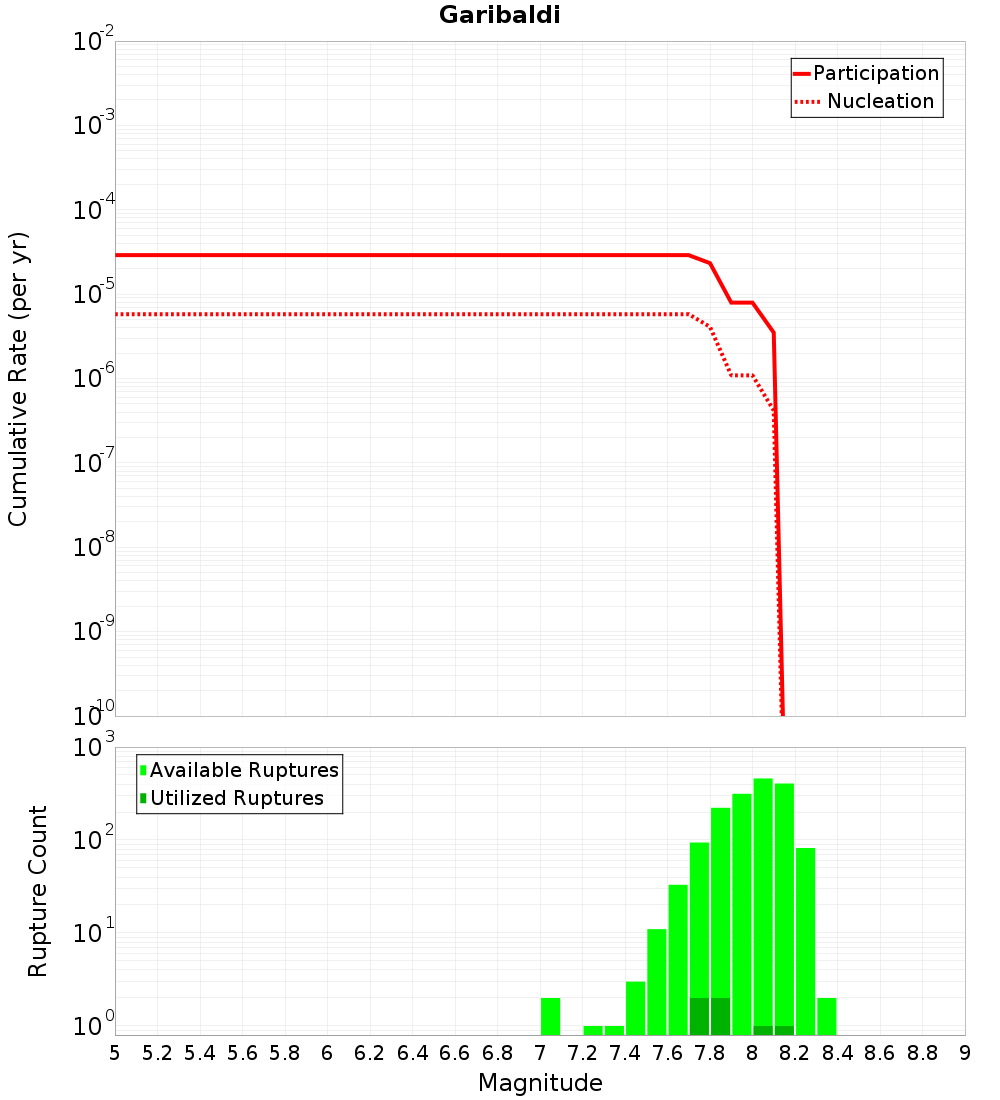

Magnitude-Frequency Distribution

Incremental	Cumulative

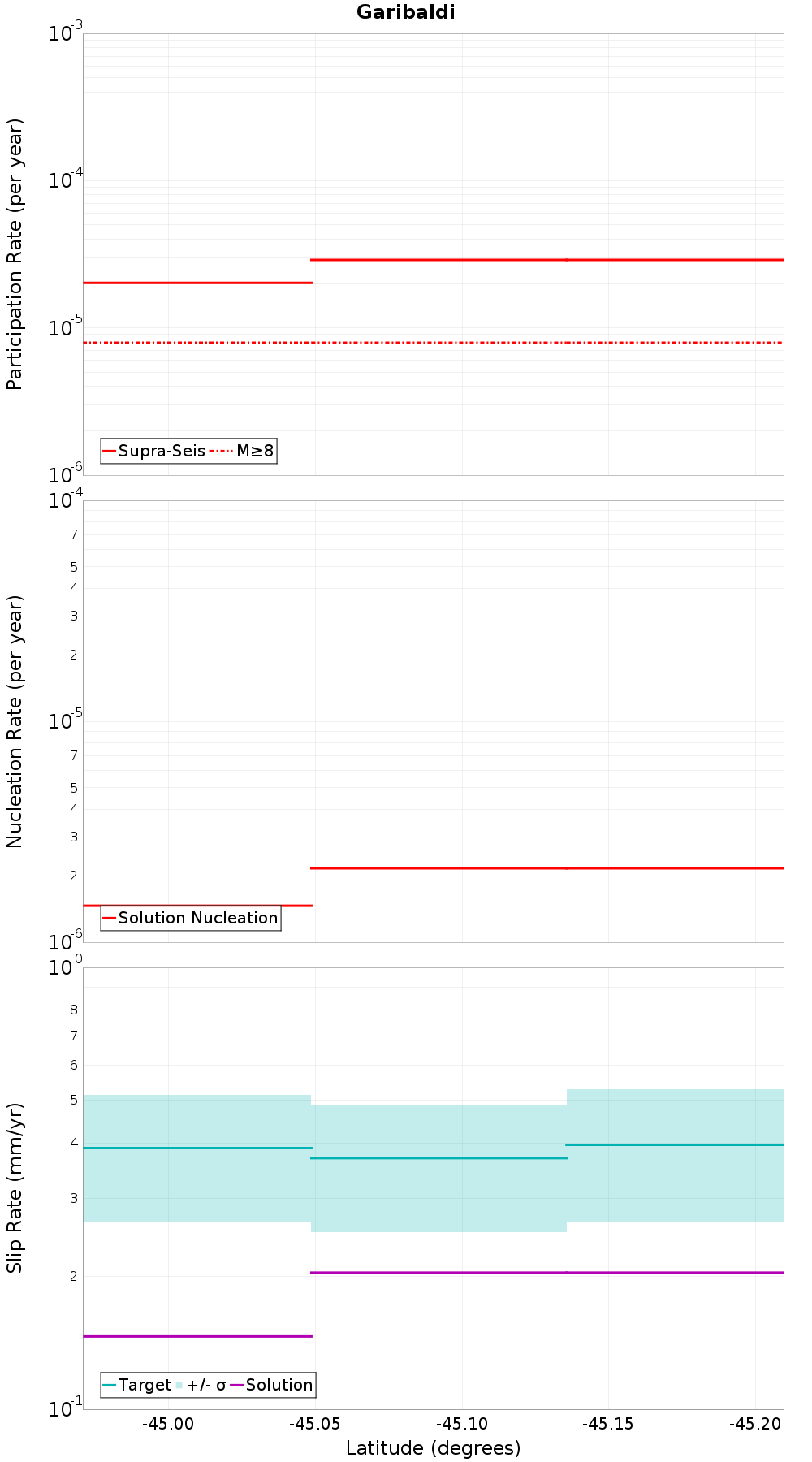

Along-Strike Values

Moment-Rates and b-Values

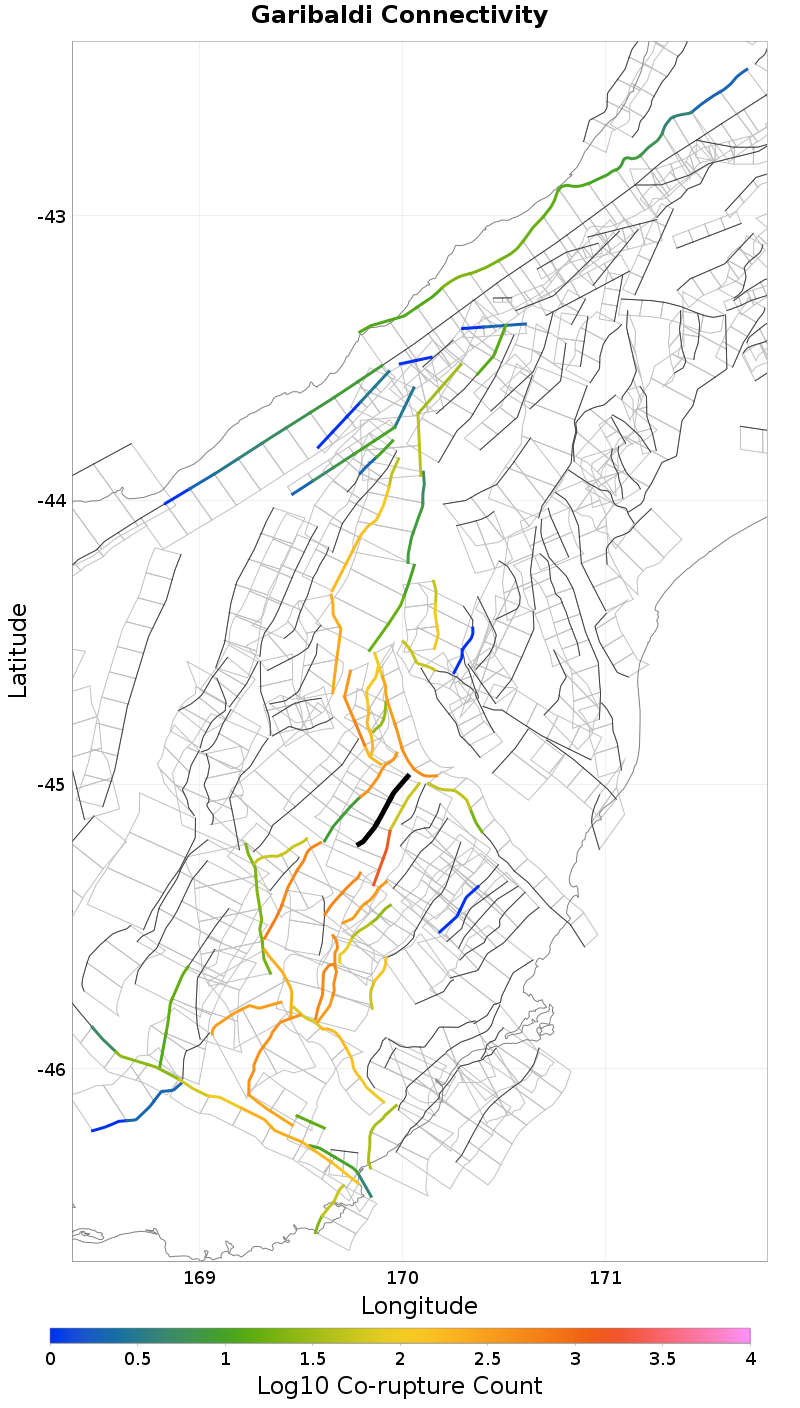

Connectivity

Nearby Sections

Fault Section
Blue Lake, 1.22 km away
Hawkdun, 3.71 km away
Gimmerburn, 3.78 km away
Raggedy - Blackstone, 6.01 km away
Little Valley, 6.64 km away
Omarama Saddle, 7.2 km away
Cross Eden, 7.5 km away
Waihemo, 8.5 km away
Long Valley, 11.29 km away
Ranfurly, 12.32 km away
Rocks Creek, 12.4 km away
Galloway, 13.14 km away
Goodger, 14.34 km away

Blue Lake, 1.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	623
Co-rupture Rate	6.6082757E-6

Hawkdun, 3.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	477
Co-rupture Rate	9.159566E-6

Gimmerburn, 3.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,496
Co-rupture Rate	2.4531588E-5

Raggedy - Blackstone, 6.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	393
Co-rupture Rate	8.7435465E-6

Little Valley, 6.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	715
Co-rupture Rate	7.92829E-6

Omarama Saddle, 7.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	1.3155568E-5

Cross Eden, 7.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waihemo, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	0.0

Long Valley, 11.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	539
Co-rupture Rate	1.1040496E-5

Ranfurly, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rocks Creek, 12.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	4.4120216E-6

Galloway, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	53
Co-rupture Rate	9.995022E-6

Goodger, 14.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
