Hawkdun Details

PropertyValue
Rupture Count6,432
Ruptures Above Sect Min Mag6,427
Ruptures w/ Nonzero Rates13
Magnitude Range[6.92, 8.51]
Length Range[19, 641] km
Total Rate5.6990655E-5 /yr
Multi-Fault Rate5.6990655E-5 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults126

Table Of Contents

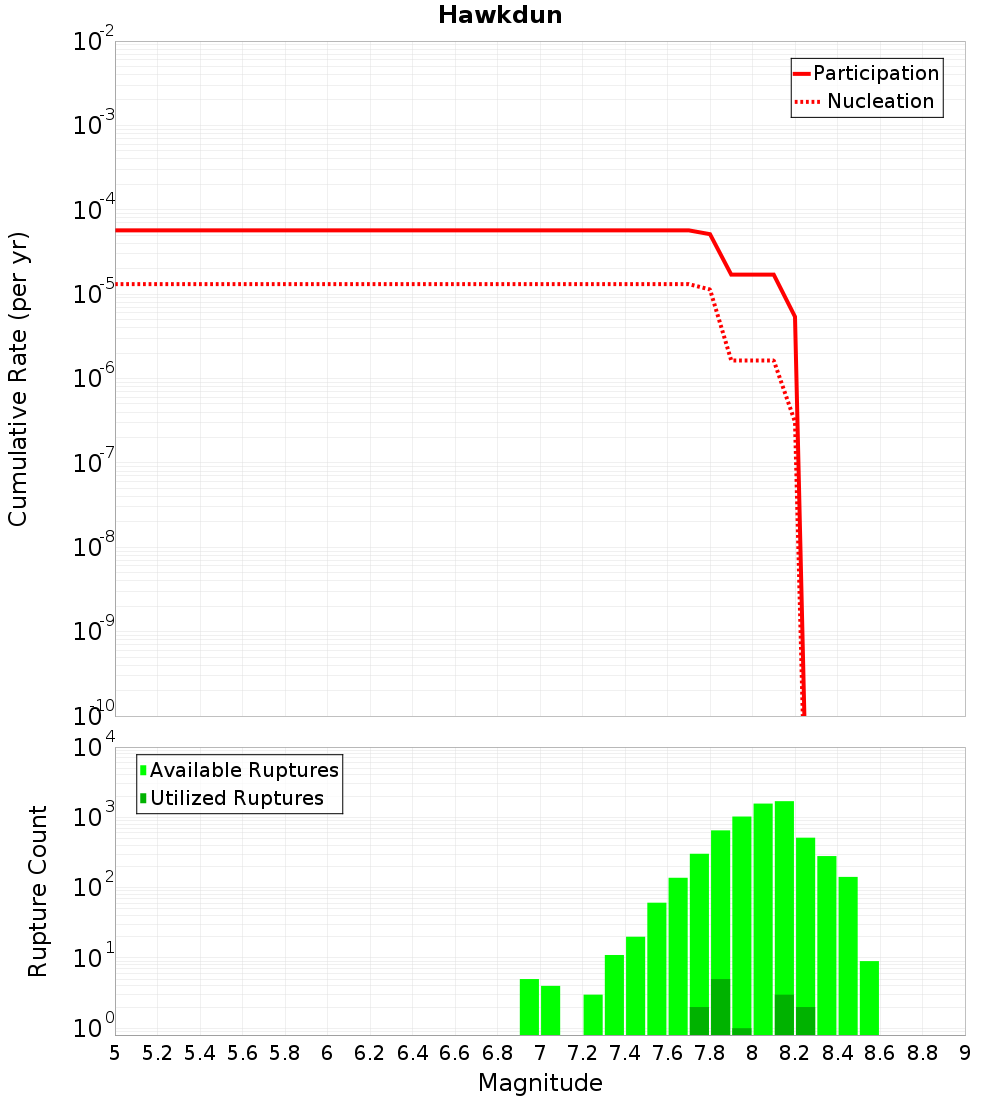

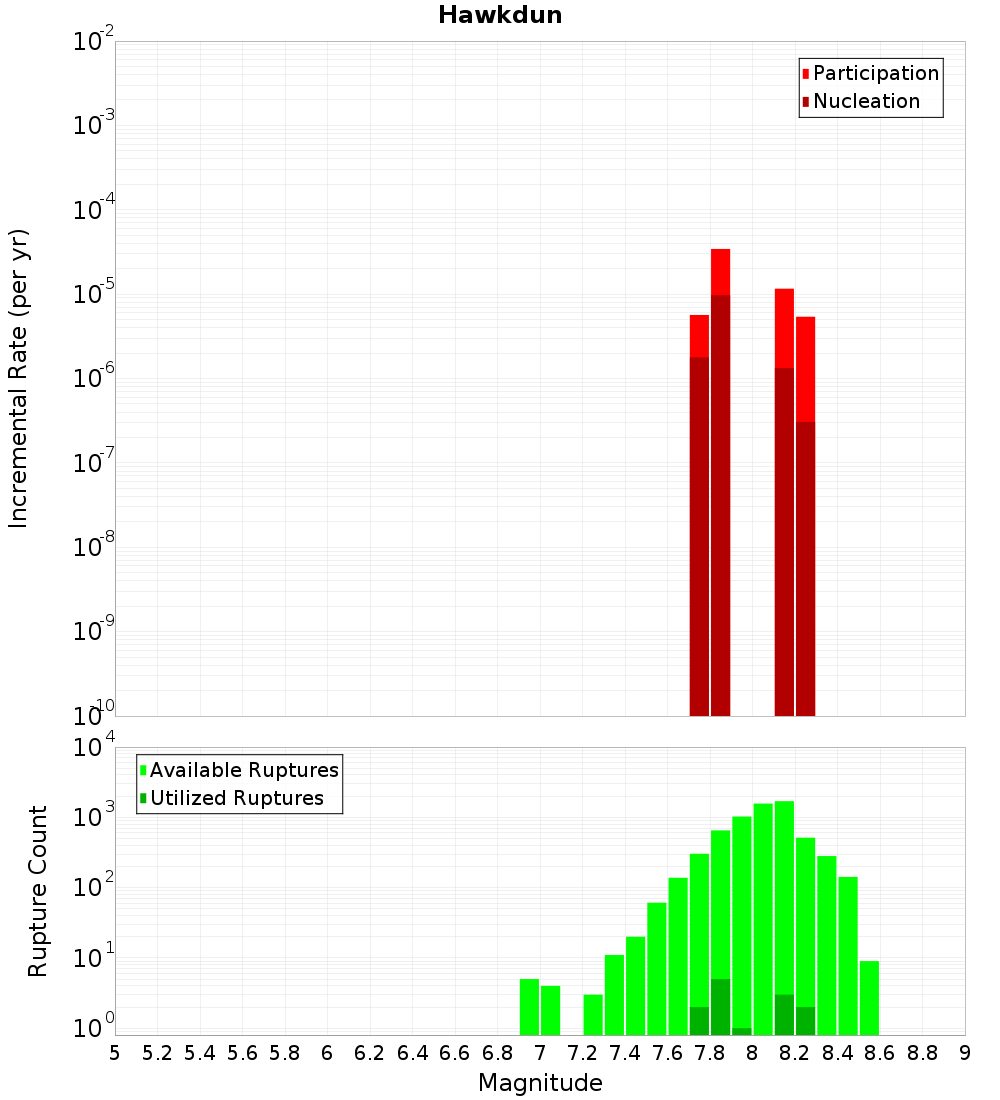

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

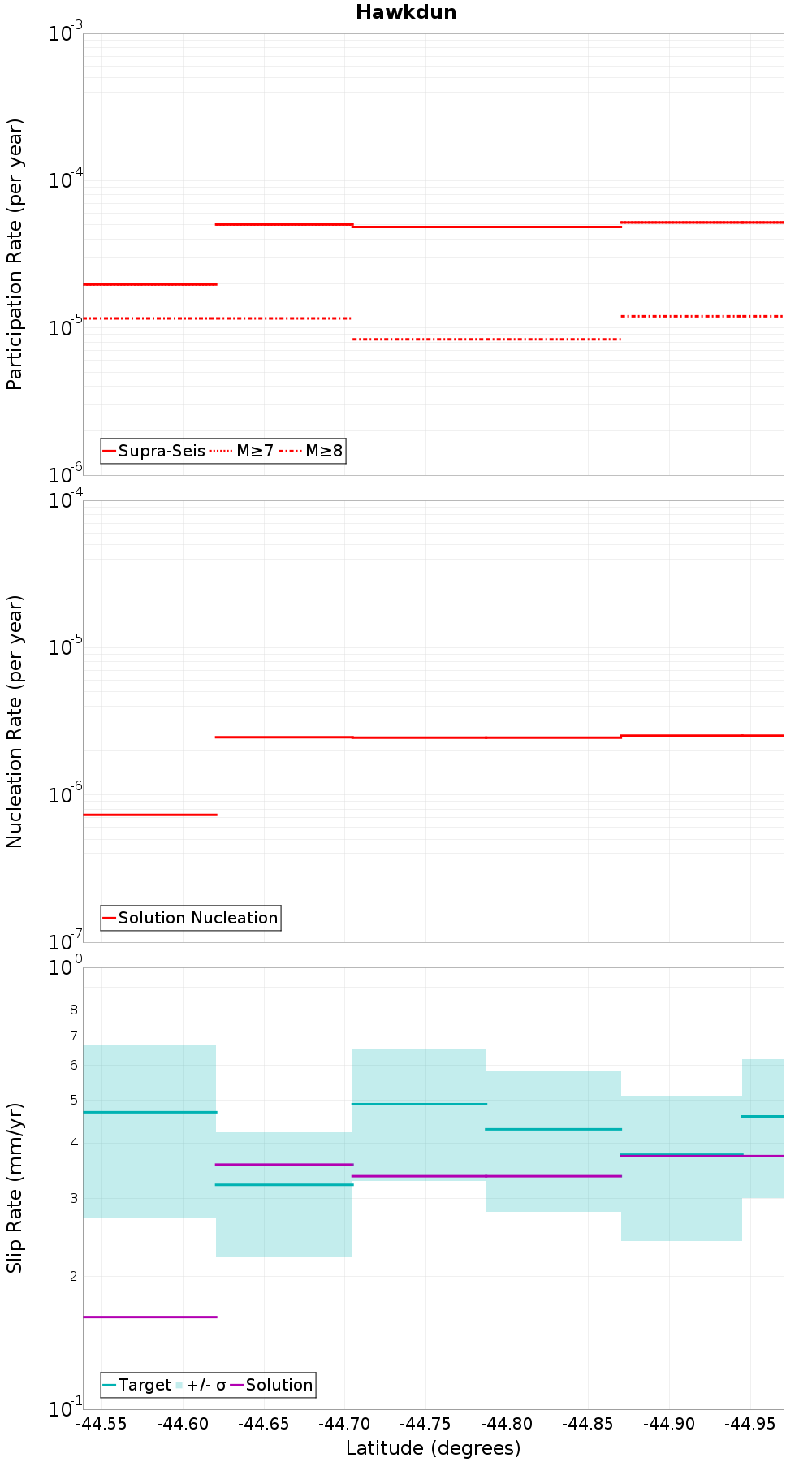

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Omarama Saddle, 0.13 km awayGaribaldi, 3.71 km away
Rocks Creek, 0.8 km awayFalstone, 3.76 km away
Fern Gully, 1.01 km awayGibson, 5.77 km away
Waihemo, 1.51 km awayBlue Lake, 9.49 km away
Ostler South, 2.35 km awayAwahokomo, 10.38 km away
Raggedy - Blackstone, 2.51 km awayRanfurly, 10.99 km away
Cross Eden, 3.2 km awayDromedary, 14.4 km away
Gimmerburn, 3.64 km awayMiddle Range, 14.46 km away

Omarama Saddle, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?true
Co-rupture Count1,135
Co-rupture Rate3.2176064E-5

Rocks Creek, 0.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate1.0013084E-5

Fern Gully, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?true
Co-rupture Count556
Co-rupture Rate3.4774166E-6

Waihemo, 1.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?true
Co-rupture Count1,071
Co-rupture Rate3.7948474E-5

Ostler South, 2.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?true
Co-rupture Count1,885
Co-rupture Rate0.0

Raggedy - Blackstone, 2.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?true
Co-rupture Count661
Co-rupture Rate8.6330265E-6

Cross Eden, 3.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?true
Co-rupture Count830
Co-rupture Rate3.0962376E-6

Gimmerburn, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?true
Co-rupture Count2,559
Co-rupture Rate6.5224226E-6

Garibaldi, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?true
Co-rupture Count477
Co-rupture Rate9.159566E-6

Falstone, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?false
Co-rupture Count779
Co-rupture Rate3.4773452E-6

Gibson, 5.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate0.0

Blue Lake, 9.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?false
Co-rupture Count275
Co-rupture Rate3.6215247E-6

Awahokomo, 10.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Ranfurly, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 14.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?true
Co-rupture Count854
Co-rupture Rate3.972064E-6

Middle Range, 14.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0
