Lees Valley Details

Property	Value
Rupture Count	18,110
Ruptures Above Sect Min Mag	18,107
Ruptures w/ Nonzero Rates	21
Magnitude Range	[6.94, 8.42]
Length Range	[20, 617] km
Total Rate	1.0268722E-4 /yr
Multi-Fault Rate	1.0268722E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	90

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

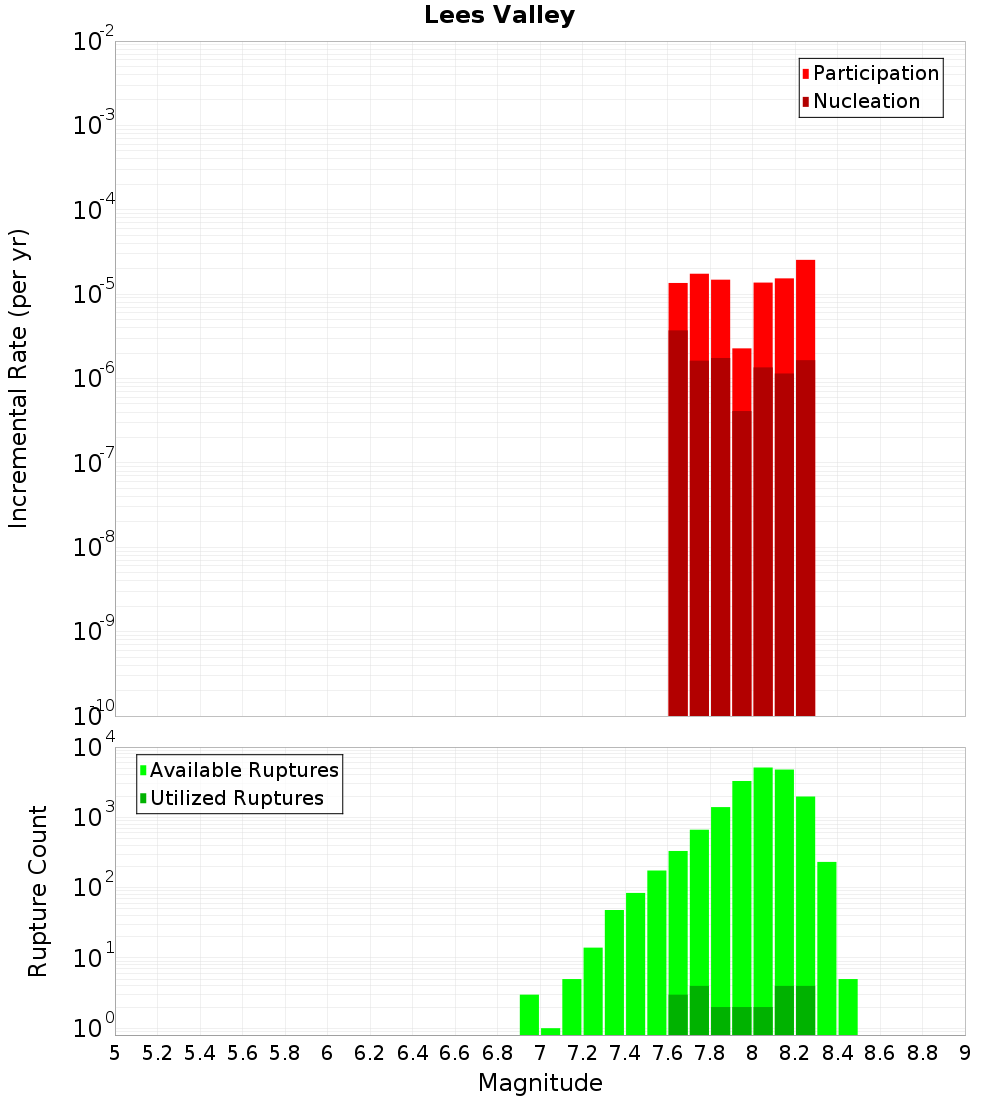

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

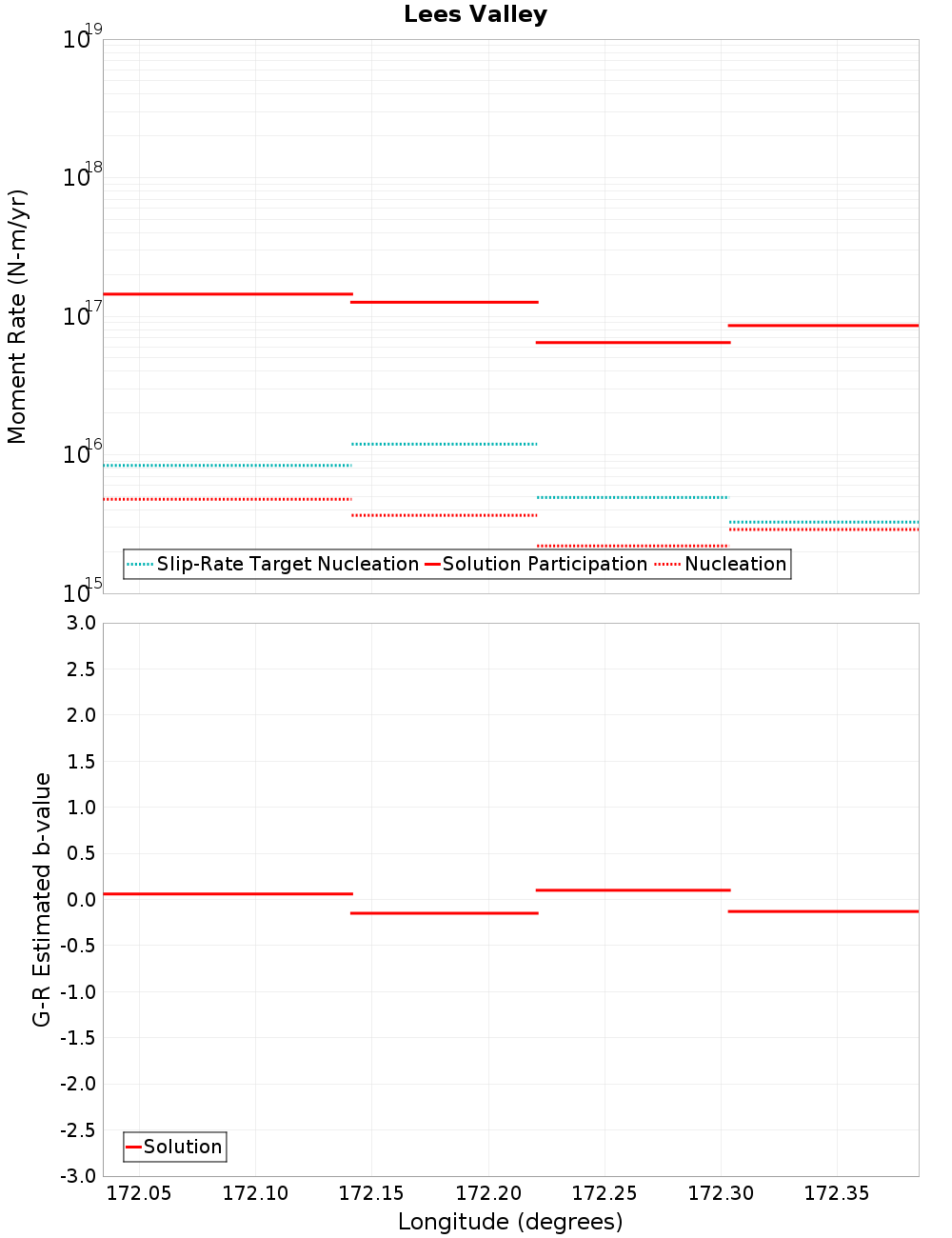

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Knowles Top, 0.13 km away	Virginia, 9.1 km away
Mt Arden, 0.19 km away	Torlesse, 9.41 km away
Springbank, 0.24 km away	Boby Stream, 10.27 km away
Starvation - Ashley, 0.3 km away	Esk North, 11.43 km away
Pancake, 0.32 km away	Mt Lawry, 11.49 km away
Porters Pass, 0.91 km away	High Peak - Sheffield, 11.61 km away
Esk South, 4.37 km away	Doctors, 13.52 km away
Hororata, 5.51 km away	Sailor, 14.17 km away
Kowai - View Hill, 8.8 km away

Knowles Top, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	133
Co-rupture Rate	0.0

Mt Arden, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	13,309
Co-rupture Rate	5.3871554E-5

Springbank, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	3,007
Co-rupture Rate	3.784477E-5

Starvation - Ashley, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	8,065
Co-rupture Rate	4.4728287E-5

Pancake, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	89
Co-rupture Rate	1.4241179E-5

Porters Pass, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	9,037
Co-rupture Rate	8.351126E-5

Esk South, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hororata, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	3,076
Co-rupture Rate	9.0238145E-6

Kowai - View Hill, 8.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	2,325
Co-rupture Rate	1.0152722E-5

Virginia, 9.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	2,301
Co-rupture Rate	8.680487E-6

Torlesse, 9.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Boby Stream, 10.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	3,755
Co-rupture Rate	3.1043426E-5

Esk North, 11.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	4,344
Co-rupture Rate	3.2177908E-5

Mt Lawry, 11.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	1.0830603E-9

High Peak - Sheffield, 11.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,097
Co-rupture Rate	5.4927596E-6

Doctors, 13.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	2,814
Co-rupture Rate	3.1043426E-5

Sailor, 14.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
