Ngapotiki Details

Property	Value
Rupture Count	2,498
Ruptures Above Sect Min Mag	2,496
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.80, 8.55]
Length Range	[15, 818] km
Total Rate	5.394367E-5 /yr
Multi-Fault Rate	5.394367E-5 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	165

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

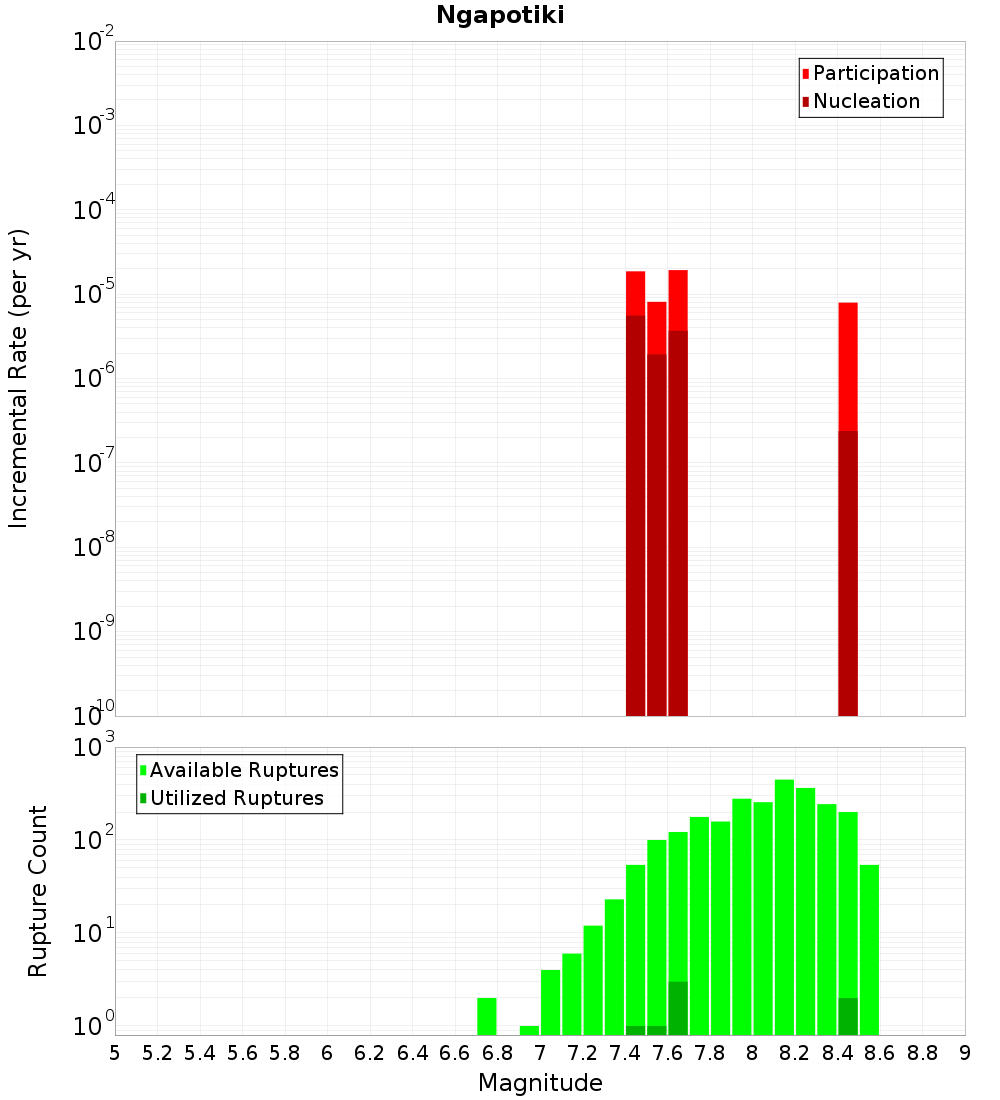

Magnitude-Frequency Distribution

Incremental	Cumulative

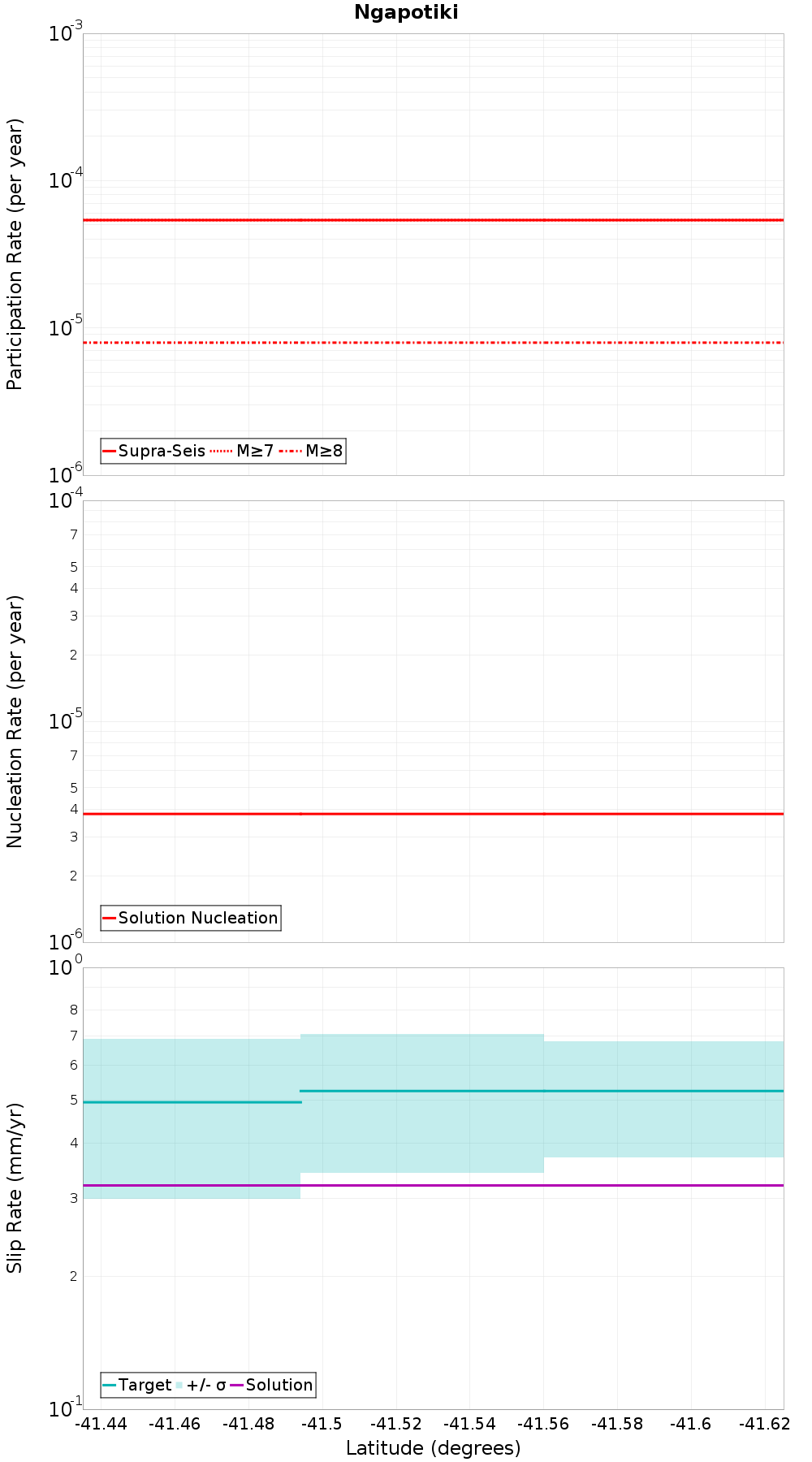

Along-Strike Values

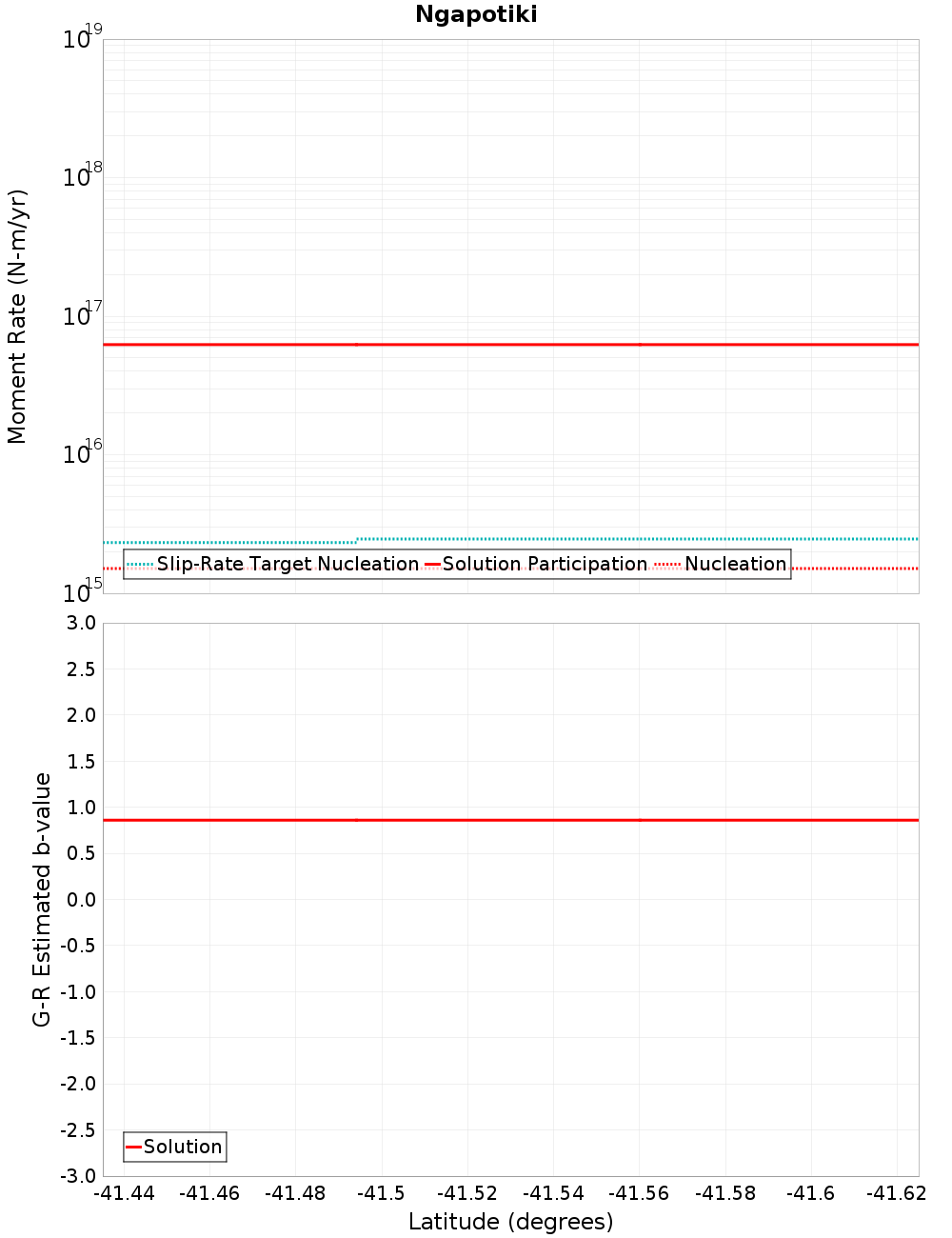

Moment-Rates and b-Values

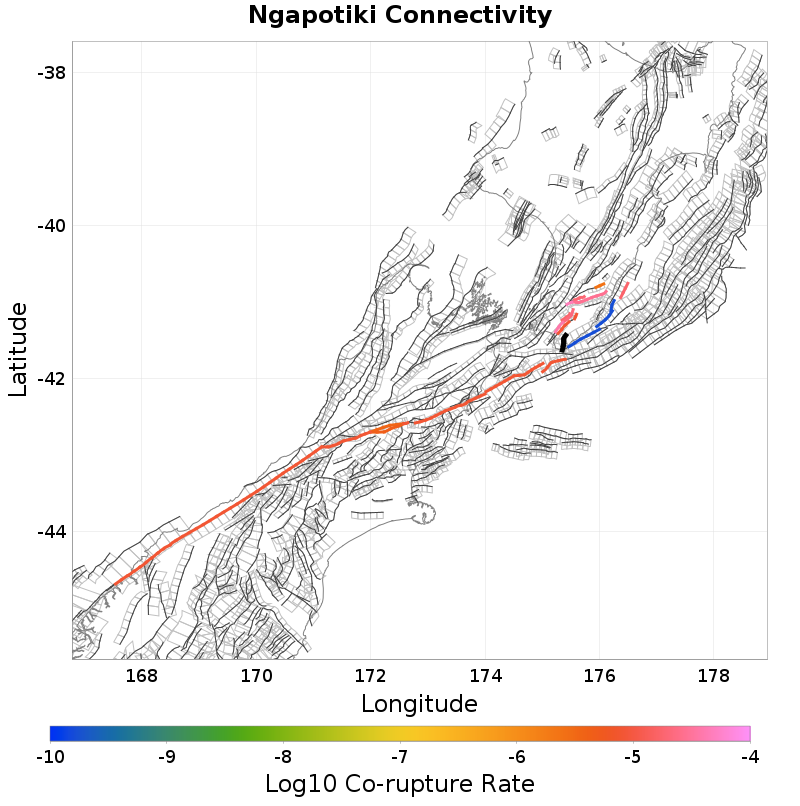

Connectivity

Nearby Sections

Fault Section
Otaraia, 0.19 km away
Palliser - Kaiwhata, 0.63 km away
BooBoo, 3.23 km away
Dry River - Huangarua: 1, 3.58 km away
Opouawe - Uruti, 4.01 km away
Pahaua SE1, 11.9 km away
Pahaua, 12.75 km away

Otaraia, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	365
Co-rupture Rate	3.7901867E-5

Palliser - Kaiwhata, 0.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	49
Co-rupture Rate	1.643783E-10

BooBoo, 3.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	860
Co-rupture Rate	0.0

Dry River - Huangarua: 1, 3.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	92
Co-rupture Rate	8.106324E-6

Opouawe - Uruti, 4.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,138
Co-rupture Rate	7.935313E-6

Pahaua SE1, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahaua, 12.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
