Rangitikei Offshore 1 Details

Property	Value
Rupture Count	137
Ruptures Above Sect Min Mag	137
Ruptures w/ Nonzero Rates	2
Magnitude Range	[7.25, 8.14]
Length Range	[29, 285] km
Total Rate	3.5728322E-6 /yr
Multi-Fault Rate	3.5728322E-6 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	22

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

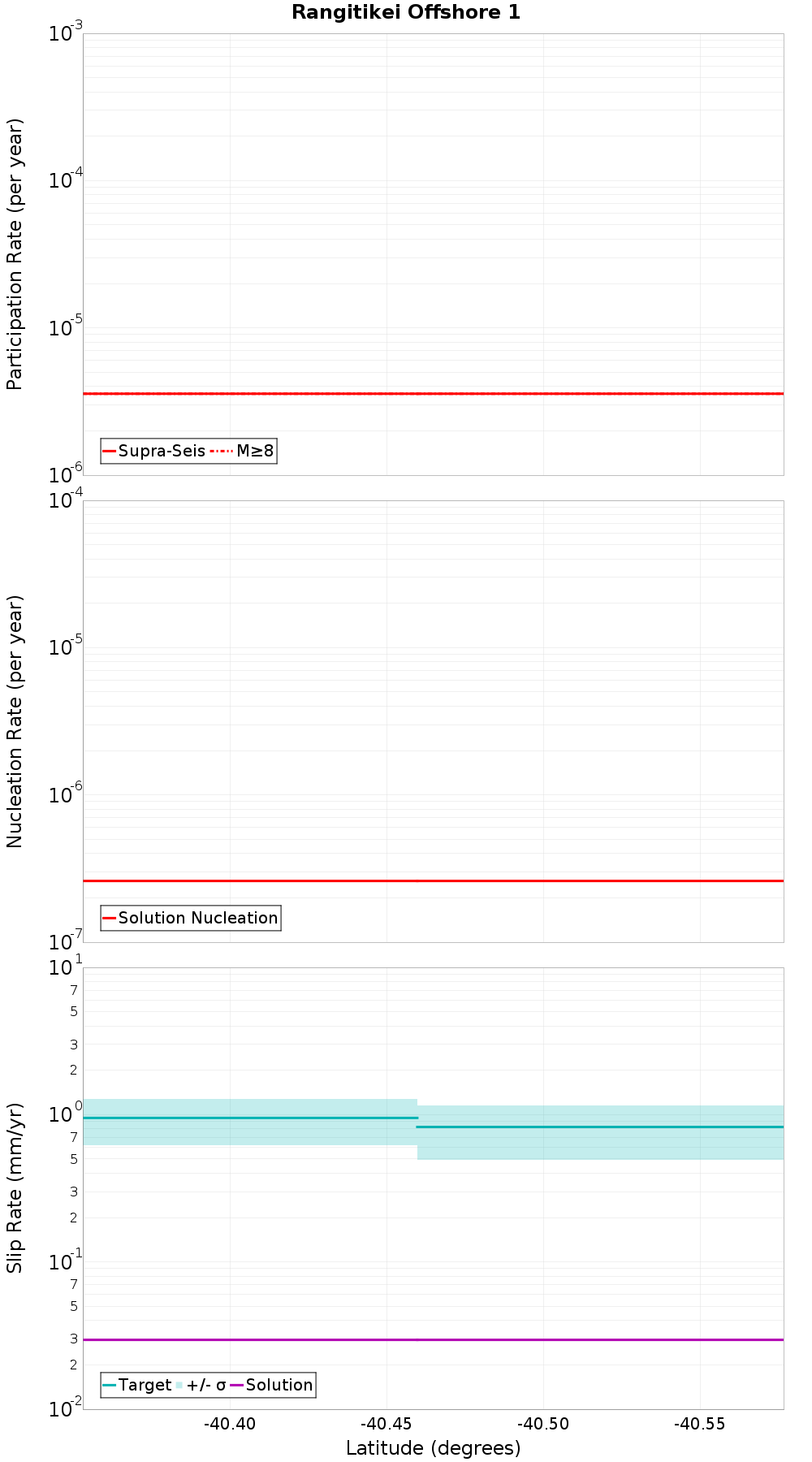

Along-Strike Values

Moment-Rates and b-Values

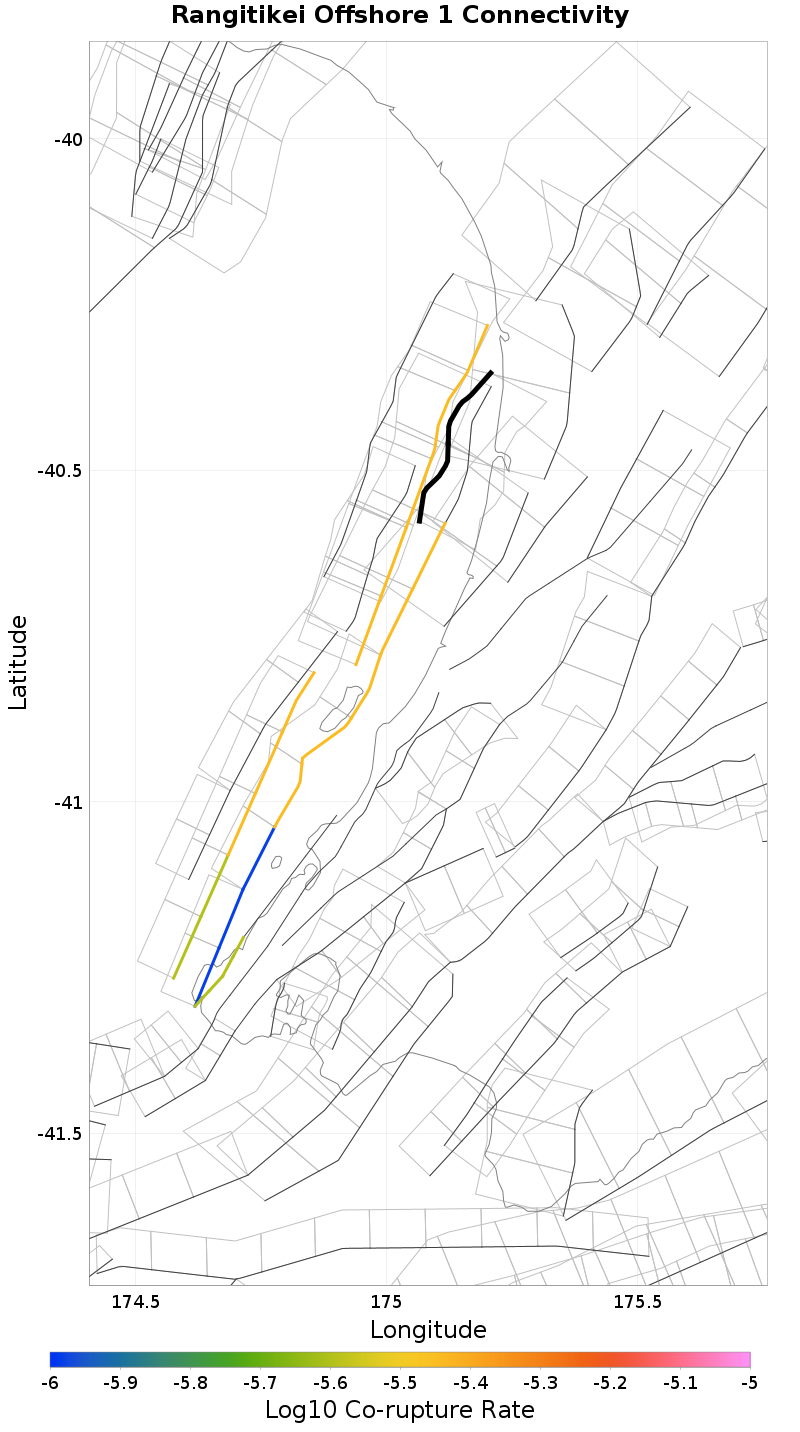

Connectivity

Nearby Sections

Fault Section
Levin Anticline, 0.17 km away
Otaheke North, 0.19 km away
Himatangi, 0.21 km away
Poroutawhao, 0.41 km away
Onepoto, 0.76 km away
Fisherman 3, 2.73 km away
Mt Stewart, 8.25 km away
Mascarin, 9.57 km away
Northern Ohariu, 12.12 km away
Leedstown, 14.34 km away

Levin Anticline, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaheke North, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	110
Co-rupture Rate	3.5728322E-6

Himatangi, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Poroutawhao, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Onepoto, 0.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	true
Co-rupture Count	57
Co-rupture Rate	3.5728322E-6

Fisherman 3, 2.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Mt Stewart, 8.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mascarin, 9.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Northern Ohariu, 12.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leedstown, 14.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDYuMDJyQUI2
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0
