EQ rupture - 23Dec2011 Details
| Property | Value |
|---|---|
| Rupture Count | 43 |
| Ruptures Above Sect Min Mag | 38 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [6.59, 7.50] |
| Length Range | [12, 98] km |
| Total Rate | 7.2056406E-5 /yr |
| Multi-Fault Rate | 7.2056406E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

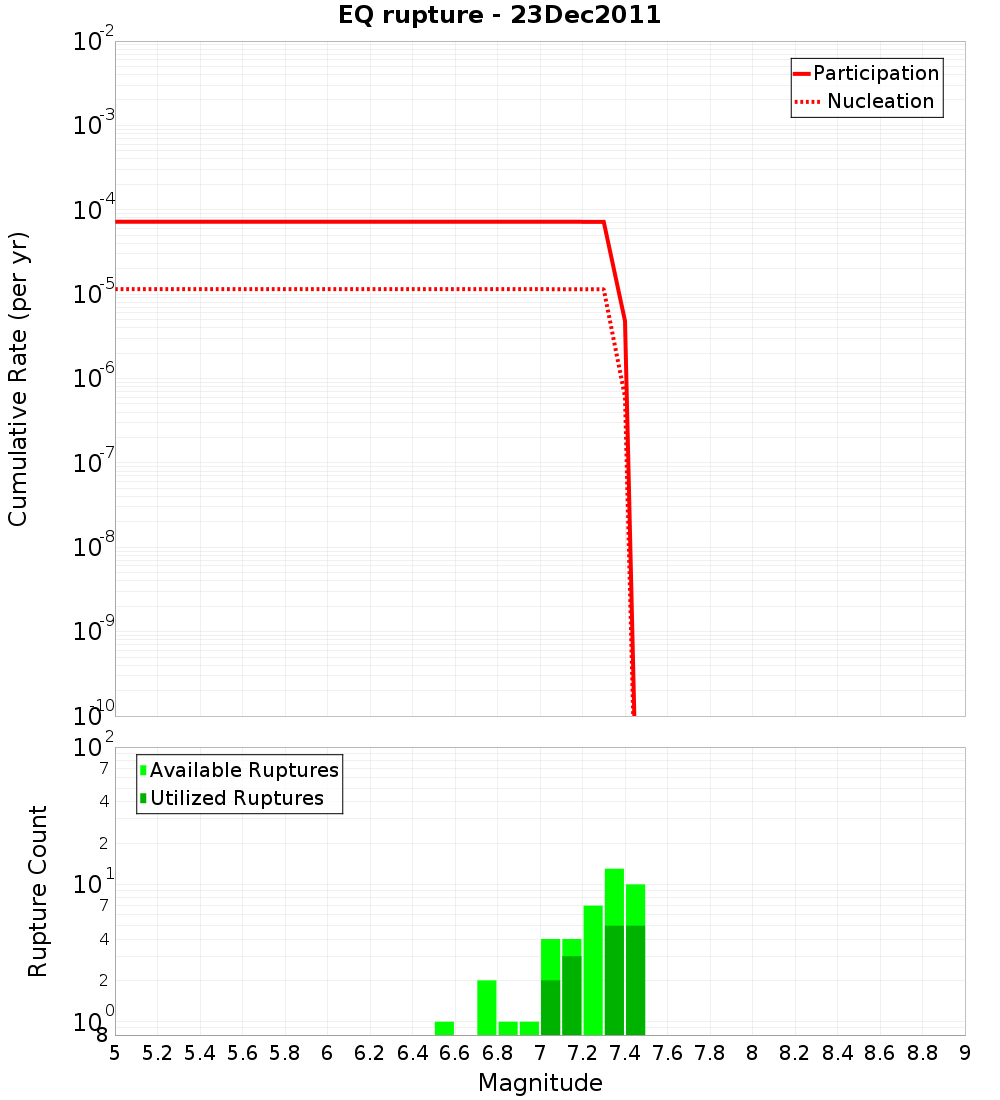

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

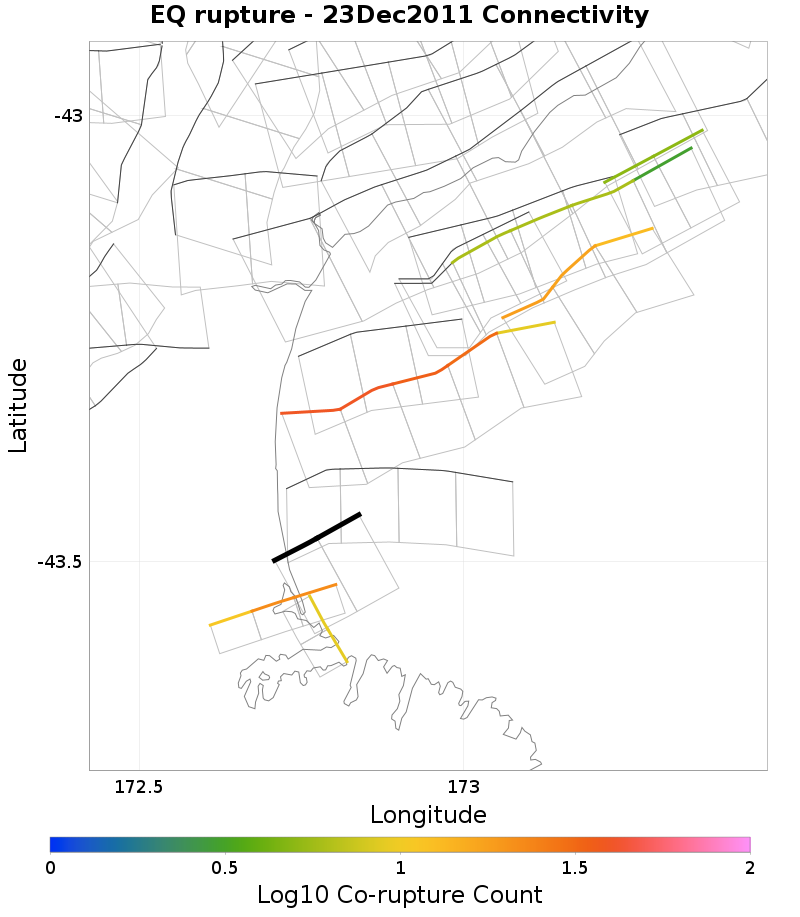

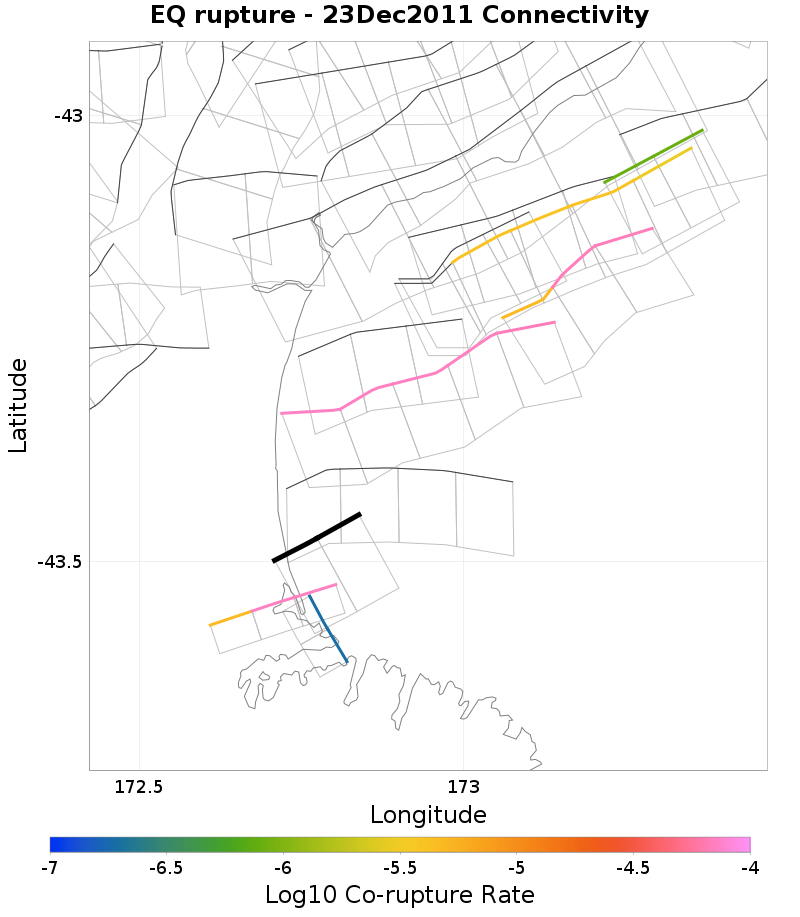

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| EQ rupture - 22Feb2011, 0.52 km away |
| EQ rupture - 13June2011, 0.86 km away |
| CenPeg1n2, 4.75 km away |
| Pegasus Bay, 11.01 km away |
EQ rupture - 22Feb2011, 0.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 22 |
| Co-rupture Rate | 7.186655E-5 |
EQ rupture - 13June2011, 0.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9 |
| Co-rupture Rate | 1.8985698E-7 |
CenPeg1n2, 4.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pegasus Bay, 11.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 39 |
| Co-rupture Rate | 7.2056406E-5 |
