North Canterbury Shelf 11 Details

PropertyValue
Rupture Count359
Ruptures Above Sect Min Mag358
Ruptures w/ Nonzero Rates77
Magnitude Range[6.69, 8.11]
Length Range[14, 291] km
Total Rate7.3560455E-5 /yr
Multi-Fault Rate7.3560455E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults26

Table Of Contents

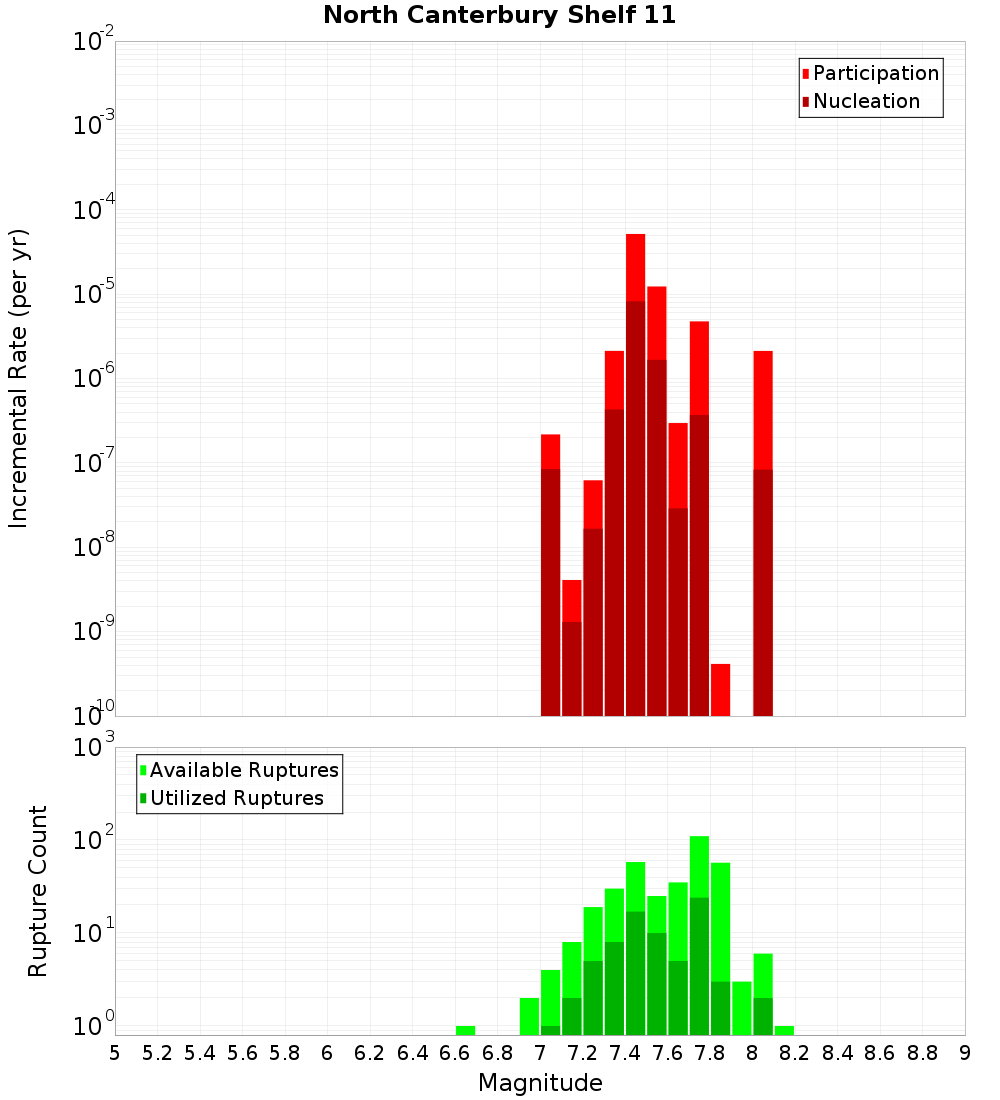

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Motunau, 0.14 km away
Leithfield - NCVI - NCVII, 1.13 km away
Point Gibson, 2.05 km away
North Canterbury Shelf 4, 5.86 km away
AmberBlyth, 7.7 km away
North Canterbury Shelf 2, 9.96 km away
OmihiLwrHuru, 11.78 km away

Motunau, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O
Connected?true
Directly Connected?true
Co-rupture Count238
Co-rupture Rate2.3815139E-5

Leithfield - NCVI - NCVII, 1.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate1.2256482E-5

Point Gibson, 2.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O
Connected?true
Directly Connected?true
Co-rupture Count242
Co-rupture Rate6.157755E-5

North Canterbury Shelf 4, 5.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O
Connected?true
Directly Connected?true
Co-rupture Count51
Co-rupture Rate3.9657447E-5

AmberBlyth, 7.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O
Connected?true
Directly Connected?false
Co-rupture Count200
Co-rupture Rate6.330339E-6

North Canterbury Shelf 2, 9.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate1.7472328E-5

OmihiLwrHuru, 11.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
