Otanomomo Details
| Property | Value |
|---|---|
| Rupture Count | 81 |
| Ruptures Above Sect Min Mag | 80 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.77, 8.25] |
| Length Range | [10, 285] km |
| Total Rate | 2.6799762E-5 /yr |
| Multi-Fault Rate | 2.6799762E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 41 |
Table Of Contents

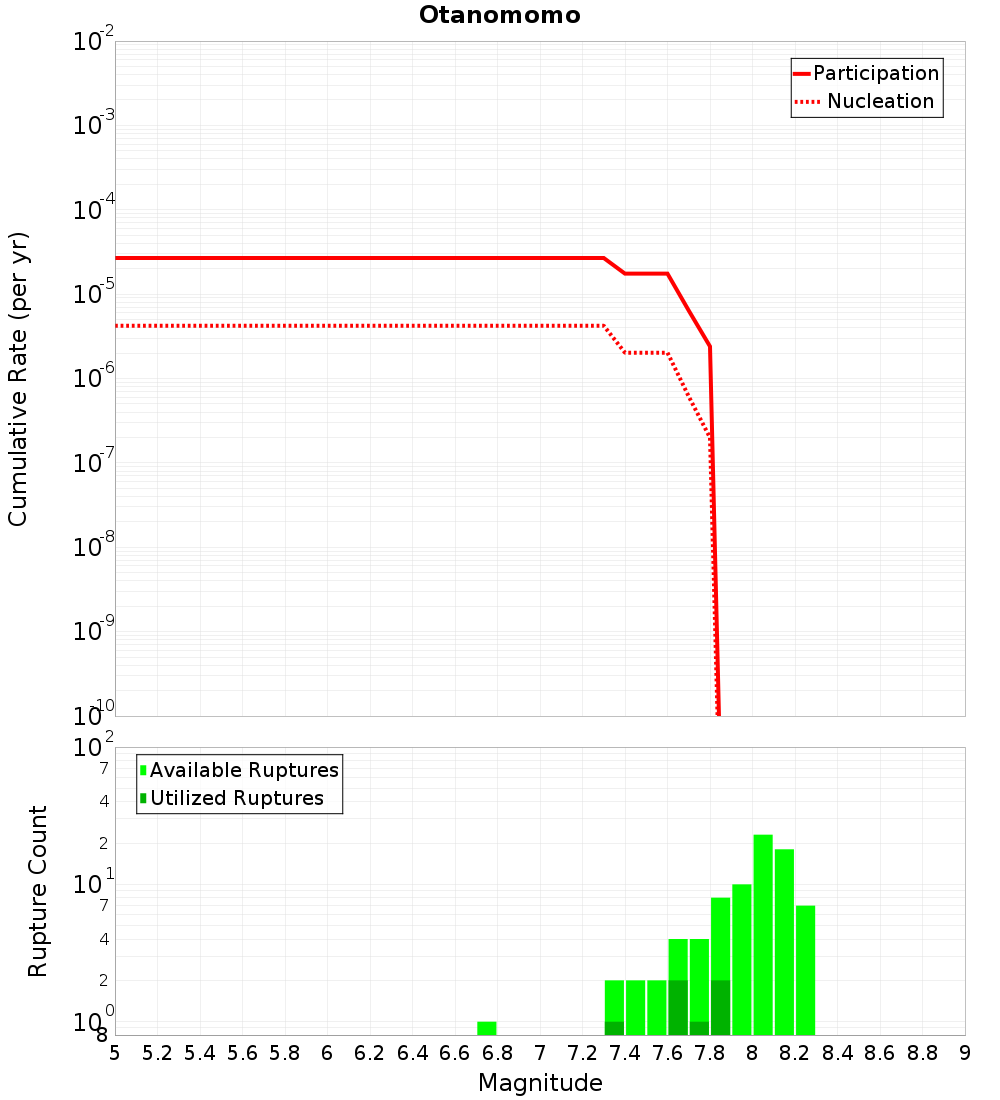

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

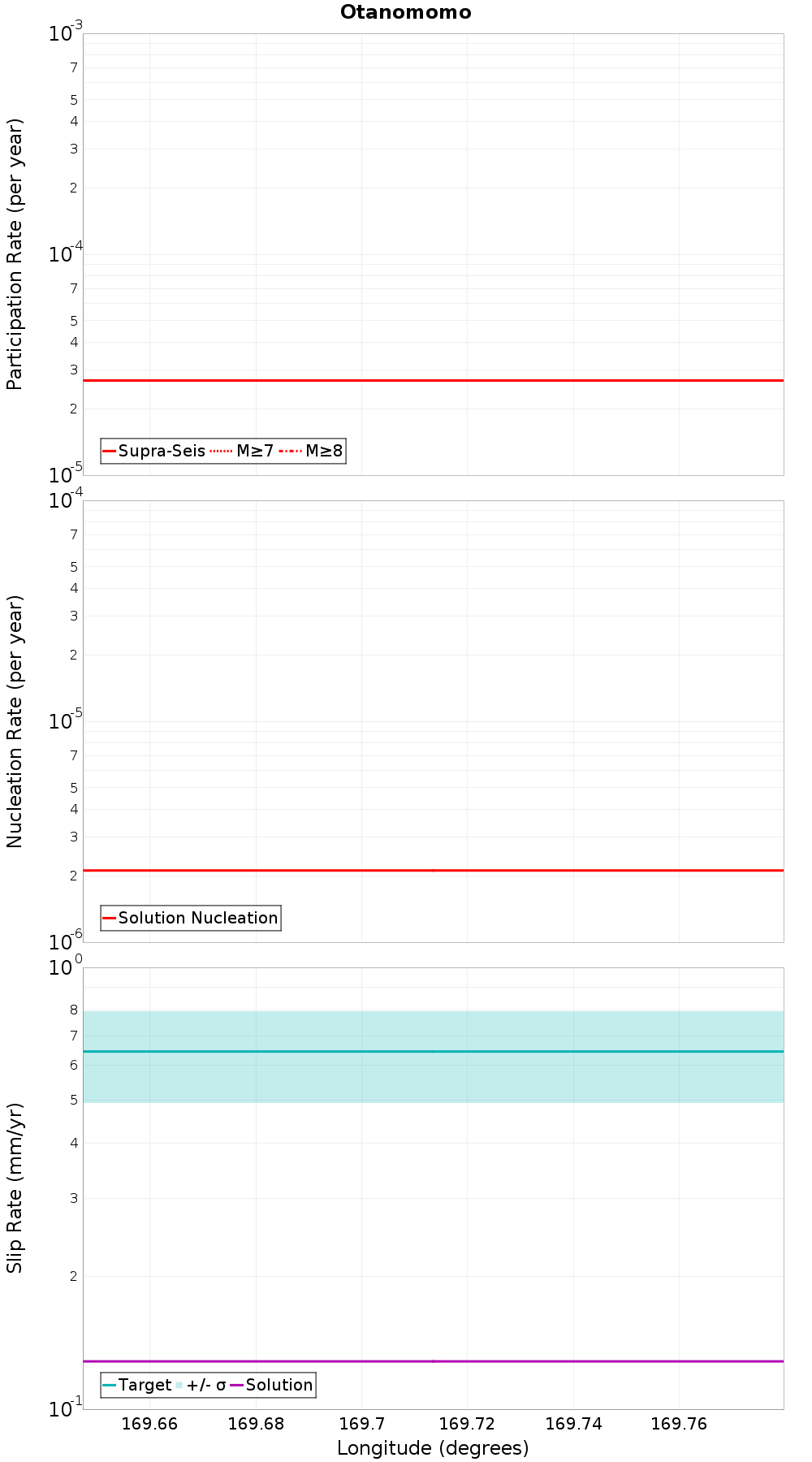

Along-Strike Values
Moment-Rates and b-Values

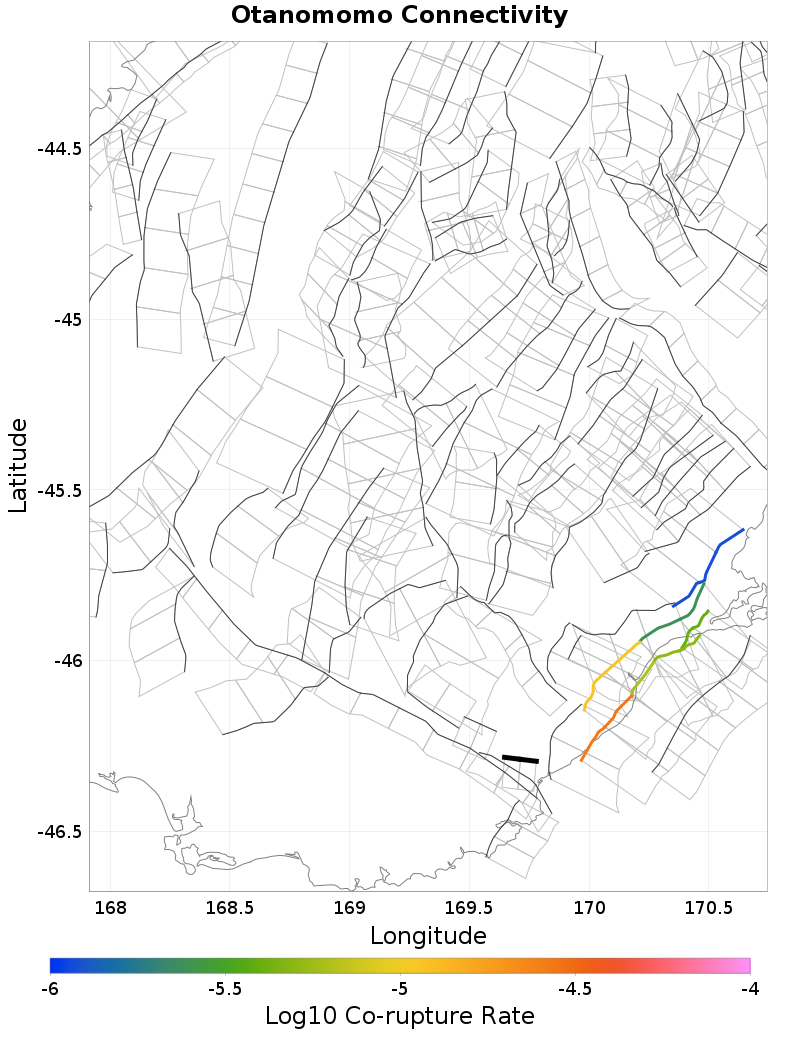

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Little Hillfoot, 0.32 km away |
| Hillfoot, 2.61 km away |
| Titri South, 4.13 km away |
| Clifton, 8.54 km away |
| Settlement, 12.6 km away |
| Akatore, 14.49 km away |
Little Hillfoot, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hillfoot, 2.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 70 |
| Co-rupture Rate | 0.0 |
Titri South, 4.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Clifton, 8.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Settlement, 12.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Akatore, 14.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NDguMGNtcG5O | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9 |
| Co-rupture Rate | 2.6799762E-5 |
