Waitawhiti Details
| Property | Value |
|---|---|
| Rupture Count | 141 |
| Ruptures Above Sect Min Mag | 138 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.31, 8.02] |
| Length Range | [10, 416] km |
| Total Rate | 2.5067924E-4 /yr |
| Multi-Fault Rate | 2.5067924E-4 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 27 |
Table Of Contents

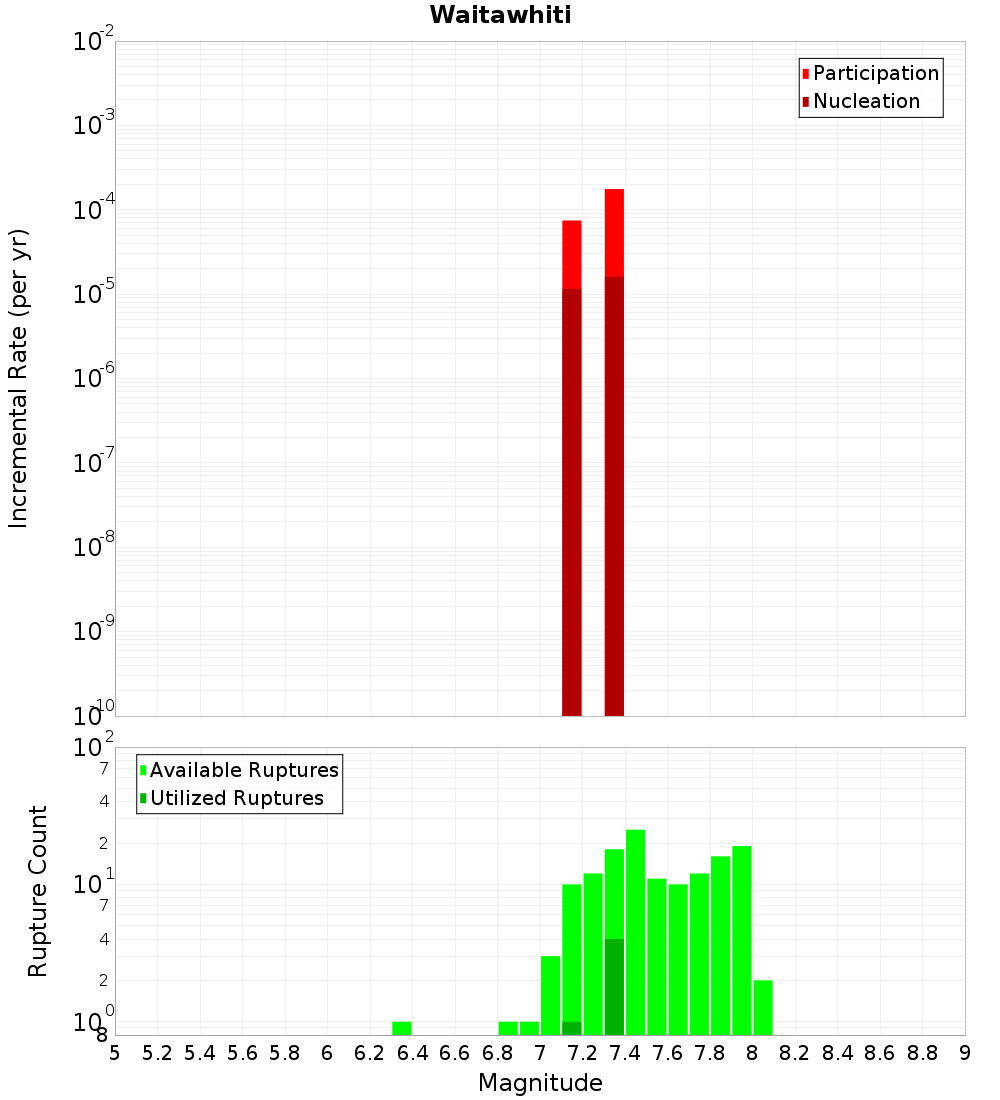

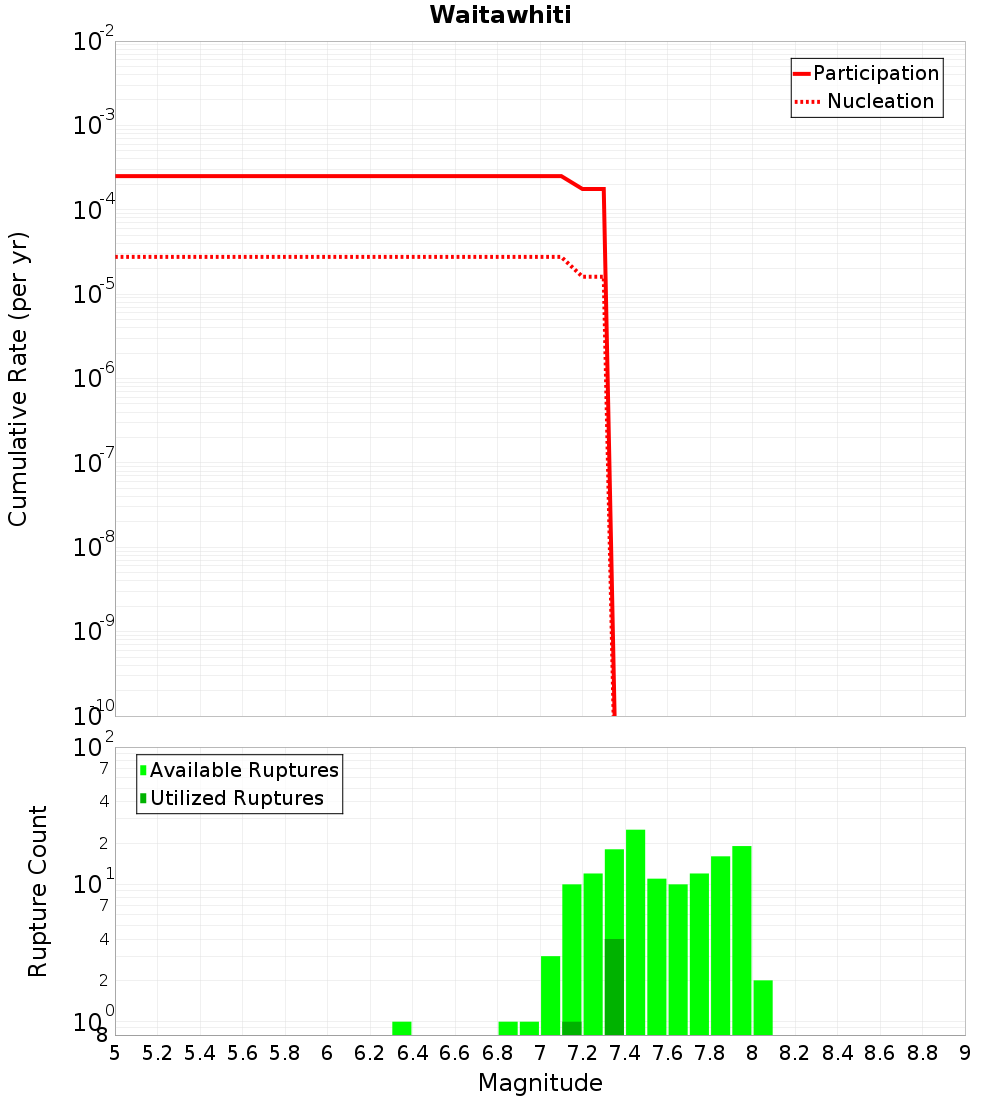

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

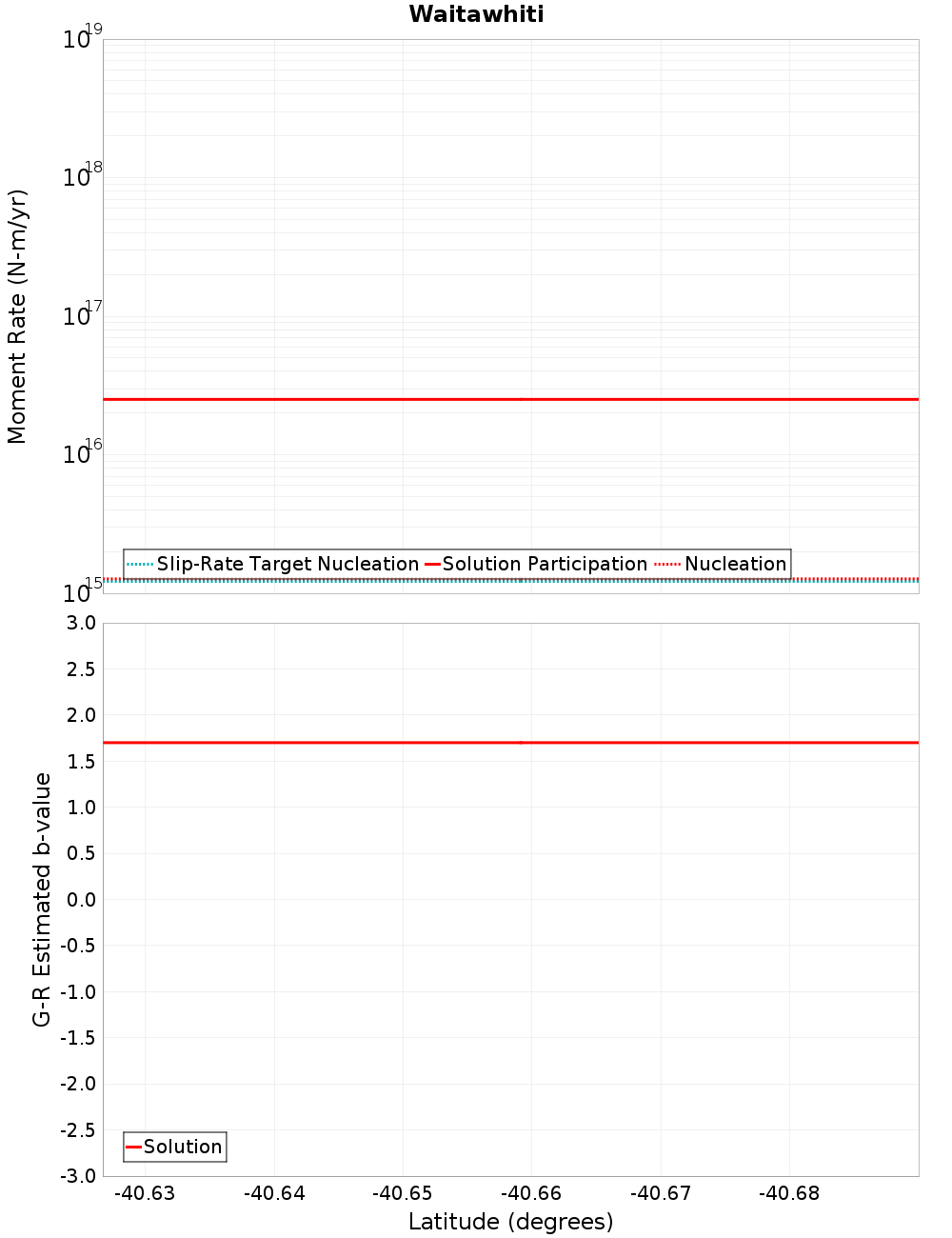

Moment-Rates and b-Values

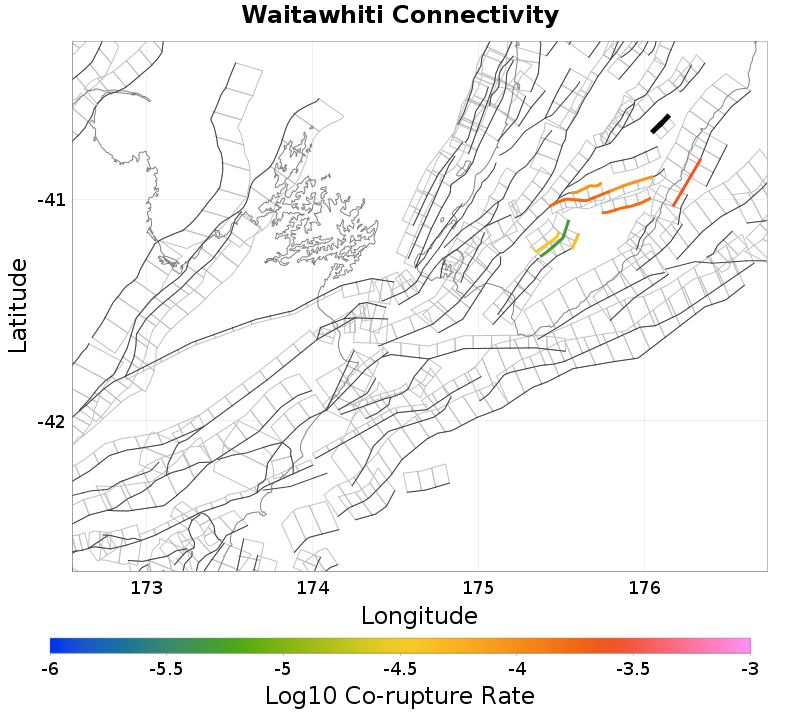

Connectivity
 |  |
|---|
Nearby Sections
Mataikona, 4.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NTUuMEJQTVRt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 140 |
| Co-rupture Rate | 2.5067924E-4 |
Mokonui Northeast, 7.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NTUuMEJQTVRt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Saunders Road, 9.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NTUuMEJQTVRt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waipukaka, 10.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NTUuMEJQTVRt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mataikona East, 13.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NTUuMEJQTVRt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pongaroa - Weber, 14.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NTUuMEJQTVRt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alfredton North, 14.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NTUuMEJQTVRt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
