Alpine: Resolution - Charles Details

Property	Value
Rupture Count	13,503
Ruptures Above Sect Min Mag	13,500
Ruptures w/ Nonzero Rates	563
Magnitude Range	[6.45, 8.50]
Length Range	[10, 1,082] km
Total Rate	0.0019164871 /yr
Multi-Fault Rate	0.0019164871 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	80

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

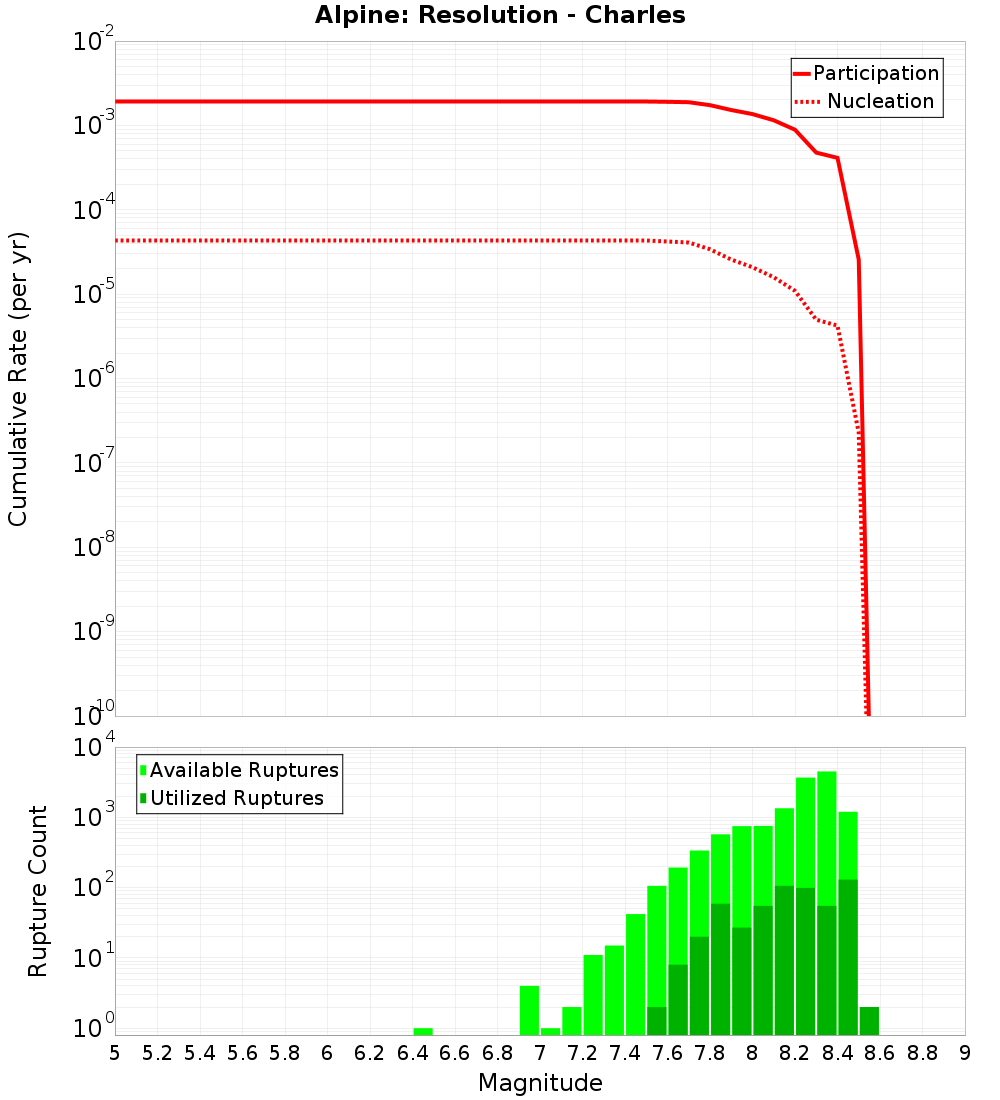

Magnitude-Frequency Distribution

Incremental	Cumulative

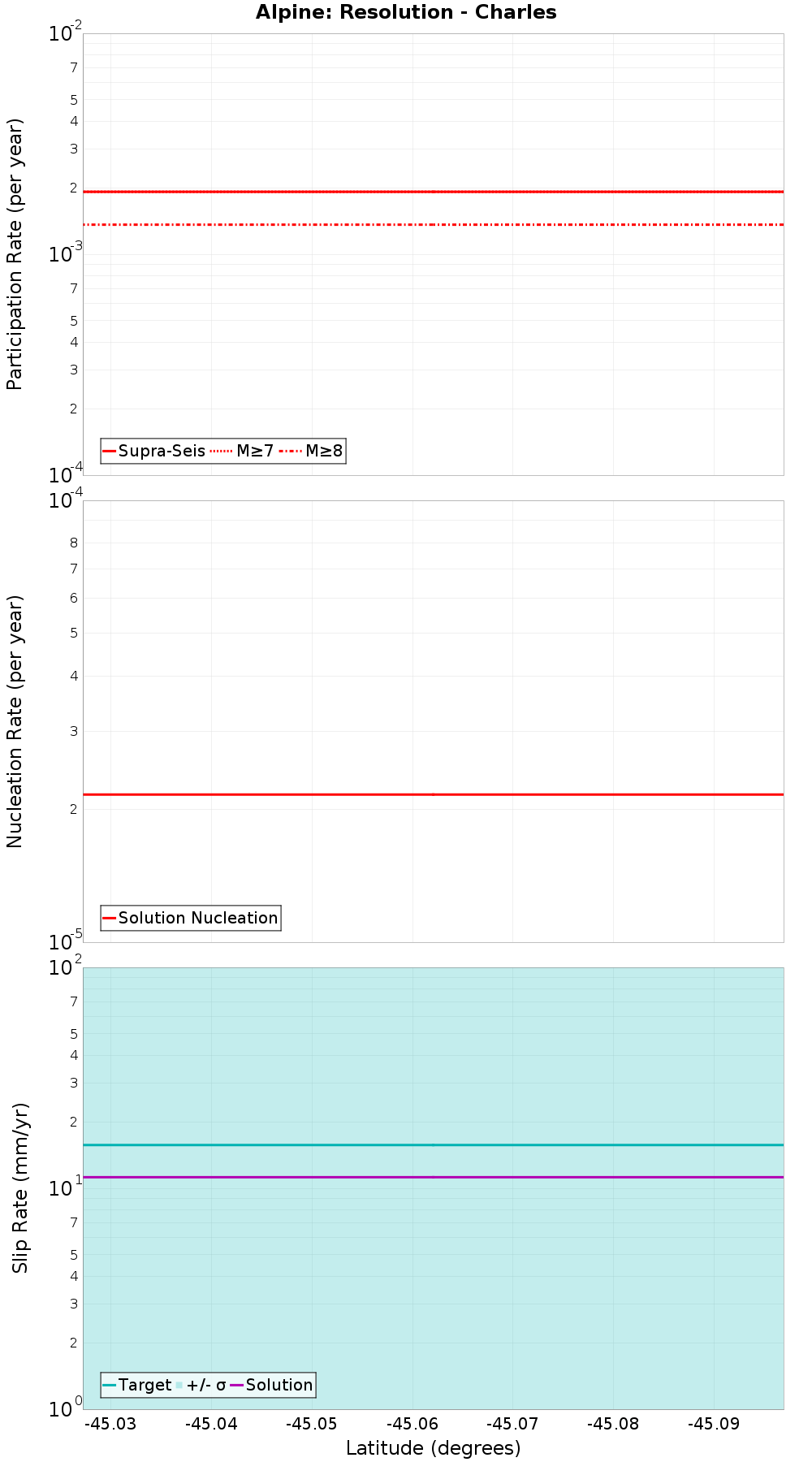

Along-Strike Values

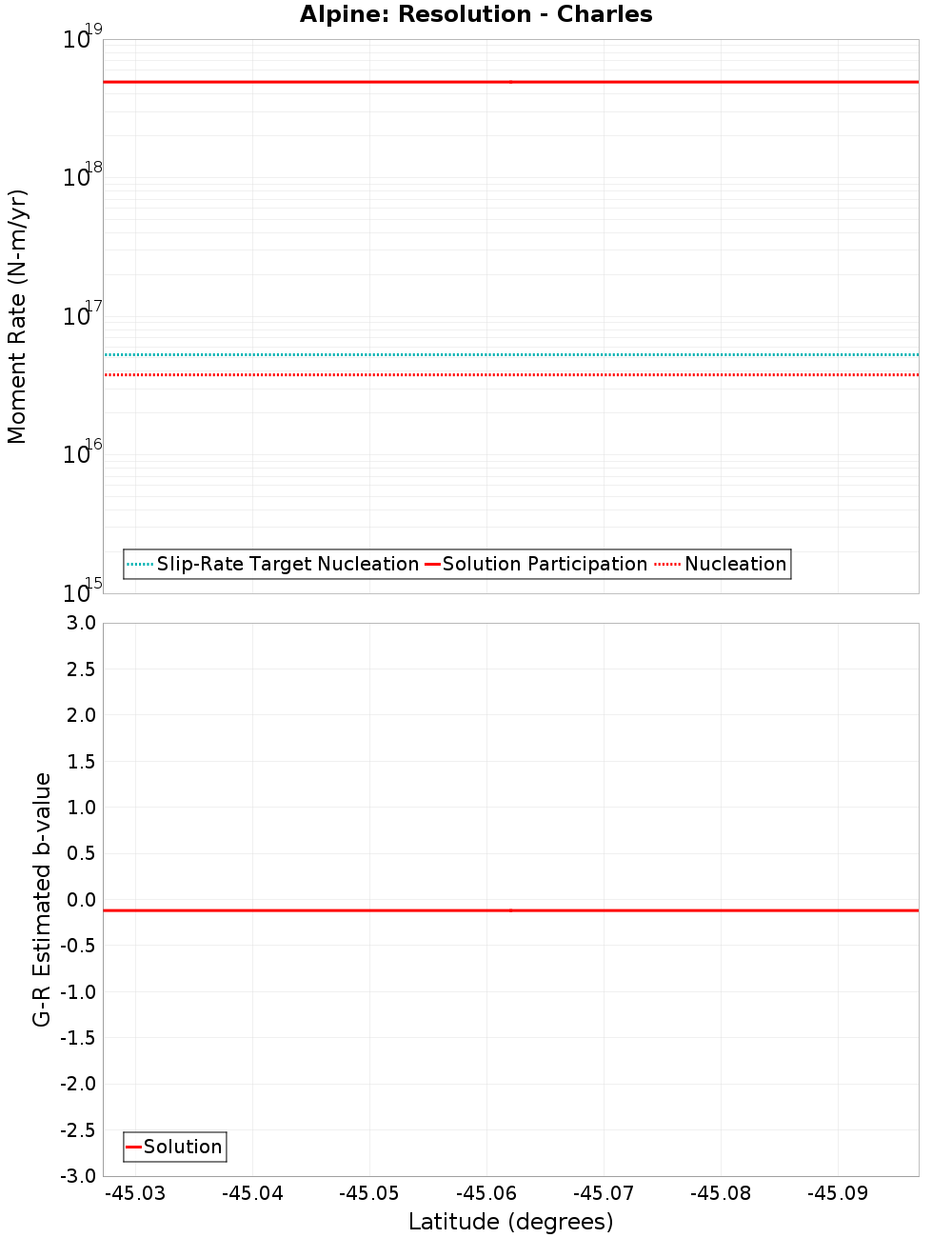

Moment-Rates and b-Values

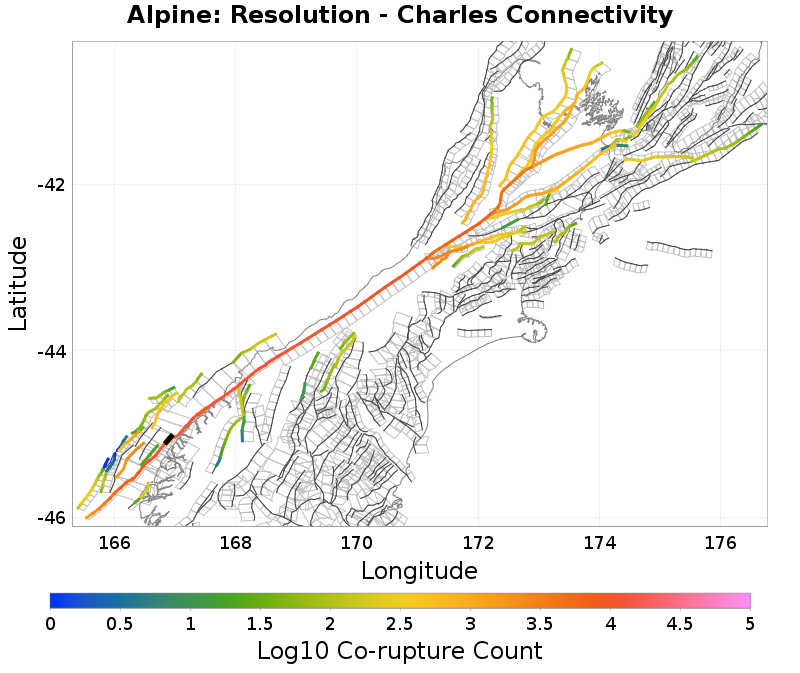

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Dagg, 0 km away
Central Wedge 4 - South Wedge 411, 0.29 km away
South Wedge 2, 0.33 km away
Alpine: Nancy, 2.58 km away
Alpine: Caswell, 3.34 km away
Central Wedge 1 & 2 & 3, 3.37 km away
South Wedge 1, 10.28 km away

Alpine: Resolution - Dagg, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NzMuMGRYNHV6
Connected?	true
Directly Connected?	true
Co-rupture Count	12,823
Co-rupture Rate	0.0019164871

Central Wedge 4 - South Wedge 411, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NzMuMGRYNHV6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

South Wedge 2, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NzMuMGRYNHV6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Nancy, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NzMuMGRYNHV6
Connected?	true
Directly Connected?	false
Co-rupture Count	515
Co-rupture Rate	6.7075766E-6

Alpine: Caswell, 3.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NzMuMGRYNHV6
Connected?	true
Directly Connected?	true
Co-rupture Count	13,047
Co-rupture Rate	0.0018223461

Central Wedge 1 & 2 & 3, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NzMuMGRYNHV6
Connected?	true
Directly Connected?	true
Co-rupture Count	598
Co-rupture Rate	7.850982E-5

South Wedge 1, 10.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5NzMuMGRYNHV6
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	2.1878443E-6
