Wairarapa: 1 Details

PropertyValue
Rupture Count42,508
Ruptures Above Sect Min Mag42,504
Ruptures w/ Nonzero Rates49
Magnitude Range[6.91, 8.60]
Length Range[20, 925] km
Total Rate0.0012289799 /yr
Multi-Fault Rate0.0012289799 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults161

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

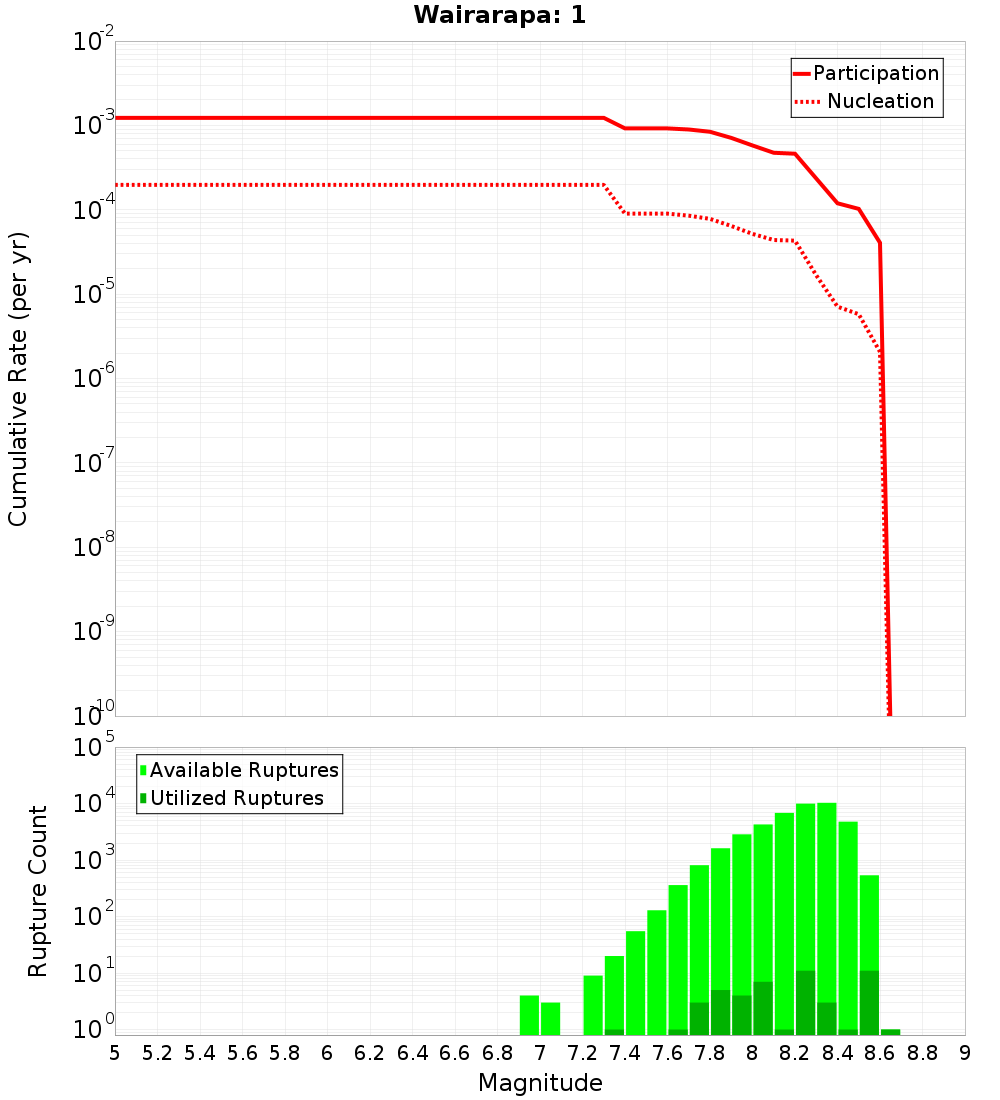

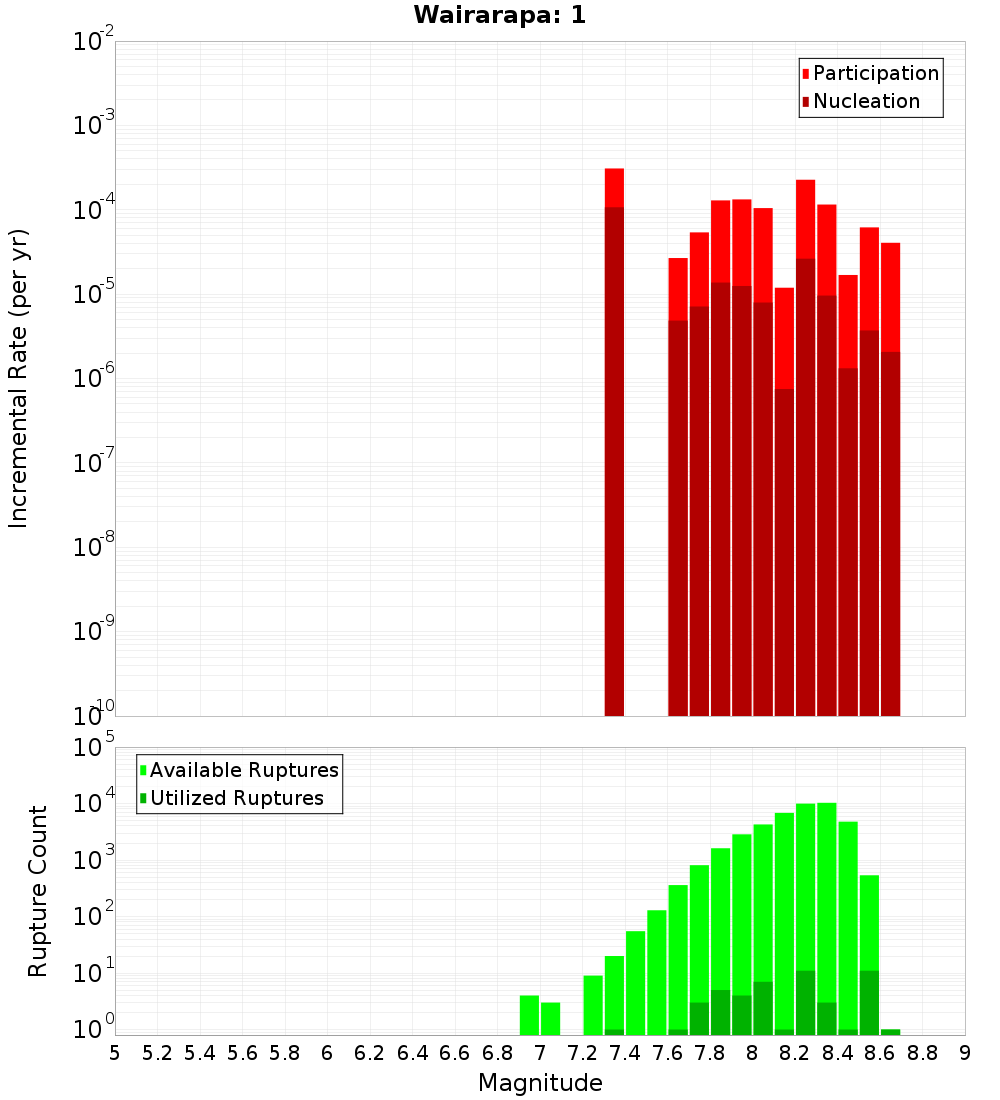

Incremental PlotCumulative Plot

Along-Strike Values

(top)

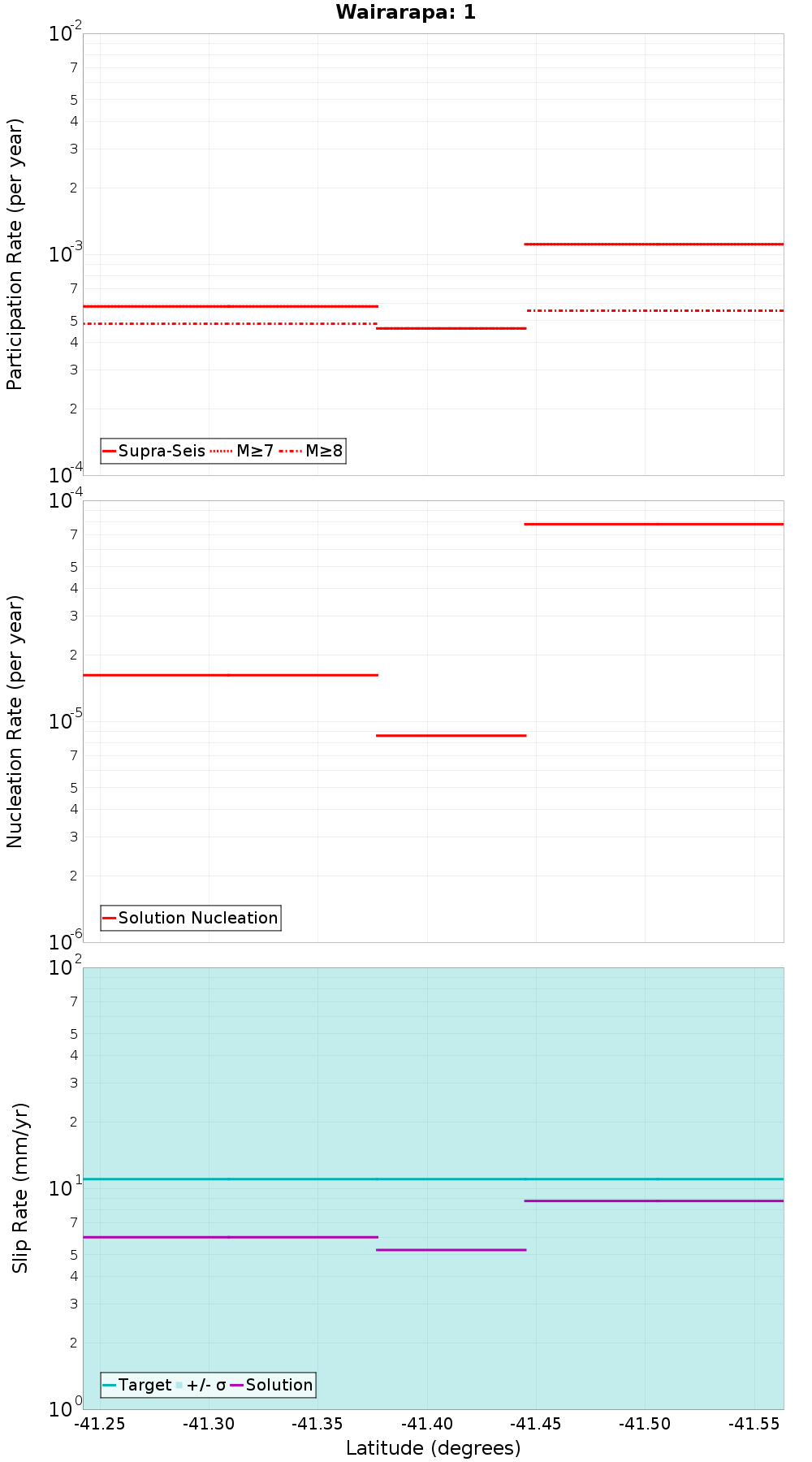

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wairarapa: 2, 0 km away
Wairarapa: Needles, 0 km away
Wharekauhau, 0.2 km away
Wellington Hutt Valley: 5, 0.94 km away
Aotea - Evans Bay, 1.28 km away
Wellington Hutt Valley: 4, 2.73 km away
Whitemans Valley, 5.26 km away
Akatarawa, 12.63 km away
Wellington Hutt Valley: 2, 12.7 km away
Wellington Hutt Valley: 3, 12.73 km away
Moonshine, 13.22 km away
Ohariu, 14.45 km away
BooBoo, 14.76 km away

Wairarapa: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?true
Co-rupture Count23,875
Co-rupture Rate5.574757E-4

Wairarapa: Needles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?true
Co-rupture Count36,897
Co-rupture Rate0.0011096179

Wharekauhau, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?true
Co-rupture Count2,035
Co-rupture Rate1.8667746E-5

Wellington Hutt Valley: 5, 0.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?true
Co-rupture Count17,931
Co-rupture Rate4.1973588E-5

Aotea - Evans Bay, 1.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?true
Co-rupture Count531
Co-rupture Rate0.0

Wellington Hutt Valley: 4, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?false
Co-rupture Count296
Co-rupture Rate0.0

Whitemans Valley, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?true
Co-rupture Count323
Co-rupture Rate0.0

Akatarawa, 12.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?false
Co-rupture Count100
Co-rupture Rate0.0

Wellington Hutt Valley: 2, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Moonshine, 13.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?false
Co-rupture Count175
Co-rupture Rate0.0

Ohariu, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?false
Co-rupture Count254
Co-rupture Rate9.3030765E-5

BooBoo, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE5ODEuMHpOUWtq
Connected?true
Directly Connected?false
Co-rupture Count2,982
Co-rupture Rate0.0
