Dreyers Rock Details

Property	Value
Rupture Count	9,286
Ruptures Above Sect Min Mag	9,268
Ruptures w/ Nonzero Rates	97
Magnitude Range	[6.21, 8.40]
Length Range	[7, 925] km
Total Rate	7.7066815E-4 /yr
Multi-Fault Rate	7.7066815E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	89

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

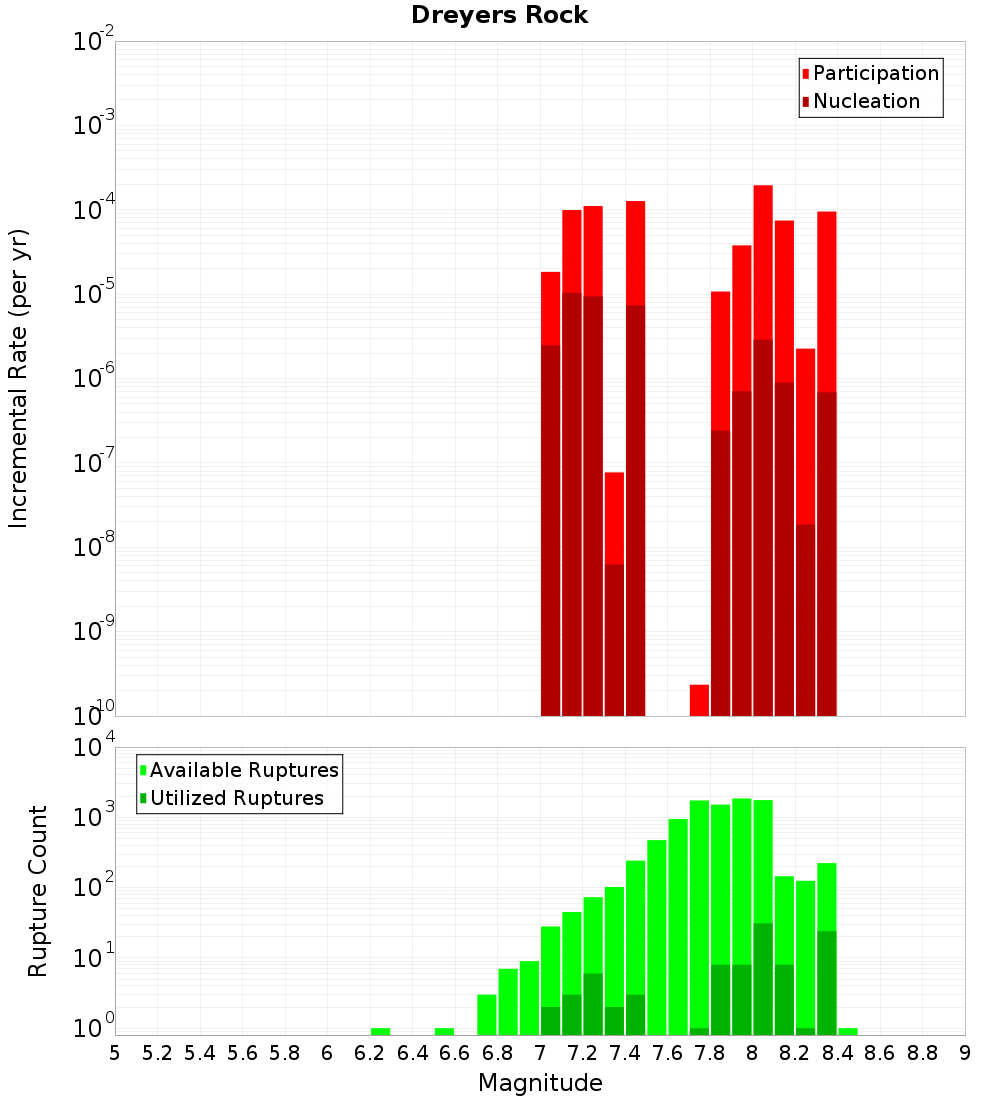

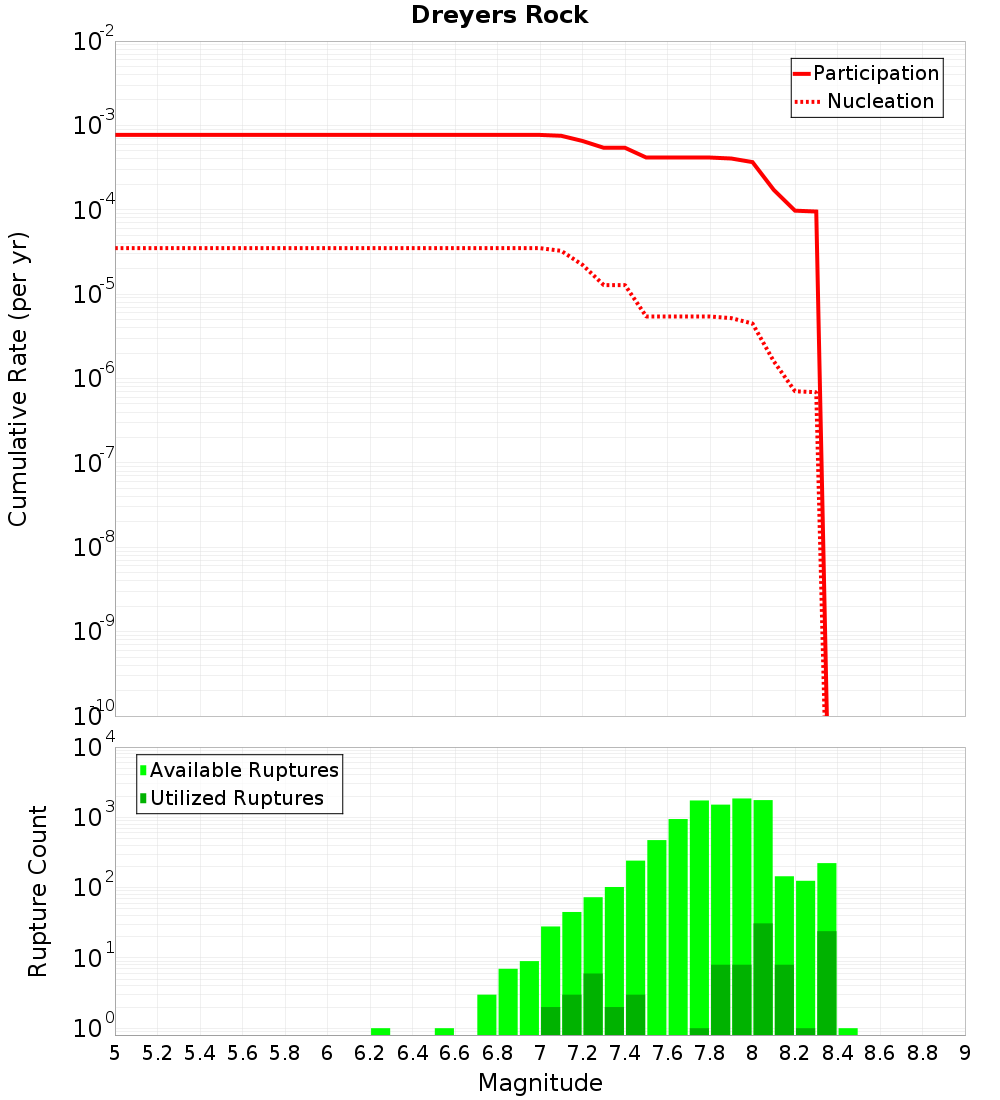

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

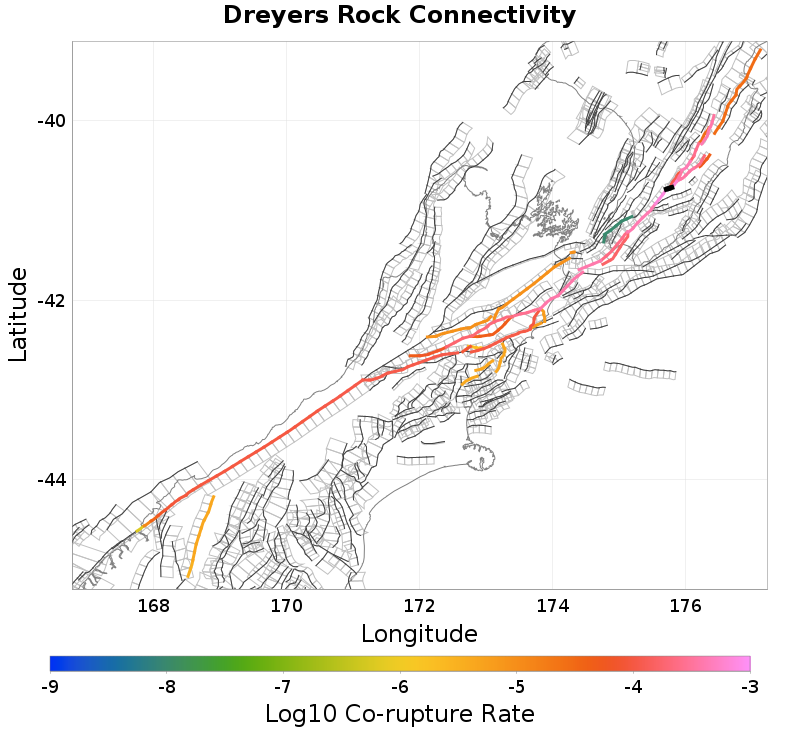

Connectivity

Nearby Sections

Fault Section
Alfredton South, 0 km away
Pa Valley, 0.08 km away
Wairarapa: 3, 0.46 km away
Alfredton North, 5.12 km away
Saunders Road, 7.87 km away
Mokonui Northeast, 9.25 km away
Mokonui Southwest, 9.25 km away
Tokomaru, 14.1 km away

Alfredton South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMDAuMGo2a1Ft
Connected?	true
Directly Connected?	true
Co-rupture Count	5,924
Co-rupture Rate	6.579206E-4

Pa Valley, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMDAuMGo2a1Ft
Connected?	true
Directly Connected?	true
Co-rupture Count	2,024
Co-rupture Rate	1.2098183E-4

Wairarapa: 3, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMDAuMGo2a1Ft
Connected?	true
Directly Connected?	true
Co-rupture Count	9,245
Co-rupture Rate	7.183638E-4

Alfredton North, 5.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMDAuMGo2a1Ft
Connected?	true
Directly Connected?	true
Co-rupture Count	2,872
Co-rupture Rate	3.373045E-4

Saunders Road, 7.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMDAuMGo2a1Ft
Connected?	true
Directly Connected?	false
Co-rupture Count	3,147
Co-rupture Rate	3.4636256E-4

Mokonui Northeast, 9.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMDAuMGo2a1Ft
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	0.0

Mokonui Southwest, 9.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMDAuMGo2a1Ft
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tokomaru, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMDAuMGo2a1Ft
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
