Ohena 2 Details

PropertyValue
Rupture Count83
Ruptures Above Sect Min Mag81
Ruptures w/ Nonzero Rates43
Magnitude Range[7.00, 7.85]
Length Range[20, 126] km
Total Rate1.7078164E-5 /yr
Multi-Fault Rate8.047688E-6 /yr (47.12%)
Directly-Connected Faults5
All Co-Rupturing Faults10

Table Of Contents

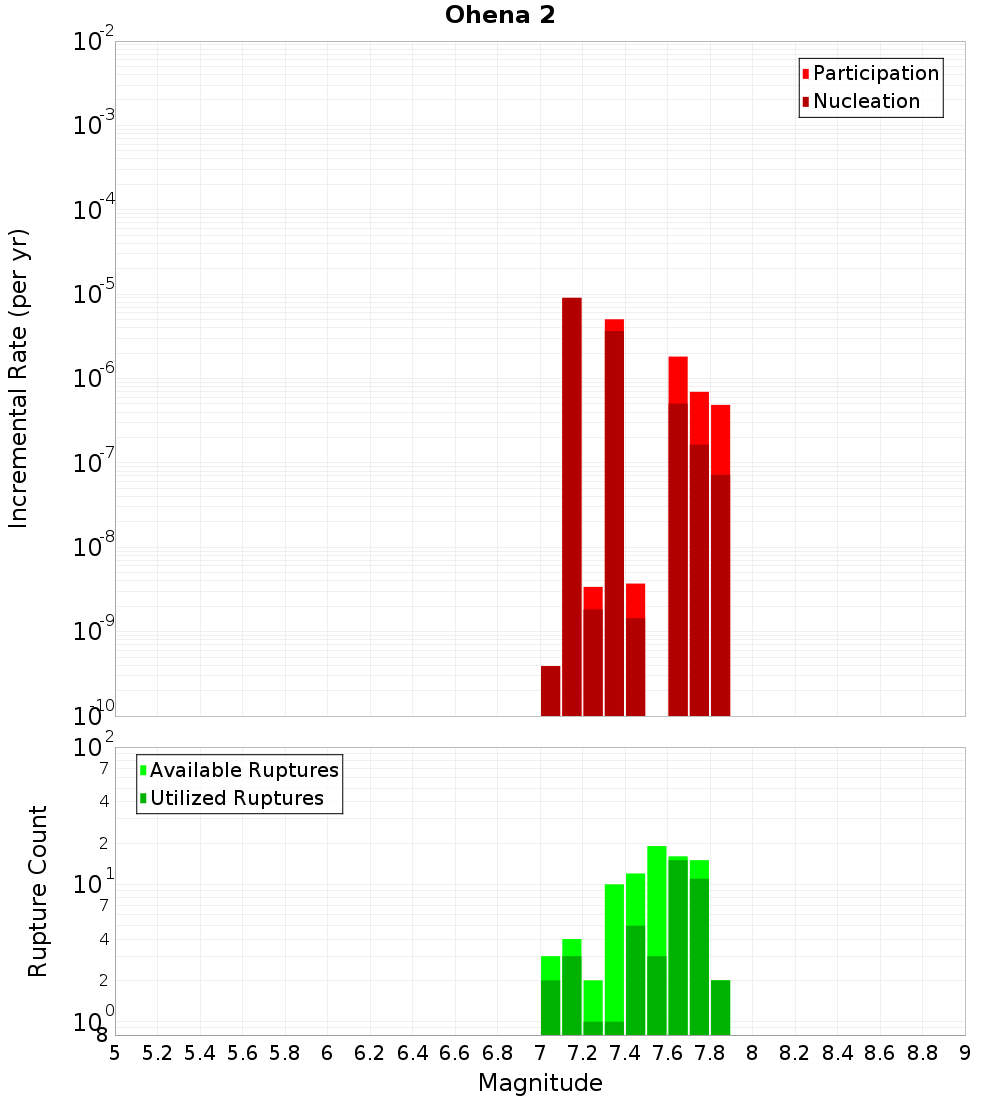

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tauranga Trough West 2, 0.13 km away
Ngatoro South 5, 0.16 km away
Ohena 3, 0.49 km away
Tauranga Trough East 2, 2.52 km away
Ohena 4, 4.59 km away
Ngatoro South 2, 6.63 km away
Otara West 2, 14.35 km away

Tauranga Trough West 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMTQuMG9lOHFR
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate1.7464818E-6

Ngatoro South 5, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMTQuMG9lOHFR
Connected?true
Directly Connected?true
Co-rupture Count25
Co-rupture Rate6.3139955E-6

Ohena 3, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMTQuMG9lOHFR
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate9.691066E-7

Tauranga Trough East 2, 2.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMTQuMG9lOHFR
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate1.673415E-6

Ohena 4, 4.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMTQuMG9lOHFR
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate0.0

Ngatoro South 2, 6.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMTQuMG9lOHFR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 2, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMTQuMG9lOHFR
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate8.1638984E-7
