Otaheke North Details

PropertyValue
Rupture Count652
Ruptures Above Sect Min Mag650
Ruptures w/ Nonzero Rates35
Magnitude Range[7.09, 8.02]
Length Range[25, 245] km
Total Rate2.4548292E-4 /yr
Multi-Fault Rate2.4548292E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults28

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

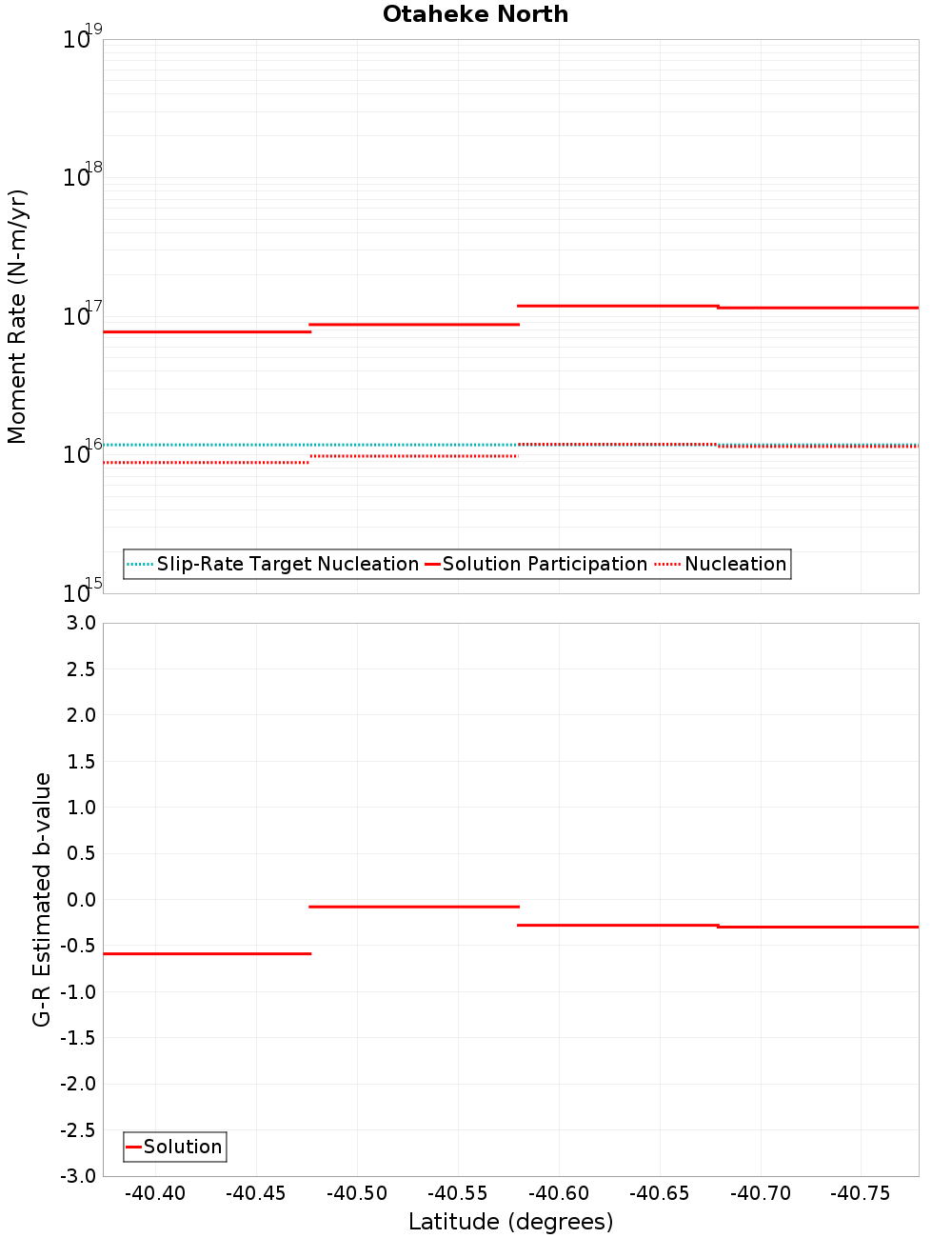

Moment-Rates and b-Values

(top)

Along-strike plot

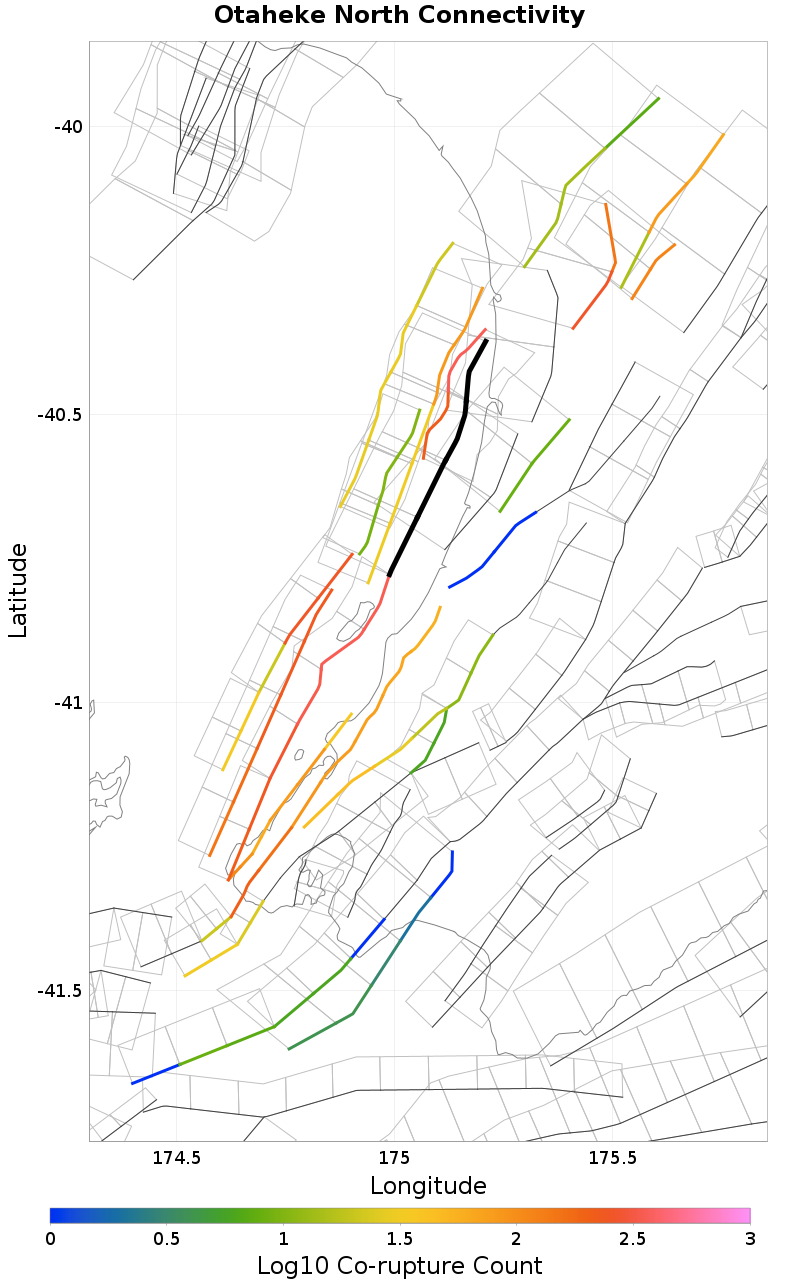

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Otaheke South, 0 km away
Rangitikei Offshore 1, 0.22 km away
Mascarin, 0.44 km away
Onepoto, 0.47 km away
Fisherman 3, 0.9 km away
Fisherman 2, 2.95 km away
Poroutawhao, 4.09 km away
Okupe 1, 8 km away
Himatangi, 8.54 km away
Levin Anticline, 10.05 km away
Northern Ohariu, 11.55 km away
Ohariu, 11.65 km away
Mt Stewart, 12.34 km away

Otaheke South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?true
Co-rupture Count407
Co-rupture Rate4.487985E-5

Rangitikei Offshore 1, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?true
Co-rupture Count356
Co-rupture Rate6.4730135E-5

Mascarin, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate1.141865E-5

Onepoto, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?true
Co-rupture Count83
Co-rupture Rate2.3523455E-5

Fisherman 3, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate2.2960634E-5

Fisherman 2, 2.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?true
Co-rupture Count247
Co-rupture Rate1.95069E-4

Poroutawhao, 4.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?false
Co-rupture Count289
Co-rupture Rate1.4185015E-4

Himatangi, 8.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Levin Anticline, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate4.753472E-5

Northern Ohariu, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Ohariu, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?false
Co-rupture Count239
Co-rupture Rate2.8110207E-5

Mt Stewart, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwMjUuMFB2YkR3
Connected?true
Directly Connected?false
Co-rupture Count263
Co-rupture Rate2.7034743E-5
