Jordan Details

Property	Value
Rupture Count	11,416
Ruptures Above Sect Min Mag	11,416
Ruptures w/ Nonzero Rates	283
Magnitude Range	[7.25, 8.51]
Length Range	[29, 721] km
Total Rate	0.002797618 /yr
Multi-Fault Rate	0.002797618 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	152

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

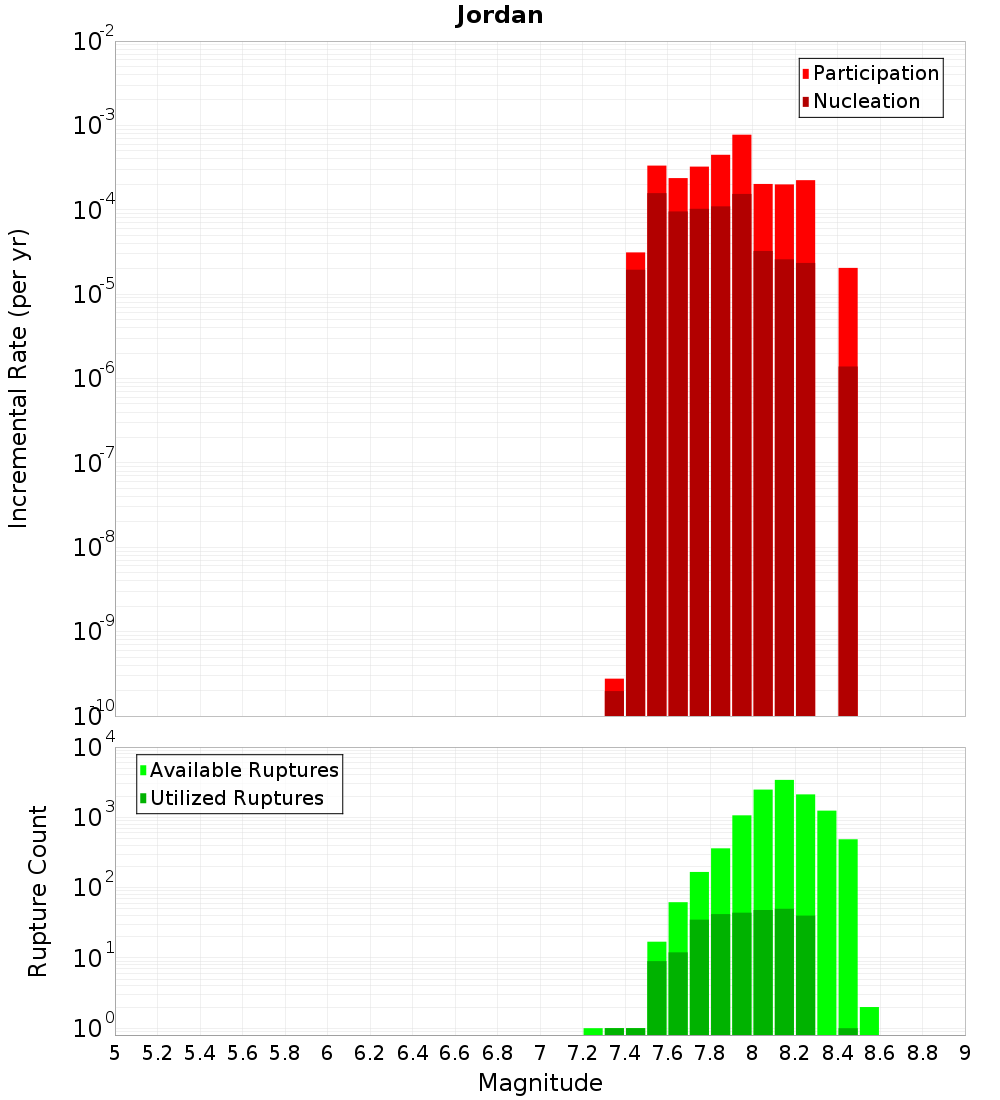

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

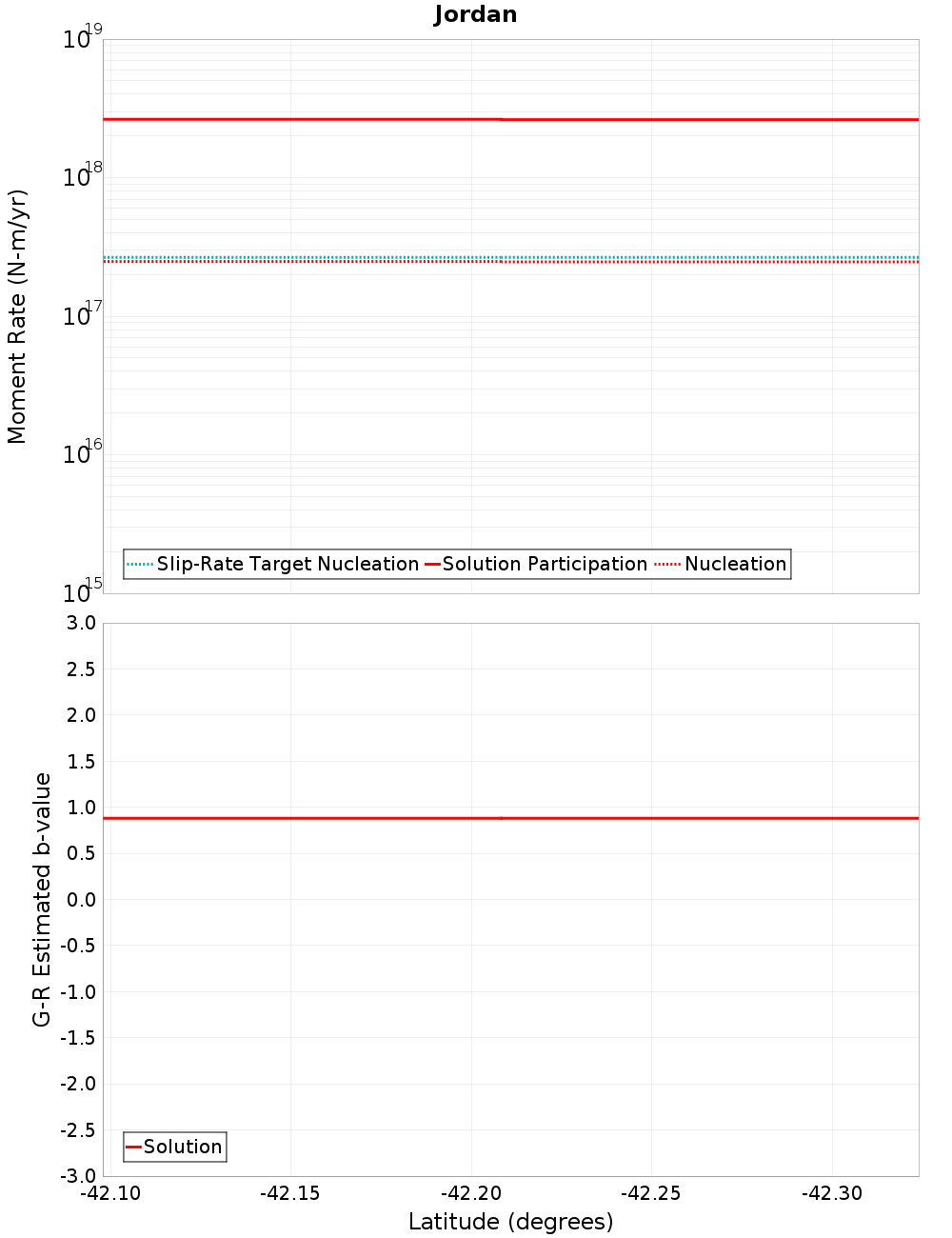

Moment-Rates and b-Values

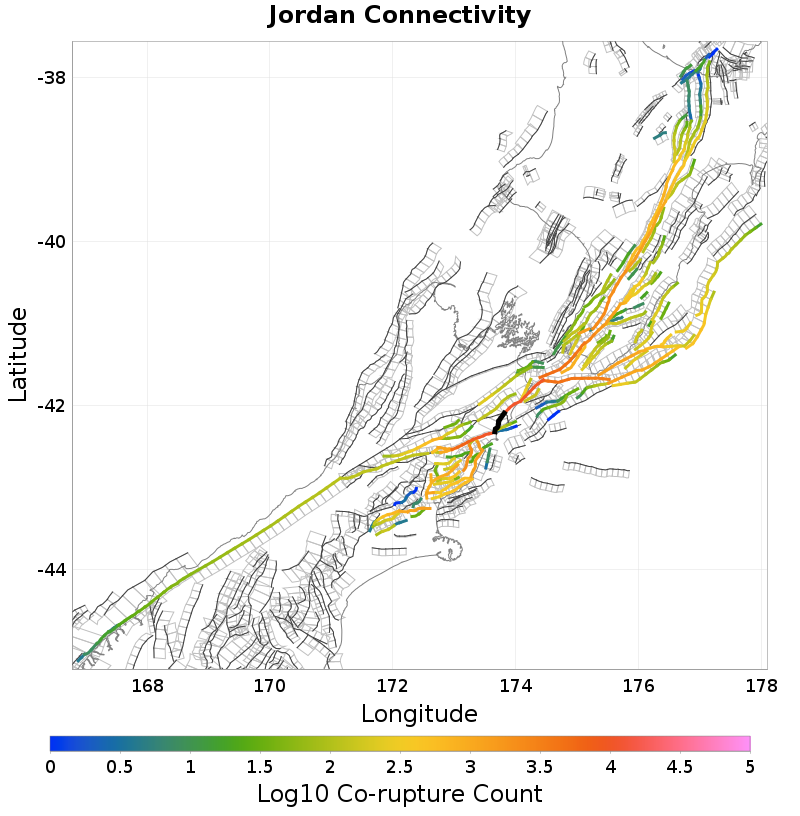

Connectivity

Nearby Sections

Fault Section
Papatea, 0 km away
Hope: Conway, 0 km away
Kekerengu 1, 0 km away
Fidget, 0 km away
Hope: Seaward, 0 km away
Clarence: Northeast, 0.78 km away
Kaikoura - Mangamaunu, 2.75 km away
Clarence: Central, 7.52 km away
Elliott, 9.78 km away
Awatere: Northeast 1, 12.64 km away

Papatea, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNTkuME1UOEZw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNTkuME1UOEZw
Connected?	true
Directly Connected?	true
Co-rupture Count	10,536
Co-rupture Rate	0.0020952316

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNTkuME1UOEZw
Connected?	true
Directly Connected?	true
Co-rupture Count	10,955
Co-rupture Rate	0.0026252905

Fidget, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNTkuME1UOEZw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Seaward, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNTkuME1UOEZw
Connected?	true
Directly Connected?	false
Co-rupture Count	118
Co-rupture Rate	4.352497E-5

Clarence: Northeast, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNTkuME1UOEZw
Connected?	true
Directly Connected?	true
Co-rupture Count	151
Co-rupture Rate	3.4012177E-4

Kaikoura - Mangamaunu, 2.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNTkuME1UOEZw
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	1.1053073E-5

Clarence: Central, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNTkuME1UOEZw
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	4.6403075E-5

Elliott, 9.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNTkuME1UOEZw
Connected?	true
Directly Connected?	false
Co-rupture Count	53
Co-rupture Rate	6.068551E-6

Awatere: Northeast 1, 12.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNTkuME1UOEZw
Connected?	true
Directly Connected?	true
Co-rupture Count	214
Co-rupture Rate	5.5807734E-5
