Little Valley Details

Property	Value
Rupture Count	7,719
Ruptures Above Sect Min Mag	7,718
Ruptures w/ Nonzero Rates	105
Magnitude Range	[7.21, 8.32]
Length Range	[29, 448] km
Total Rate	1.8206778E-5 /yr
Multi-Fault Rate	1.8206778E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	51

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

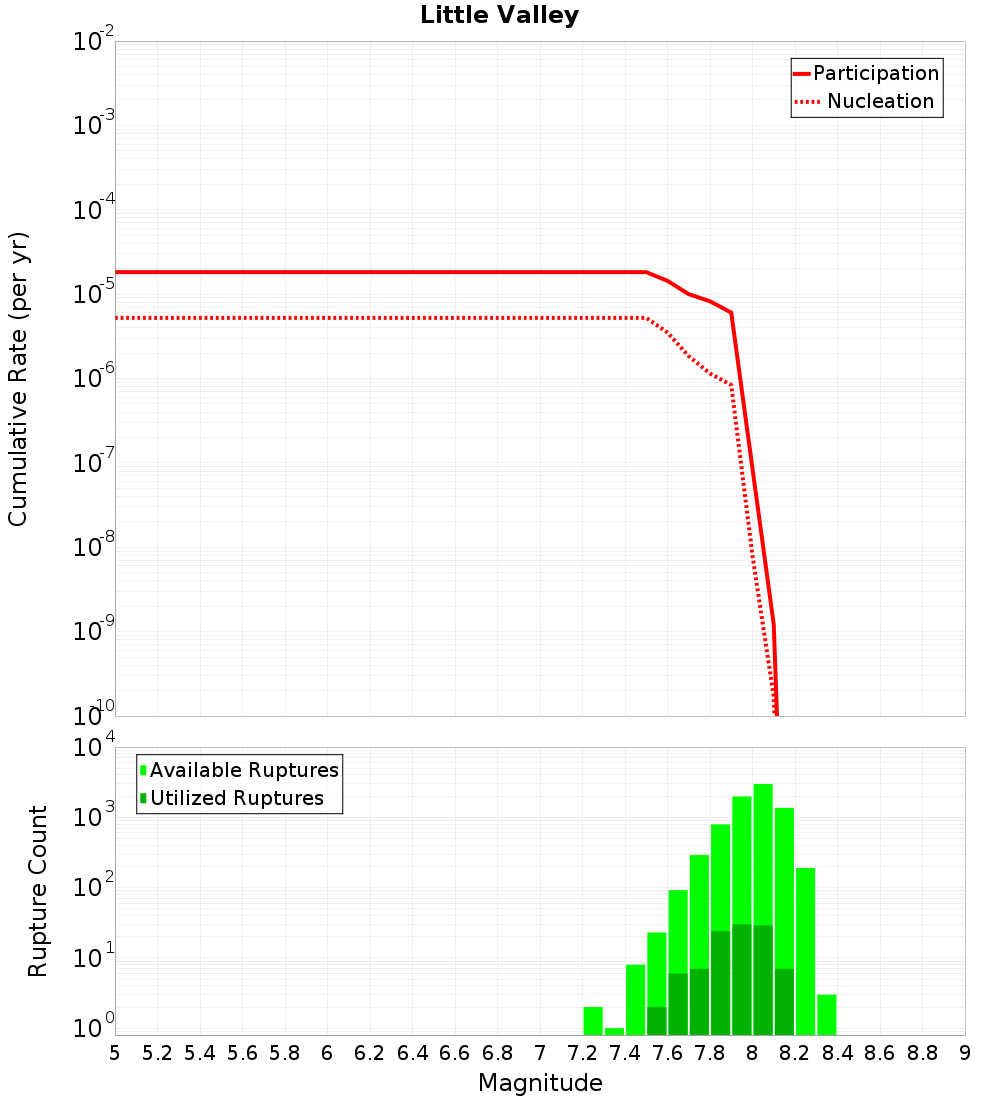

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

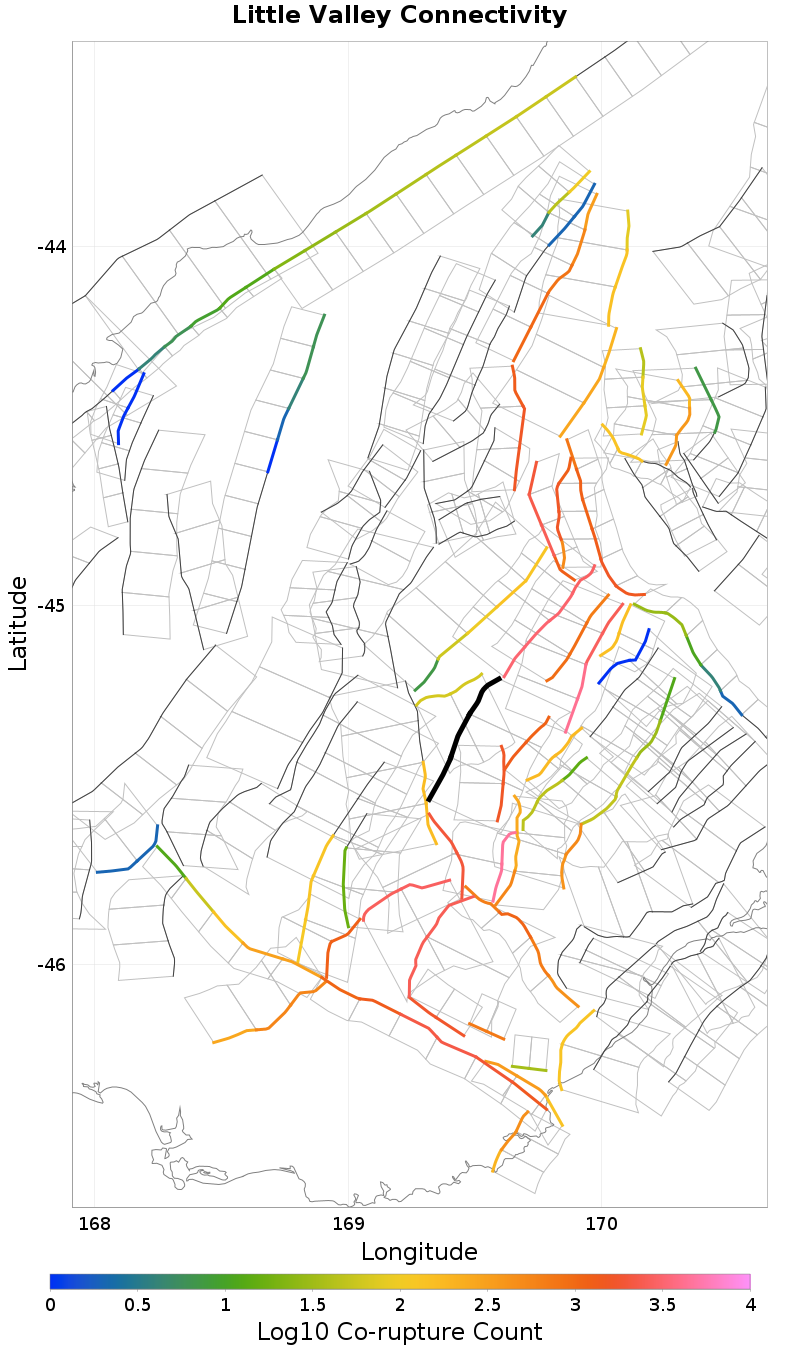

Connectivity

Nearby Sections

Fault Section
Gimmerburn, 0.22 km away
Lake Onslow, 0.37 km away
Backbone, 0.55 km away
Hyde South - The Twins, 0.77 km away
Old Man, 1.09 km away
Raggedy - Blackstone, 1.45 km away
Galloway, 2.75 km away
Hyde North, 4.06 km away
Teviot, 4.31 km away
Long Valley, 5.14 km away
Garibaldi, 6.55 km away
Beaumont River, 10.37 km away
Pylap, 11.66 km away

Gimmerburn, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	true
Co-rupture Count	4,248
Co-rupture Rate	1.3942315E-5

Lake Onslow, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,597
Co-rupture Rate	6.480582E-9

Backbone, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	true
Co-rupture Count	4,556
Co-rupture Rate	4.6559785E-6

Hyde South - The Twins, 0.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	true
Co-rupture Count	521
Co-rupture Rate	9.087578E-8

Old Man, 1.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	true
Co-rupture Count	163
Co-rupture Rate	1.3754338E-9

Raggedy - Blackstone, 1.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	true
Co-rupture Count	3,331
Co-rupture Rate	5.4635343E-6

Galloway, 2.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	false
Co-rupture Count	64
Co-rupture Rate	0.0

Hyde North, 4.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	9.084844E-8

Teviot, 4.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,983
Co-rupture Rate	1.8884432E-6

Long Valley, 5.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,286
Co-rupture Rate	6.5619447E-6

Garibaldi, 6.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	false
Co-rupture Count	929
Co-rupture Rate	9.8682676E-8

Beaumont River, 10.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	false
Co-rupture Count	598
Co-rupture Rate	5.9634108E-12

Pylap, 11.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?	true
Directly Connected?	false
Co-rupture Count	178
Co-rupture Rate	8.9035626E-7
