Palliser - Kaiwhata Details

PropertyValue
Rupture Count12,249
Ruptures Above Sect Min Mag12,243
Ruptures w/ Nonzero Rates241
Magnitude Range[6.84, 8.40]
Length Range[21, 714] km
Total Rate0.0012231814 /yr
Multi-Fault Rate0.0012231814 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults83

Table Of Contents

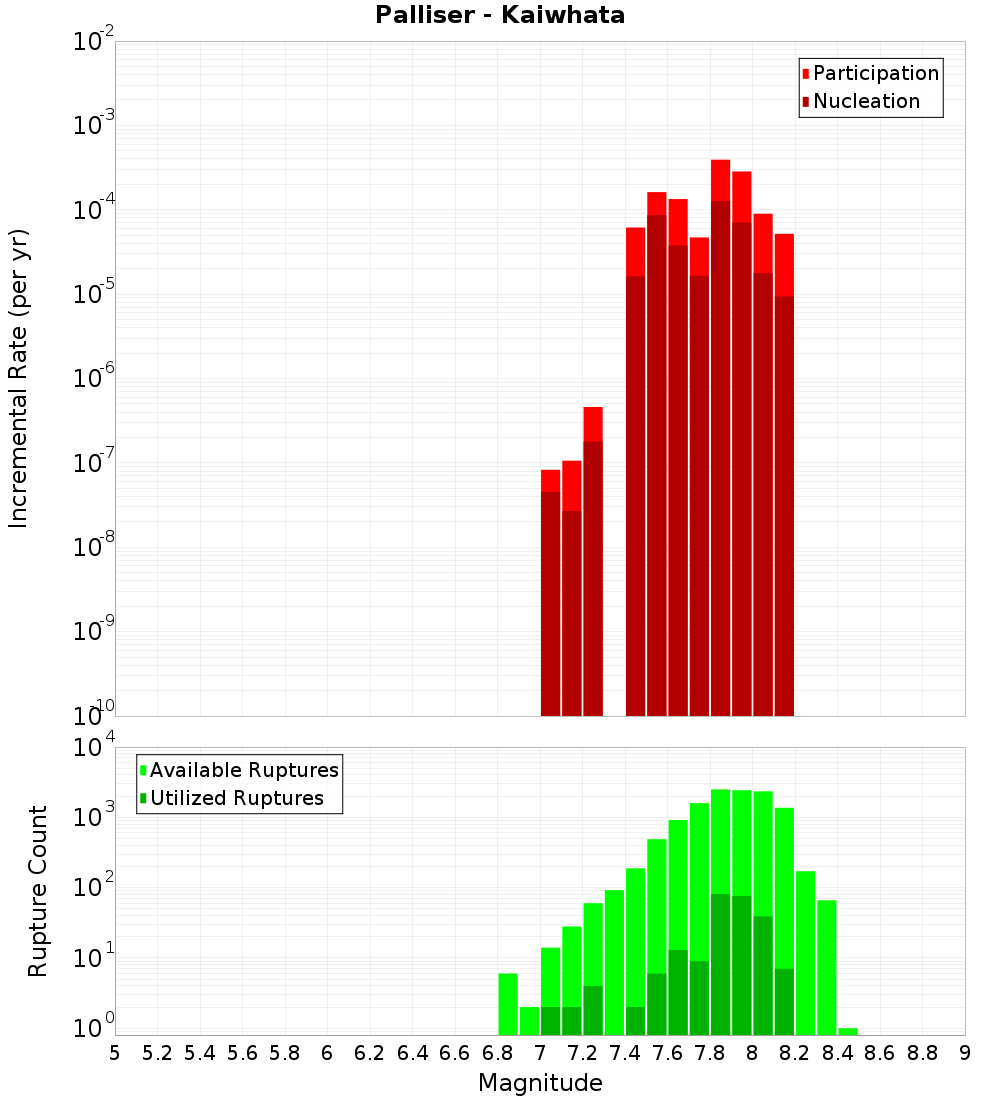

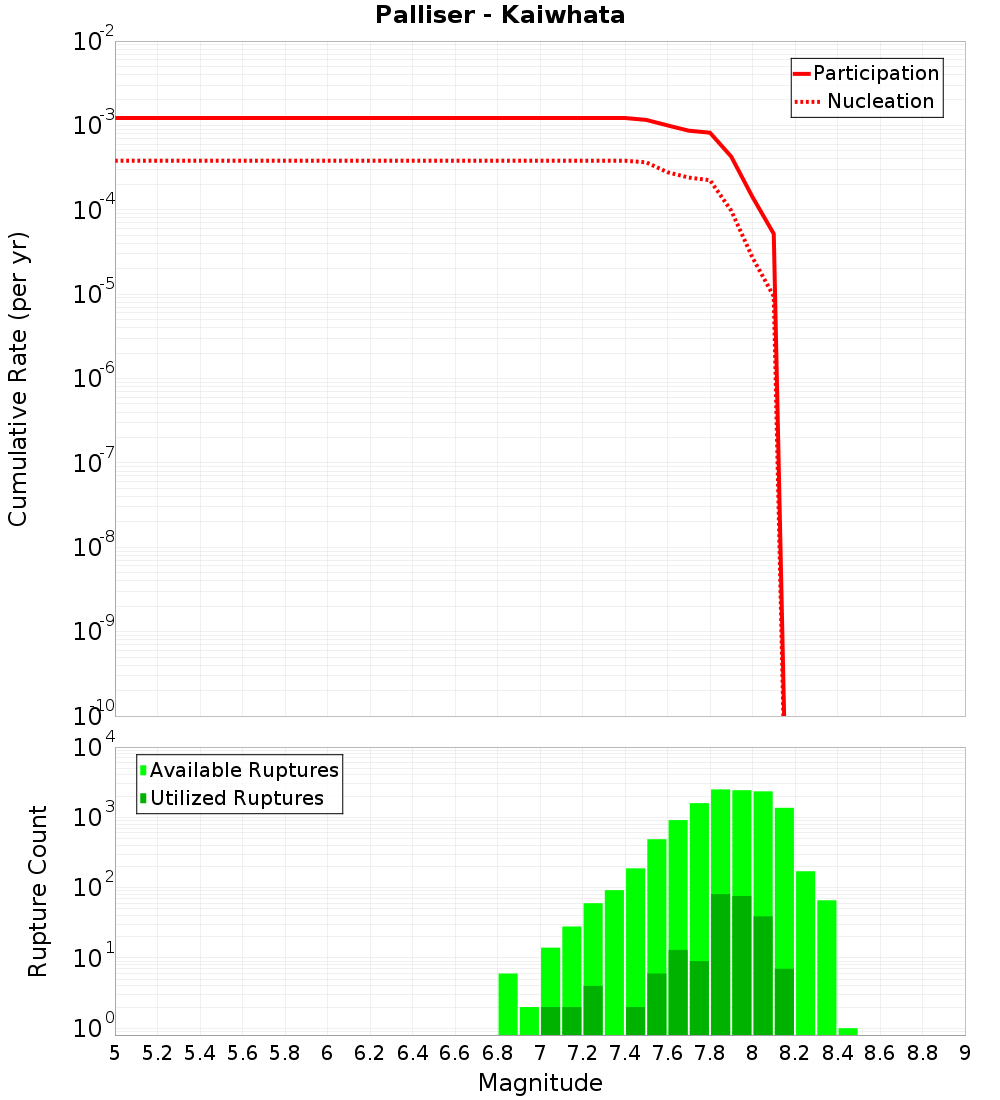

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

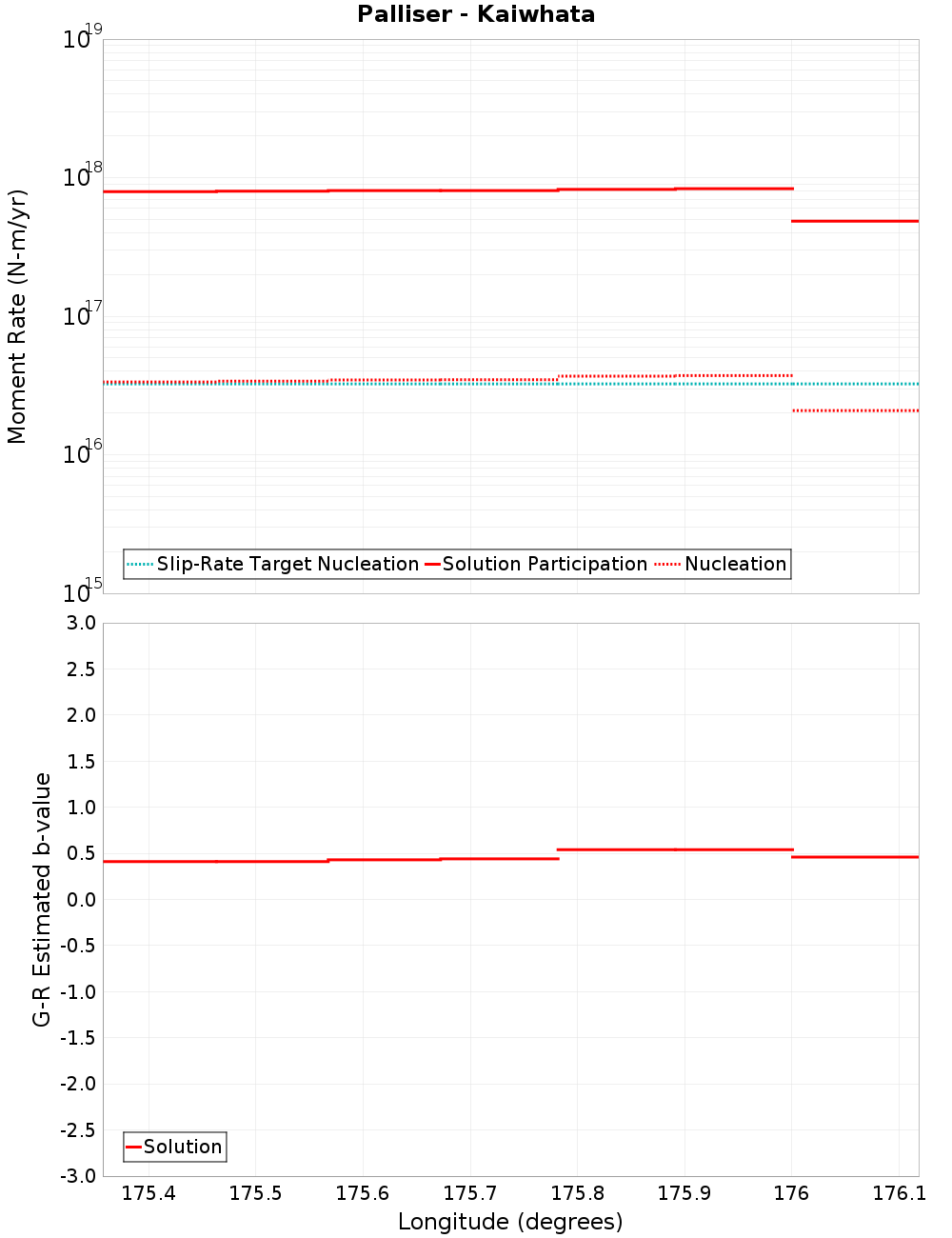

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Honeycomb, 1.22 km away
Uruti Basin, 1.36 km away
Otaraia, 1.7 km away
Riversdale, 3.25 km away
Uruti Point, 3.6 km away
BooBoo, 4.24 km away
Whareama Bank, 6.44 km away
Opouawe - Uruti, 8.58 km away
Dry River - Huangarua: 1, 11.83 km away
Pahaua, 13.63 km away
Riversdale North, 14.39 km away

Honeycomb, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?true
Directly Connected?true
Co-rupture Count308
Co-rupture Rate1.1269588E-5

Uruti Basin, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?true
Directly Connected?true
Co-rupture Count6,821
Co-rupture Rate4.797581E-4

Otaraia, 1.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?true
Directly Connected?true
Co-rupture Count131
Co-rupture Rate1.7218843E-8

Riversdale, 3.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?true
Directly Connected?true
Co-rupture Count1,798
Co-rupture Rate5.948254E-4

Uruti Point, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?true
Directly Connected?true
Co-rupture Count1,143
Co-rupture Rate4.8102564E-5

BooBoo, 4.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?true
Directly Connected?true
Co-rupture Count7,841
Co-rupture Rate8.316161E-4

Whareama Bank, 6.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate1.4641452E-4

Opouawe - Uruti, 8.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?true
Directly Connected?true
Co-rupture Count2,041
Co-rupture Rate2.3798726E-5

Dry River - Huangarua: 1, 11.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahaua, 13.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?true
Directly Connected?true
Co-rupture Count1,432
Co-rupture Rate4.38773E-5

Riversdale North, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwNjEuMFR5U2E0
Connected?true
Directly Connected?false
Co-rupture Count1,394
Co-rupture Rate4.3804635E-4
