Maungati Details
| Property | Value |
|---|---|
| Rupture Count | 844 |
| Ruptures Above Sect Min Mag | 839 |
| Ruptures w/ Nonzero Rates | 46 |
| Magnitude Range | [6.77, 8.35] |
| Length Range | [16, 538] km |
| Total Rate | 1.6372389E-5 /yr |
| Multi-Fault Rate | 1.5572843E-5 /yr (95.12%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 60 |
Table Of Contents

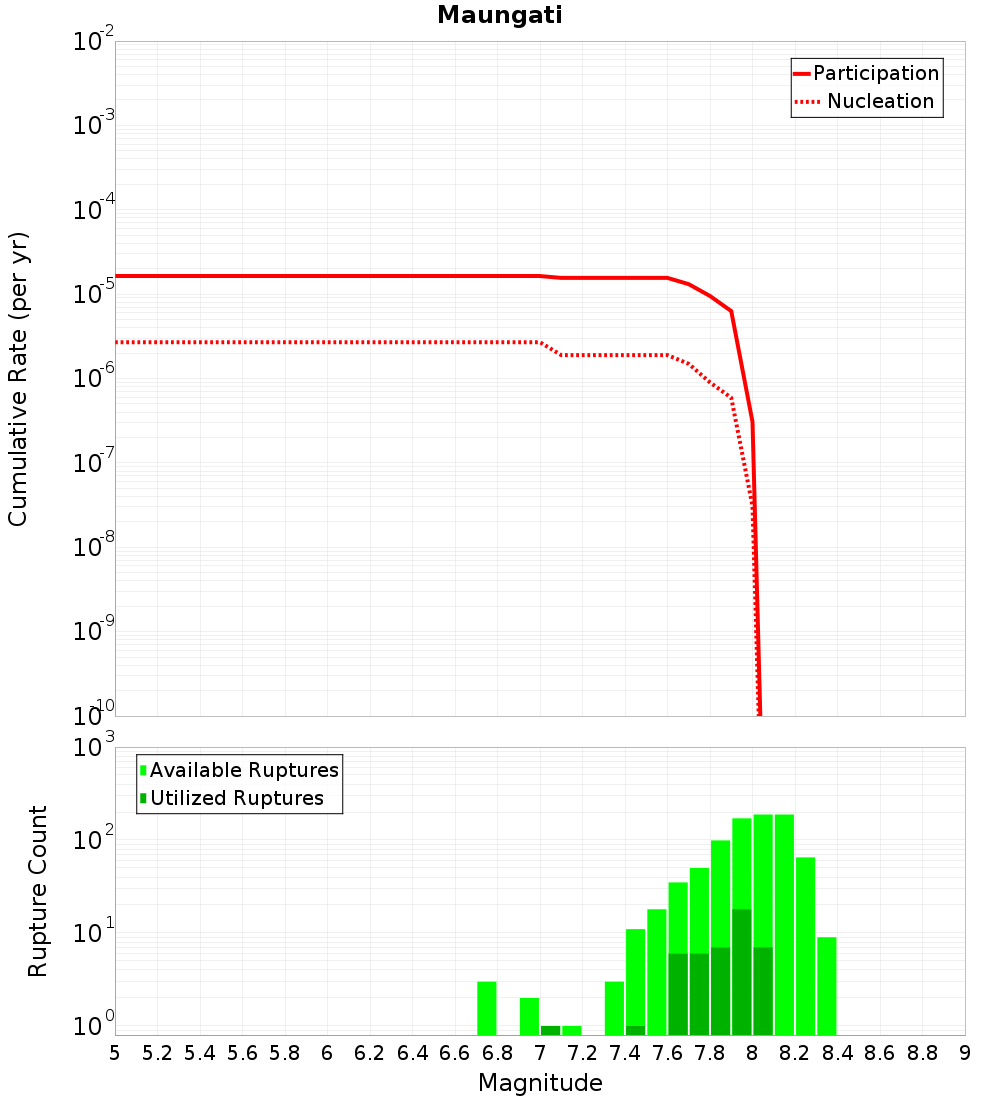

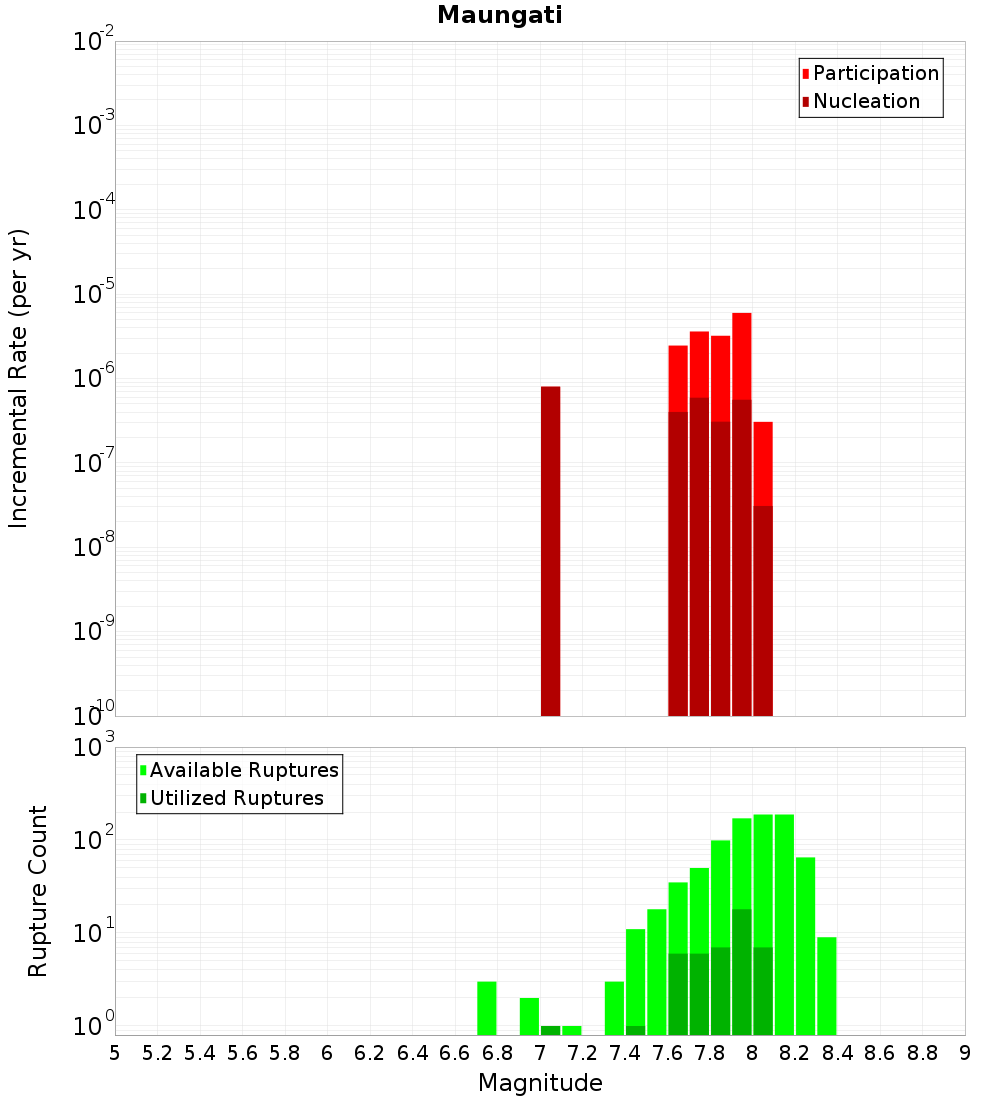

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Brothers, 0.81 km away |
| Hunters, 3.56 km away |
| Rapuwai, 6.24 km away |
| Chamberlain, 8.42 km away |
| Waimate, 13.4 km away |
Brothers, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 696 |
| Co-rupture Rate | 7.3568885E-6 |
Hunters, 3.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 102 |
| Co-rupture Rate | 5.2026376E-6 |
Rapuwai, 6.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 173 |
| Co-rupture Rate | 3.2042017E-6 |
Chamberlain, 8.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimate, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
