Murphys Creek Details
| Property | Value |
|---|---|
| Rupture Count | 199 |
| Ruptures Above Sect Min Mag | 198 |
| Ruptures w/ Nonzero Rates | 19 |
| Magnitude Range | [7.09, 8.17] |
| Length Range | [22, 244] km |
| Total Rate | 1.3245697E-5 /yr |
| Multi-Fault Rate | 3.468982E-6 /yr (26.19%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 24 |
Table Of Contents

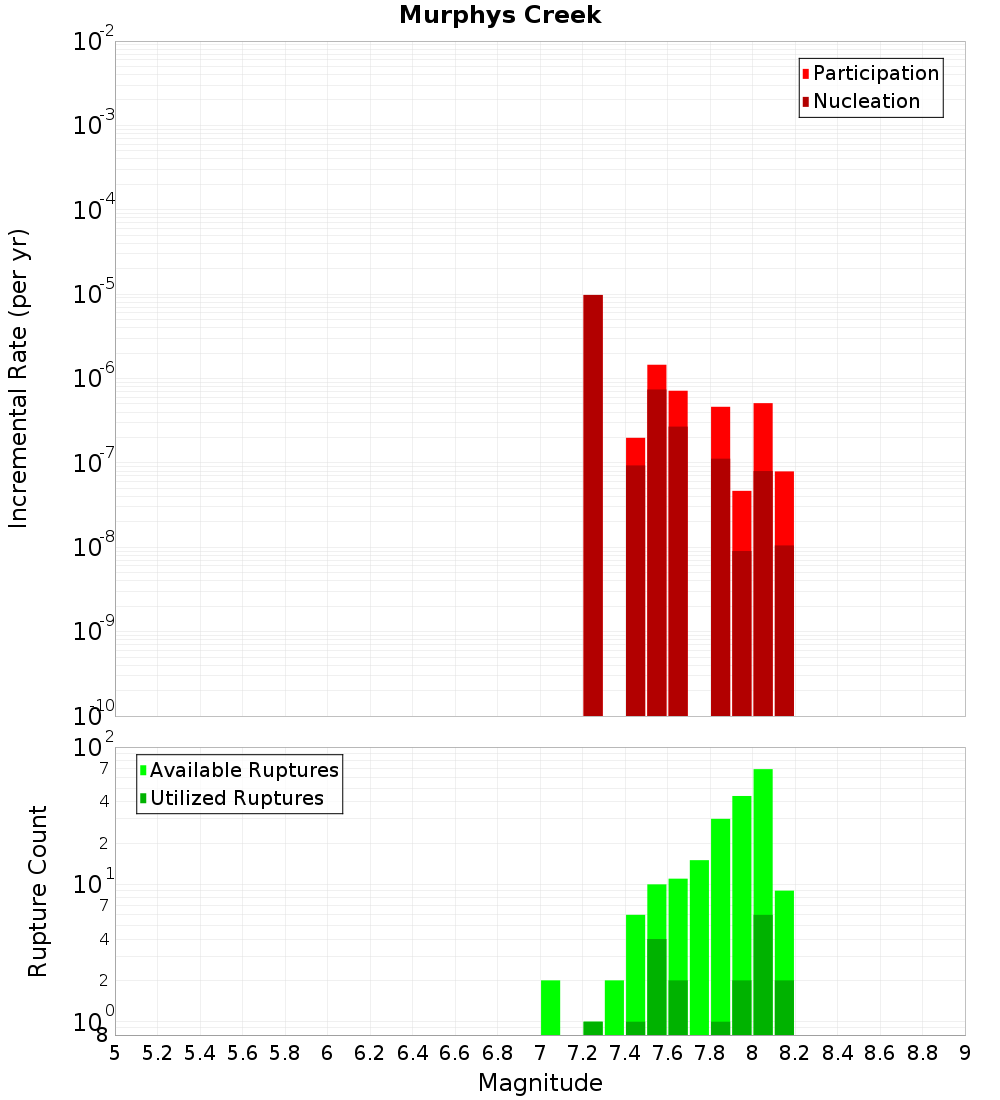

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Waipiata, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 1.5417542E-7 |
Ranfurly, 0.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 1.9901434E-7 |
Billys Ridge, 2.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 7.956938E-10 |
Dunback Hill, 2.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 1.1368146E-7 |
Waihemo, 3.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Logan Burn, 4.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 184 |
| Co-rupture Rate | 3.0027284E-6 |
Horse Flat, 5.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17 |
| Co-rupture Rate | 0.0 |
Pylap, 6.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Flat Stream - Glenpark, 7.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Nichols Rock, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.1368146E-7 |
Hyde North, 12.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODIuMHdkWGd6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
