Central Wedge 1 & 2 & 3 Details

Property	Value
Rupture Count	3,981
Ruptures Above Sect Min Mag	3,979
Ruptures w/ Nonzero Rates	27
Magnitude Range	[7.39, 8.54]
Length Range	[29, 878] km
Total Rate	8.845525E-5 /yr
Multi-Fault Rate	8.845525E-5 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	48

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

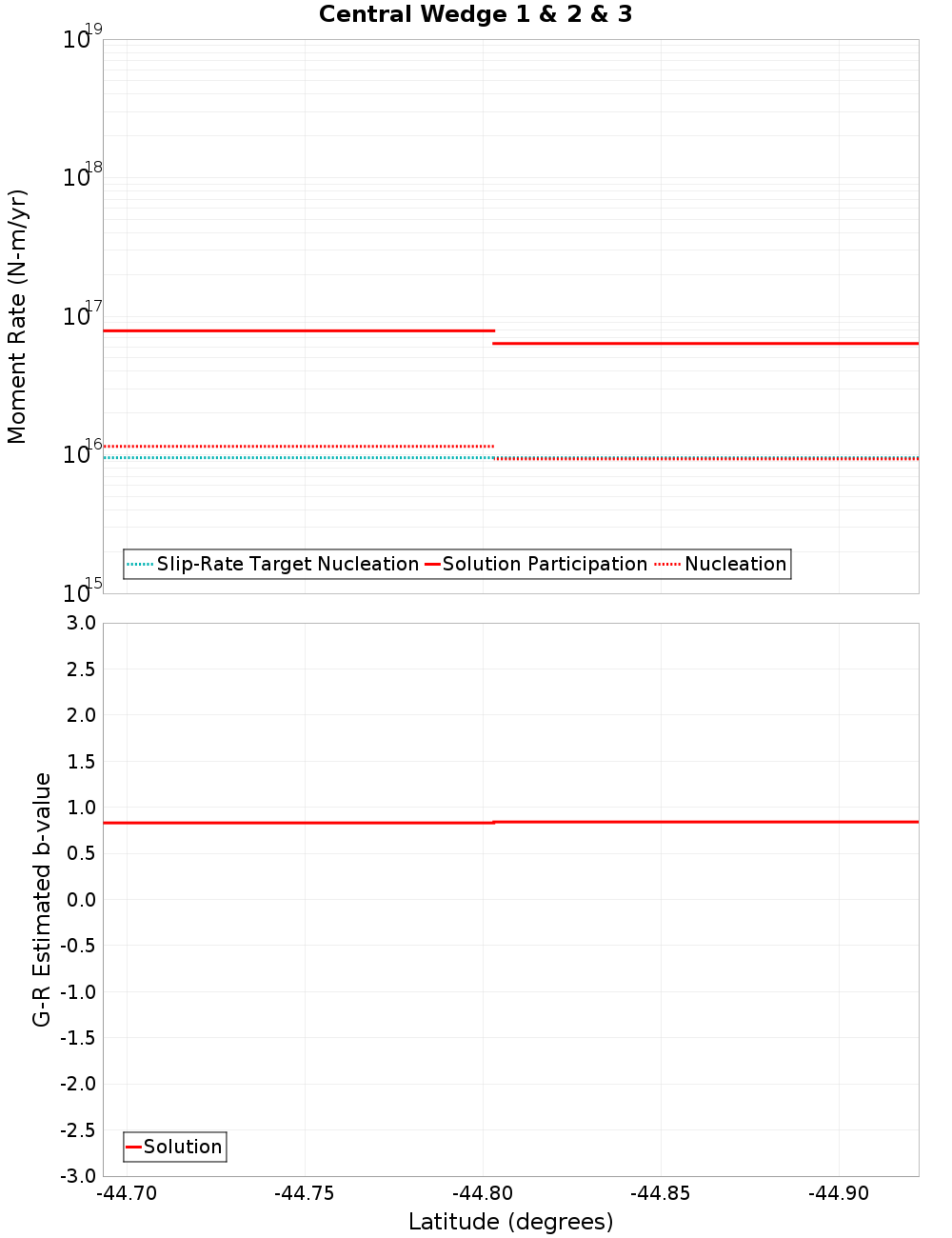

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Caswell, 0.16 km away
Central Wedge 4 - South Wedge 411, 0.95 km away
Caswell High 10, 1.11 km away
Alpine: Caswell - South George, 2.34 km away
Alpine: Resolution - Charles, 3.37 km away
Alpine: Nancy, 3.81 km away
South Wedge 2, 3.89 km away
Caswell High 67, 4.39 km away
Caswell High 9, 5.17 km away
Alpine: George landward, 6.81 km away
Alpine: George seaward, 7.06 km away
Caswell High 5, 10.98 km away
Alpine: Resolution - Dagg, 12.75 km away
Caswell High 8, 13.72 km away
Milford Basin 5 to George R2, 13.88 km away

Alpine: Caswell, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	3,279
Co-rupture Rate	1.6323955E-5

Central Wedge 4 - South Wedge 411, 0.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 10, 1.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,459
Co-rupture Rate	0.0

Alpine: Caswell - South George, 2.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	2,856
Co-rupture Rate	0.0

Alpine: Resolution - Charles, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	598
Co-rupture Rate	4.1346404E-5

Alpine: Nancy, 3.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	496
Co-rupture Rate	4.7108842E-5

South Wedge 2, 3.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 67, 4.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	905
Co-rupture Rate	0.0

Caswell High 9, 5.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	341
Co-rupture Rate	4.643154E-5

Alpine: George landward, 6.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	1,174
Co-rupture Rate	0.0

Alpine: George seaward, 7.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	1,666
Co-rupture Rate	0.0

Caswell High 5, 10.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	69
Co-rupture Rate	0.0

Alpine: Resolution - Dagg, 12.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	1,016
Co-rupture Rate	8.845525E-5

Caswell High 8, 13.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	691
Co-rupture Rate	8.778143E-5

Milford Basin 5 to George R2, 13.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	569
Co-rupture Rate	0.0
