Riversdale North Details

PropertyValue
Rupture Count1,525
Ruptures Above Sect Min Mag1,521
Ruptures w/ Nonzero Rates78
Magnitude Range[6.68, 8.23]
Length Range[16, 505] km
Total Rate0.0010010637 /yr
Multi-Fault Rate0.0010010637 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults41

Table Of Contents

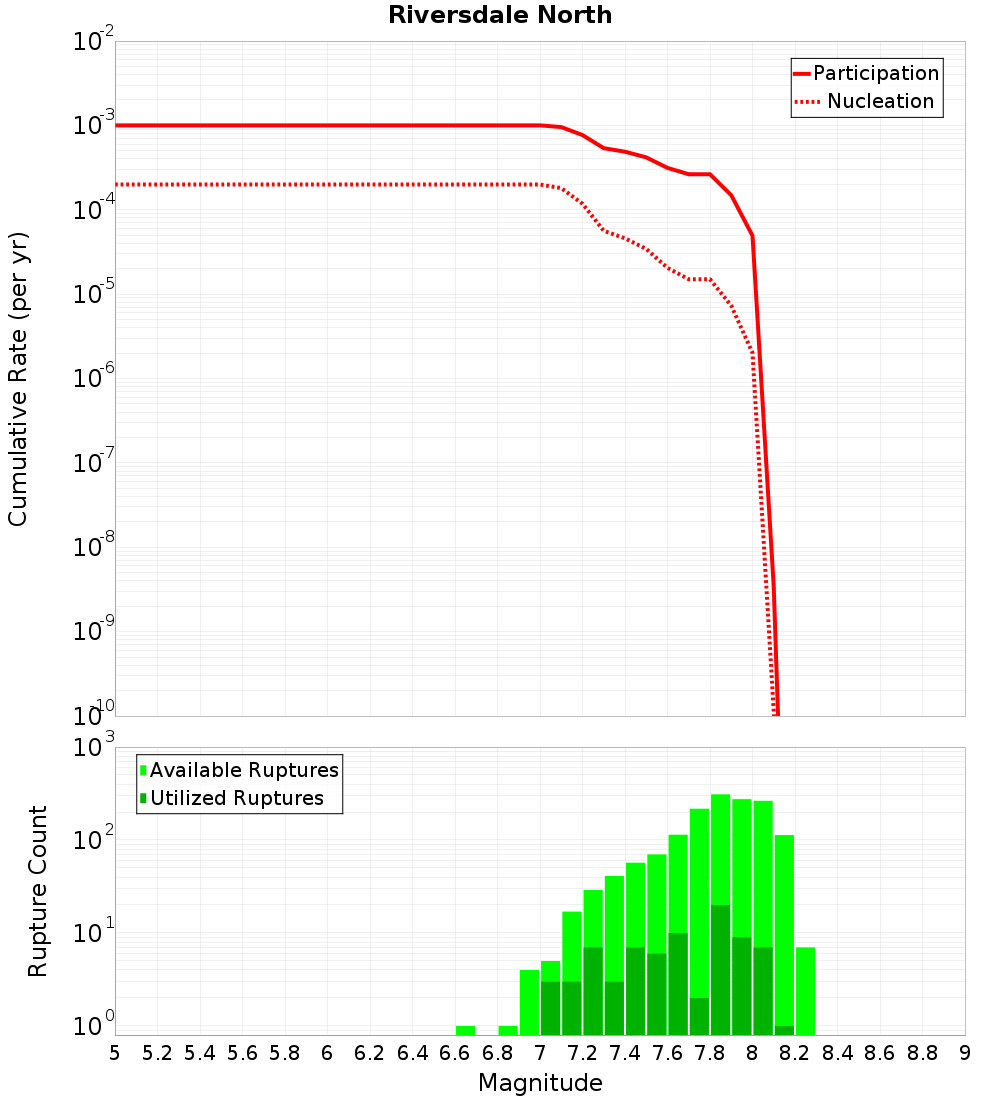

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

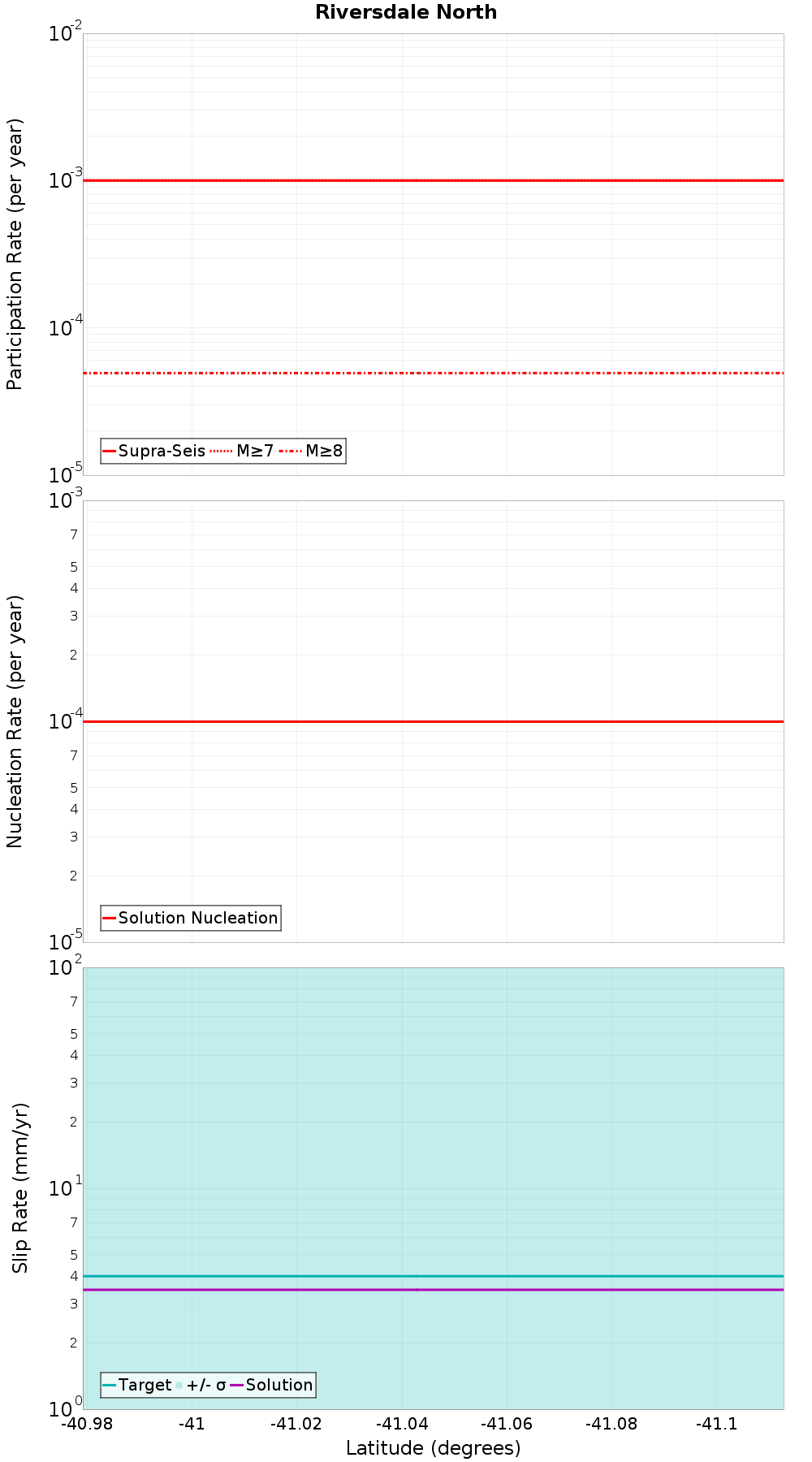

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Riversdale, 1.12 km away
Carterton, 2 km away
Mataikona, 2.18 km away
Uruti Point, 3.13 km away
Kaumingi, 4.3 km away
Whareama Bank, 7.05 km away
Mataikona East, 9.36 km away
Mokonui Northeast, 13.07 km away
Palliser - Kaiwhata, 14.39 km away

Riversdale, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?true
Co-rupture Count803
Co-rupture Rate8.4896444E-4

Carterton, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?true
Co-rupture Count129
Co-rupture Rate3.667423E-4

Mataikona, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?true
Co-rupture Count1,234
Co-rupture Rate3.8395895E-4

Uruti Point, 3.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?true
Co-rupture Count719
Co-rupture Rate4.809598E-5

Kaumingi, 4.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whareama Bank, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate5.9696406E-5

Mataikona East, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate1.7297893E-5

Mokonui Northeast, 13.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate5.904913E-5

Palliser - Kaiwhata, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?false
Co-rupture Count1,394
Co-rupture Rate3.2618805E-4
