Roaring Meg Details

Property	Value
Rupture Count	14,574
Ruptures Above Sect Min Mag	14,572
Ruptures w/ Nonzero Rates	82
Magnitude Range	[6.93, 8.52]
Length Range	[20, 797] km
Total Rate	1.3029394E-5 /yr
Multi-Fault Rate	1.3029239E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	79

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

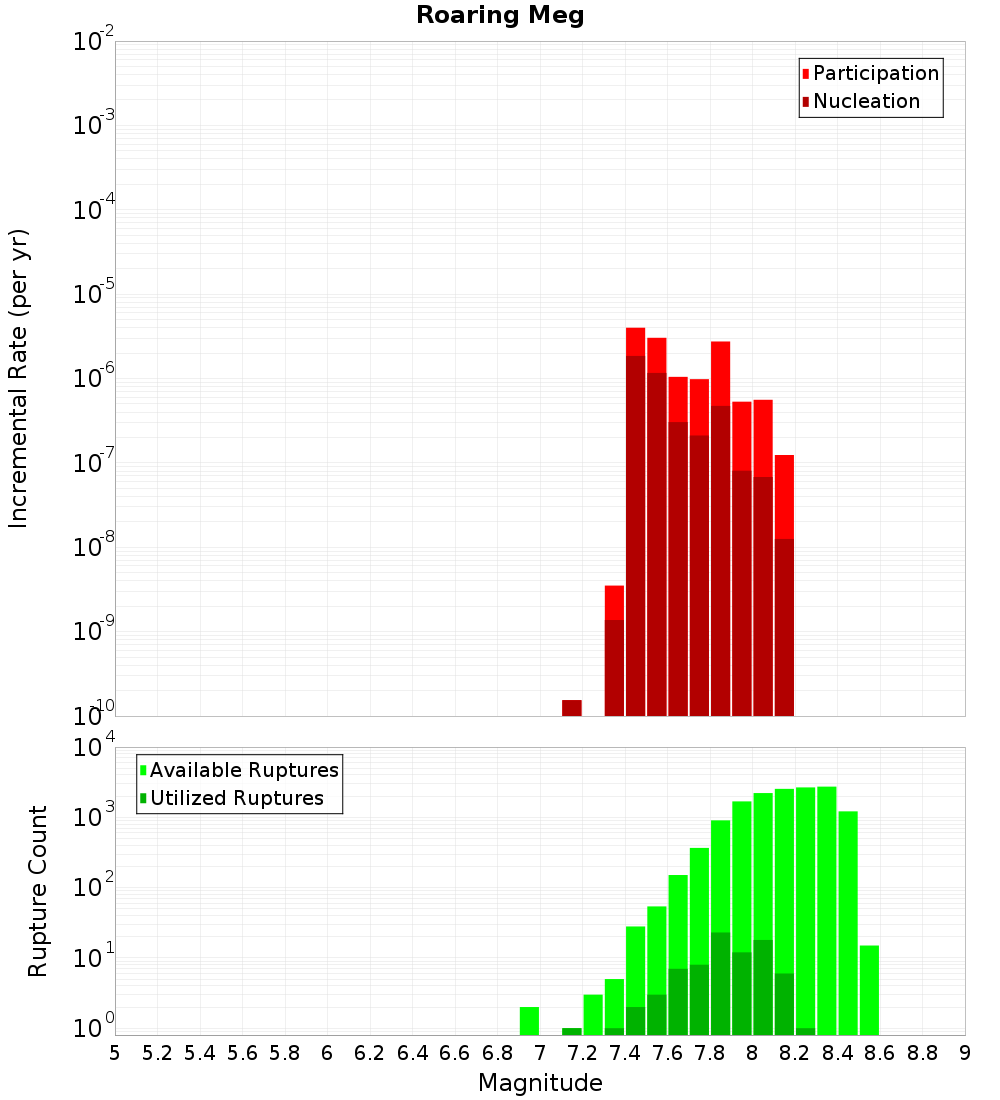

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Pisa, 0.18 km away
Paddys Ridge, 0.41 km away
NW Cardrona South, 2.76 km away
NW Cardrona North, 3.16 km away
Nevis, 5.46 km away
Roaring Lion, 6.05 km away
Dunstan, 10.34 km away
Old Man, 11.24 km away
Motatapu, 13.14 km away
Garvie, 14.21 km away

Pisa, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	10,870
Co-rupture Rate	7.753656E-6

Paddys Ridge, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	4,193
Co-rupture Rate	1.9492663E-6

NW Cardrona South, 2.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	513
Co-rupture Rate	5.2274197E-7

NW Cardrona North, 3.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	true
Co-rupture Count	8,409
Co-rupture Rate	9.0608855E-6

Nevis, 5.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	470
Co-rupture Rate	4.7725088E-8

Roaring Lion, 6.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	2,845
Co-rupture Rate	3.080862E-6

Dunstan, 10.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Old Man, 11.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	1,872
Co-rupture Rate	0.0

Motatapu, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	4,158
Co-rupture Rate	2.2464042E-6

Garvie, 14.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?	true
Directly Connected?	false
Co-rupture Count	1,176
Co-rupture Rate	6.6555856E-7
