Torlesse Details

PropertyValue
Rupture Count502
Ruptures Above Sect Min Mag488
Ruptures w/ Nonzero Rates8
Magnitude Range[6.49, 8.07]
Length Range[13, 297] km
Total Rate3.9929777E-4 /yr
Multi-Fault Rate3.9929777E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults31

Table Of Contents

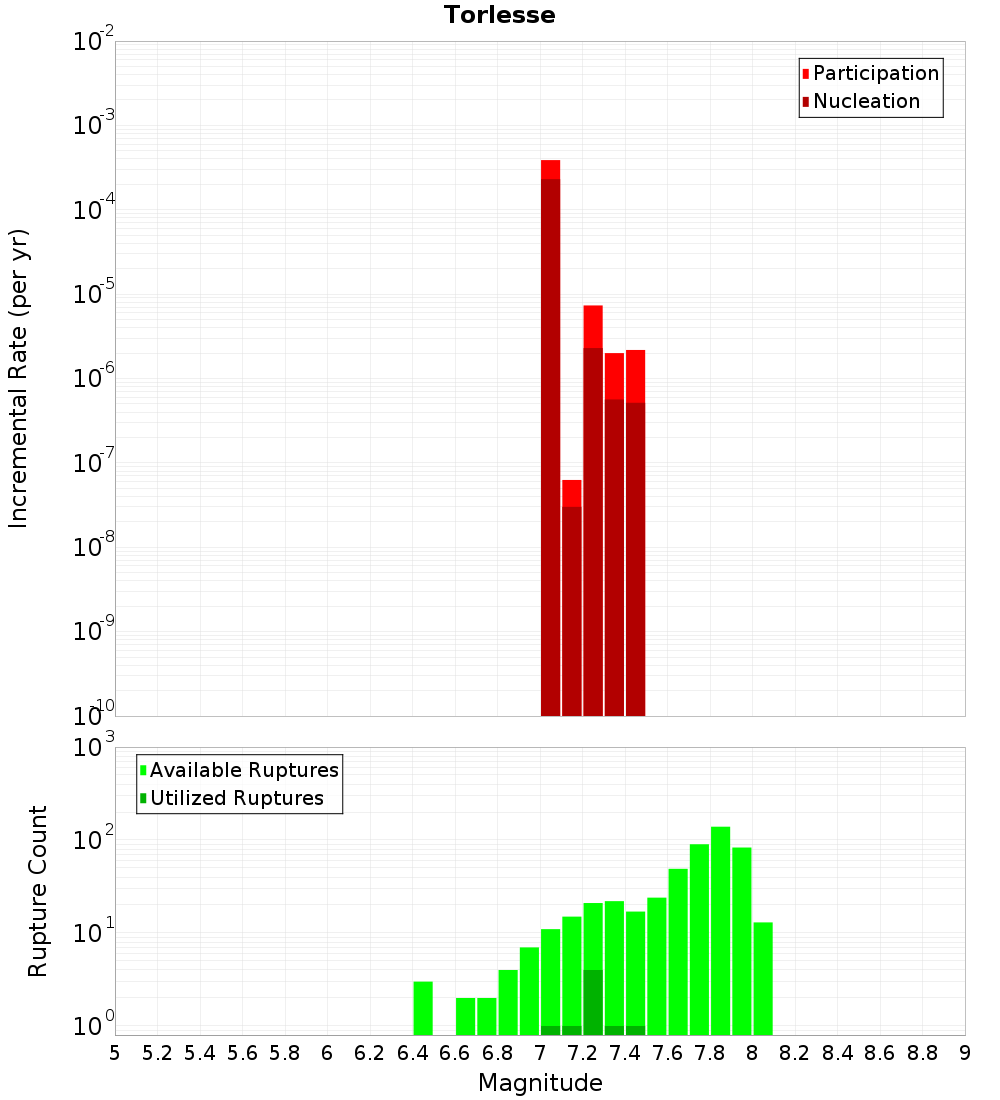

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

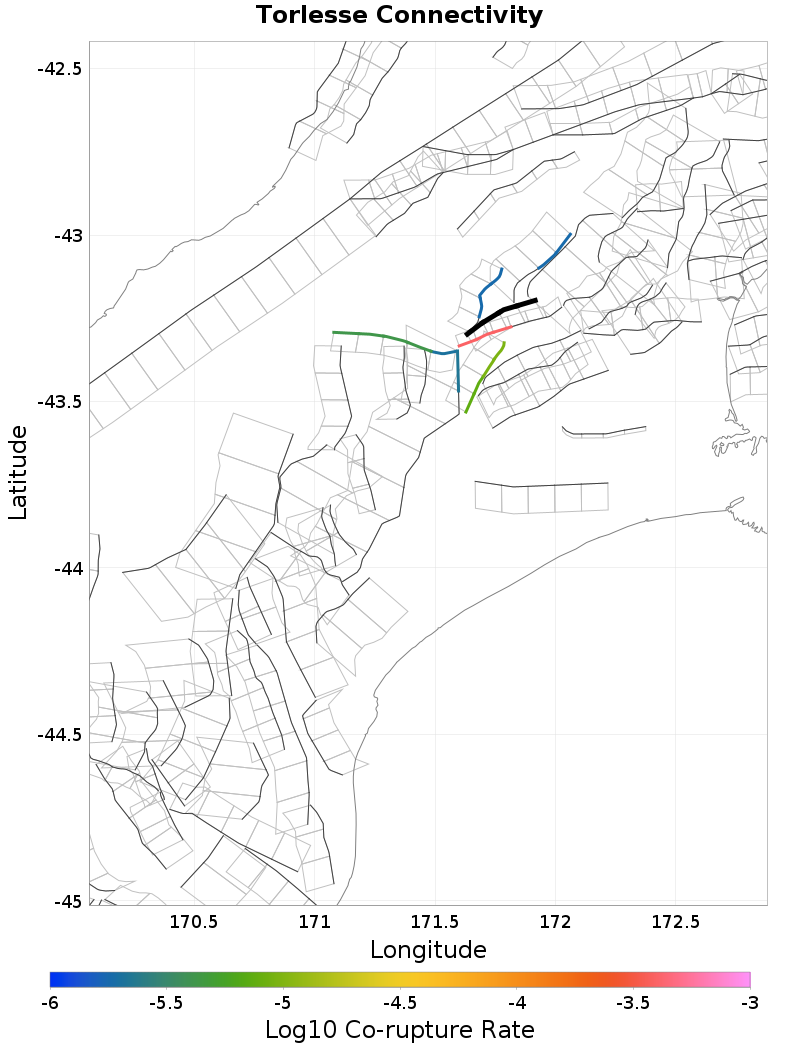

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Porters Pass, 0.31 km away
Big Ben, 0.37 km away
Esk South, 0.4 km away
Cheeseman, 0.67 km away
Sailor, 1.39 km away
Hutt Peel, 6.36 km away
Double Hill, 6.89 km away
Lees Valley, 9.41 km away
Knowles Top, 11.34 km away
Hororata, 12.36 km away
Starvation - Ashley, 12.83 km away
Kowai - View Hill, 13.54 km away

Porters Pass, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?true
Co-rupture Count412
Co-rupture Rate3.9541724E-4

Big Ben, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?true
Co-rupture Count82
Co-rupture Rate9.406386E-6

Esk South, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 0.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?true
Co-rupture Count177
Co-rupture Rate1.7958042E-6

Sailor, 1.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.7958042E-6

Hutt Peel, 6.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?false
Co-rupture Count417
Co-rupture Rate2.1791884E-6

Double Hill, 6.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate4.2011666E-6

Lees Valley, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 11.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODMuMFJEQ2ZY
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
