Awamoa Details
| Property | Value |
|---|---|
| Rupture Count | 159 |
| Ruptures Above Sect Min Mag | 159 |
| Ruptures w/ Nonzero Rates | 21 |
| Magnitude Range | [7.02, 8.15] |
| Length Range | [22, 277] km |
| Total Rate | 2.912259E-5 /yr |
| Multi-Fault Rate | 8.746149E-6 /yr (30.03%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 26 |
Table Of Contents

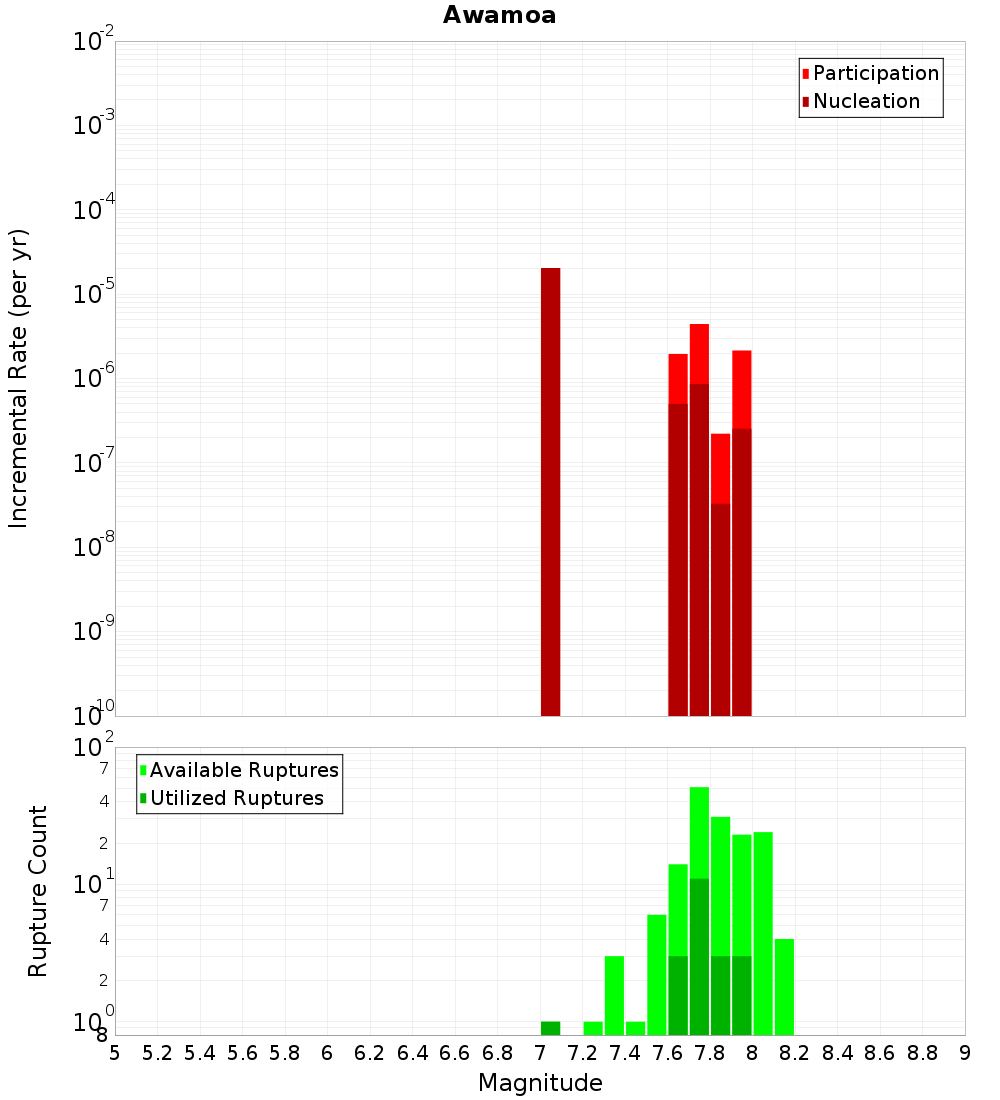

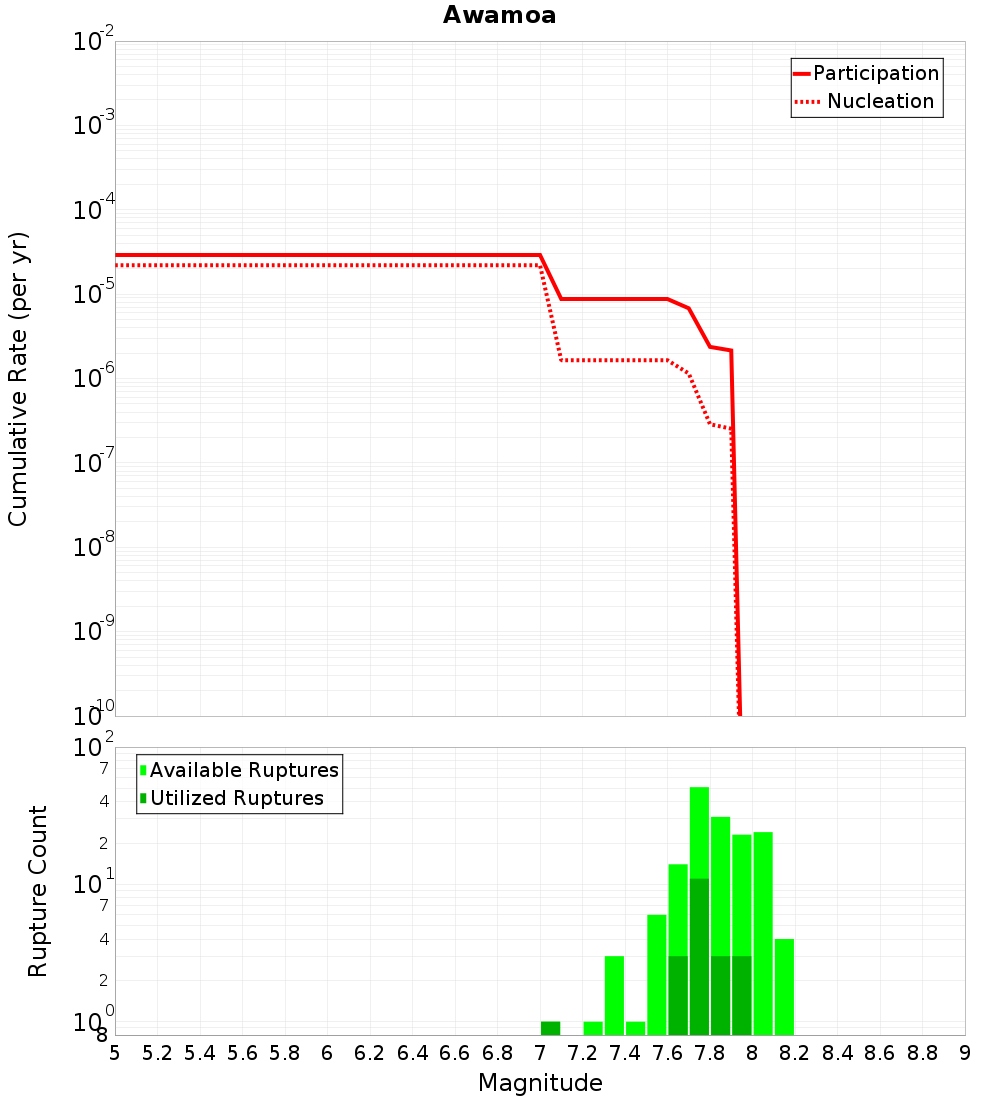

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

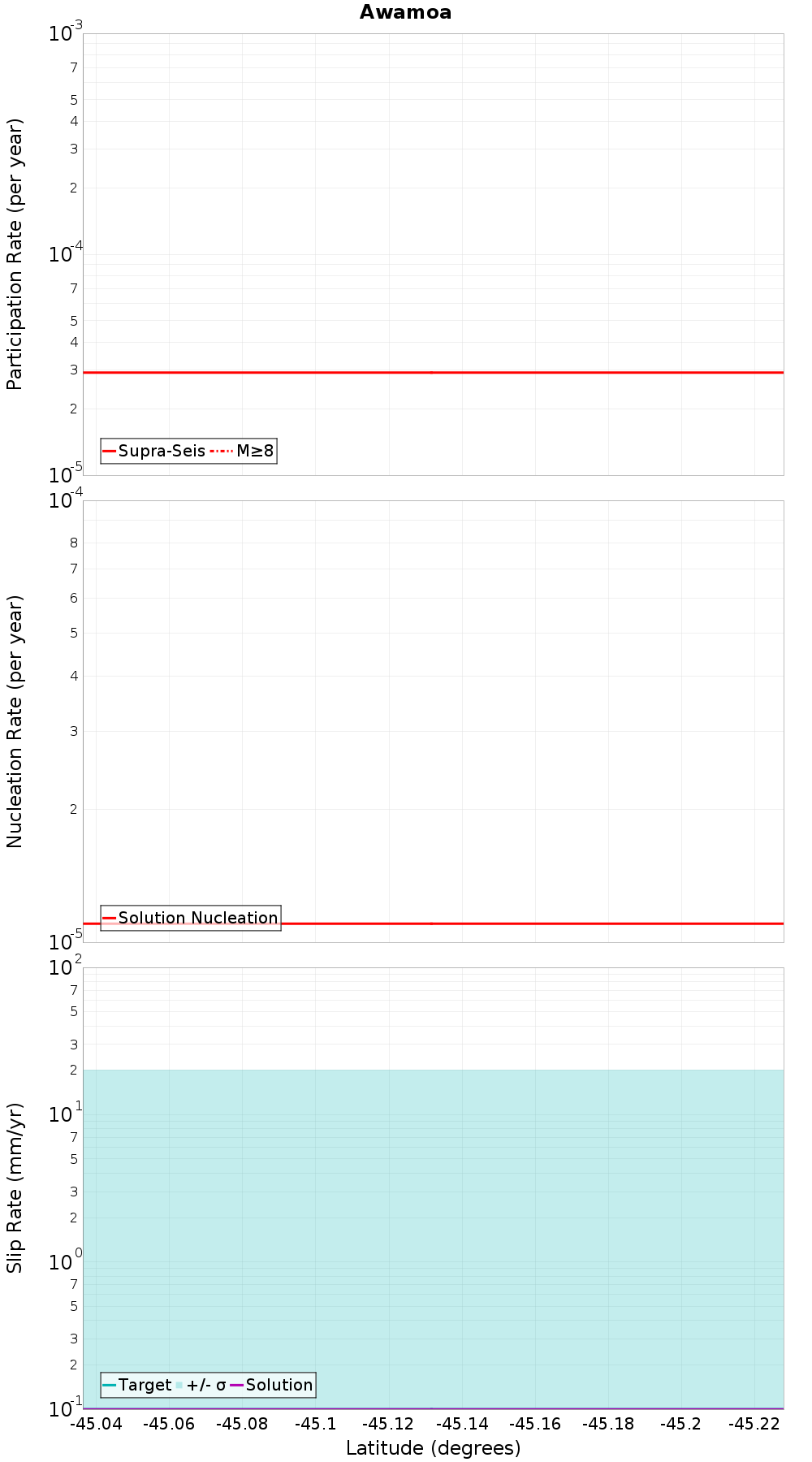

Along-Strike Values

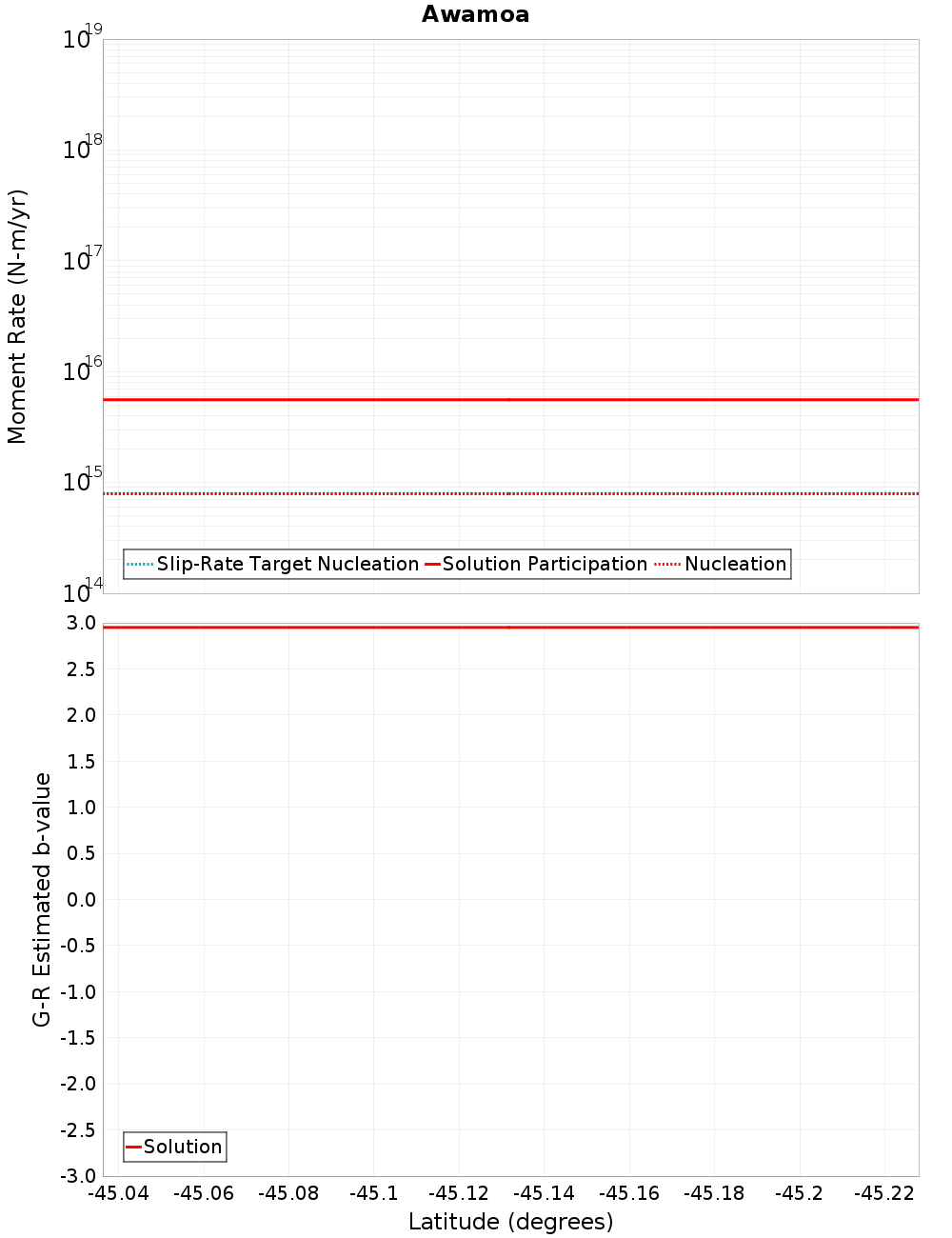

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Waitaki, 0.28 km away |
| Waimate, 8.62 km away |
| Stonewall, 14.16 km away |
Waitaki, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODYuMGlSQWs5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 158 |
| Co-rupture Rate | 8.746149E-6 |
Waimate, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODYuMGlSQWs5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 59 |
| Co-rupture Rate | 2.8247775E-6 |
Stonewall, 14.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjEwODYuMGlSQWs5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 65 |
| Co-rupture Rate | 3.1504558E-6 |
