Dry River - Huangarua: 1 Details

Property	Value
Rupture Count	2,856
Ruptures Above Sect Min Mag	2,828
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.52, 8.12]
Length Range	[16, 467] km
Total Rate	2.0940935E-4 /yr
Multi-Fault Rate	2.0940935E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	82

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

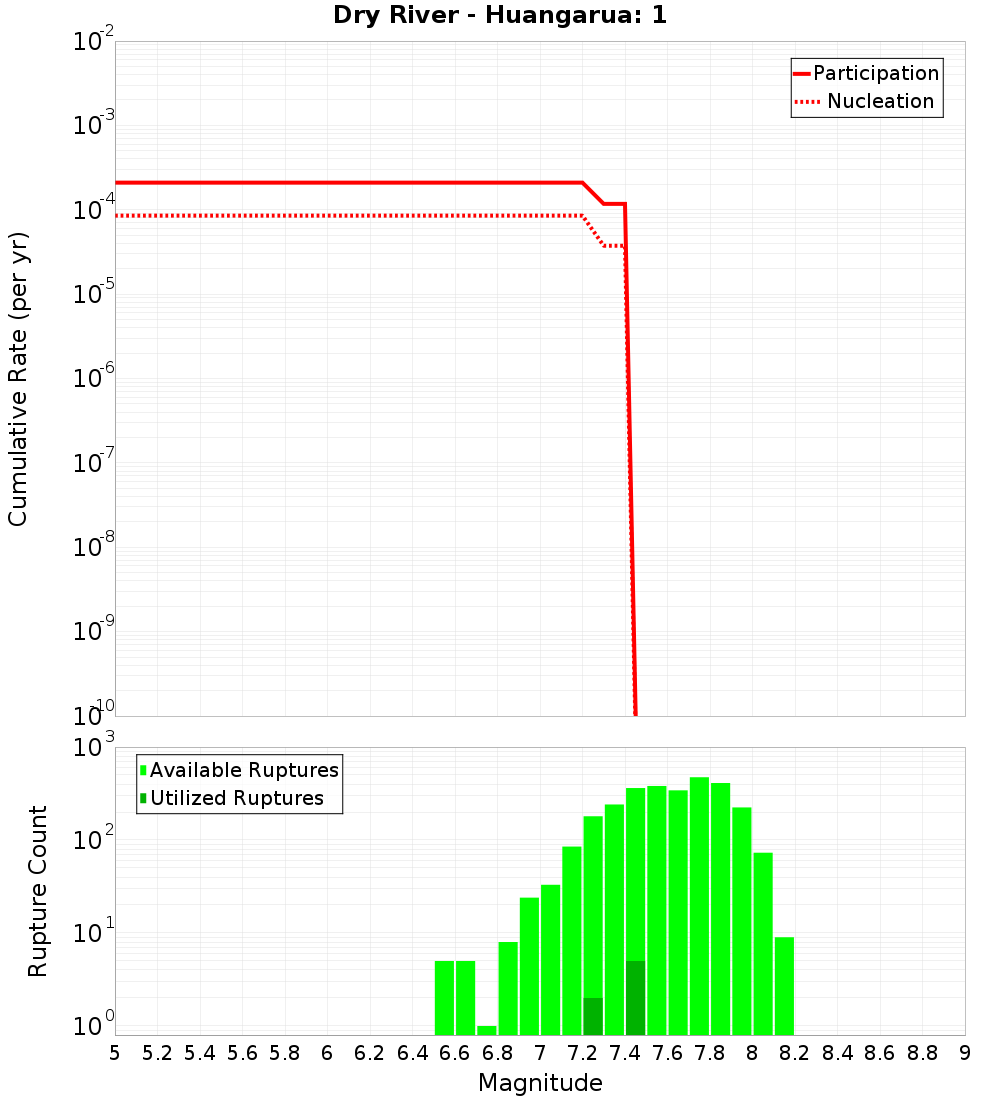

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

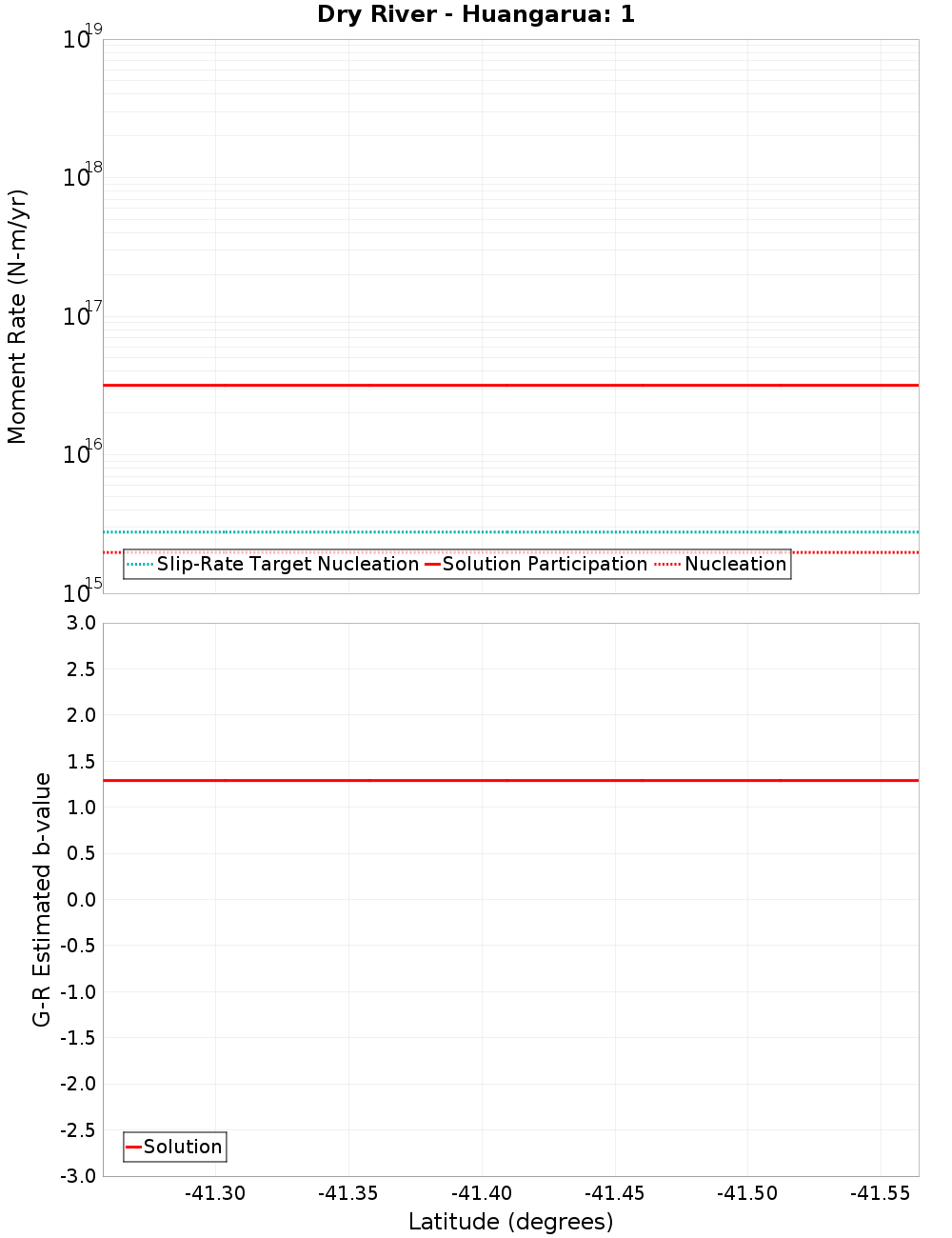

Moment-Rates and b-Values

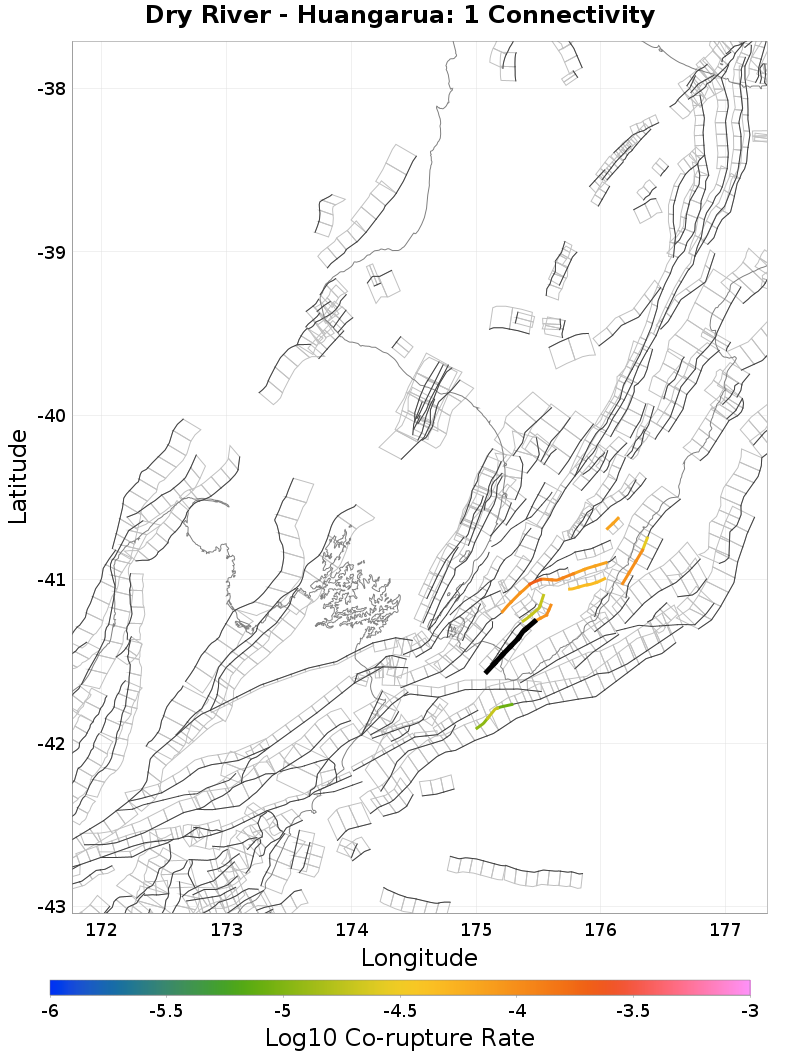

Connectivity

Nearby Sections

Fault Section
Dry River - Huangarua: 2, 0.11 km away
Otaraia, 0.39 km away
Martinborough, 4.37 km away
Bidwill, 7.05 km away
Dry River - Huangarua: 3, 7.07 km away
BooBoo, 10.86 km away
Palliser - Kaiwhata, 11.83 km away
Wharekauhau, 12.89 km away
Opouawe - Uruti, 14.3 km away

Dry River - Huangarua: 2, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMjQuMDdpWXN1
Connected?	true
Directly Connected?	true
Co-rupture Count	546
Co-rupture Rate	8.976769E-5

Otaraia, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMjQuMDdpWXN1
Connected?	true
Directly Connected?	true
Co-rupture Count	307
Co-rupture Rate	0.0

Martinborough, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMjQuMDdpWXN1
Connected?	true
Directly Connected?	true
Co-rupture Count	871
Co-rupture Rate	1.9326737E-5

Bidwill, 7.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMjQuMDdpWXN1
Connected?	true
Directly Connected?	false
Co-rupture Count	83
Co-rupture Rate	0.0

Dry River - Huangarua: 3, 7.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMjQuMDdpWXN1
Connected?	true
Directly Connected?	true
Co-rupture Count	267
Co-rupture Rate	1.0031492E-4

BooBoo, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMjQuMDdpWXN1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,215
Co-rupture Rate	0.0

Palliser - Kaiwhata, 11.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMjQuMDdpWXN1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wharekauhau, 12.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMjQuMDdpWXN1
Connected?	true
Directly Connected?	true
Co-rupture Count	122
Co-rupture Rate	0.0

Opouawe - Uruti, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjExMjQuMDdpWXN1
Connected?	true
Directly Connected?	true
Co-rupture Count	686
Co-rupture Rate	1.9326737E-5
